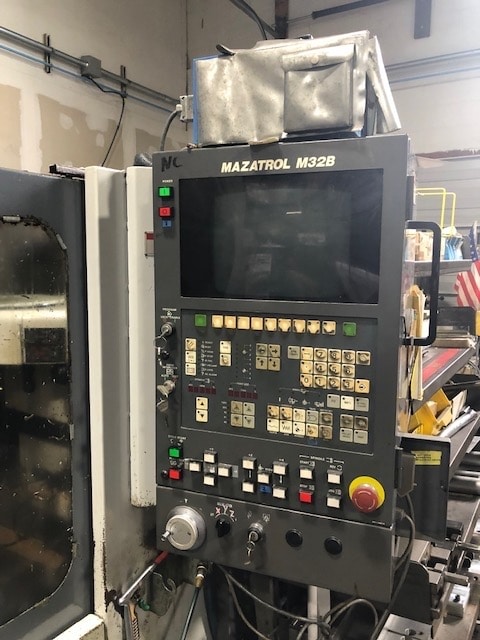

Mazak VTC-16B VMC, 1995

$7,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Vertical Machining Centers
Model:
VTC-16B
Make:
Mazak
Year:
1995

Table Size: 57.4″ x 16″
X-Axis Travel: 44.0″
Y-Axis Travel: 16.1″
Z-Axis Travel: 20.0″
Distance From Spindle Nose to Table: 4.3″ – 24″
Distance From Spindle Centerline to Column: 22″

Spindle Nose: CT40
Spindle Speed: 20 – 8,000 RPM
Tool Magazine Capacity: 24
Max Tool Diameter: 3.1″
With Adjacent Pockets Empty: 4.3″
Max. Tool Length: 13.8″
Max. Tool Weight: 17.6″
Rapid Traverse Rate X & Y Axis: 787 IPM
Z Axis: 590 IPM
Main Motor: AC 15 HP

Floor Space Requirements: 118″ x 101″
Machine Height: 106″
Machine Weight: 12,000 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
