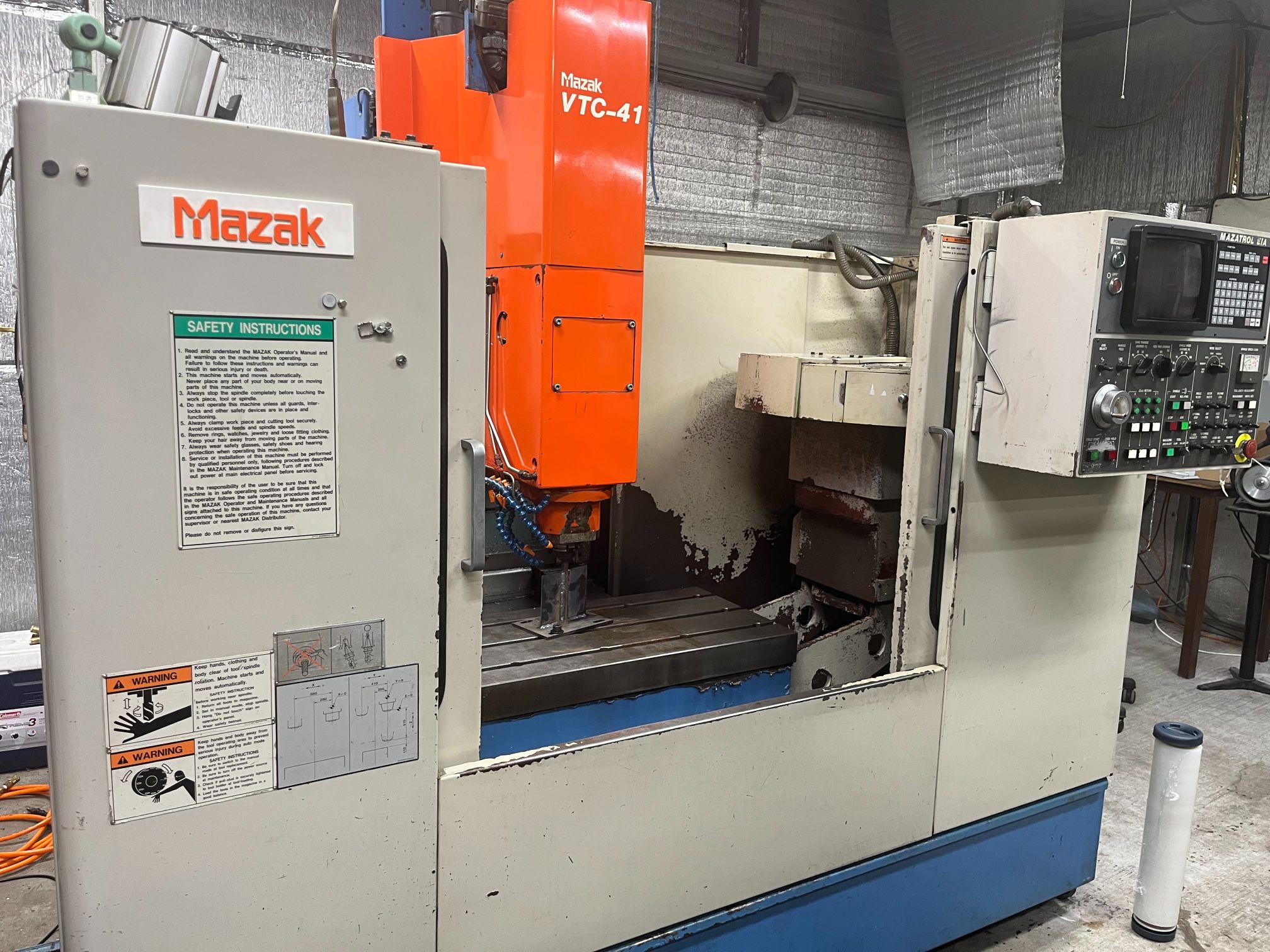

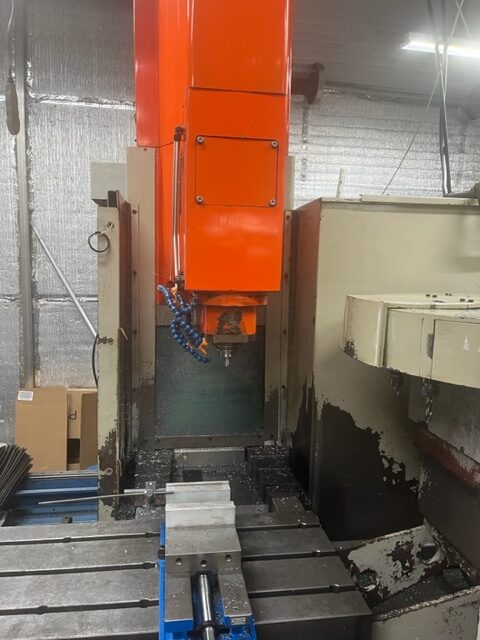

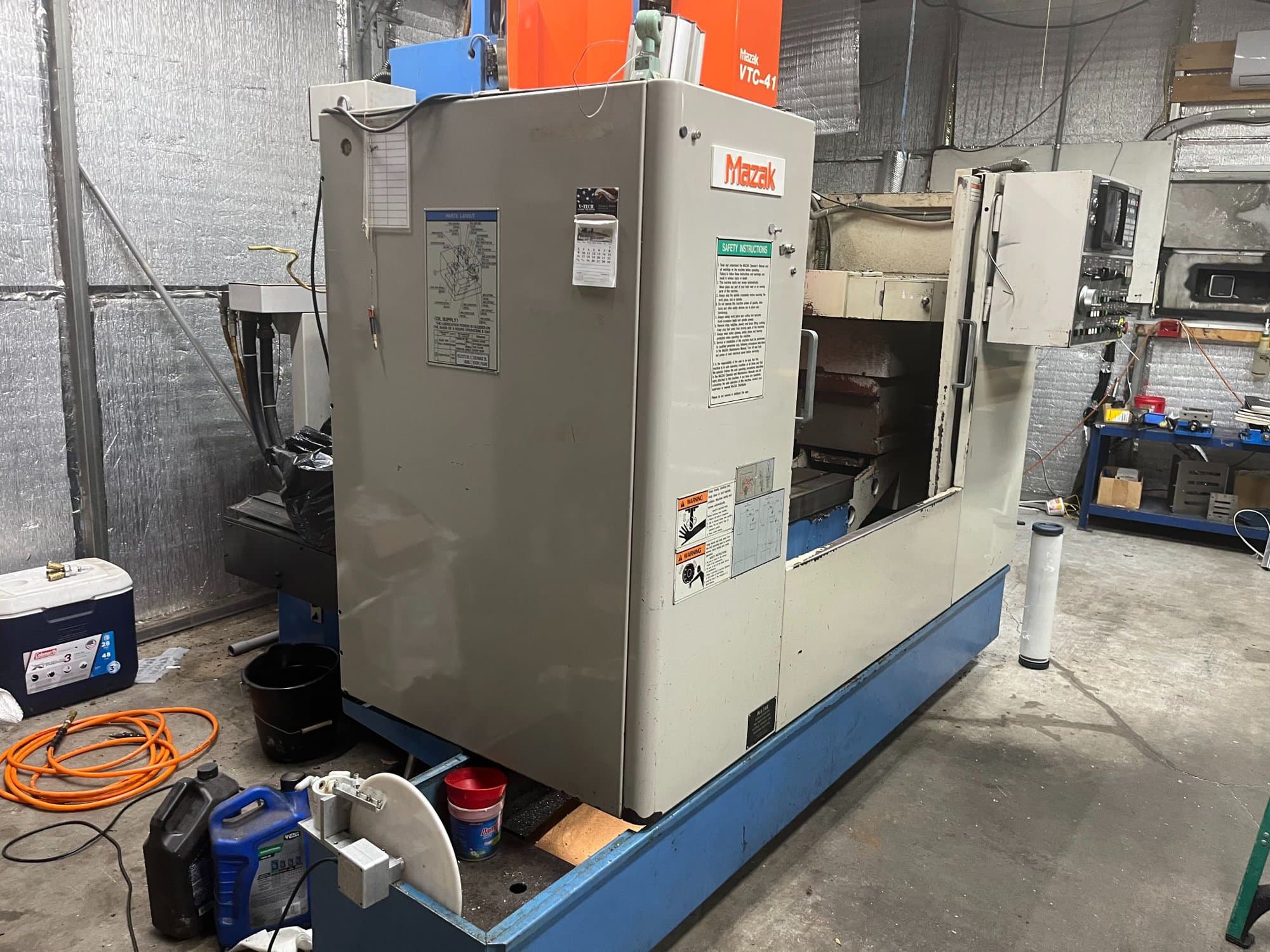

Mazak VTC-41 VMC, 1992
$8,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

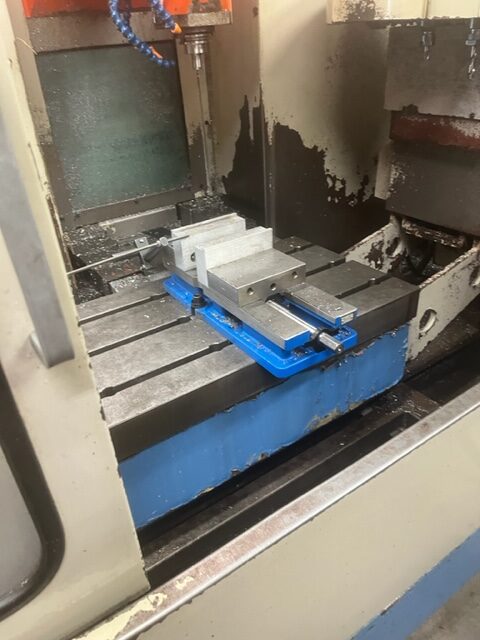

Table Size 34.5″ x 16.1″
Table Load Capacity 860 Lbs
Machine Travels (X/Y/Z) 22″ x 16″ x 20″
Spindle To Table Distance 4.3″ – 24.4″
Spindle Center to Column Distance 18.1″
Spindle Taper CAT 40
Spindle Speeds 40 – 7,000 RPM
Number of Ranges Stepless
Rapid Traverse Rate (X/Y/Z) 787 / 787 / 590 IPM
Maximum Cutting Feed Rate 04″ – 196.85 IPM
Tool Changer Style Carousel
Tool Changer Capacity 24 Tool Stations
Tool Change Time 8 Seconds
Max Too Diameter 3.1โ
Max Tool Length 13.78″ From Gauge Line
Max Tool Weight 17.6 Lbs.
Spindle Drive 15 HP
Approximate Machine Dimensions 88.8″L x 105.9″W x 106″H
Approximate Weight 8670 lbs.
Equipped With:

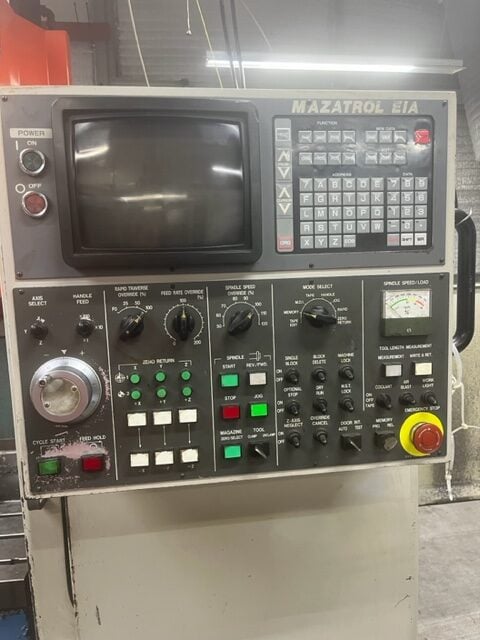

– Mazatrol EIA CNC Control
– RS-232 Serial Port
– 24 Station Automatic tool Changer
– Assorted CAT40 Tooling
