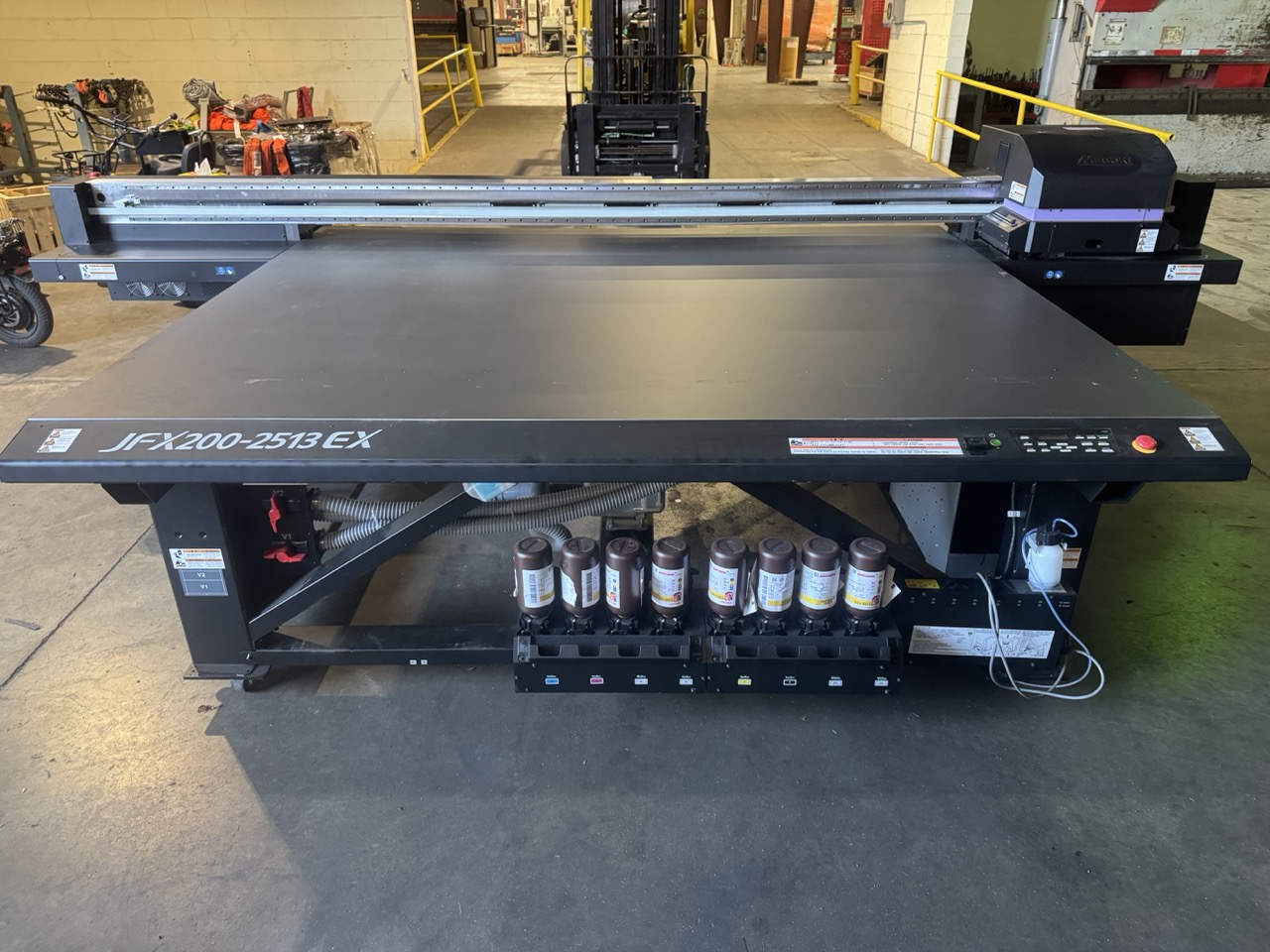

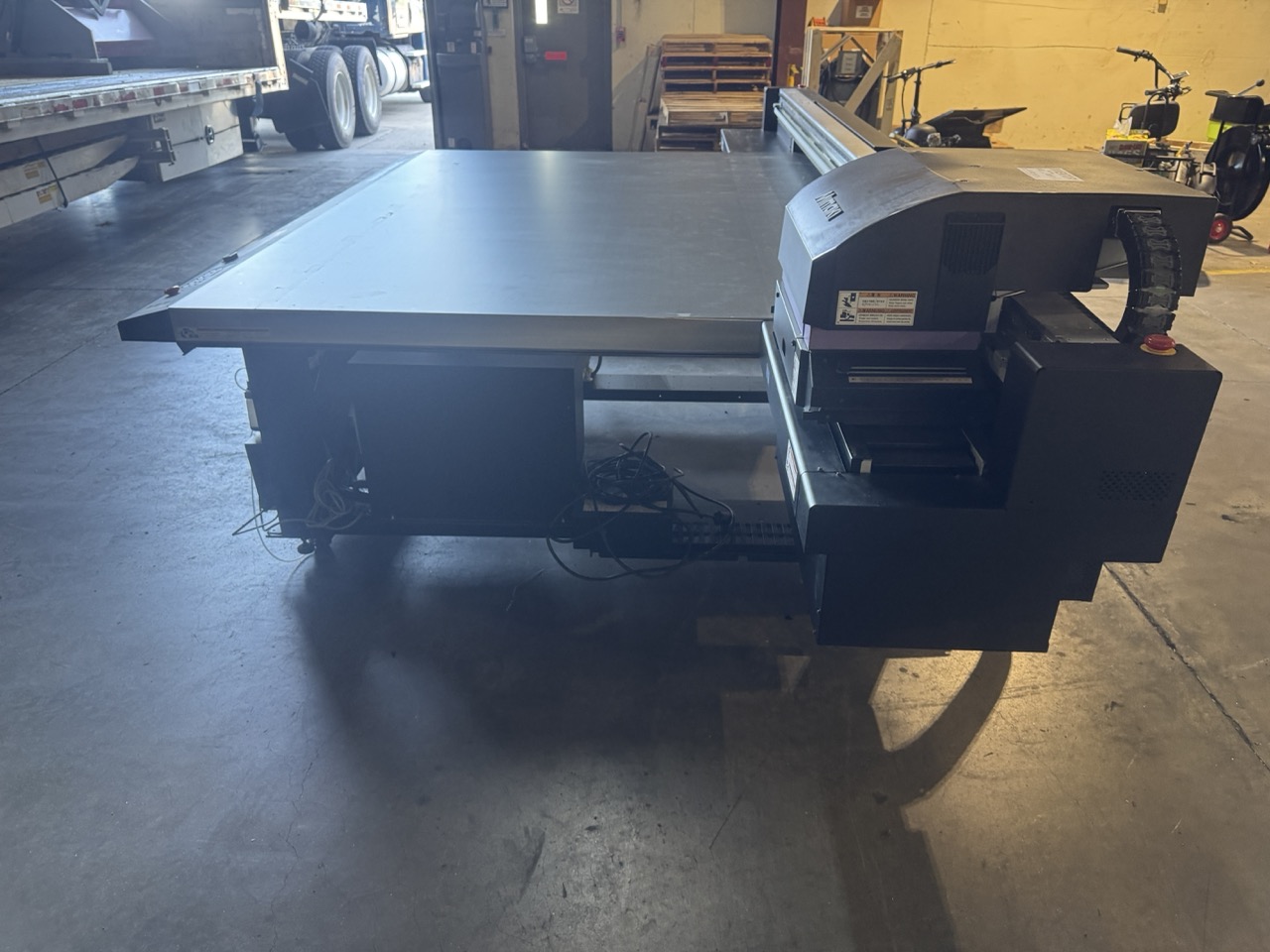

Mimaki JFX200-2513 4′ x 8′ UV-LED Flatbed Wide Format Digital Printer, 2024

2024 Mimaki JFX200-2513 industrial 4′ x 8′ UV-LED flatbed wide-format digital printer featuring a 98.4″ x 51.2″ print area, up to 1,200 dpi resolution, dual-zone vacuum table, multiple UV-curable ink configurations, and the ability to print rigid substrates up to 2″ thick.

Manufacturer Mimaki
Model JFX200-2513
Year 2024
Machine Type UV-LED Flatbed Wide Format Printer
Print Technology UV-Curable Inkjet
Printheads 2 On-Demand Piezo Heads, Staggered Array
Maximum Print Area 98.4″ × 51.2″ / 2,500 × 1,300 mm
Nominal Board Size 4′ × 8′
Maximum Media Thickness 2.0″ / 50 mm
Print Resolution 300 / 450 / 600 / 900 / 1,200 dpi
Ink Type UV-Curable
Available Ink Colors CMYK, White, Clear; configurations vary by ink series
Compatible Ink Series LUS-120, LUS-150, LUS-200, LUS-350, LH-100
Primer PR-100 / PR-200 compatible
Ink Supply 1-liter bottles
White Ink System Mimaki Circulation Technology
Media Hold-Down Vacuum Table
Vacuum Zones 2
UV Curing LED-UV System
UV LED Service Life 5,000+ hours nominal
Interface USB 2.0
Power Supply Single Phase, 200–240 VAC, 50/60 Hz
Current Less than 12A
Power Consumption Less than 2.88 kVA
Machine Dimensions 173.2″ × 96.4″ × 49.2″ assembled
Installation Dimensions Approx. 173.2″ × 88.5″ × 49.2″
Machine Weight Approx. 1,433 lb. / 650 kg
