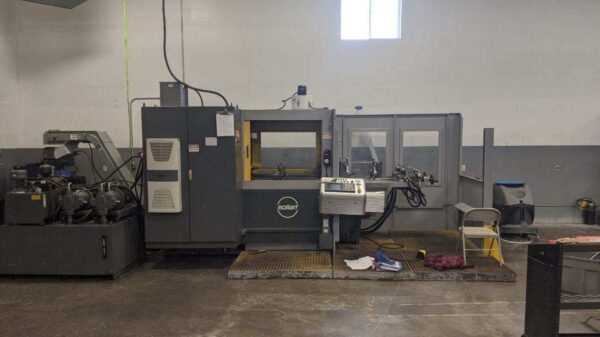

Mollart Omnisprint LD2-750 CNC Gun Drill, 2009 – High Pressure Coolant, Chiller
$49,900.00
Request a Quote to Instantly See Pricing
Machine Type: Gun Drills
Make: Mollart
Model: Omnisprint
Year: 2009
Machine Location:
Stock #:
Spindle Capacity: 2
Spindles (Currently Configured): 2
Capacity: 0.07 – 1″ Dia.
Stroke: 30″
Knee Travel:
– X-Axis Cross: 11-3/4″
– Y-Axis Vertical: 11-3/4″
Spindle Center:
– Distance: 19-5/8″
– Height From Table: 1-1/2″ – 13-3/8″
Rapid Traverse Rates:
– X-Axis: 6.56 IPS
– Y-Axis: 2.63 IPS
– Z-Axis: 6.56 IPS
Work Table Dimensions: 23-5/8″ x 30″
Table Capacity – Maximum: 1,500 Lbs.
Spindle:
– Power: 5-1/3 HP
– Speeds – Variable: 0 – 6,000 RPM
Drill Feed – Infinitely Variable: 0 – 39.5 IPM
Coolant:
– Capacity: 317 Gals.
– Delivery: 15-1/2 GPM
– Pressure – Maximum: 1,450 PSI
Electrics: 460V/3Ph/60Hz
Machine Weight – Approximate: 13,000 Lbs.
Coolant System Weight – Catalog: 2,200 Lbs.
EQUIPPED WITH:
GE Fanuc Powermate iH
High Pressure Coolant
Coolant Chiller
Chip Conveyor
Enclosure
Operation, Service, & Electrical Manuals
All specifications are assumed to be correct but must be confirmed by purchasing entity
