14″ x 54″ Monarch 14C Engine Lathe – 10″ Chuck, 3-Jaw, Available Immediately

$3,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Engine Lathes
Make: Monarch
Model: 14C
Year: 1945
Machine Location: New York
Stock #: 510826

14 x 54 Monarch Engine Lathe
Model: 14C
Actual Swing: 16.5″
Swing OverCross Slide: 9″
Distance between Centers: 54″
Width of Bed: 14.75″
Hole Thru Center: 1.75″ Bore

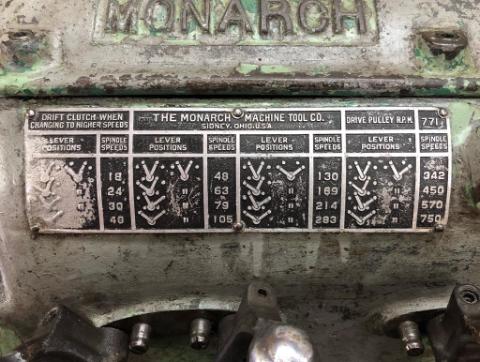

Spindle Speed Range: 17 – 700 RPM

Dimensions: 48″ x 120″ (Approx.)
Weight: 6,000 lbs. (Approx.)
Electrical: 220V 3Phase

Equipped with:
10″ 3-Jaw Chuck
Tailstock
Quick Change Tool

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
