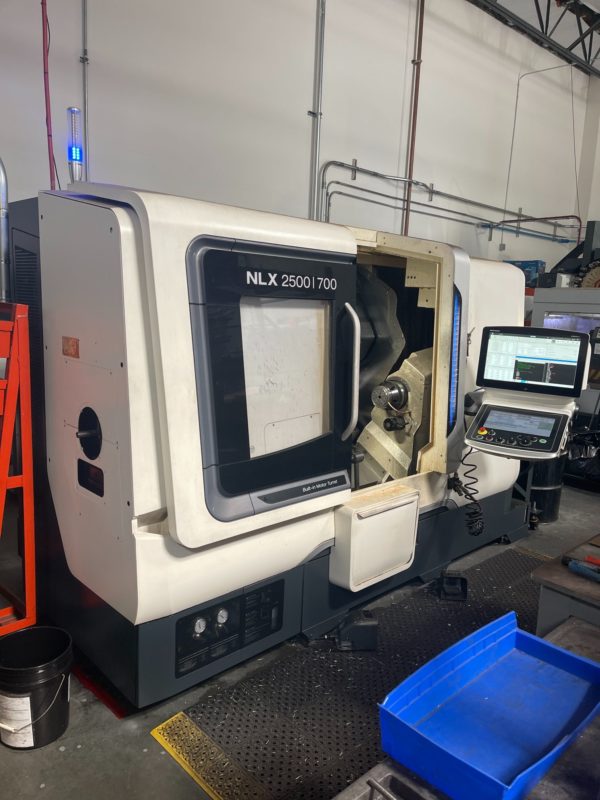

DMG Mori NLX2500/700 CNC Lathe, 2019 – Sub Spindle, Live Tooling, Tool Presetter
$199,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing over bed: 36.2″
Swing over cross slide: 29.2″
Max. workpiece diameter: 14.4″
Max. workpiece length: 27.7″
Max Bar Capacity Diameter: 3.1″
Max. X-axis travel: 10.2″
Max. Y-axis travel: 3.9″
Max. Z-axis travel: 31.3″
B-axis (spindle 2): 28.9″
Chuck Size: 10″
Spindle Motor: 35 HP
Max Spindle Speed: 4,000 RPM
Sub Spindle Motor: 15 HP
Sub-spindle speed: 6000 RPM
Rotary motor: 7.5/5HP
Rotary Tool Spindle Speed: 10,000 RPM
Number of Tool Stations: 12 Stations
Equipped With:
Celos M730UM Control
Sub Spindle
Y Axis
Interface for Super-High pressure coolant System
Chip Conveyor
Tool Presetter
Interface for Bar Feeder
Work Unloader (Built-in)
6″ and 10″ Kitagawa Chucks
2 Double Axial Live and 2 Radial Live Tool Holders
