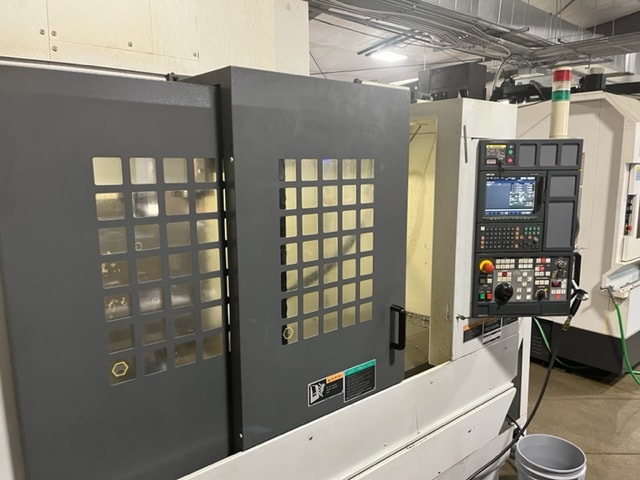

Mori Seiki NV5000 1B/40 VMC, 2008 – Probe, 60 Tool ATC, Glass Scales, Videos Available
$37,700.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travel: 40.2″
Y-Axis Travel: 20.1″
Z-Axis Travel: 20.1″
Table Size: 52″ x 23.6″
Table Weight Capacity: 2,640 lbs.
Spindle Taper: #40
Spindle Speed: 15,000 RPM
Spindle Motor (30 min.): 30 HP
Spindle Nose to Table: 5.9″ – 26″
Spindle Center to Column: 26.9″
Tool Changer: Dual-Arm 60-ATC
Tool Change Time, Chip-to-Chip: 3.5 sec.
Tool Change Time, Tool-to-Tool: 2 sec.

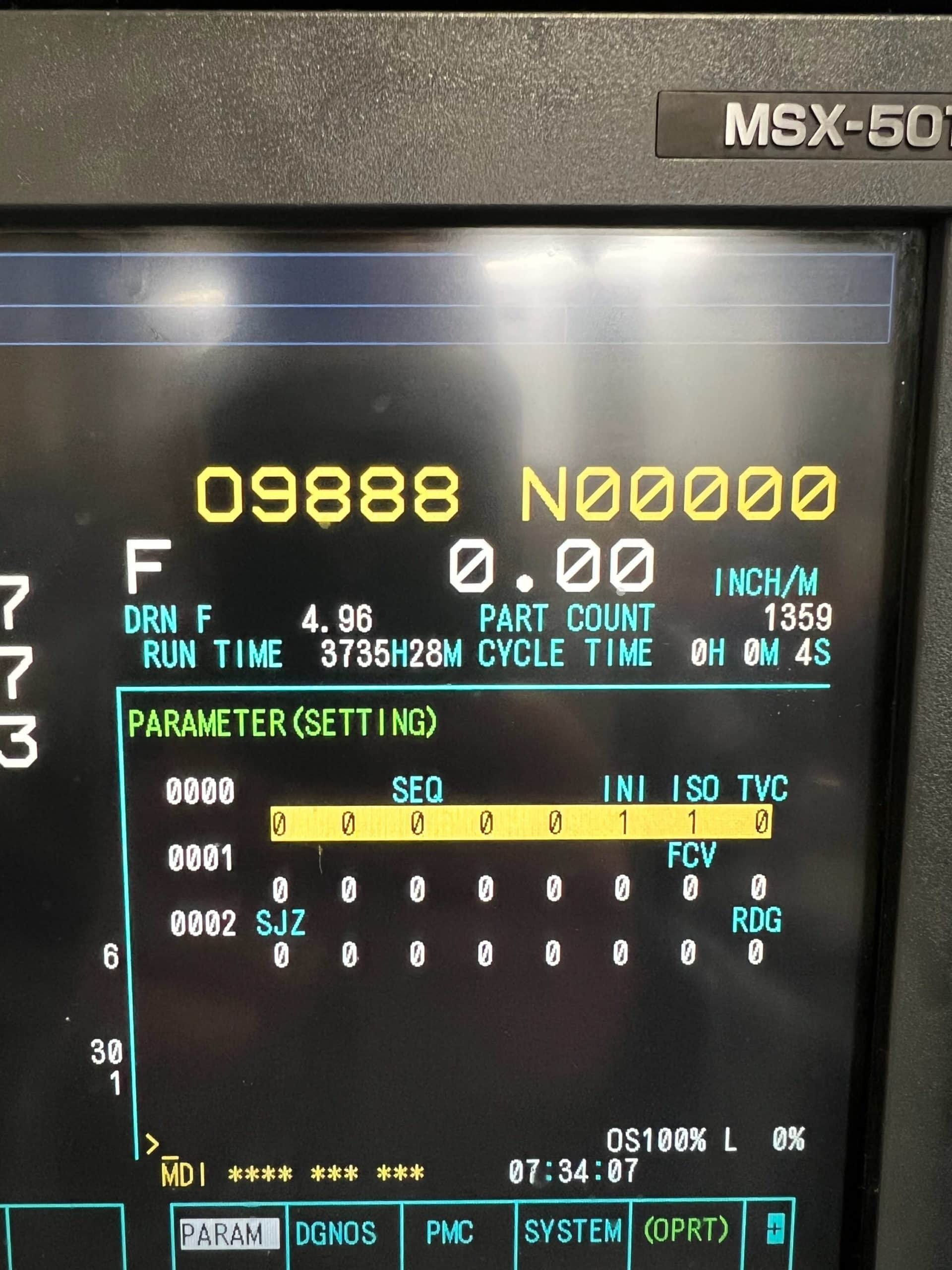

Hours: 3735.5
Weight: 16093 LBS
Total Footprint: 144″L x 101″W x 110″H
Equipped with:
-Probe
-Tool Setter
-Chip Conveyor
-Glass Scales
