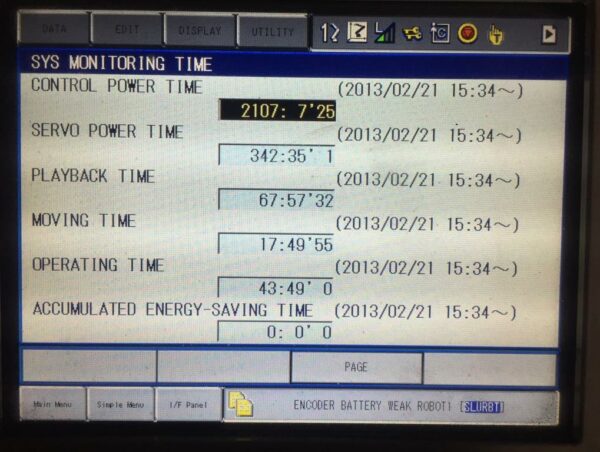

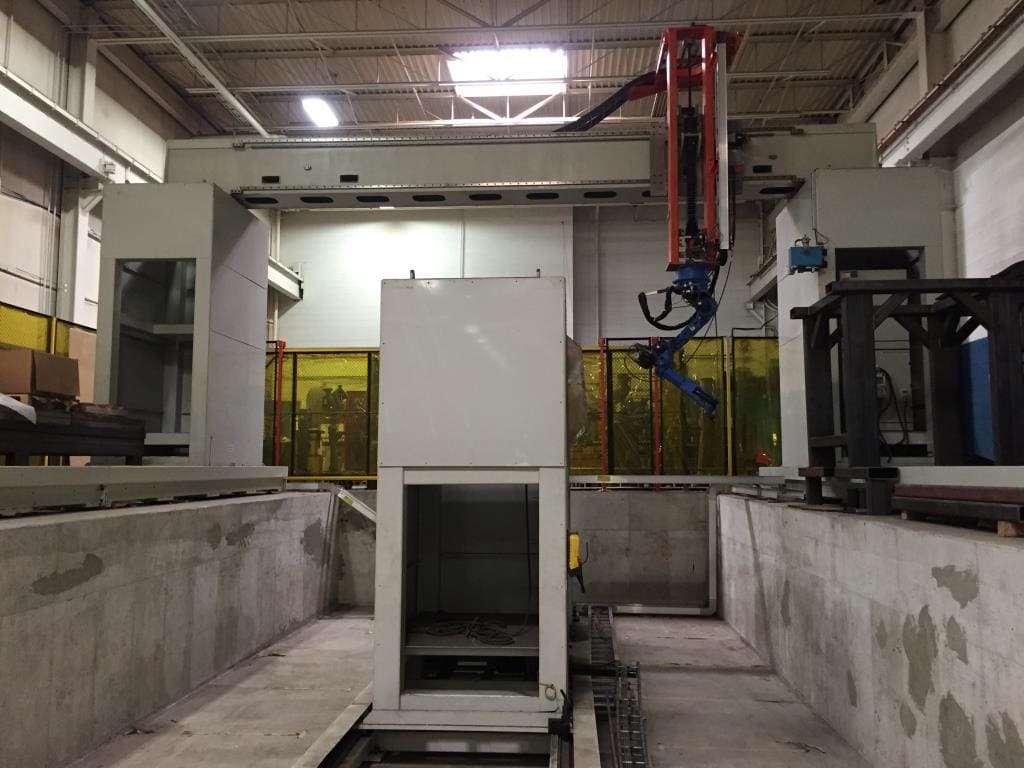

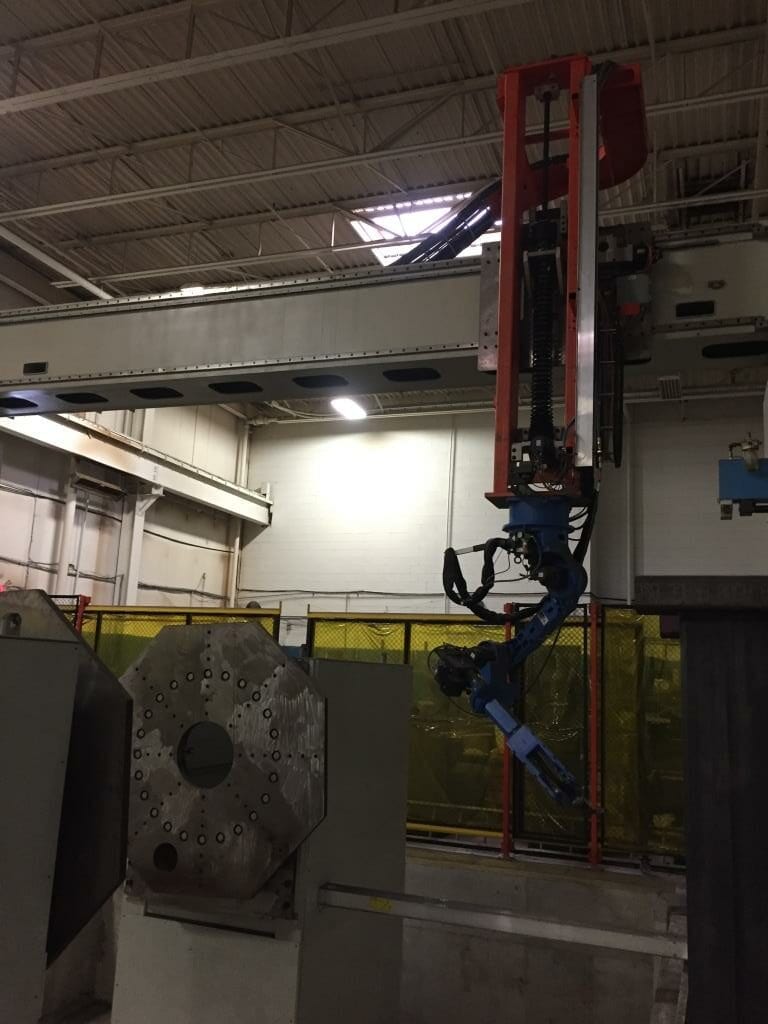

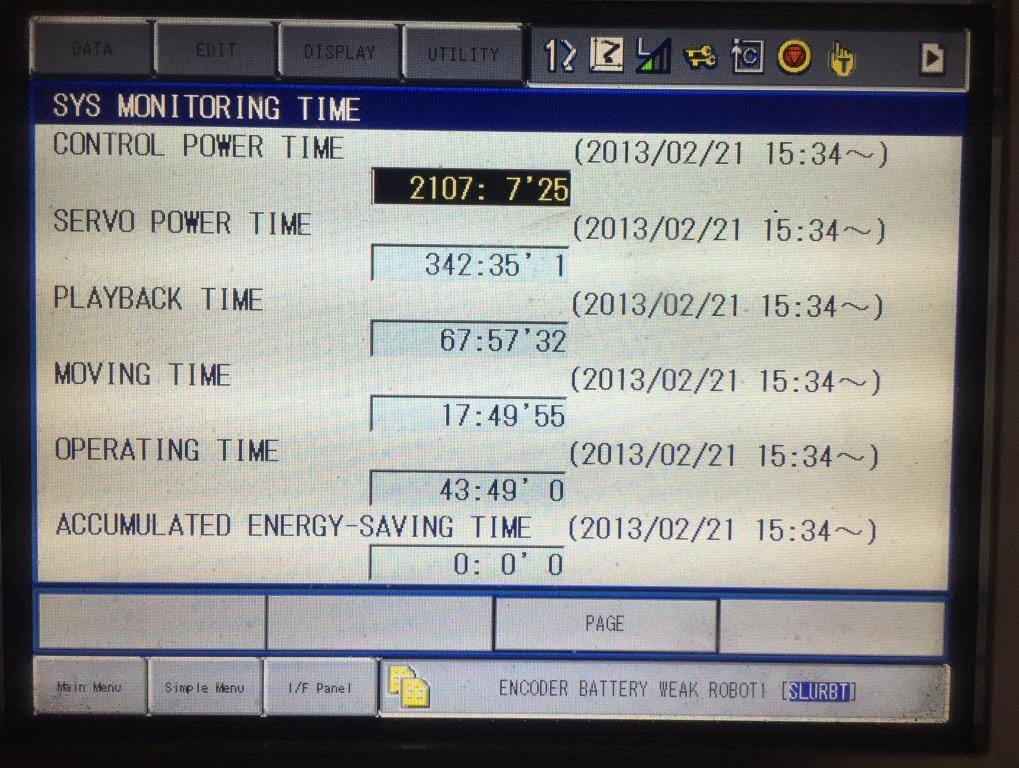

Motoman MA1900T 6 Axis Robot, 2013 – Under 400 Hours
$274,900.00
This product is no longer available. For additional information, please fill out the form below.
Headstock Motor: SGMRV-55A2A-YR21
Reducer 162:1
Gearing Reduction 117:12
Travel +/- 180o
Max Rotate Speed 1 RPM
X-Track Motor SGMRV-30ANA-YR11
Reducer 29:1
Pinion Size 15 teeth, mod=4
Travel: 517″
Max Linear Speed 30 ft/min
Y-Track Motor SGMRV-13ANA-YR11
Reducer 29:1
Pinion Size 30 teeth, mod=2
Travel: 241″
Max Linear Speed 20 ft/min
Z-screw Motor SGMRV-13ANA-YR11
Reducer 6:1
Screw Lead 0.473″
Travel: 72″
Max Linear Speed 120 in/min
Voltage 575 VAC 3 Phase 60 Hz
Current 100 A
Short Circuit Rating 25 KA
Air 3/4” Line @ 80 psi
Gas 3/8” Line @ 25 psi
Water Closed loop system
Equipped With:

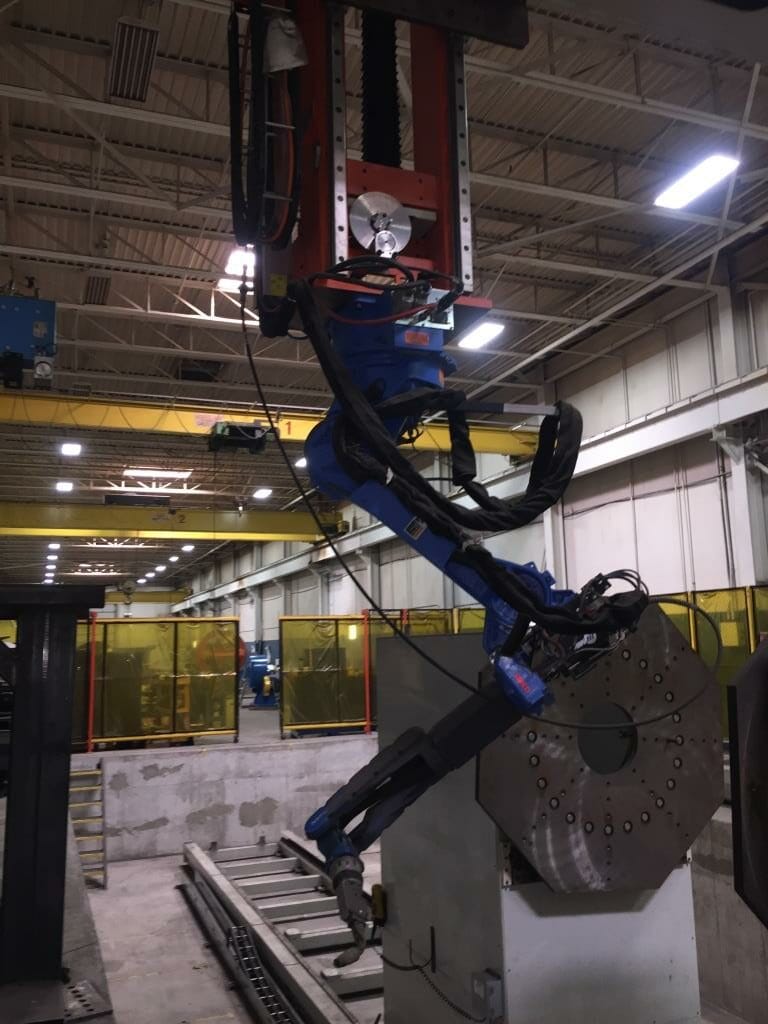

Motoman MA1900T 6 Axis Robot

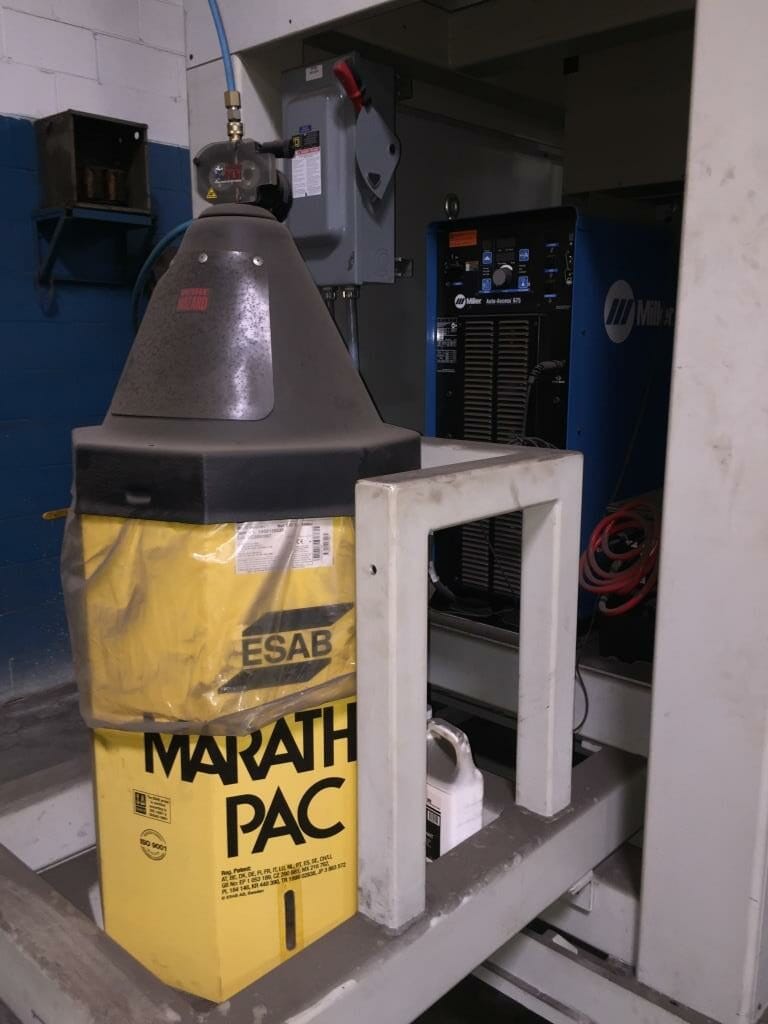

Miller Auto-Axcess 675 Weld Controller
Binzel WH650 Water Cooled Torch

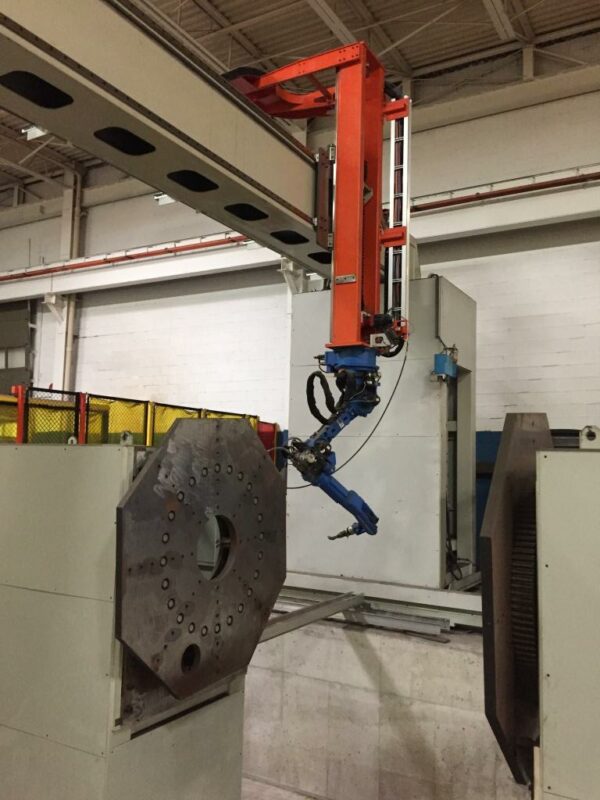

Rotary Positioner Torque Capacity: 30,000 lb-ft

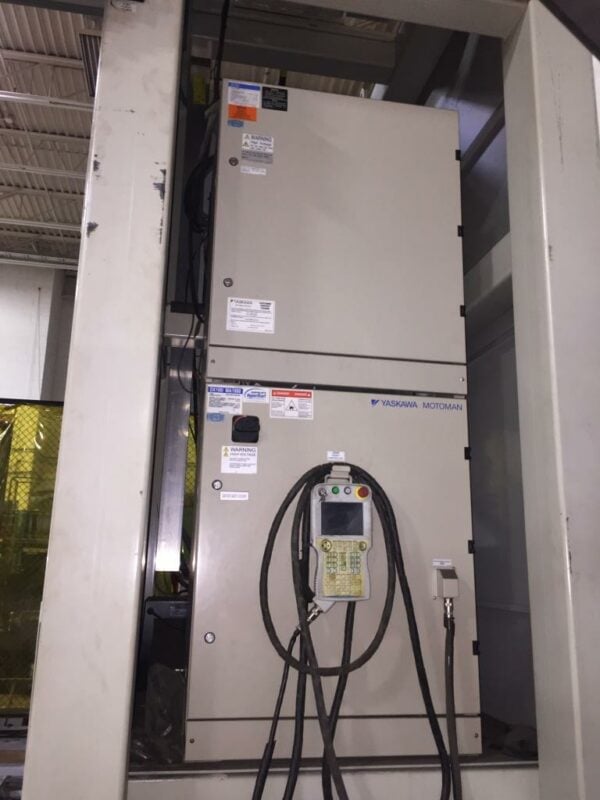

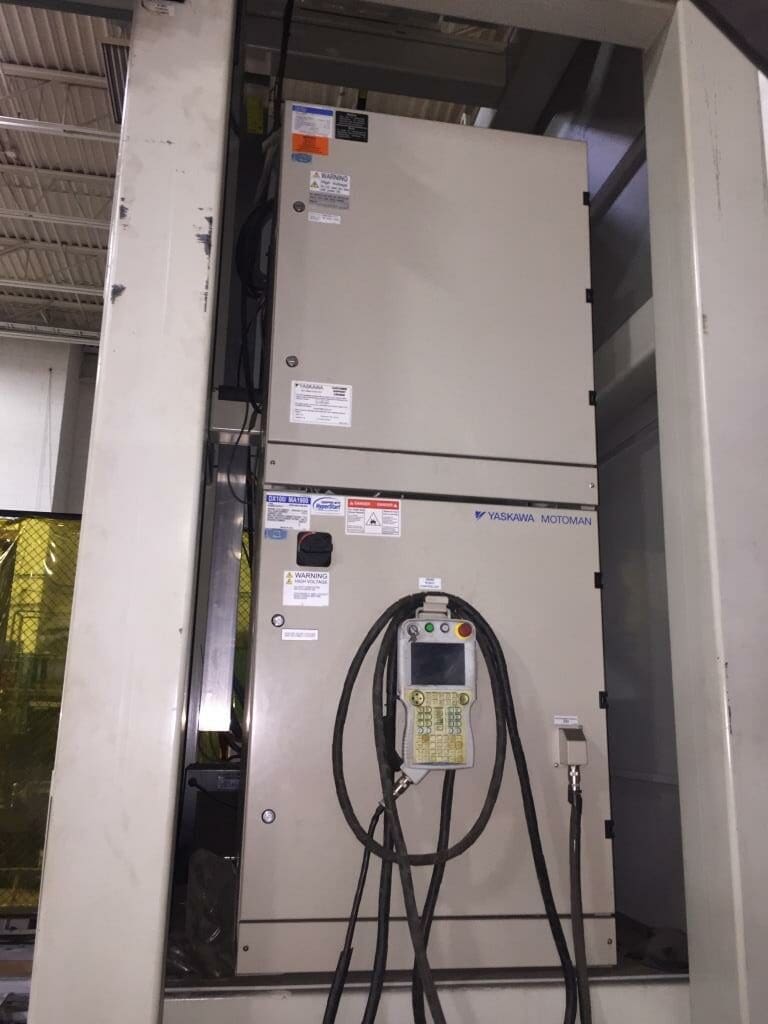

Motoman DX100 Controller for Robot, Gantry and Rotary Positioner
