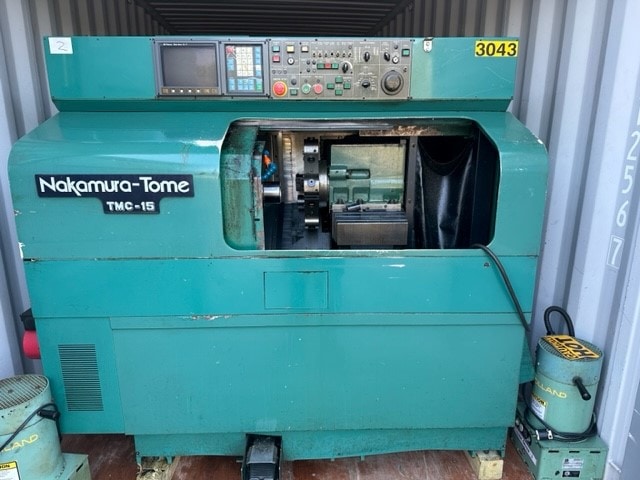

Nakamura-Tome TMC-15 Lathe, 1995 – Fanuc, 2 Units Available
$5,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Swing Over Bed: 11.81″
Max Swng Over Saddle: 6.69″
Max Turning Diameter: 7.09″
Spindle Speed: 4,500 Rpm
Spindle Drive: 10 Hp
Hole Thru Spindle: 1.85″
Turret Capacity: 10 Stations
Turret Travels (x,z): 4.33″ / 10.63″
Rapid Traverse Rate (x/z): 472 / 945 Ipm
Max Bar Capacity: 1.34″

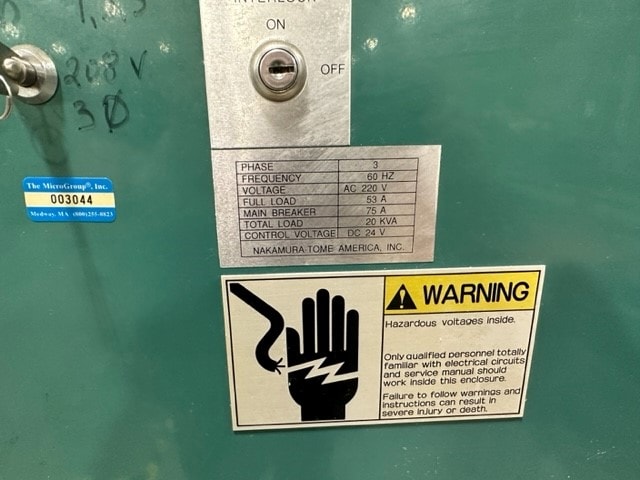

Electrical Requirements: 220 V; 3 Ph; 60 Hz
Approx Machine Dimensions (l x w x h): 80″ x 50″ x 63″
Approx Weight: 5,070 lbs
Equipped With:

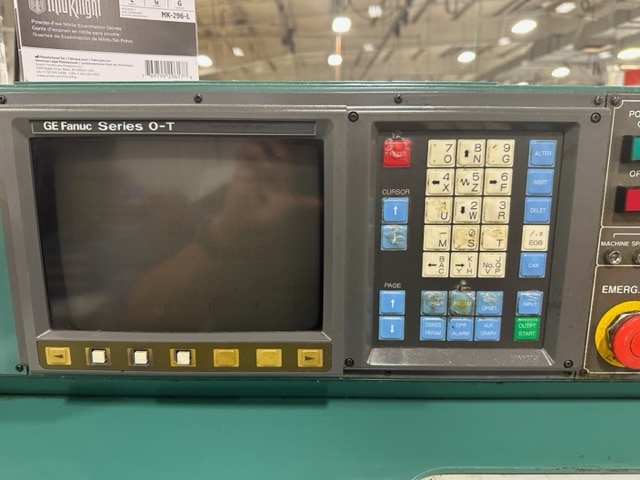

GE Fanuc OT CNC Control

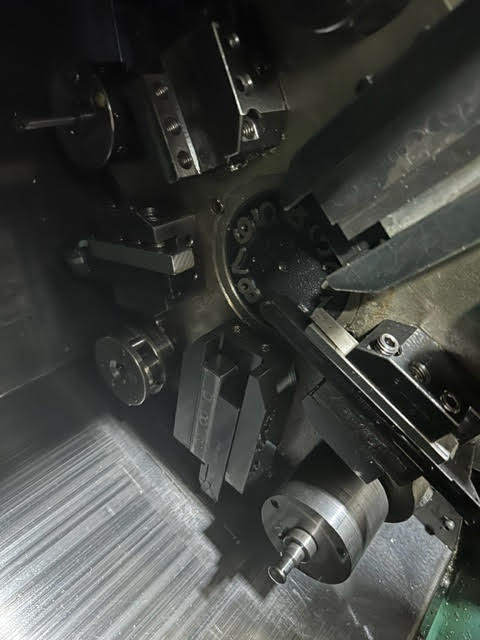

10 Tool Turret
2 Lathes available
