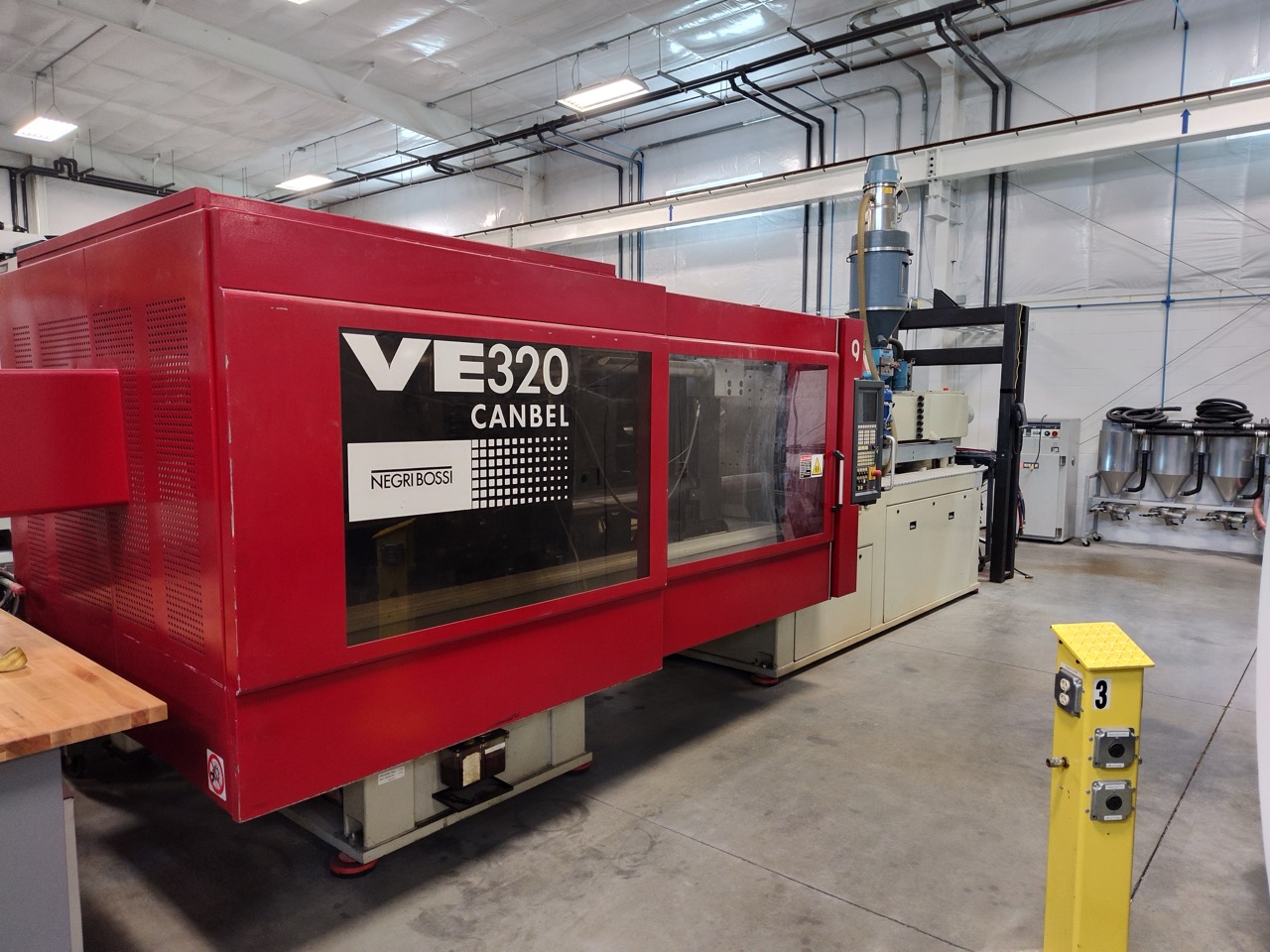

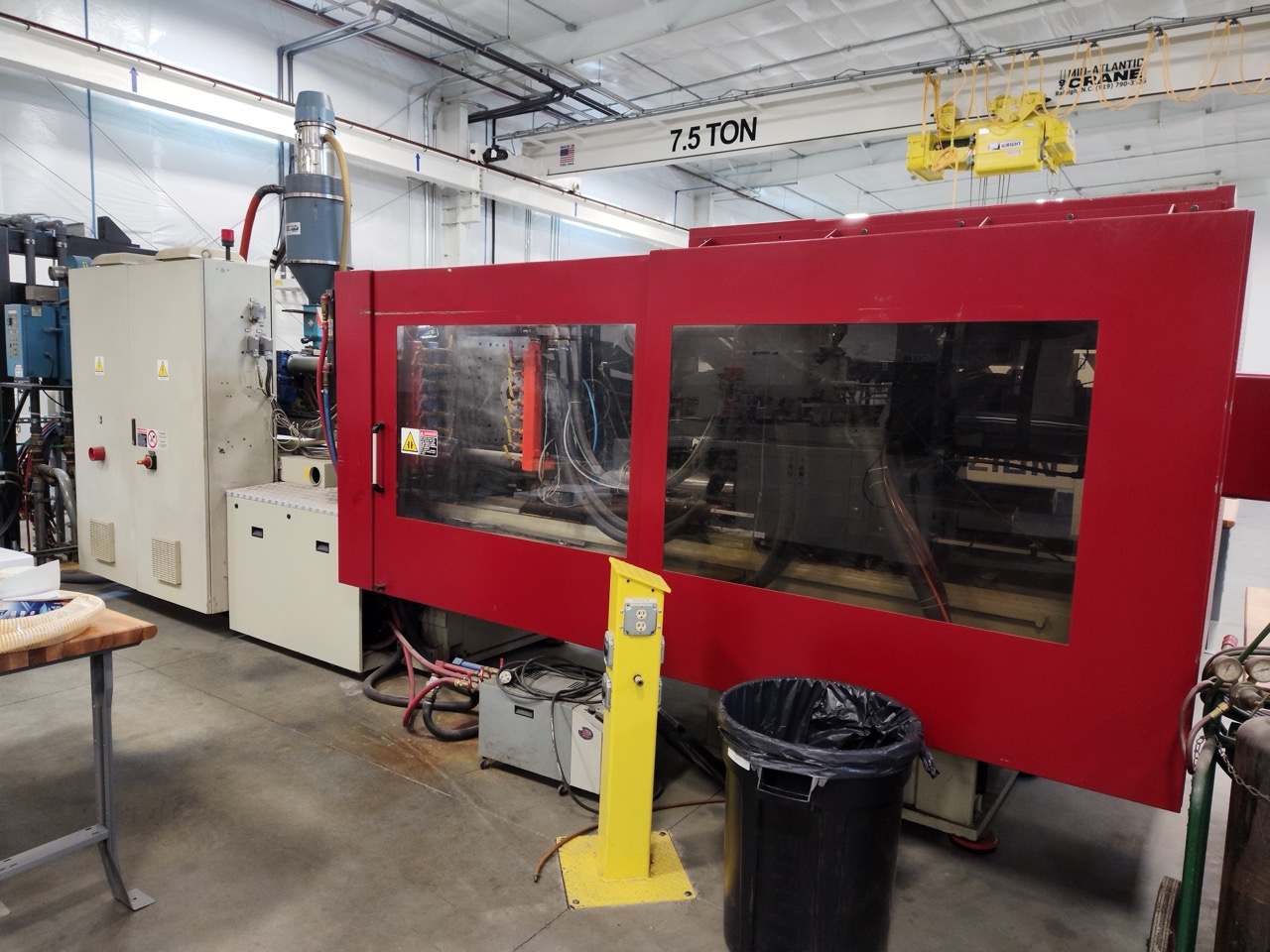

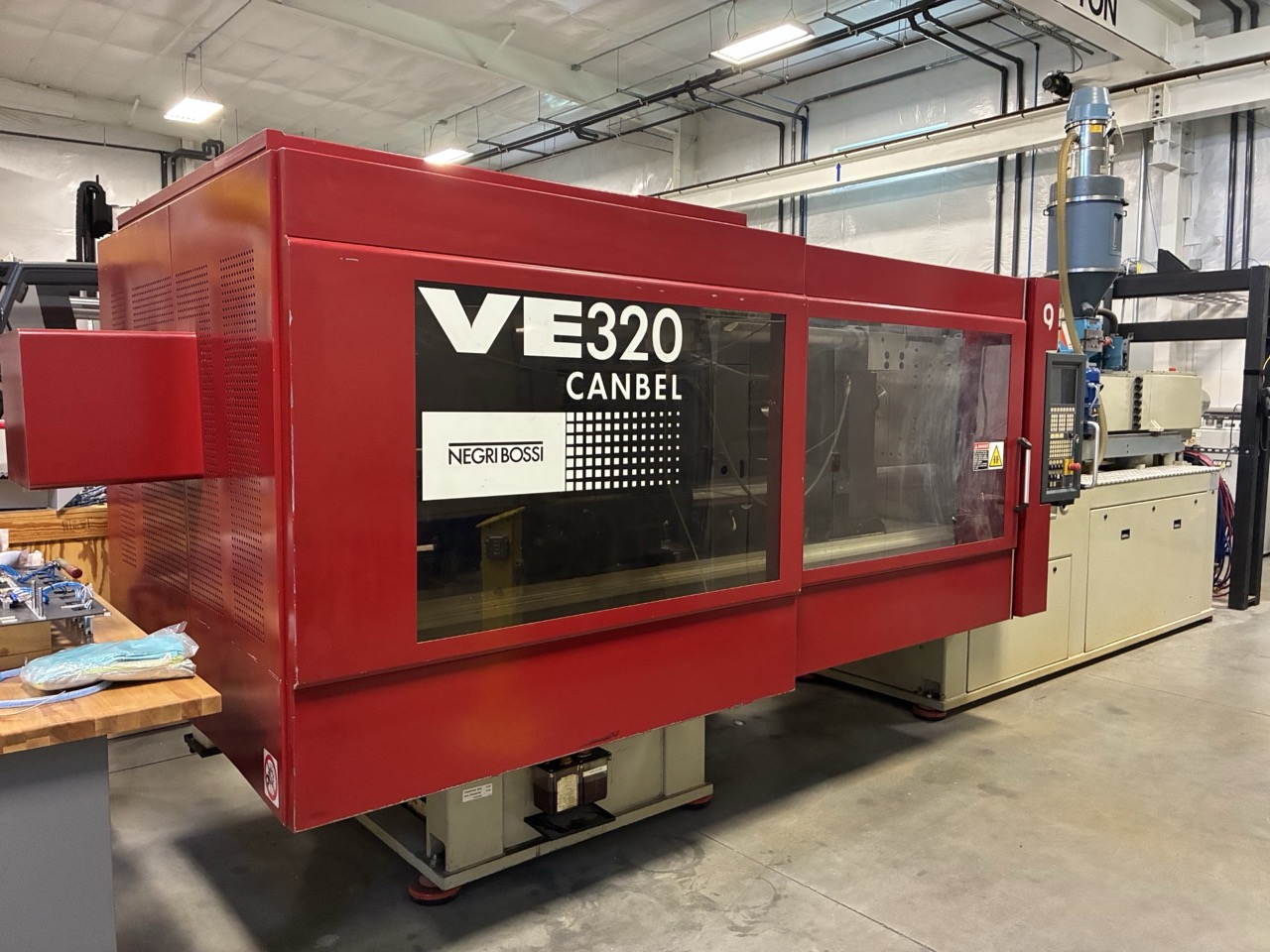

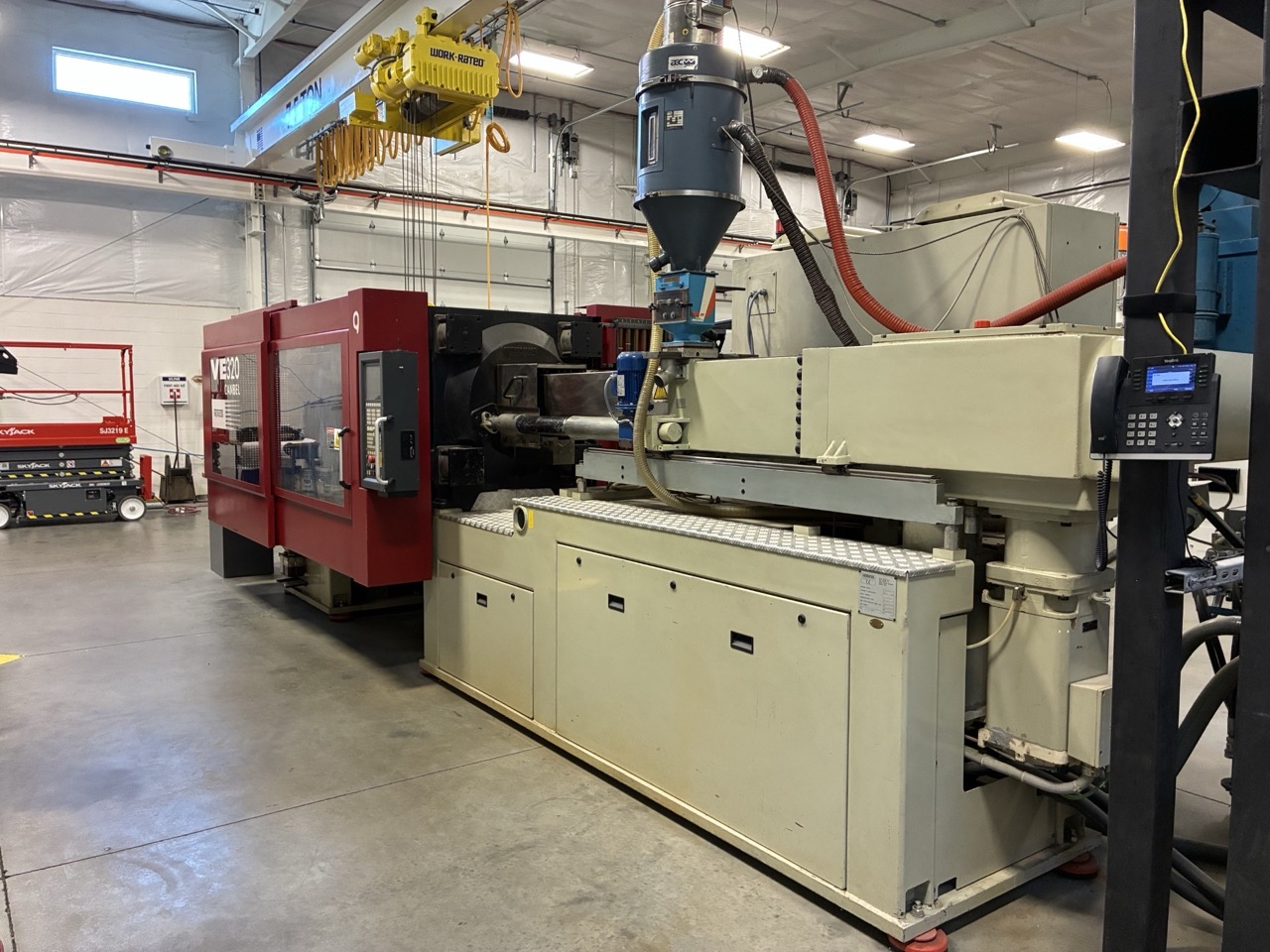

Negri Bossi VE320 All-Electric Injection Molding Machine, 2010 – 70 mm Screw, CANbus Control

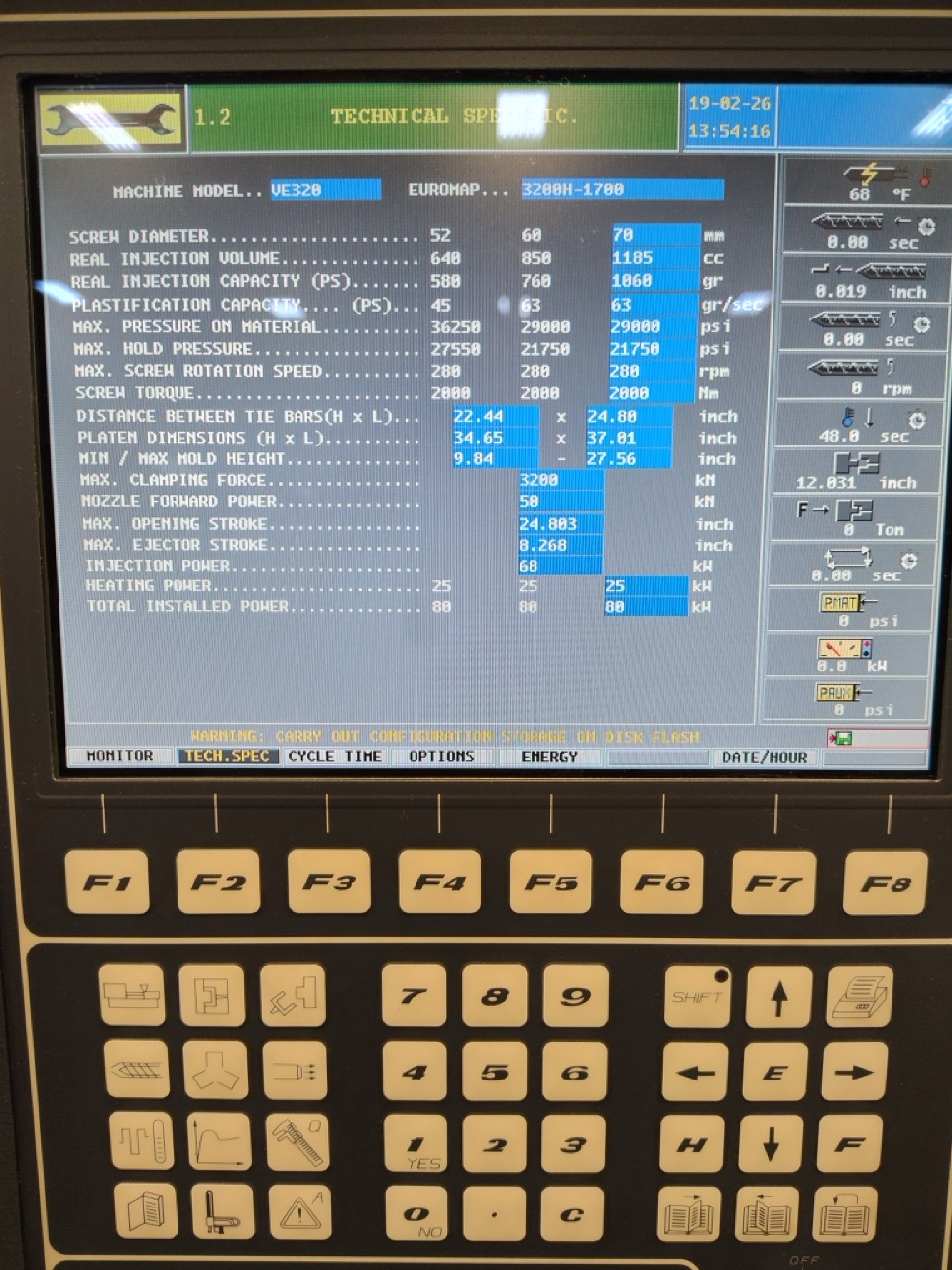

Clamping Force: 3,200 kN (Approximately 360 US Tons)
Clamp Type: Toggle
Configuration: Horizontal, All-Electric
Shot Capacity (PS): 37.39 Oz. (1,060 g)
Injection Volume: 1,185 cm³
Screw Diameter: 70 mm
Maximum Screw Speed: 280 RPM
Screw Torque: 2,000 Nm
Plasticizing Capacity (PS): 63 g/Sec.
Maximum Injection Pressure: 29,000 PSI
Maximum Holding Pressure: 21,750 PSI

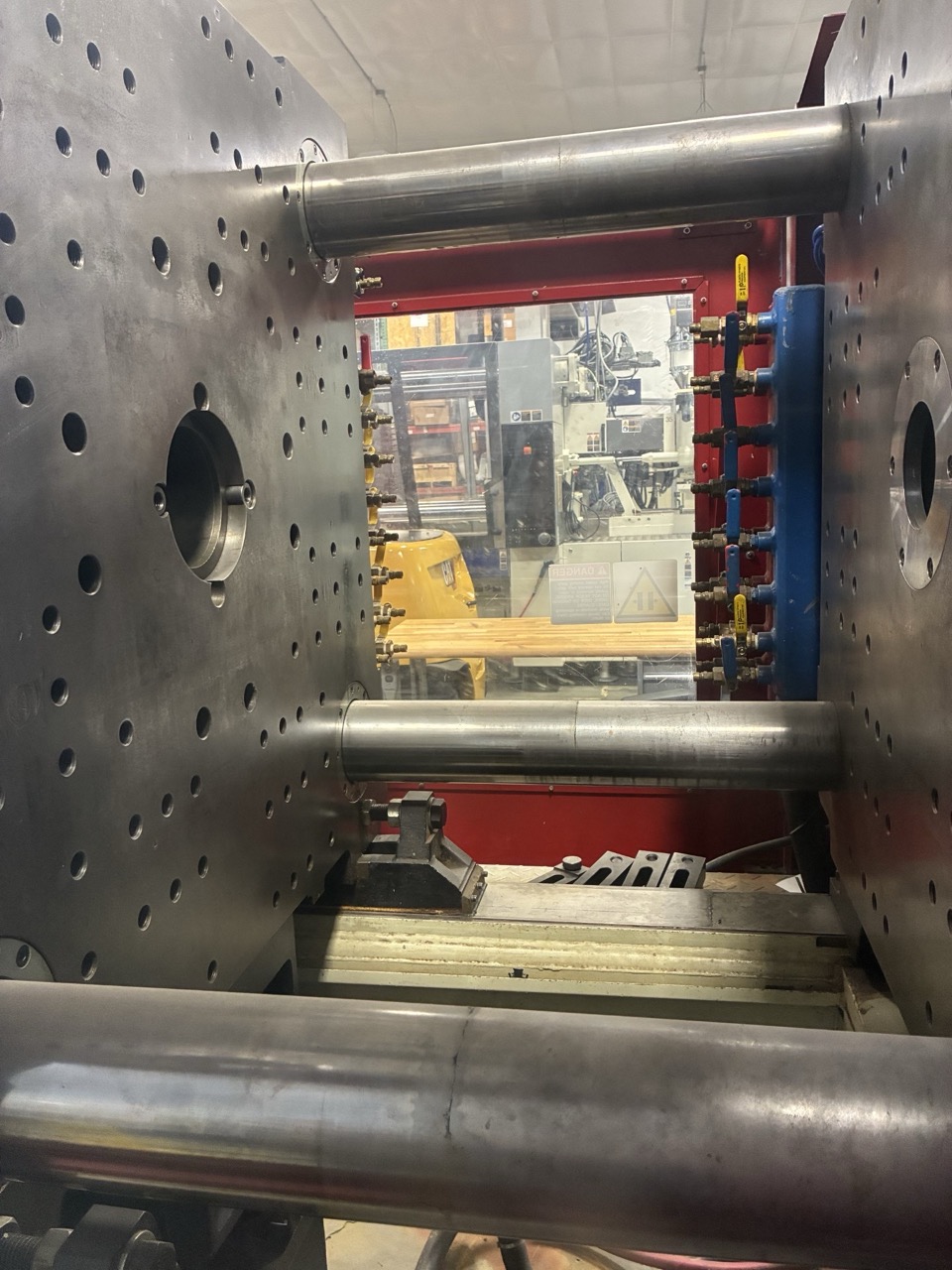

Tie Bar Spacing (H × W): 22.44″ × 24.80″
Platen Size (H × W): 34.65″ × 37.01″
Minimum Mold Height: 9.84″
Maximum Mold Height: 27.56″
Maximum Opening Stroke: 24.803″
Maximum Ejector Stroke: 8.268″
Nozzle Contact Force: 50 kN
Injection Power: 60 kW
Heating Power: 25 kW
Total Installed Power: 80 kW
Maximum Auxiliary Hydraulic Pressure: 90 Bar
Voltage: 460V
Frequency: 60 Hz
Weight: Approximately 25,353 Lbs.

Equipped With:

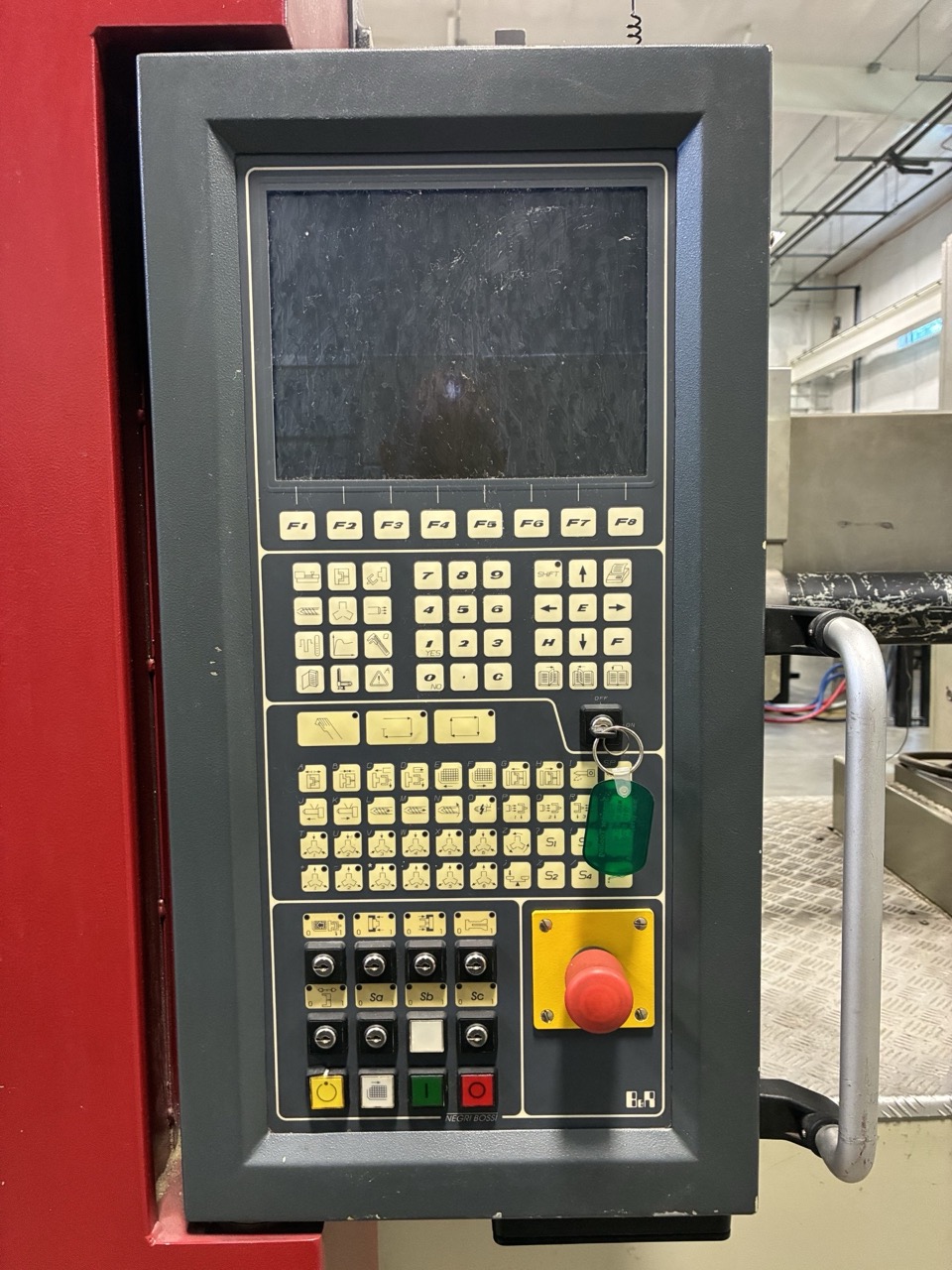

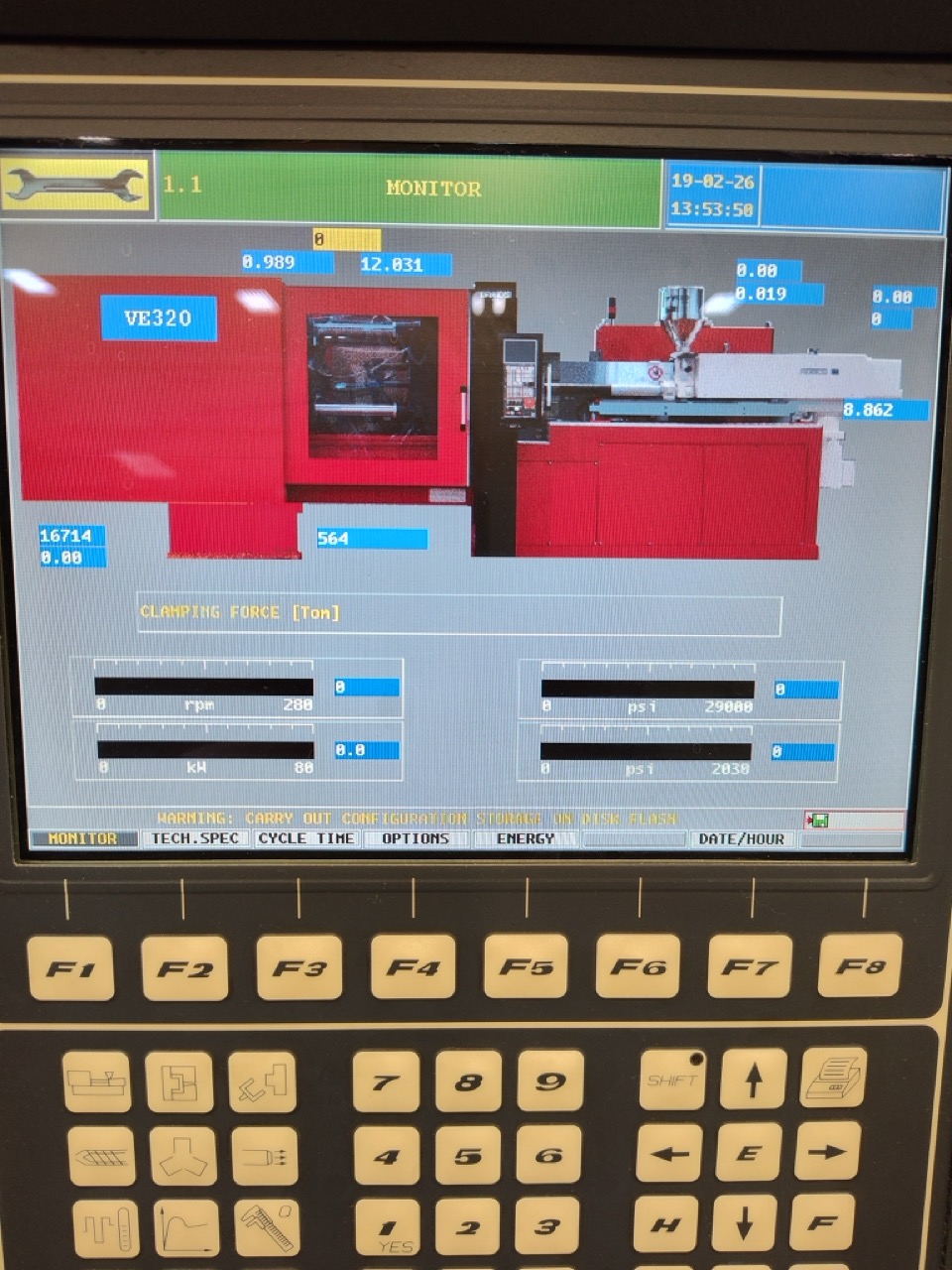

– CANbus Digital Control

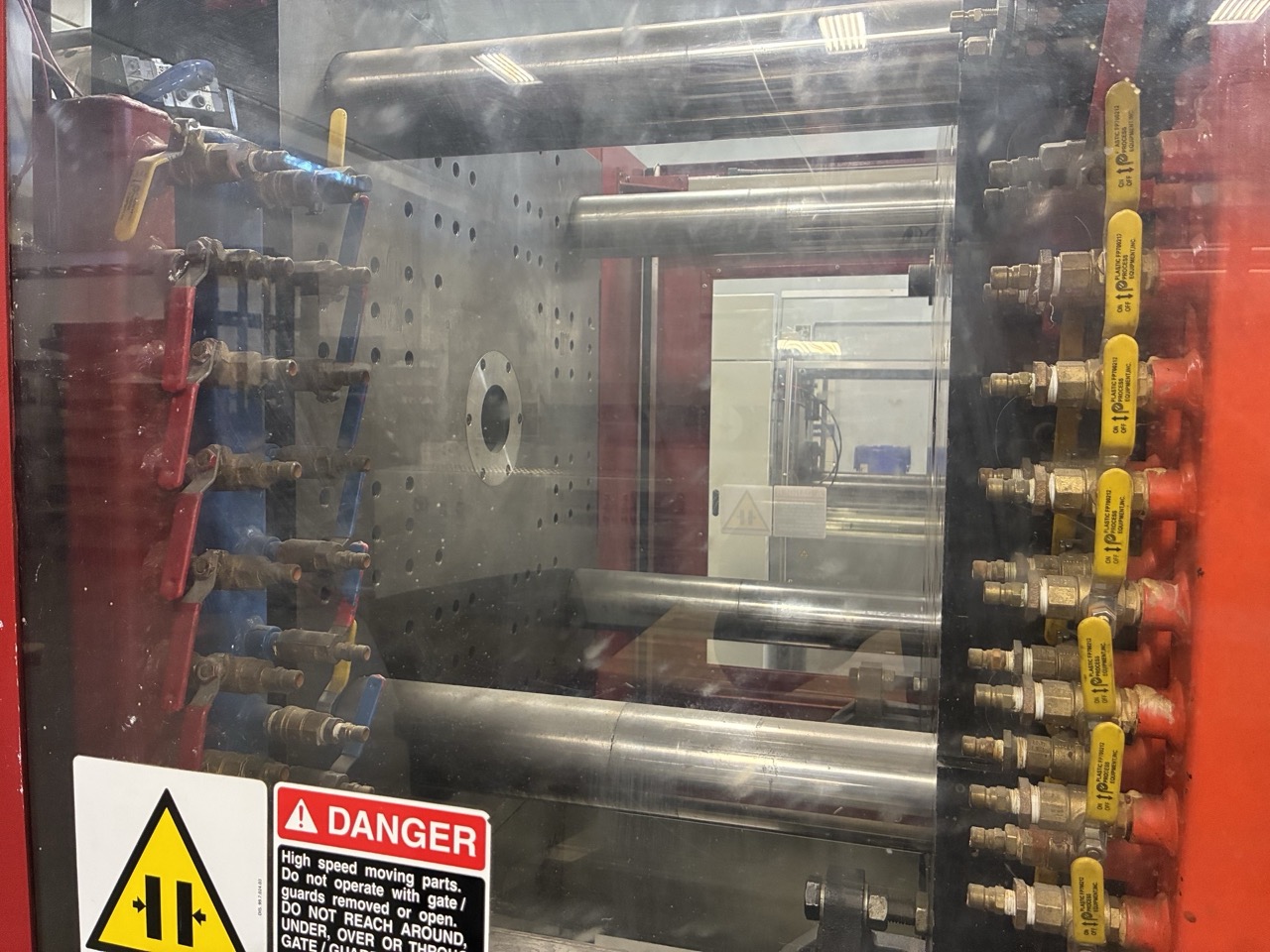

– Enclosed Clamp Area With Sliding Access Doors
– Emergency Stop Controls
