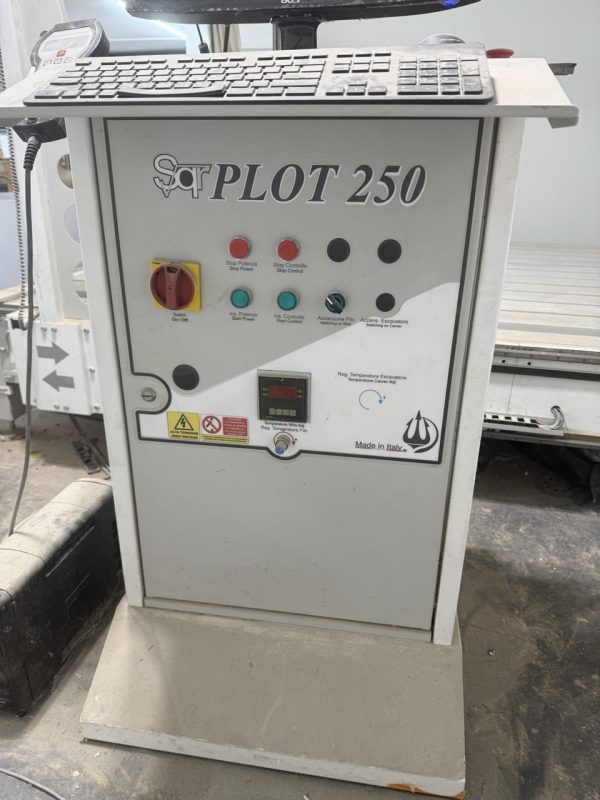

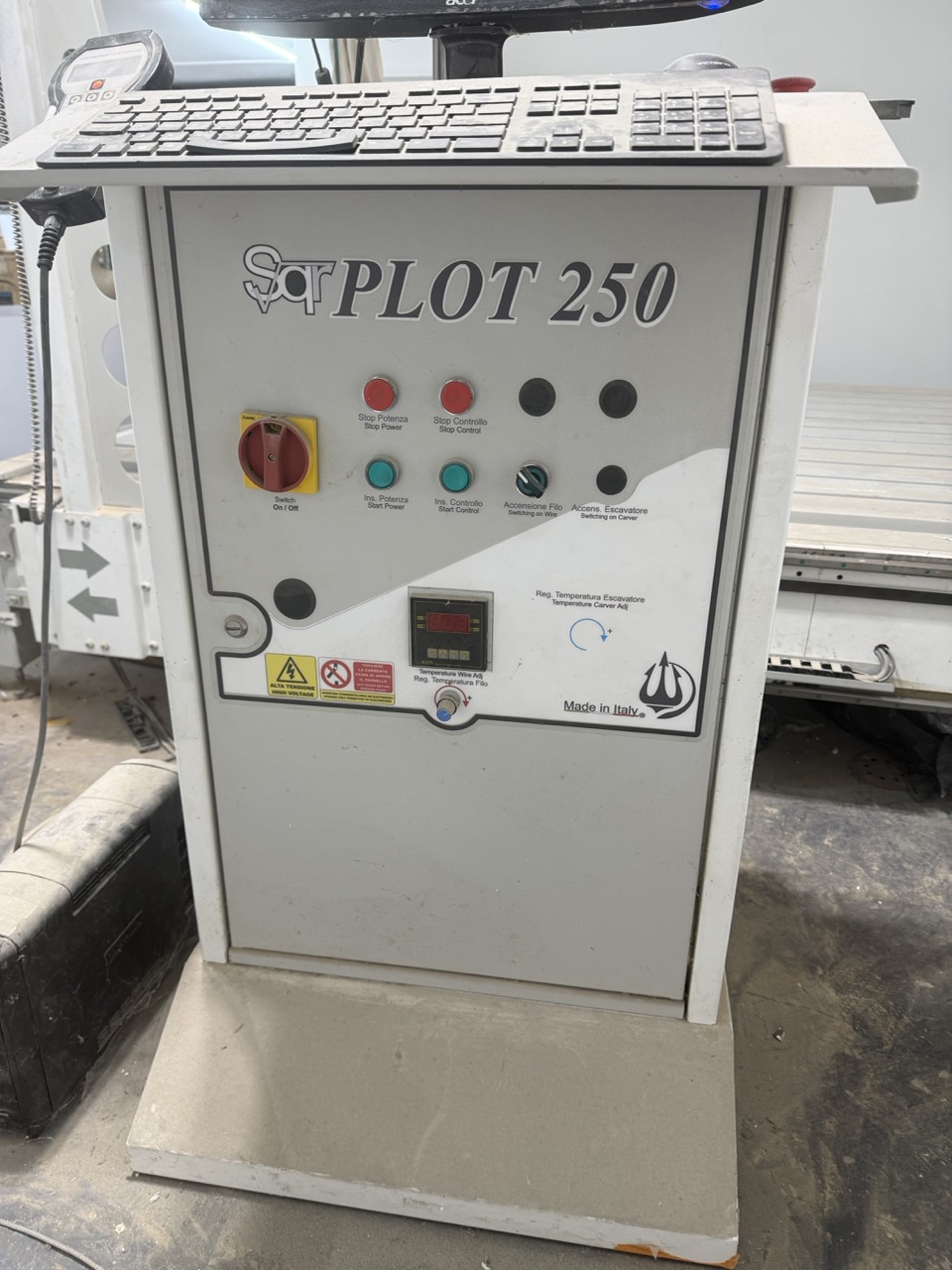

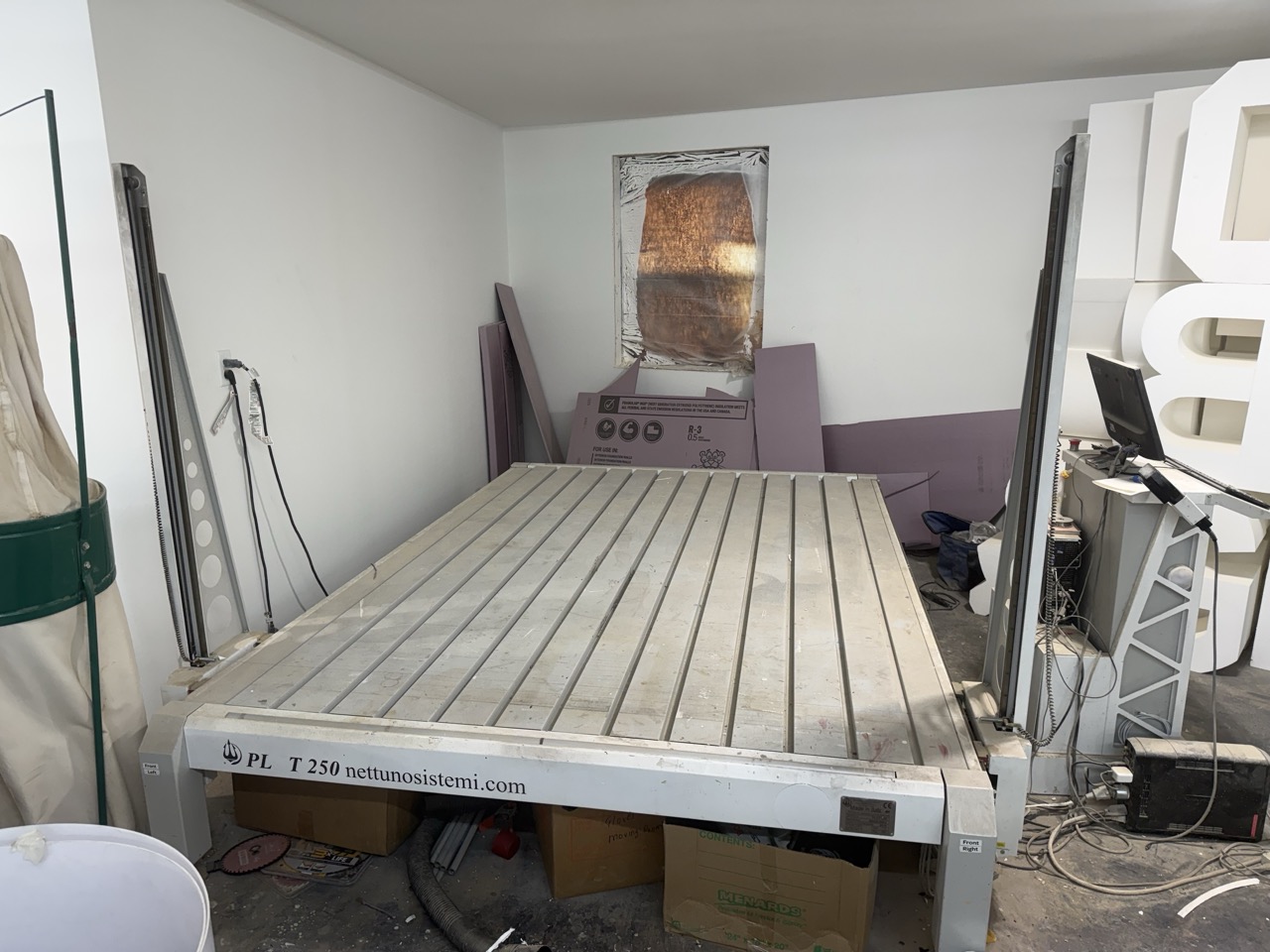

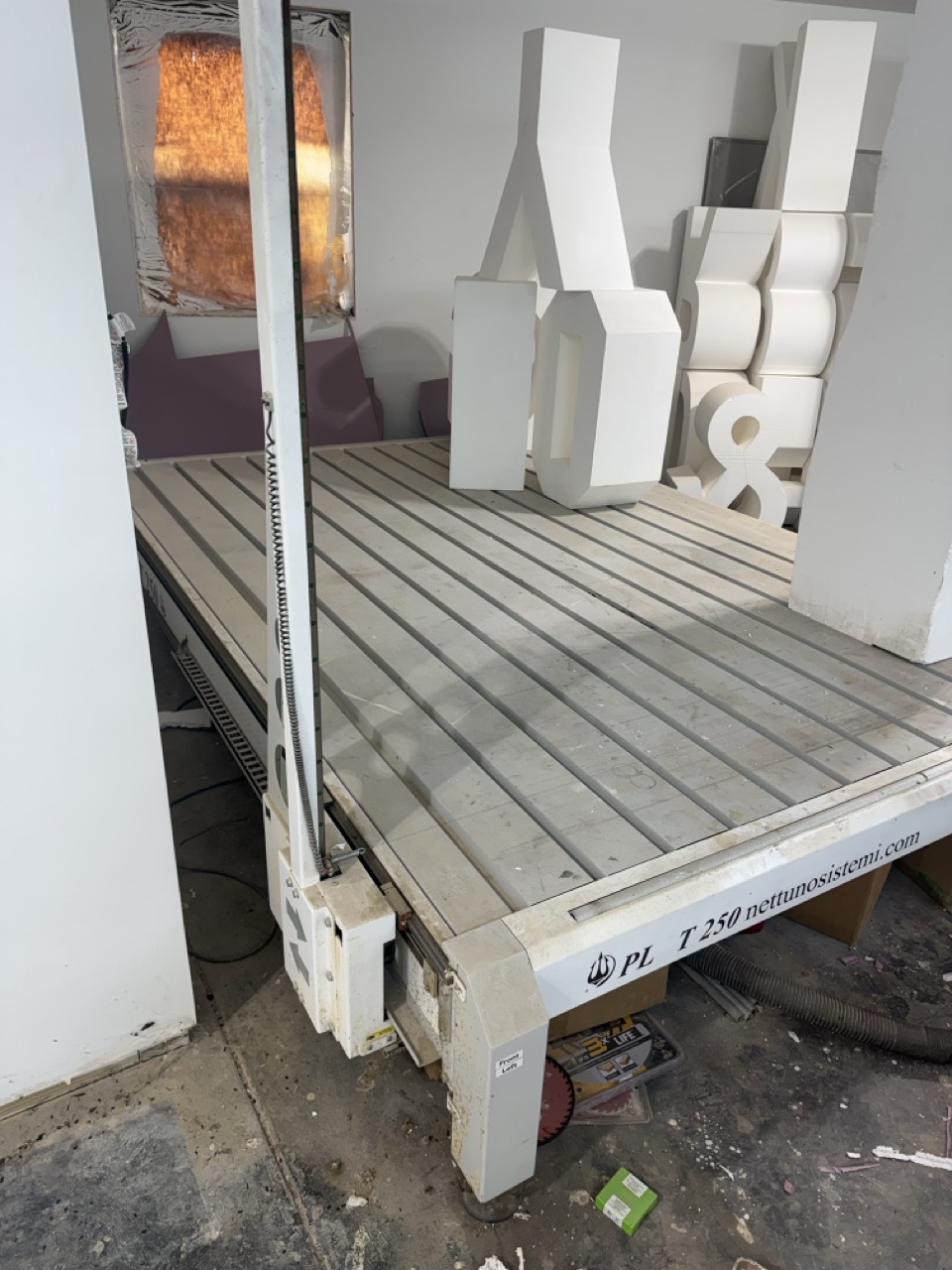

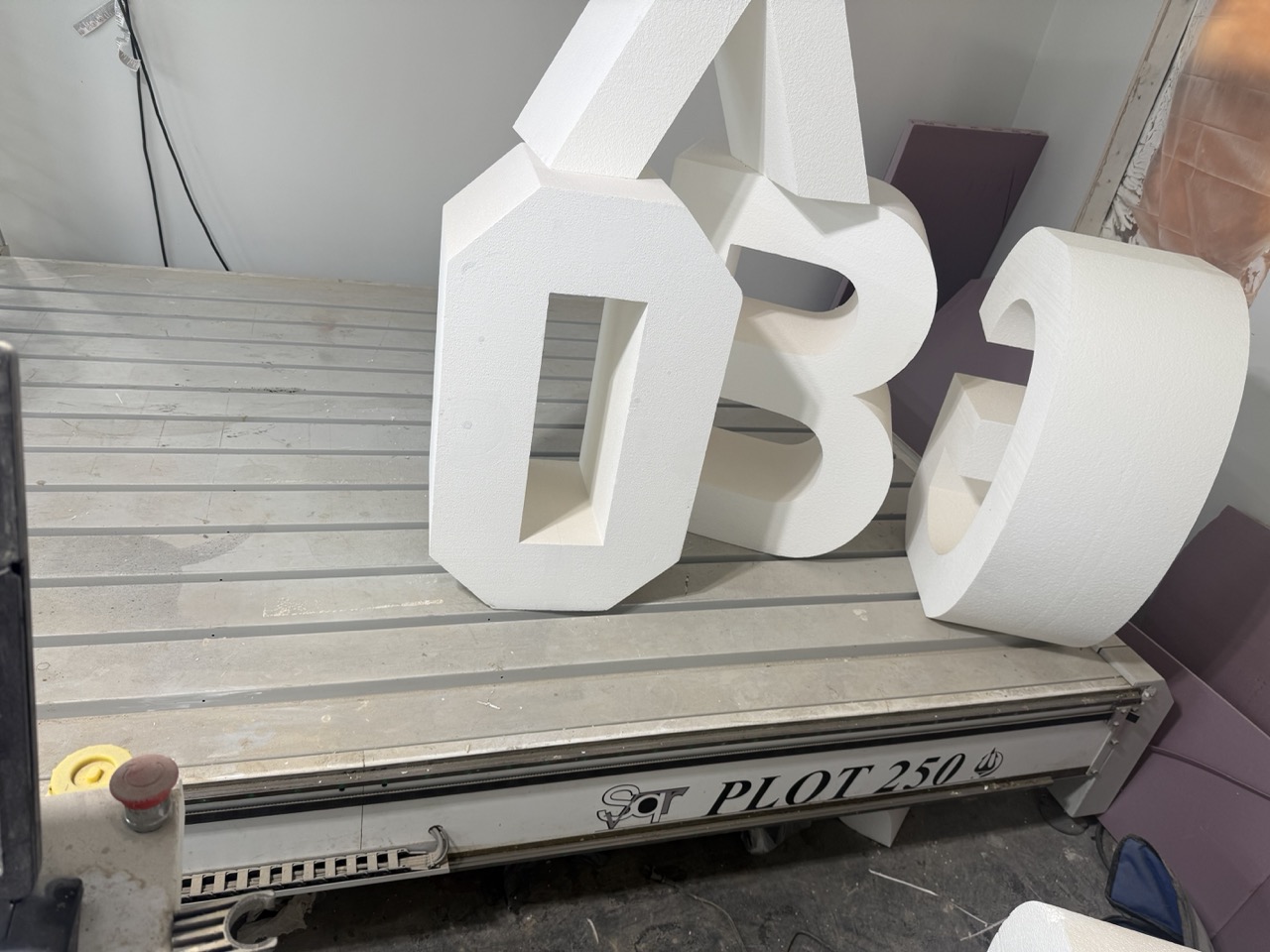

Nettuno Plot 250 4-Axis CNC Hot Wire Cutting System, 2019 – Vertical Turntable

Model: Plot 250
Year: 2019
Machine Type: CNC Hot-Wire Cutting System
Number of Axes: 4 independent axes
Cutting Area: 2,500 mm X x 1,250 mm Y x 2,000 mm Z (approx. 98.4″ x 49.2″ x 78.7″)
Maximum Axis Speed: 13 m/min
Movement Accuracy: ±0.05 mm
Cutting Wire Length: 2,000 mm (approx. 78.7″)
Cutting Wire: Ø 0.25 mm titanium
Wire Tensioning: Spring tension
Wire Temperature Adjustment: External potentiometer
Single-Wire Power Consumption: 1 kW
Motors: Stepper motors
X/Y Axis Transmission: Ball-bearing guides and toothed belts
Machine Structure: Powder-coated steel
Table Top: Powder-coated steel
Power Supply: 220/230V, 50/60 Hz
Machine Dimensions: 3,200 x 2,400 x 1,900 mm (approx. 126″ x 94.5″ x 74.8″)
Machine Weight: 400 kg (approx. 882 lb.)
