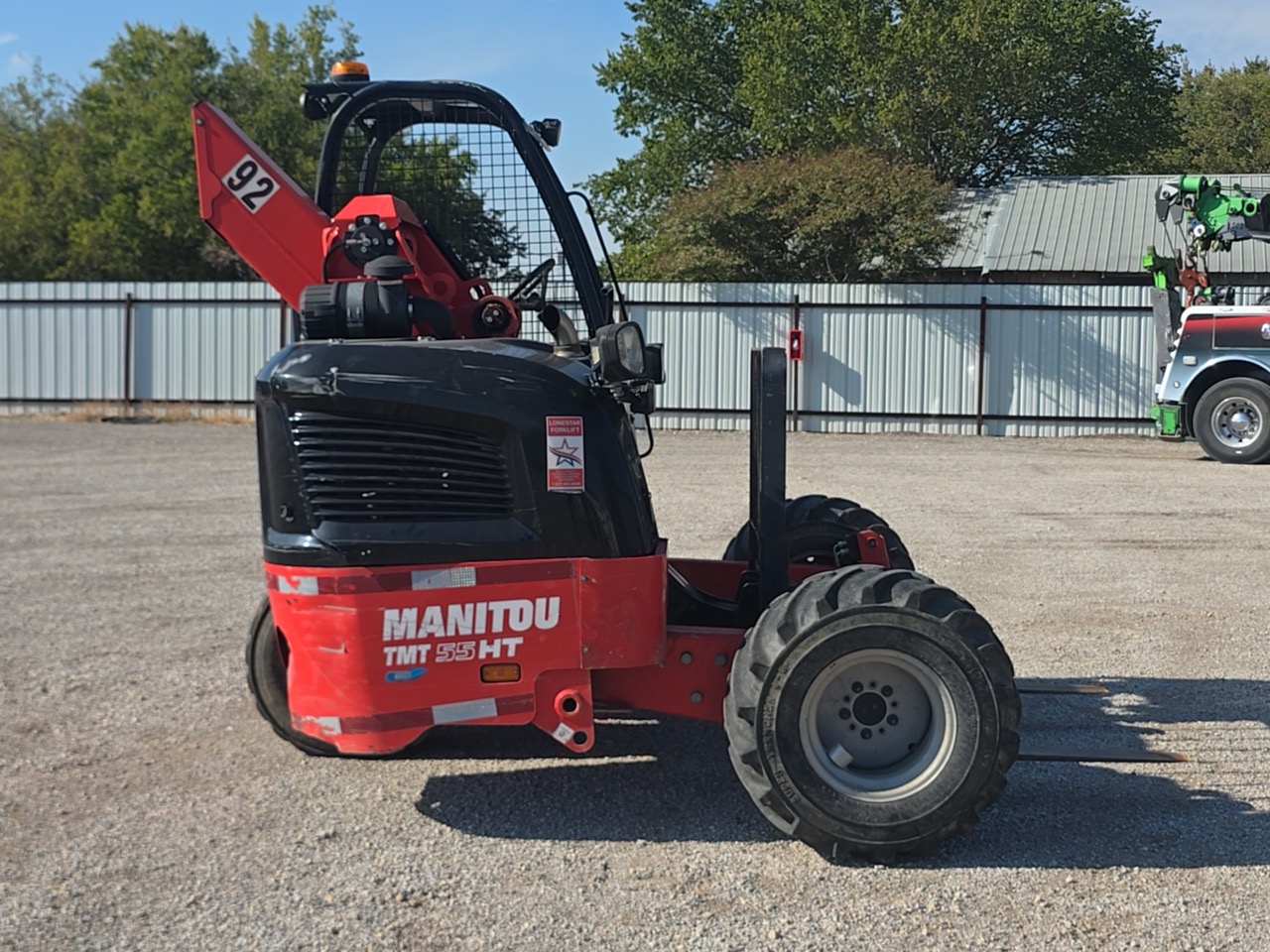

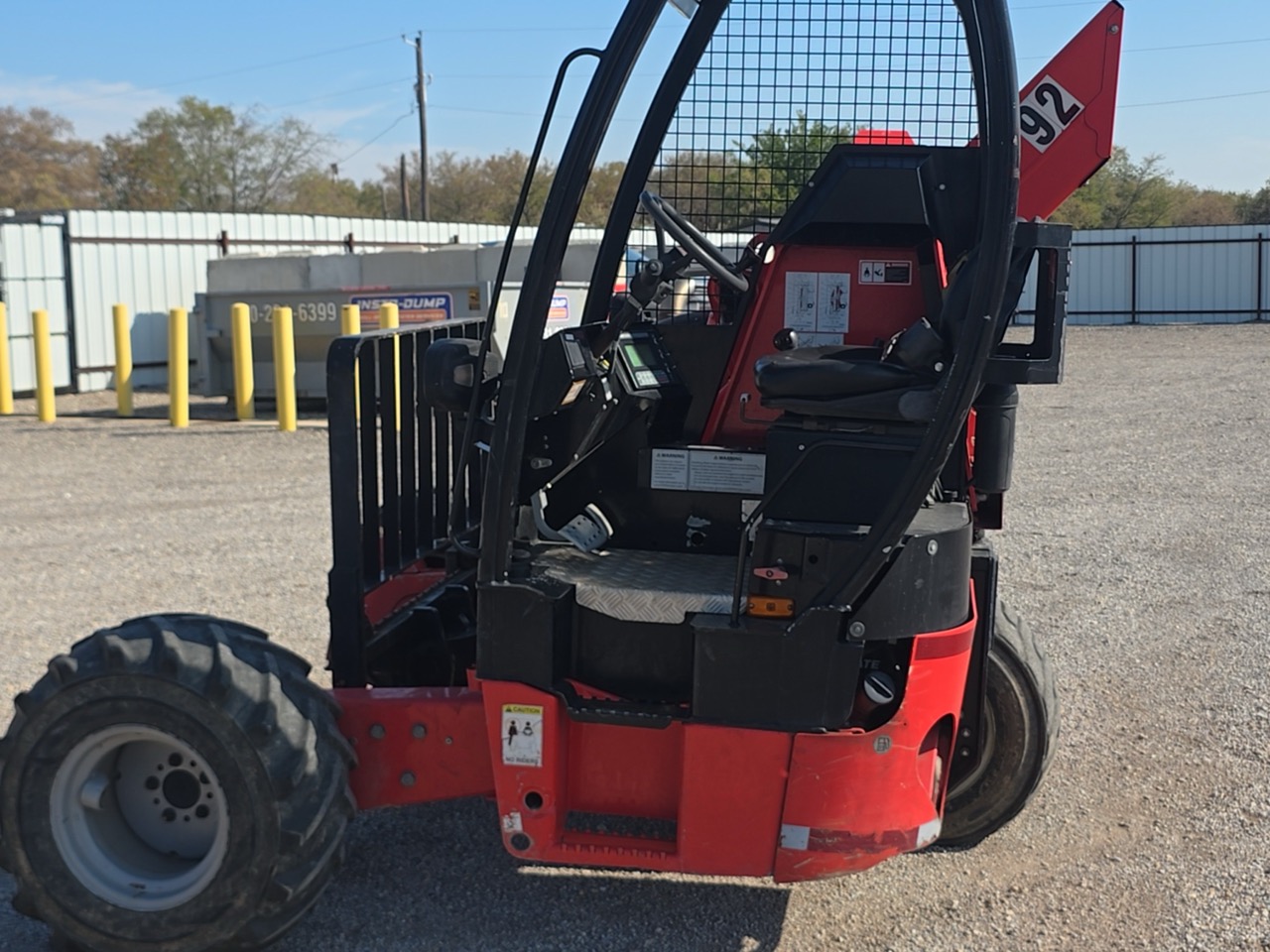

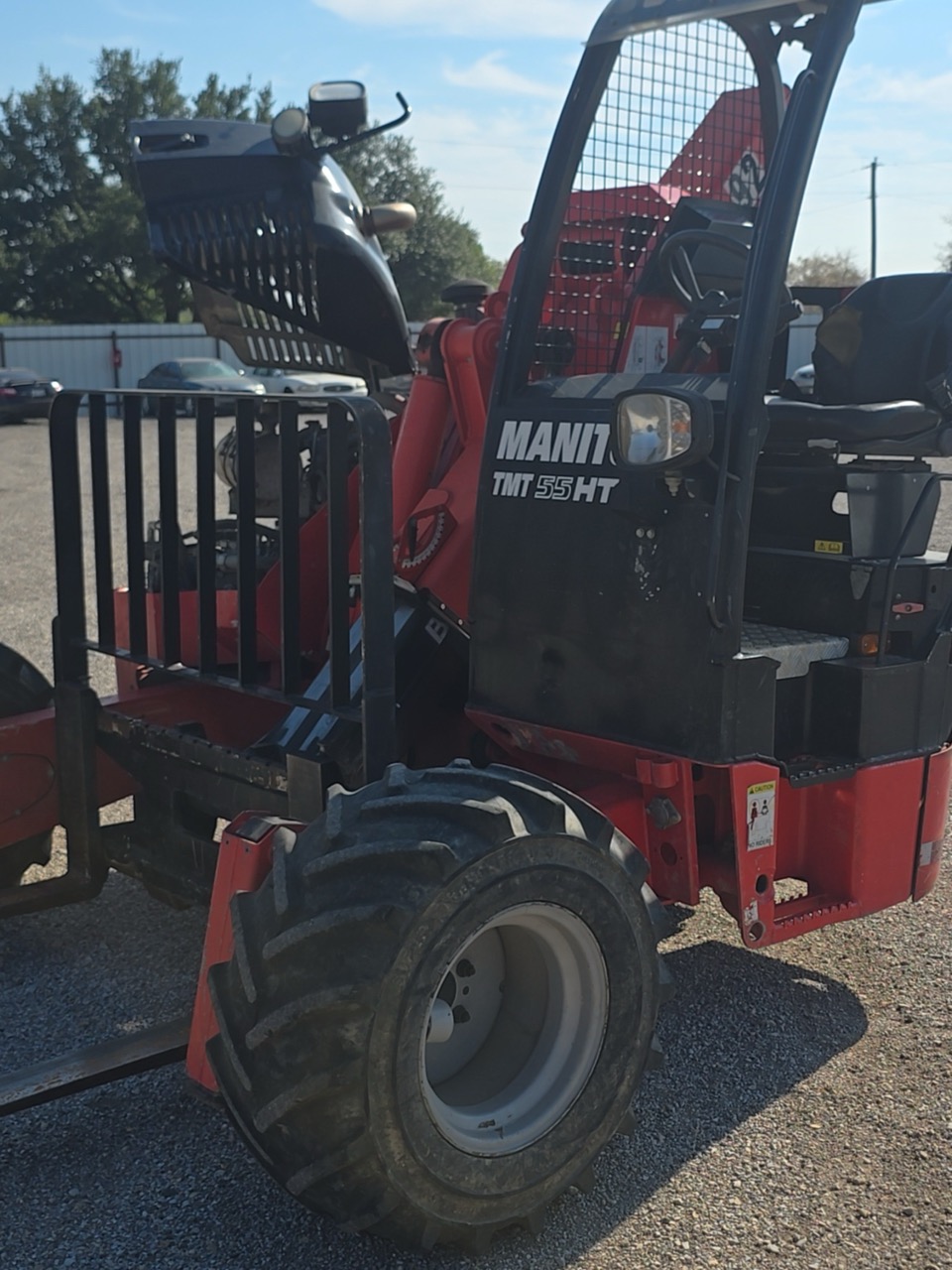

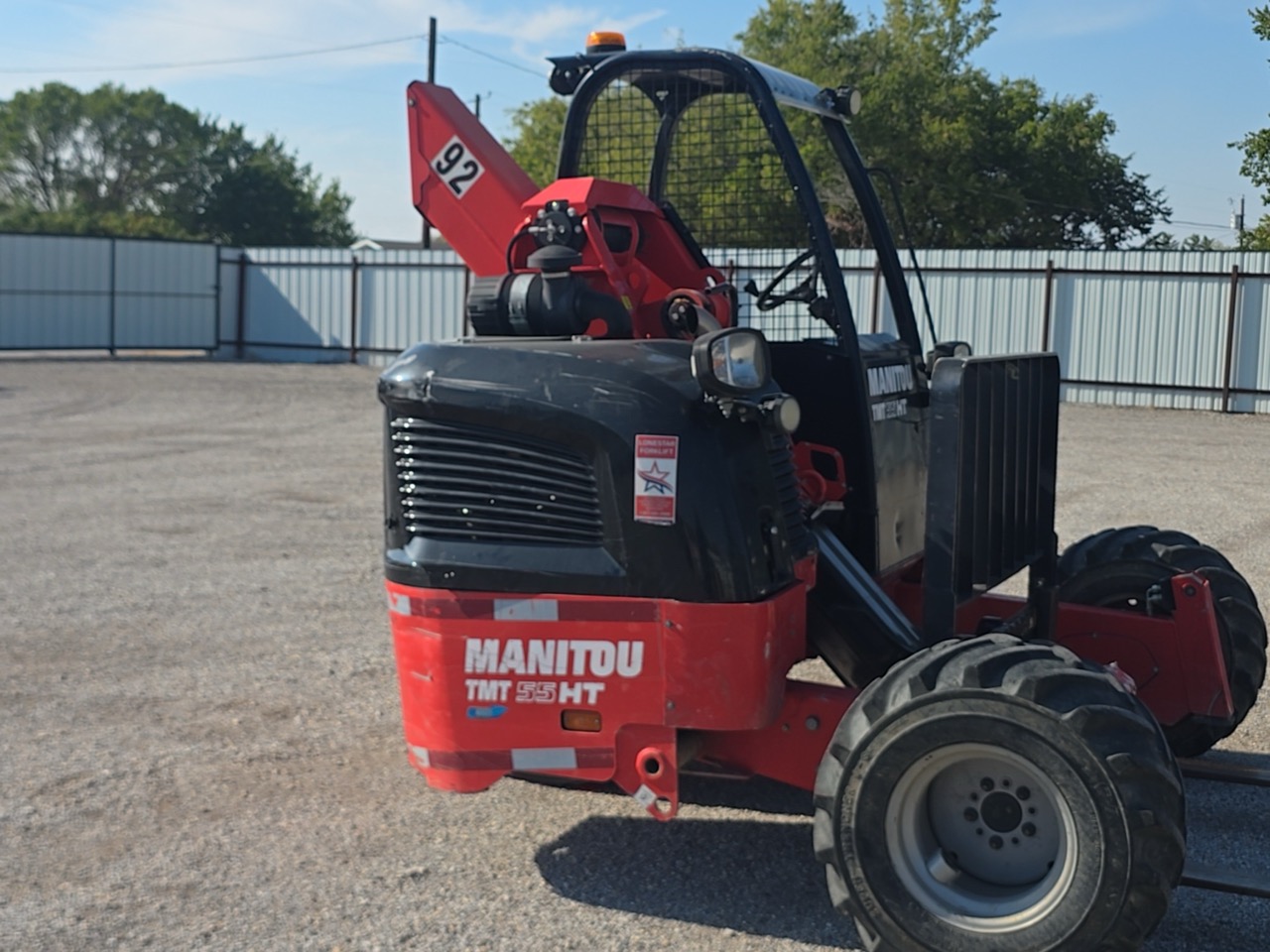

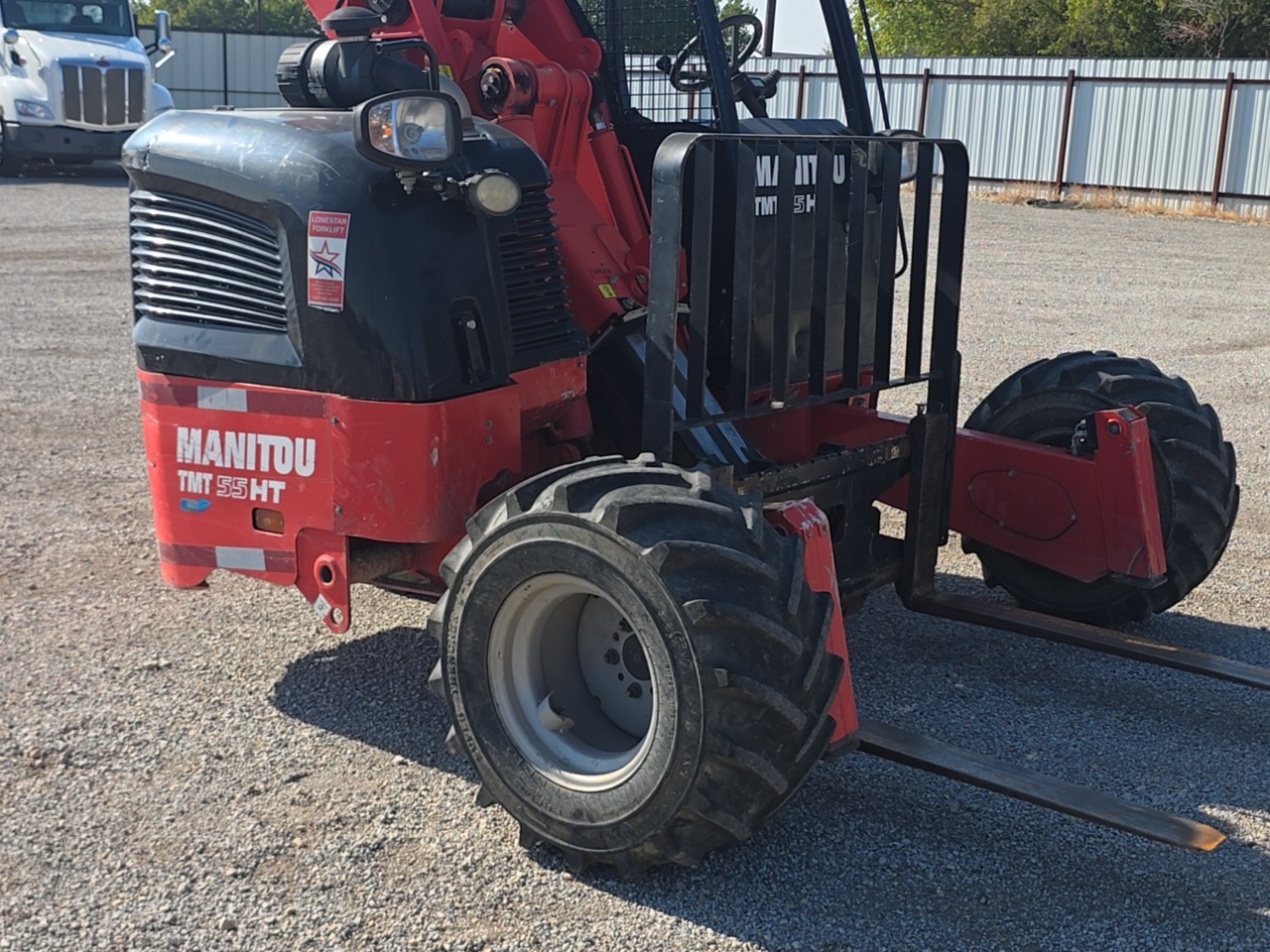

New Manitou TMT55 Forklift, 2021

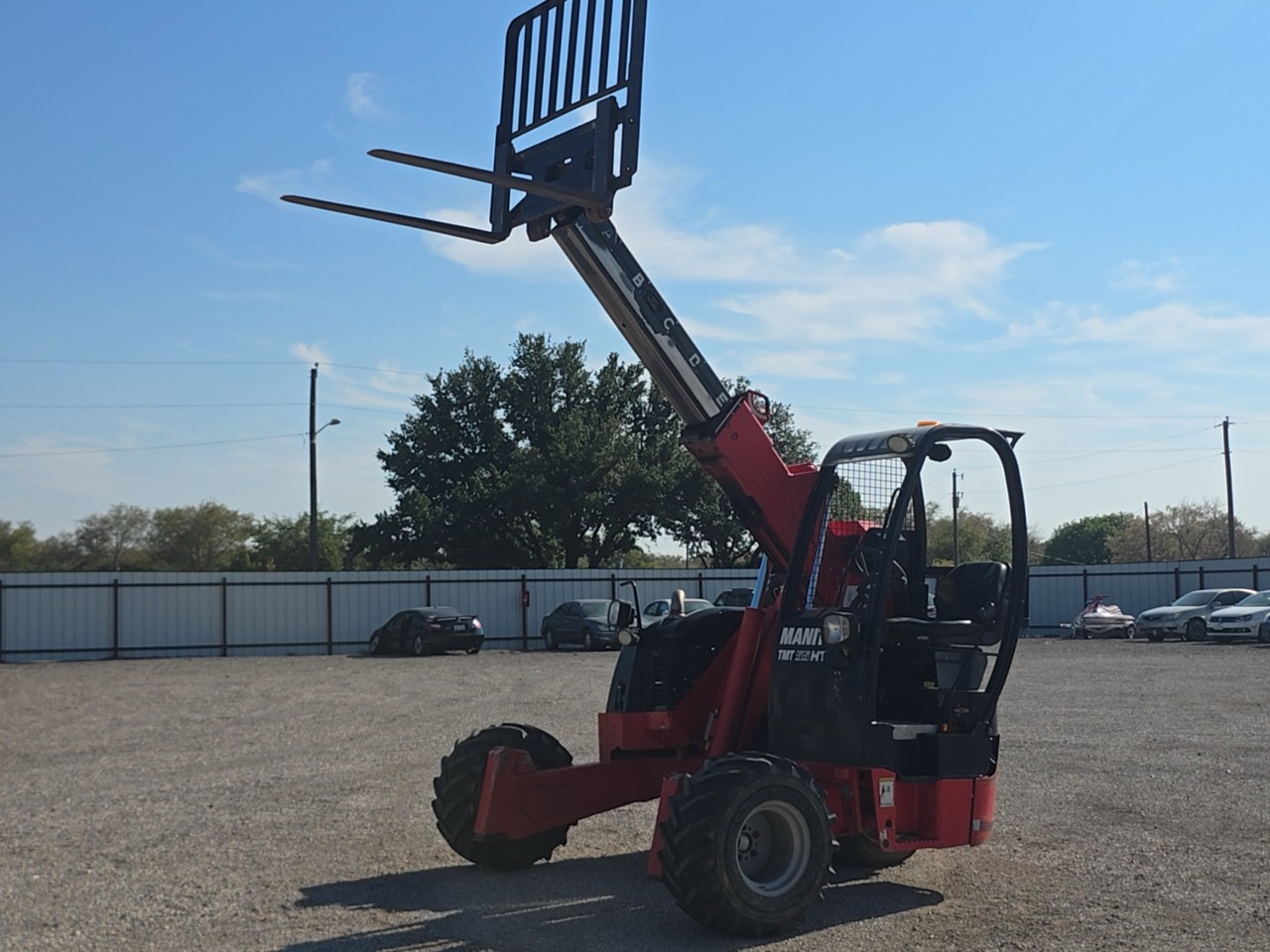

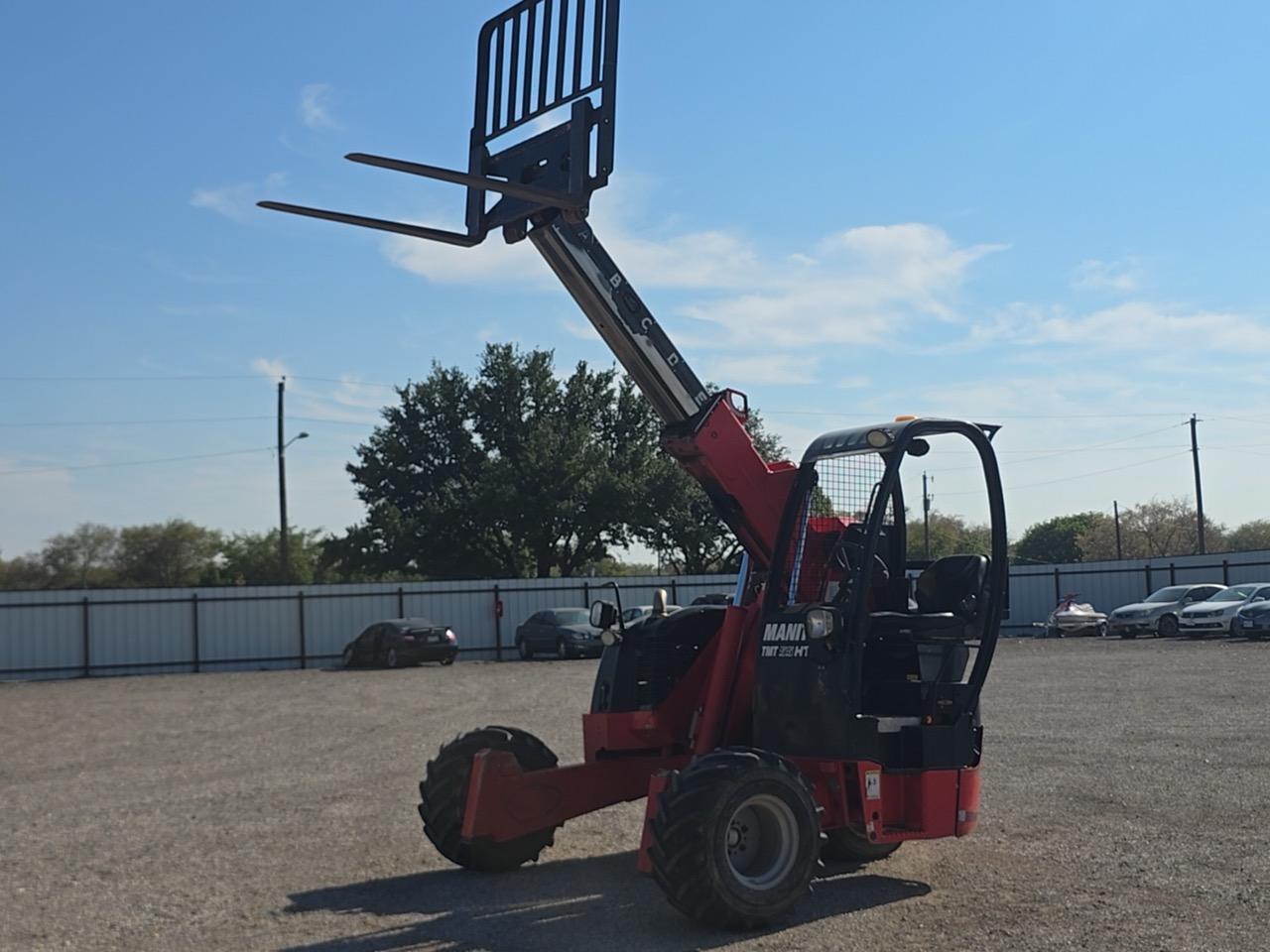

The Manitou TMT 55 is a compact, truck-mounted forklift designed for loading and unloading materials where traditional loading docks are unavailable. Its telescopic boom and compact footprint allow operators to unload from a single side of a truck, making it well suited for construction, building-material delivery, and logistics applications. Manitou’s published TMT 55 specifications identify a 5,512-lb. capacity, diesel power, and approximately 11′ 3″ maximum lifting height.

Type: Truck-Mounted Forklift
Power Source: Diesel

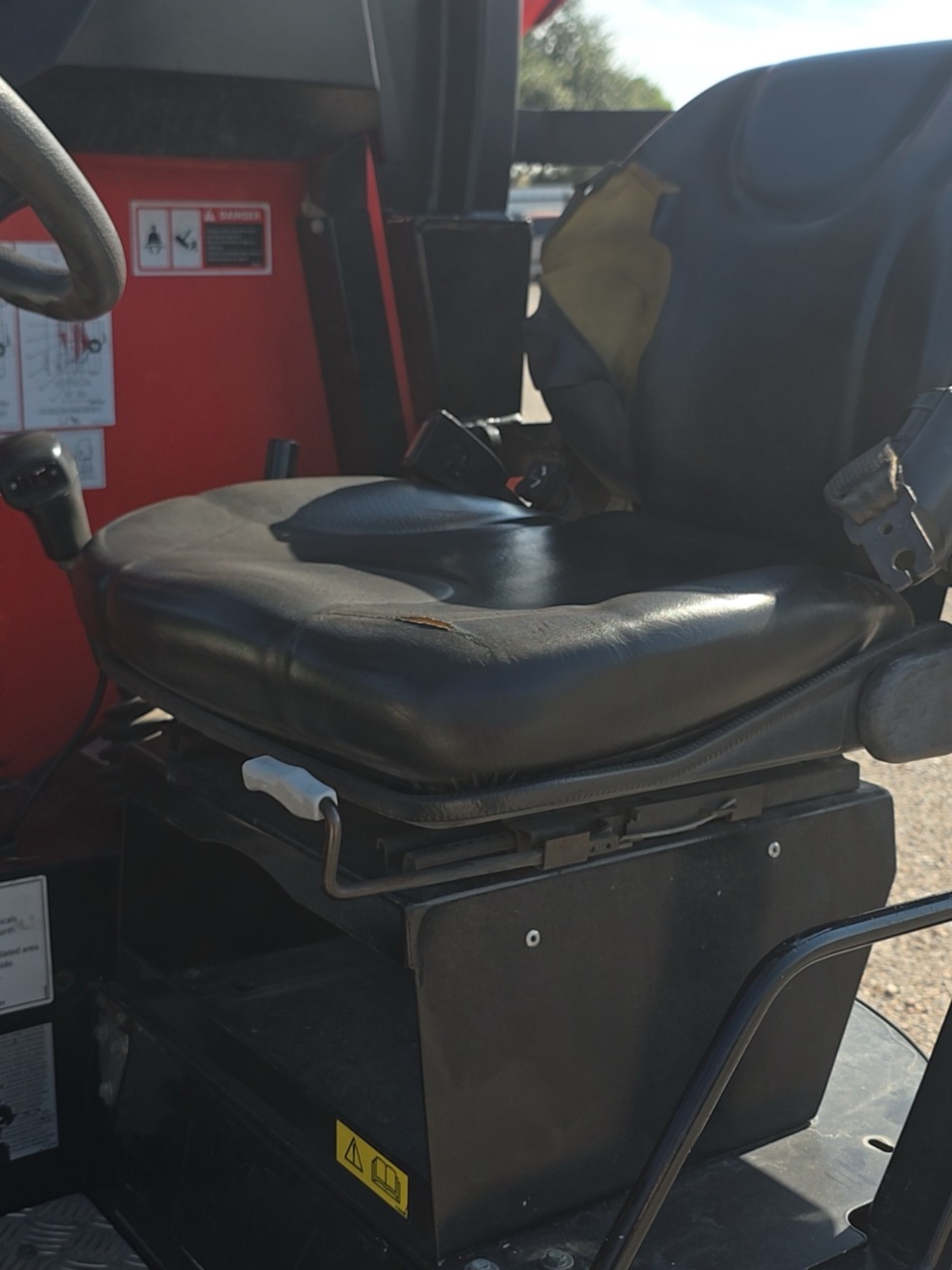

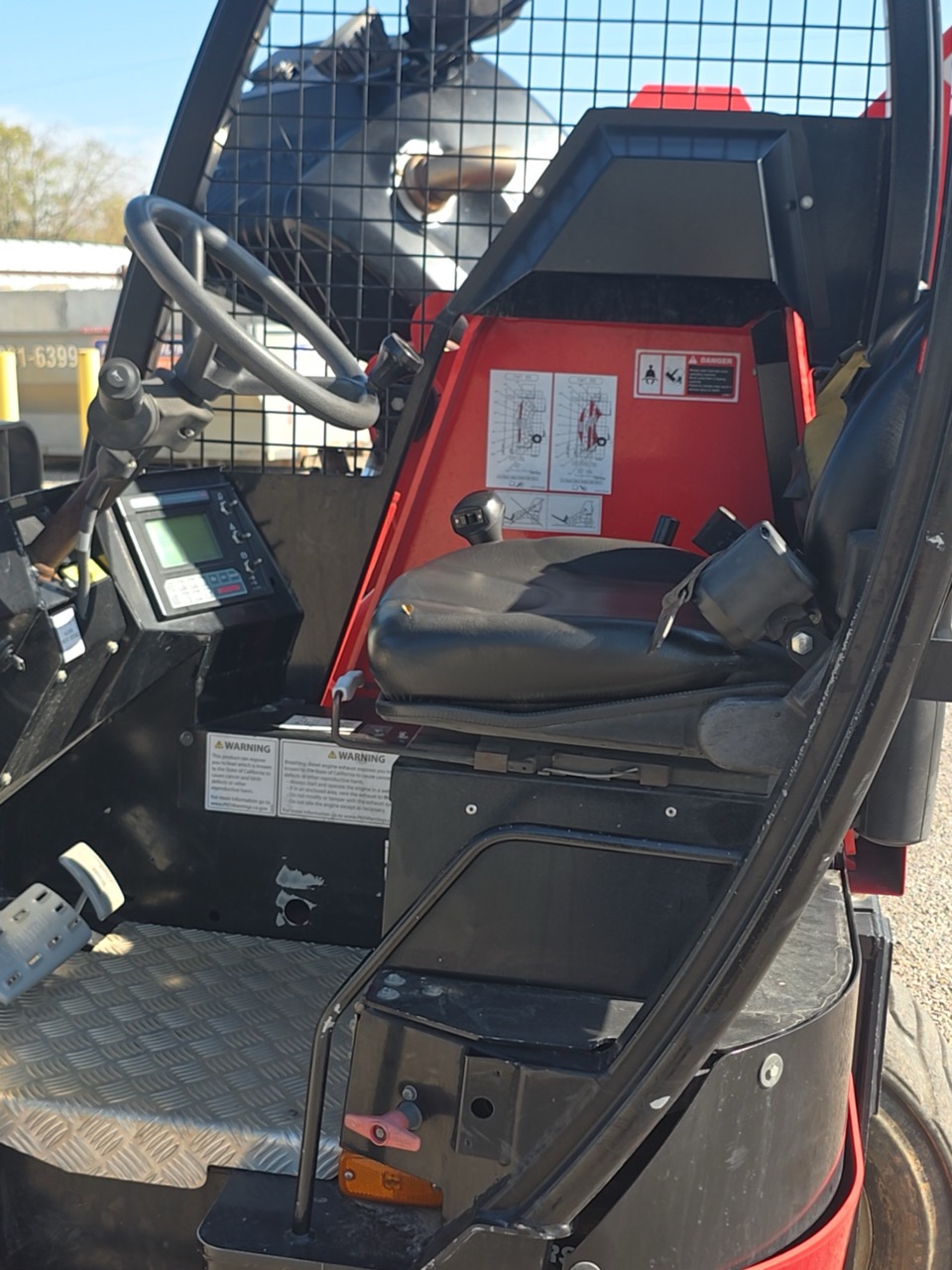

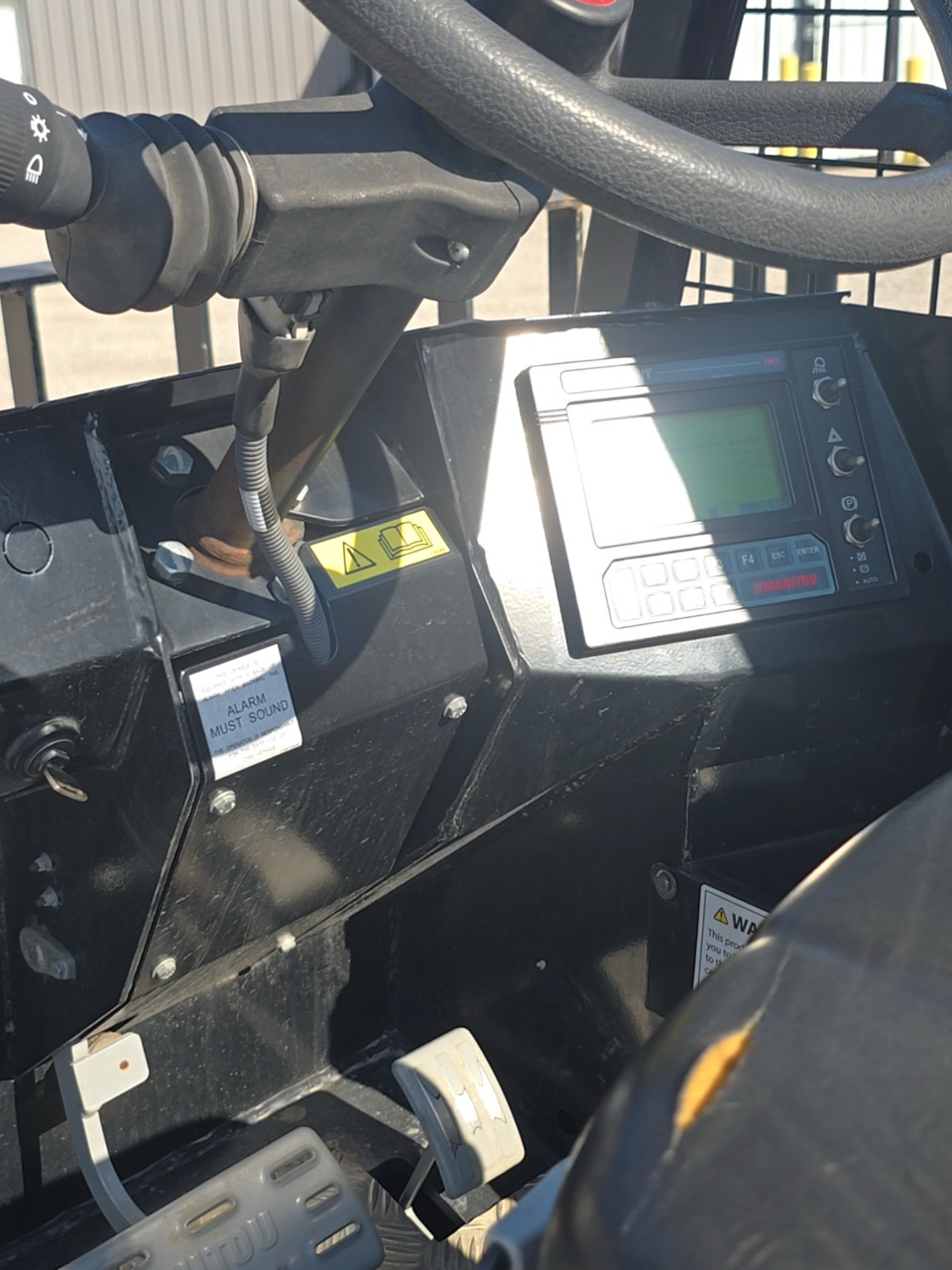

Operator Type: Seated
Rated Capacity: 5,512 LBS.
Load Center: 24″
Lift Type: Telescopic Boom
Maximum Lift Height: 11′ 3″
Telescopic Boom Height – Lowered: 89″
Telescopic Boom Height – Extended: 12′ 11″
Mast Free Lift: 57″
Overall Length: 111″
Length to Fork Face: 63″
Overall Width: Approx. 101″
Overhead Guard Height: 93″
Wheelbase: 65″
Ground Clearance: 16″
Turning Radius: 118″

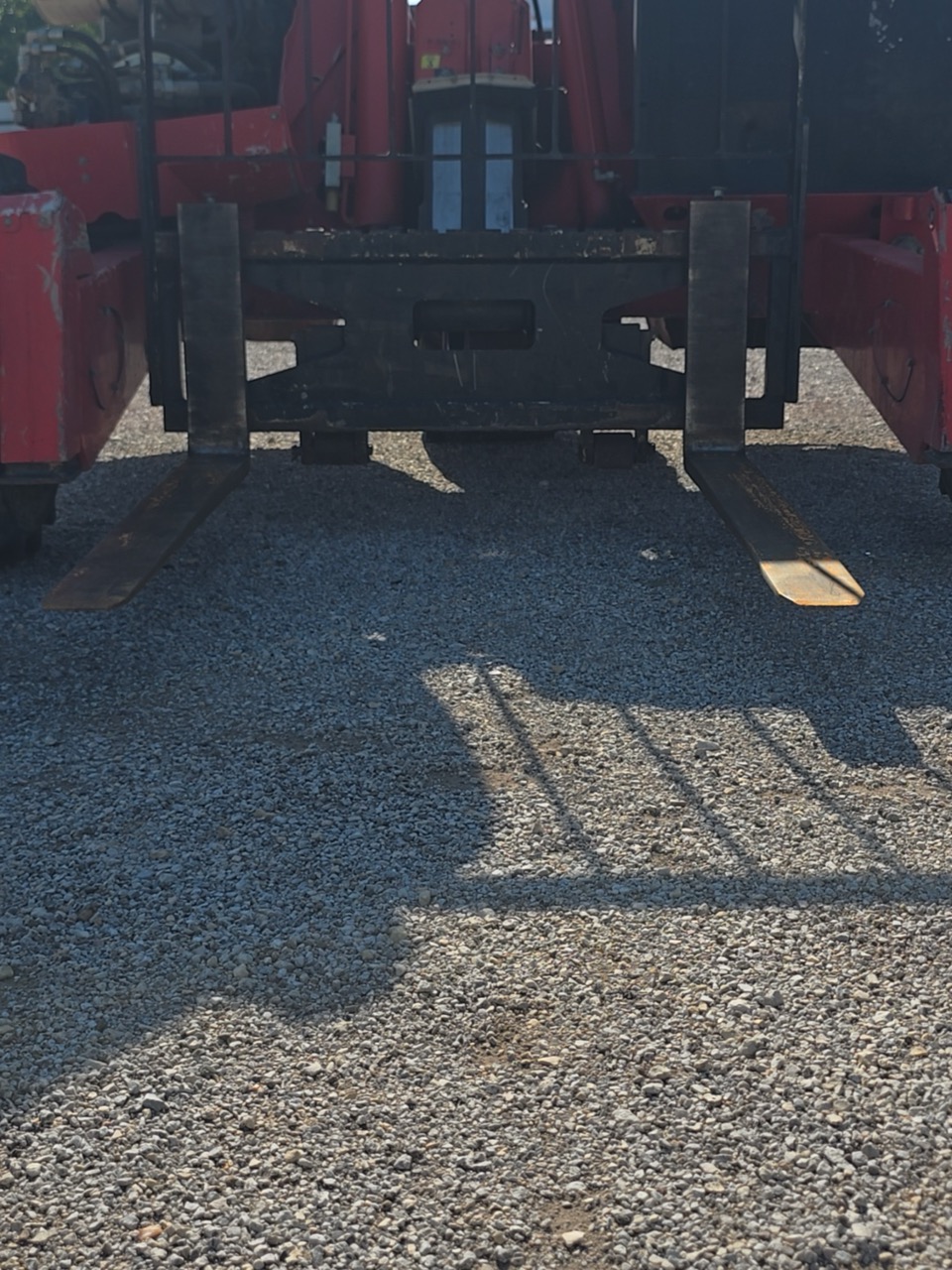

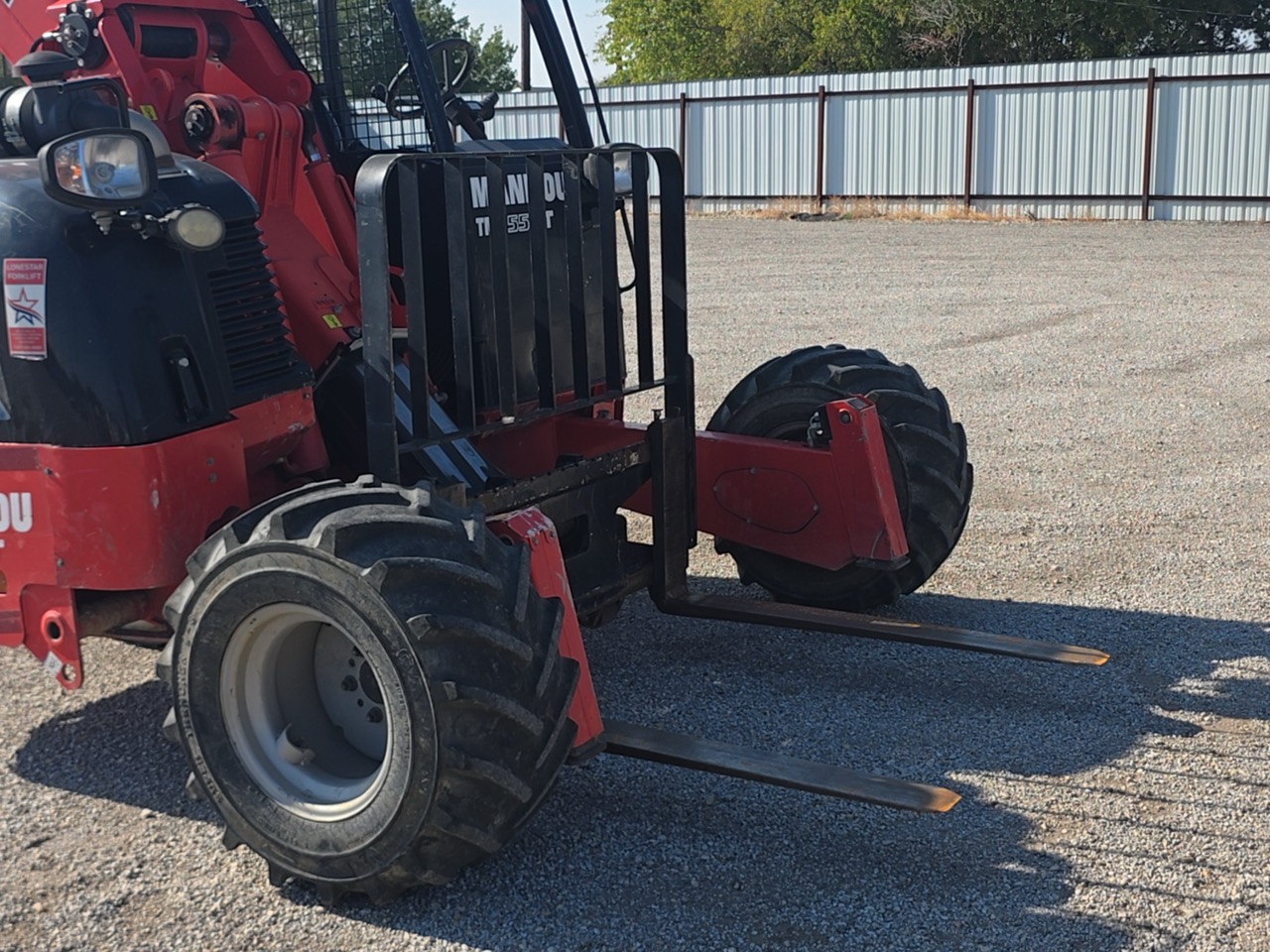

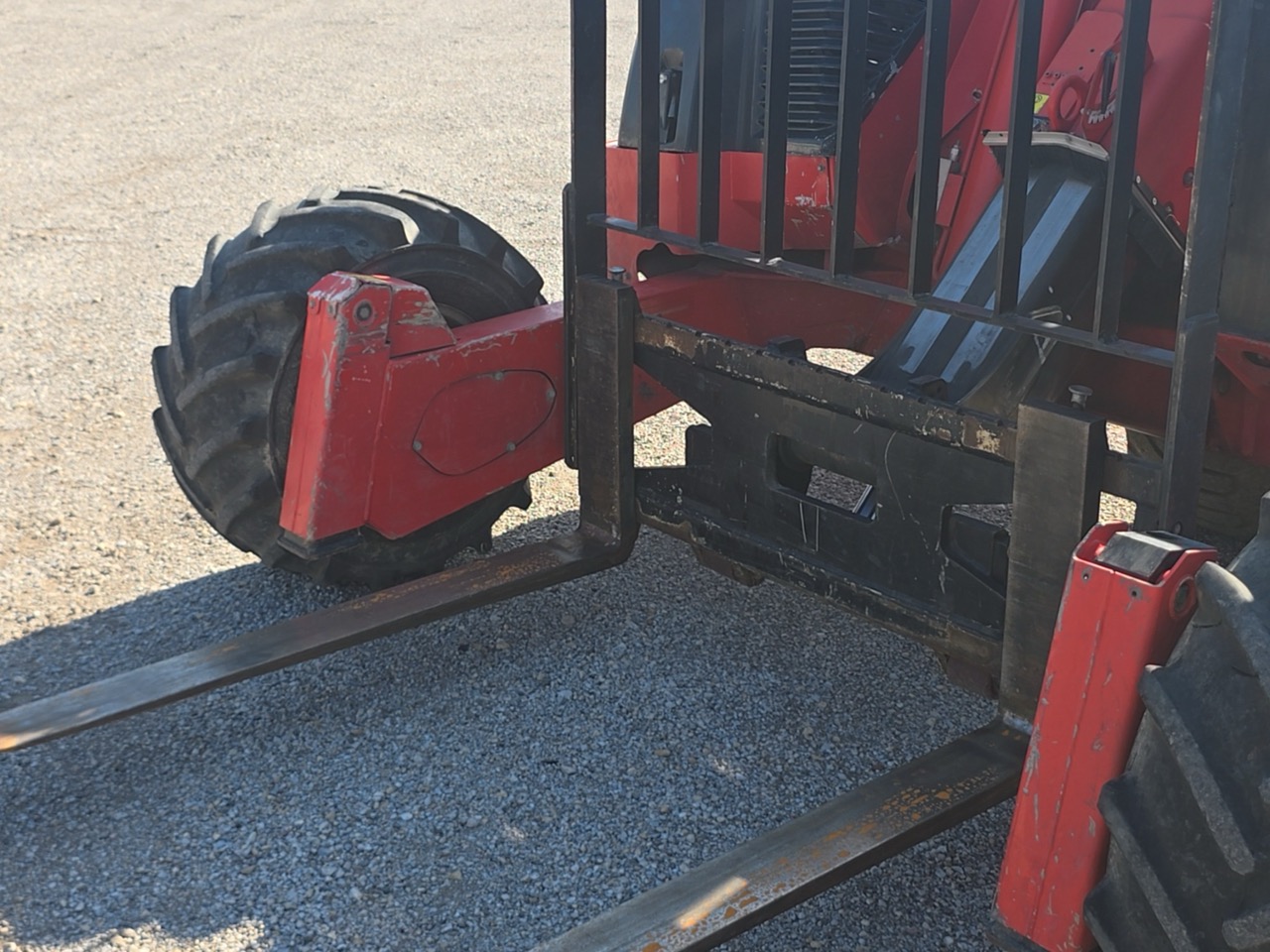

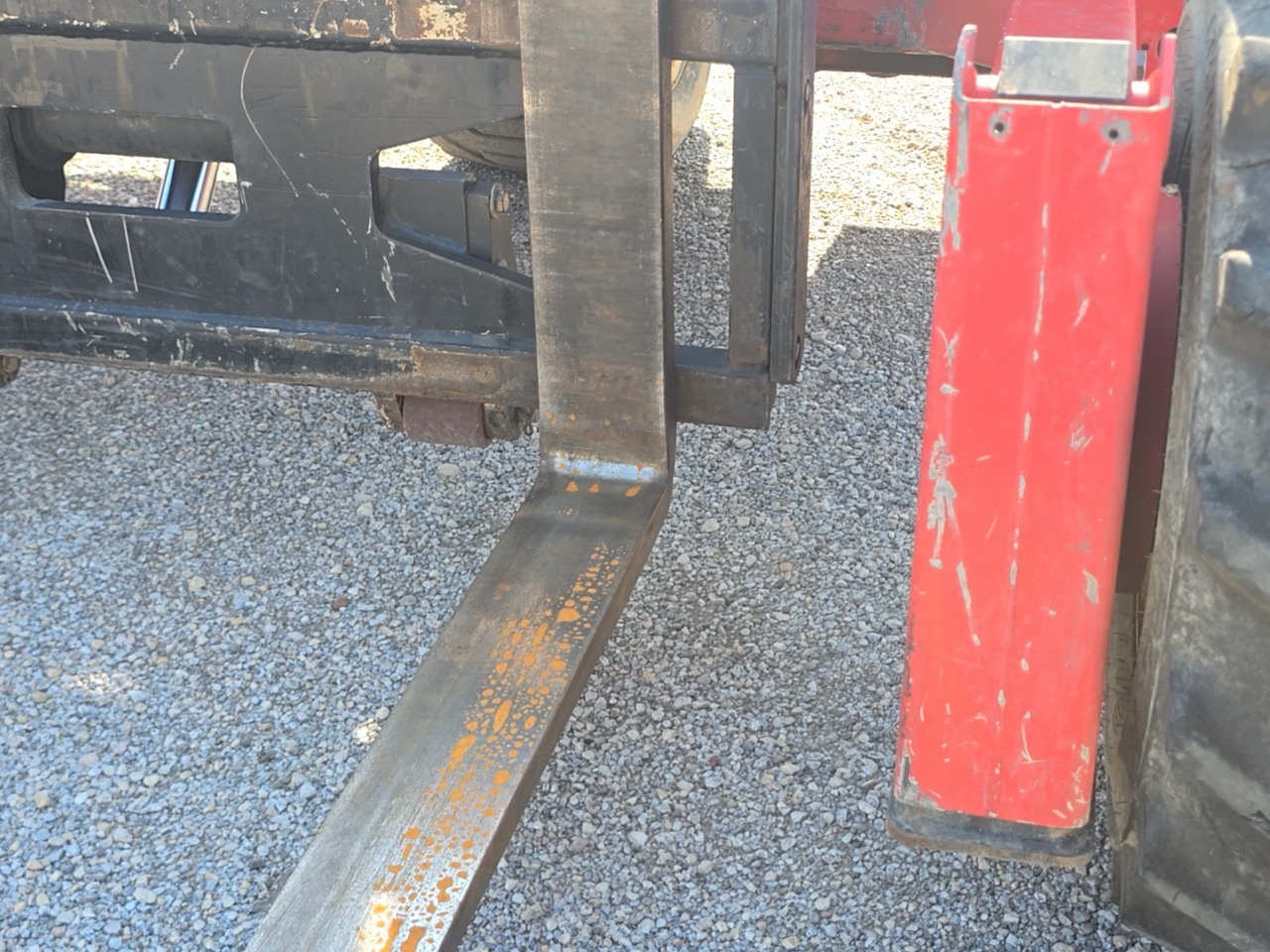

Fork Dimensions: 2″ x 4″ x 48″

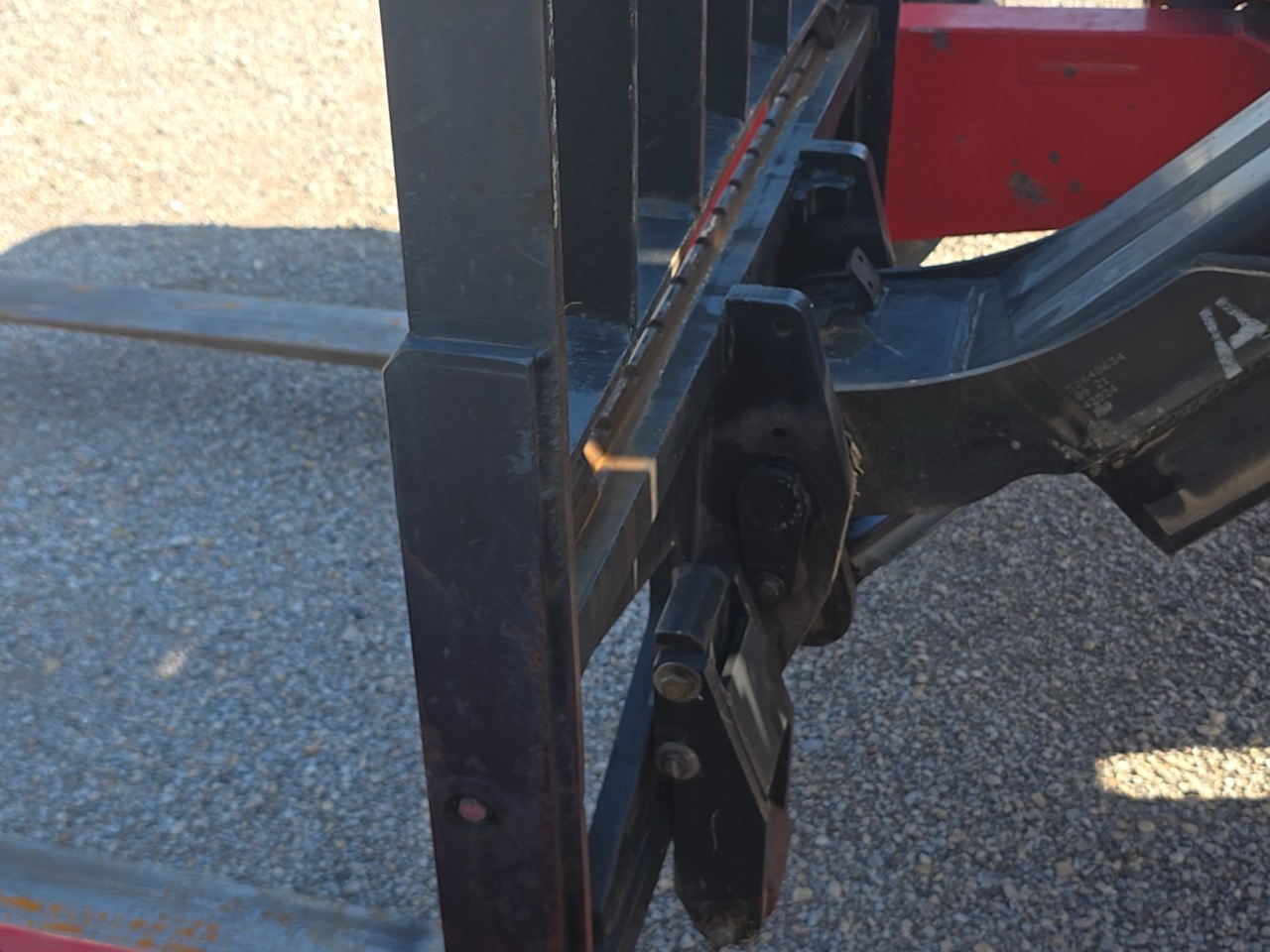

Fork Carriage: FEM 2A
Fork Carriage Width: 50″
Horizontal Extension at 24″ Load Center: 52″

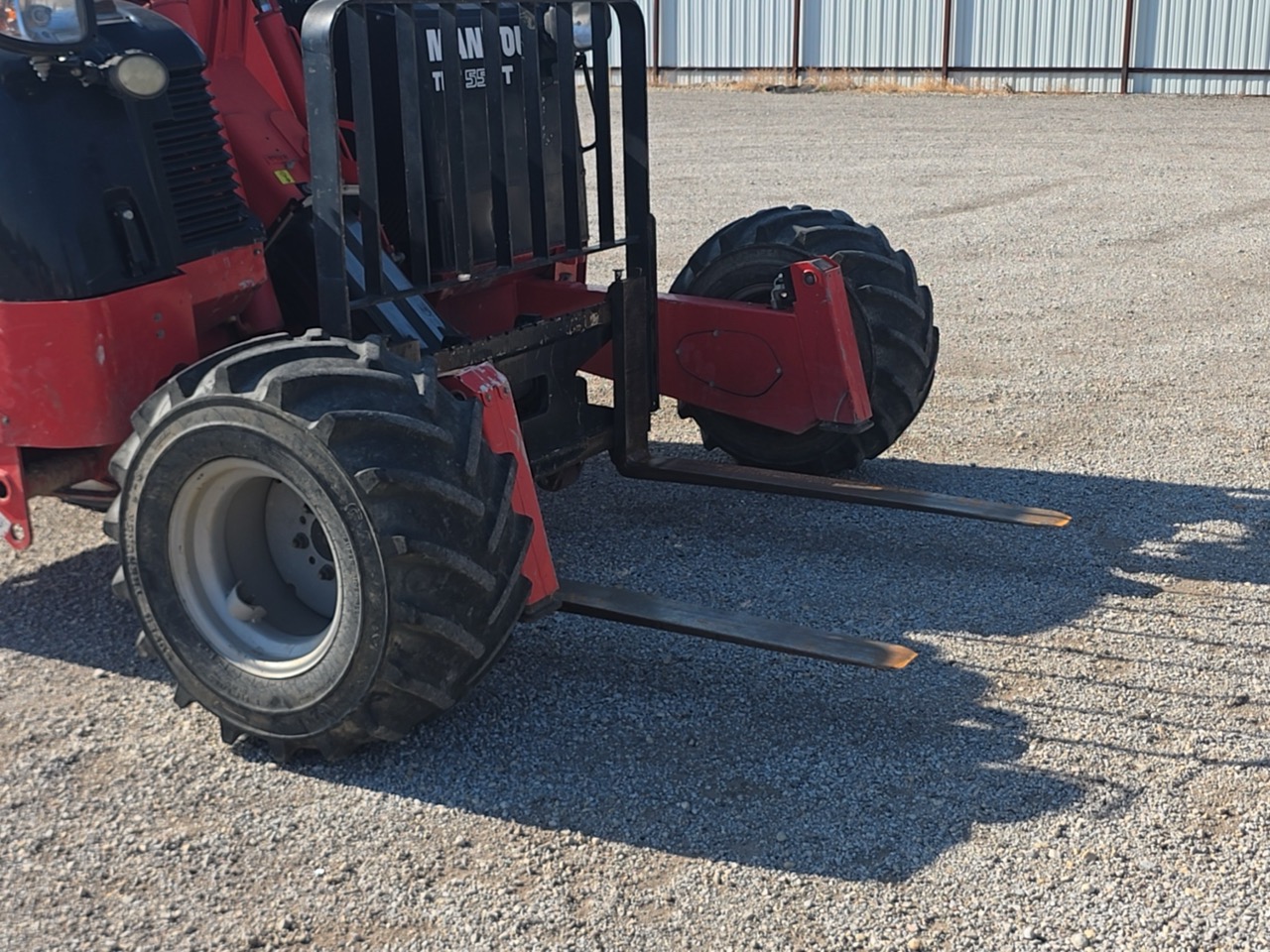

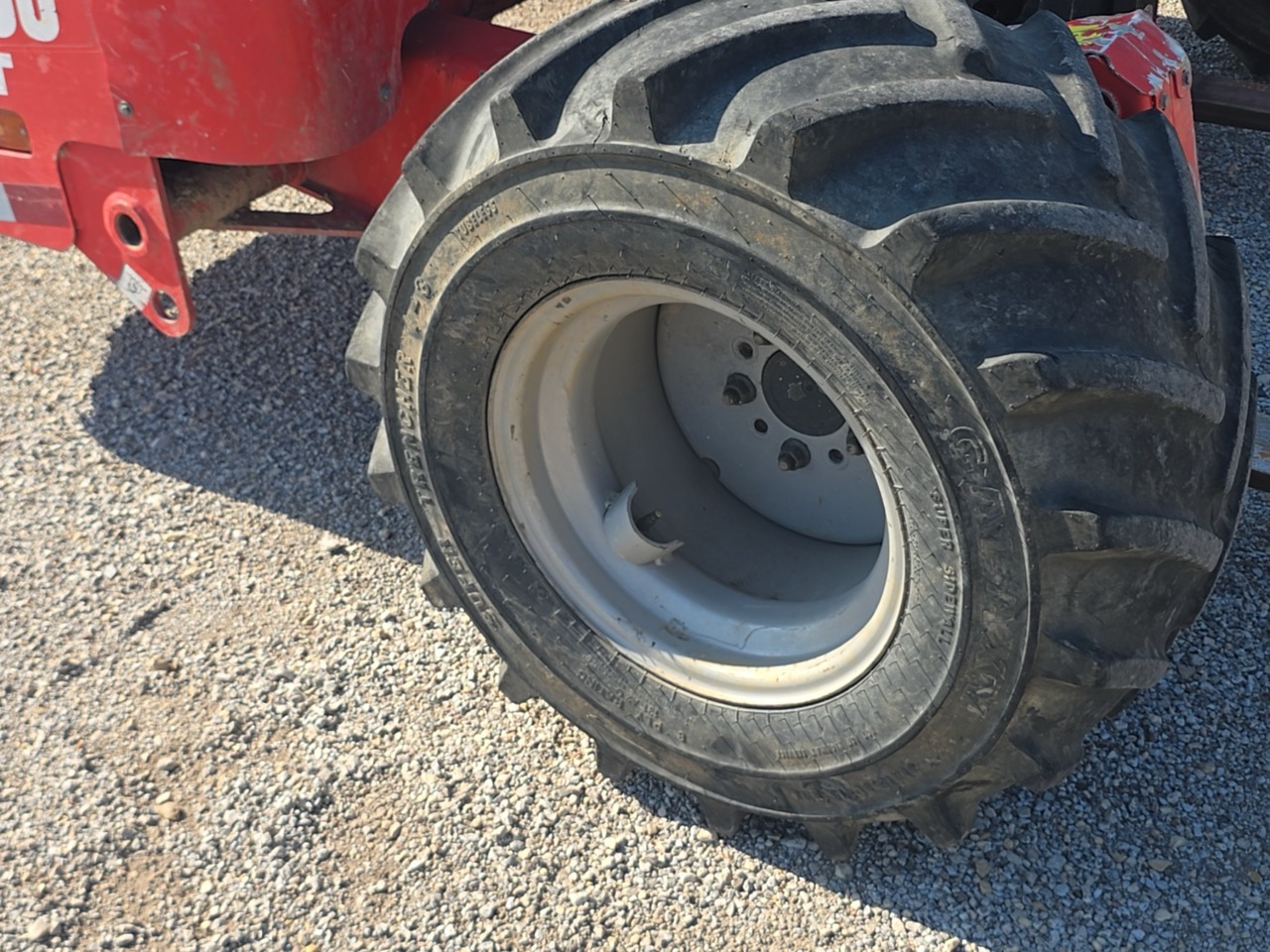

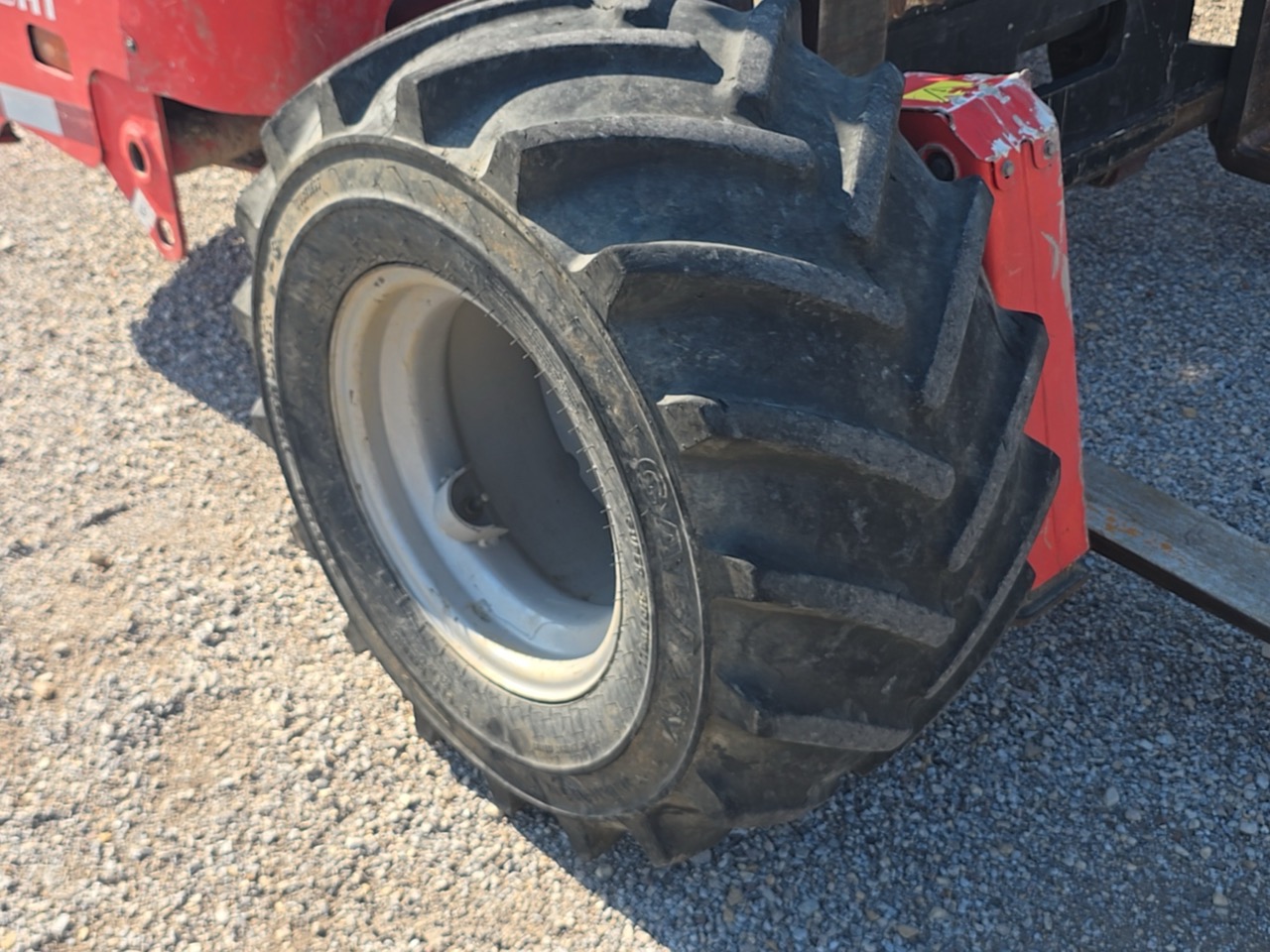

Front Tires: 31 x 15.5-15 Pneumatic

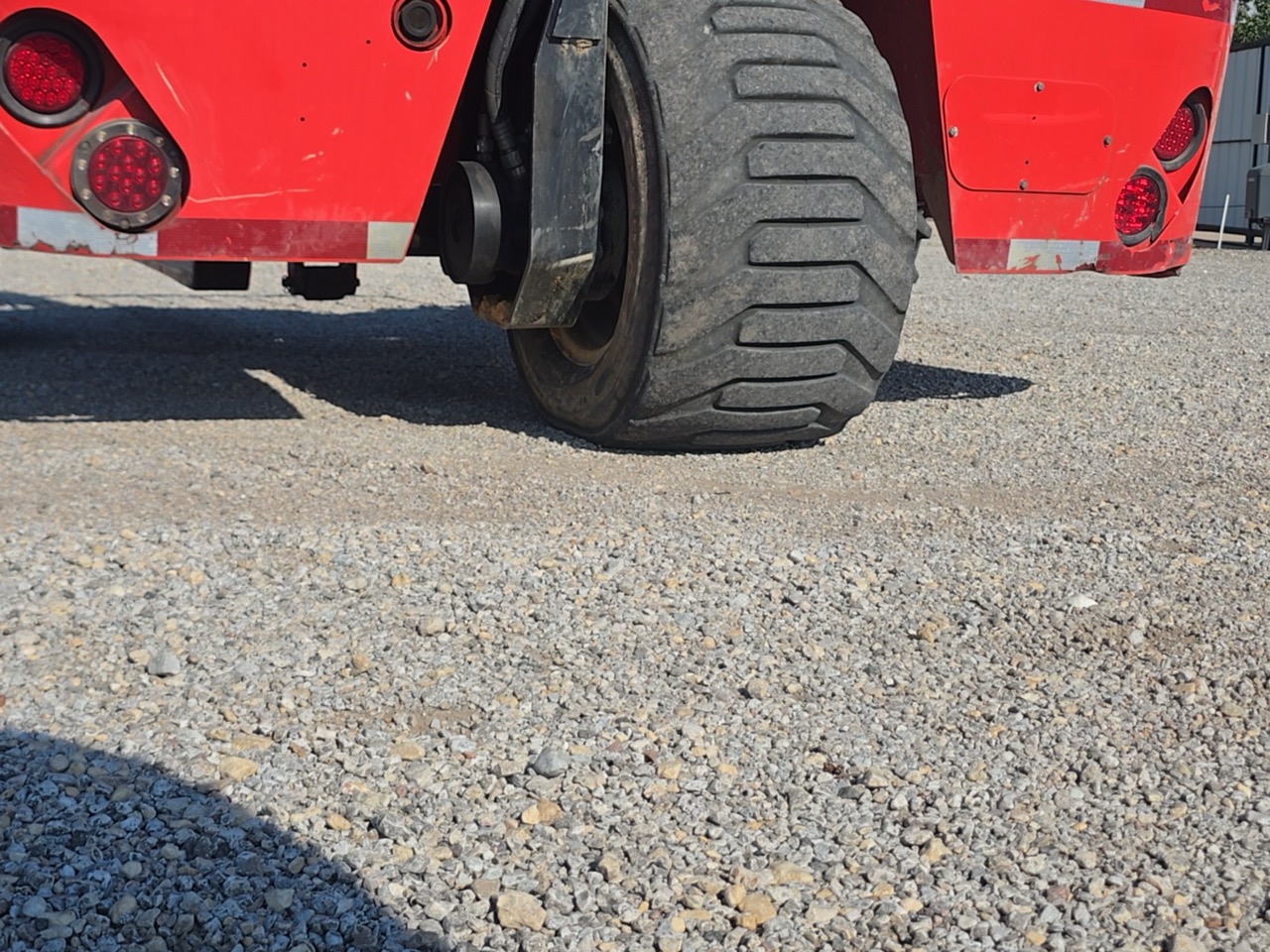

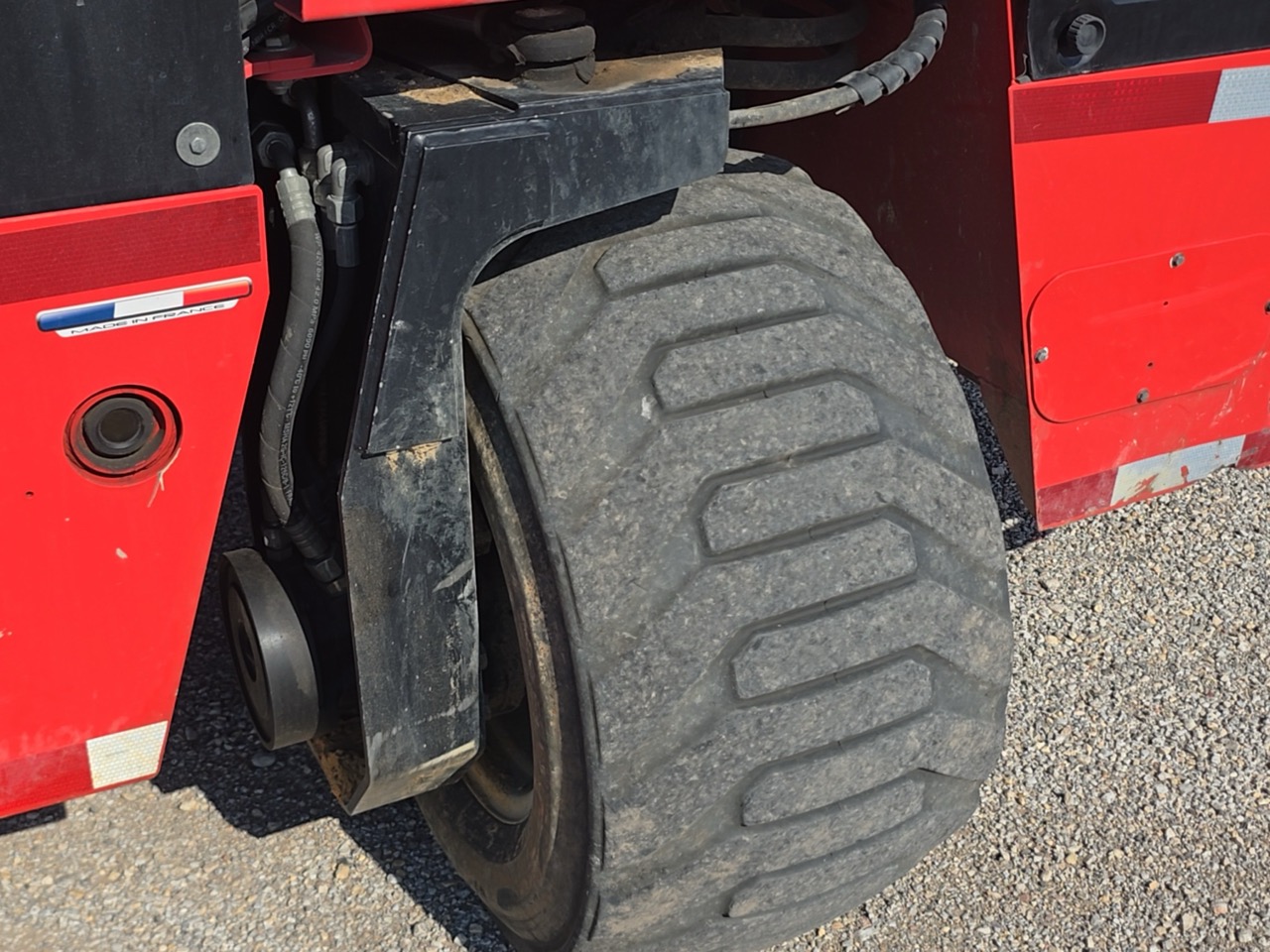

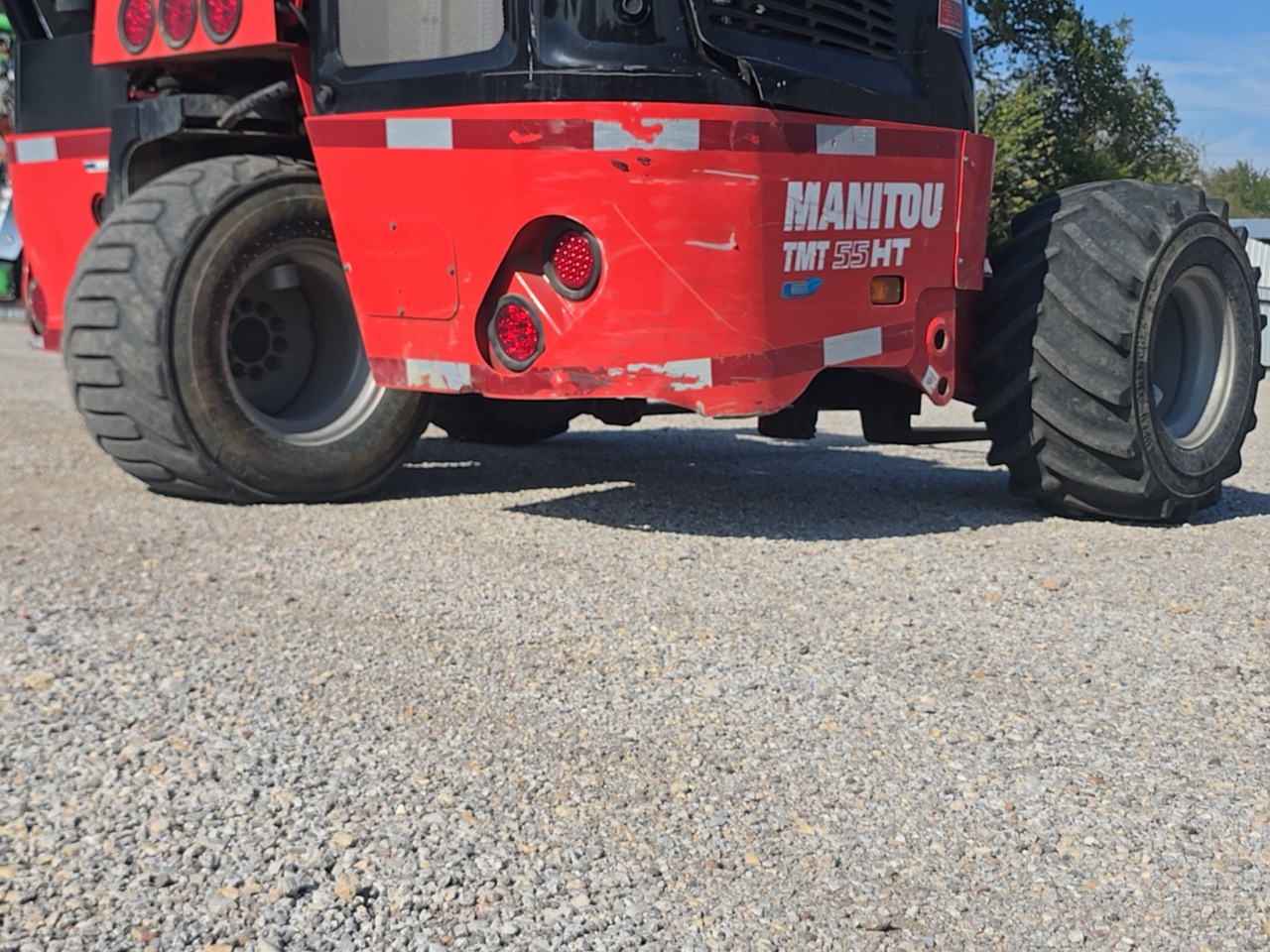

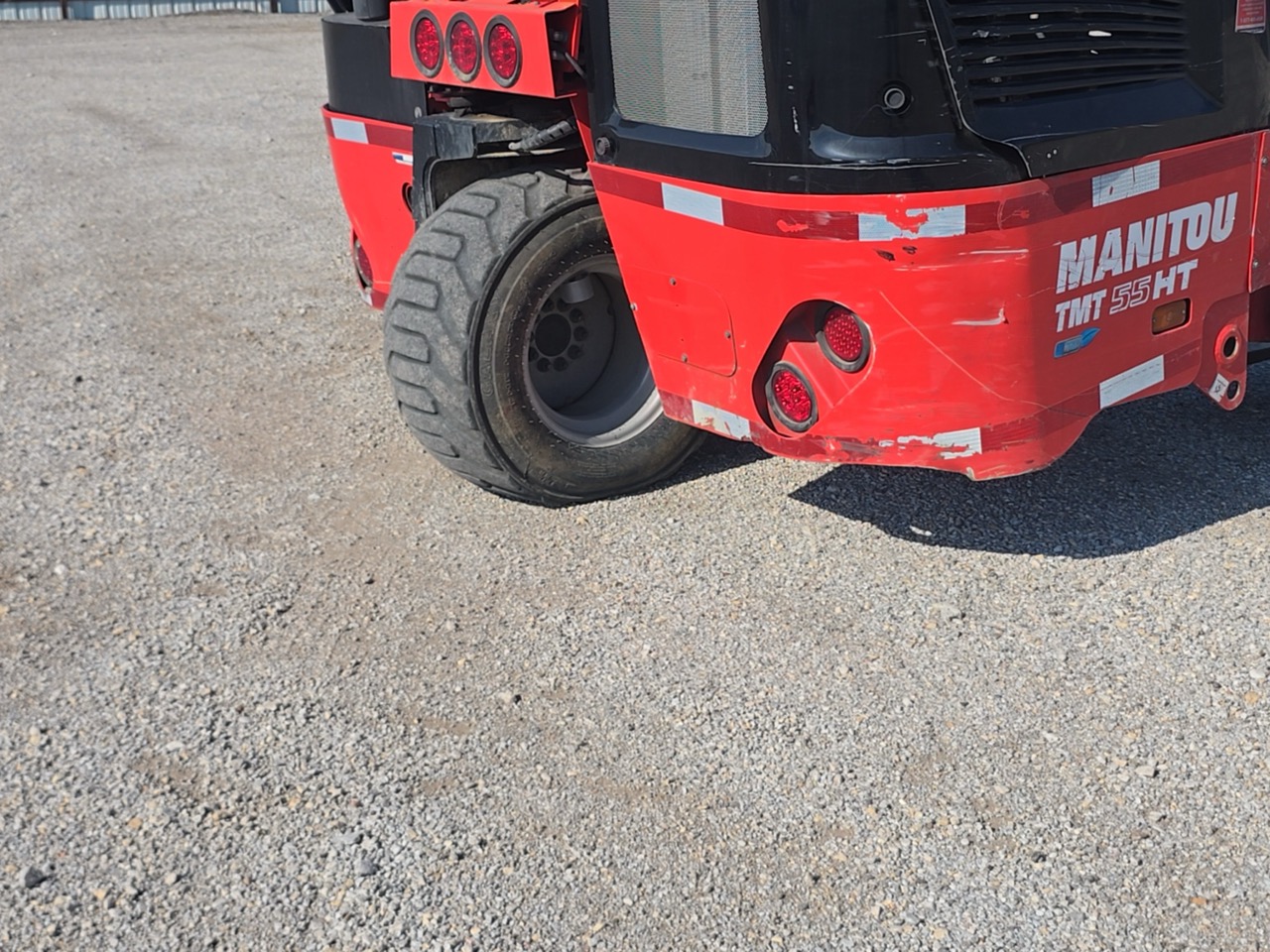

Rear Tires: 31 x 15.5-15 Pneumatic
Front/Rear Wheels: 2 / 1
Drive Wheels: Front
Travel Speed: Approx. 7 MPH
Lift Speed – Laden: 0.82 FT/SEC
Lift Speed – Unladen: 0.89 FT/SEC
Lowering Speed – Laden: 0.95 FT/SEC
Lowering Speed – Unladen: 1.0 FT/SEC
Service Brake: Hydraulic

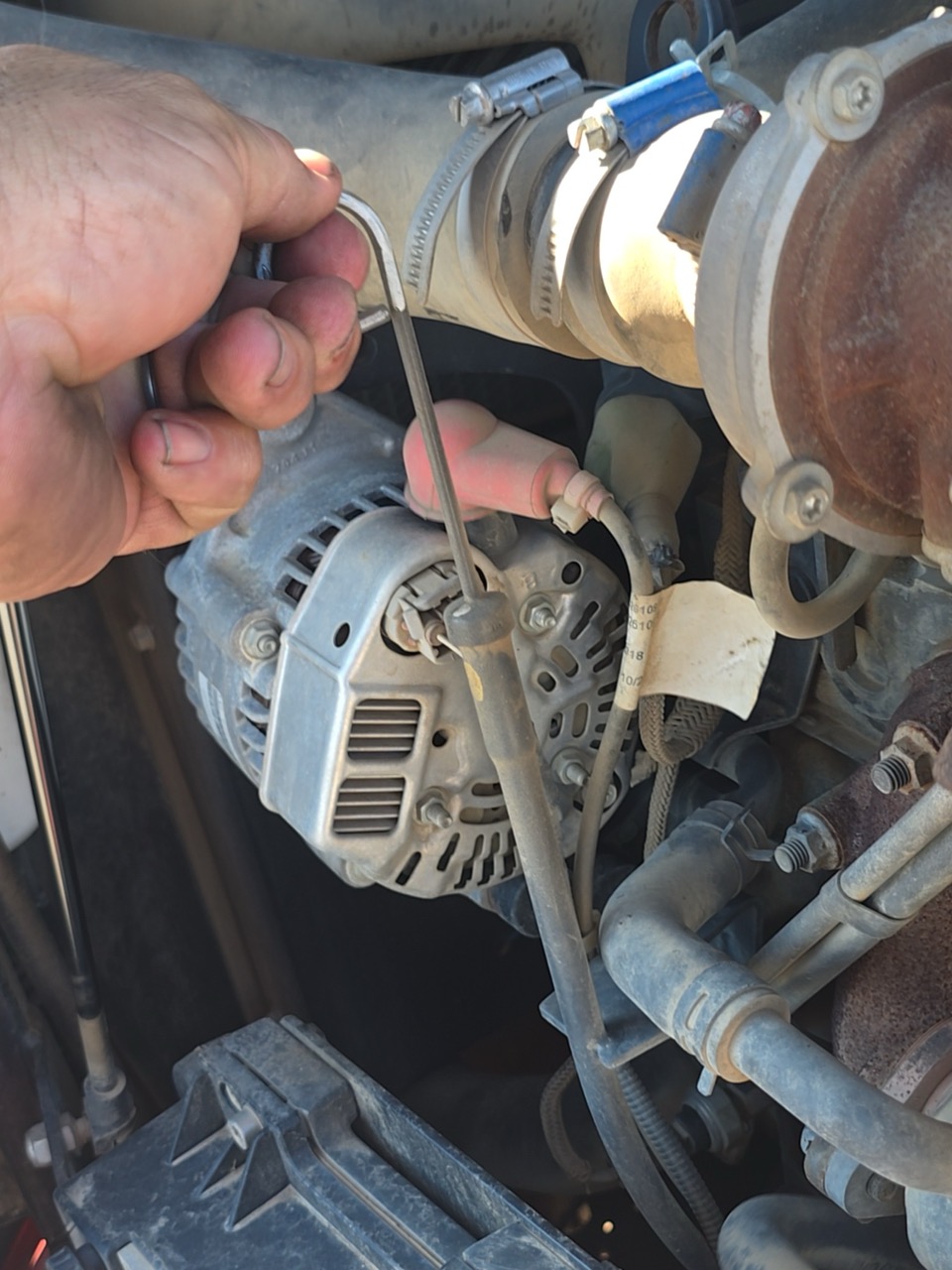

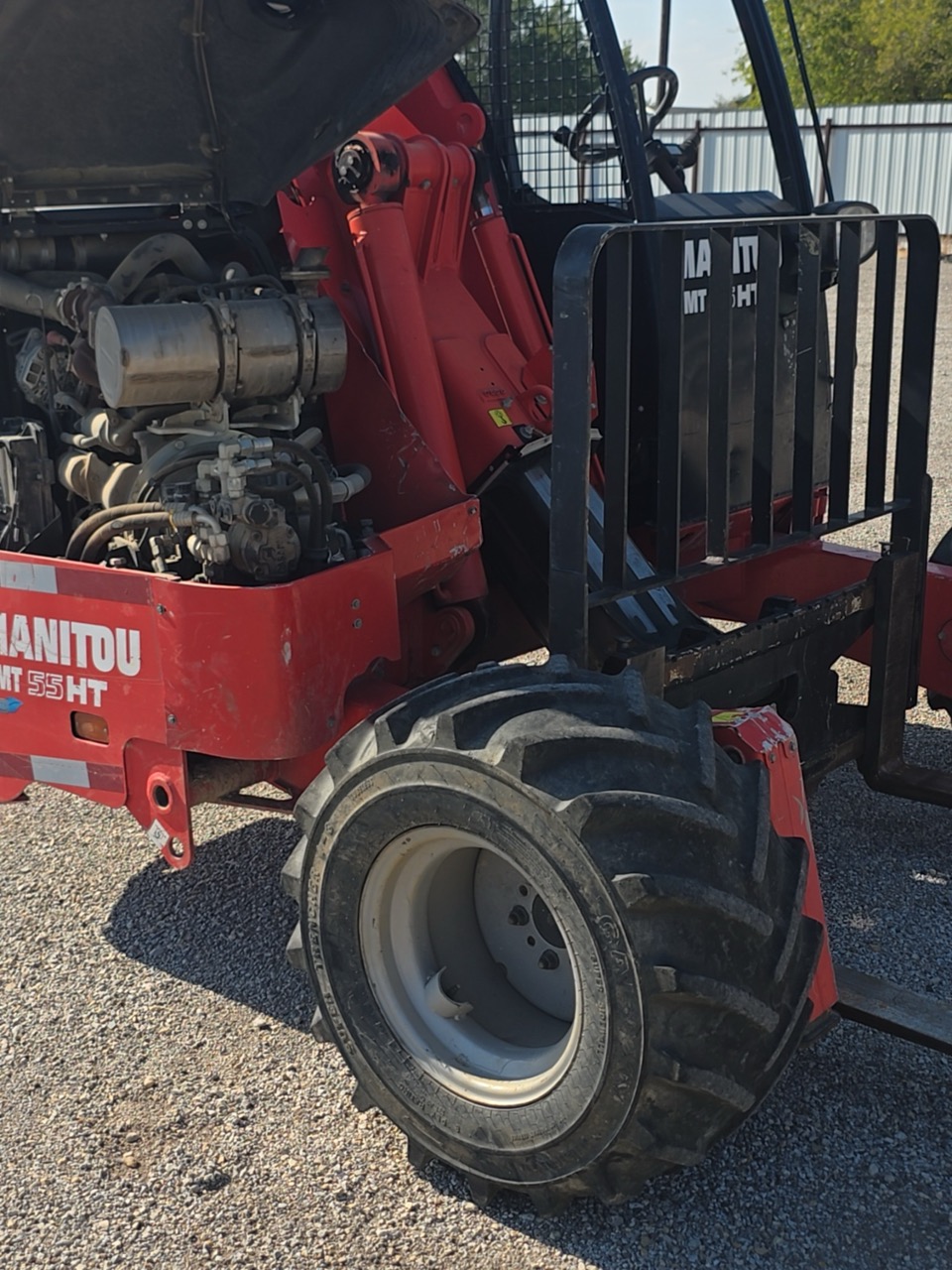

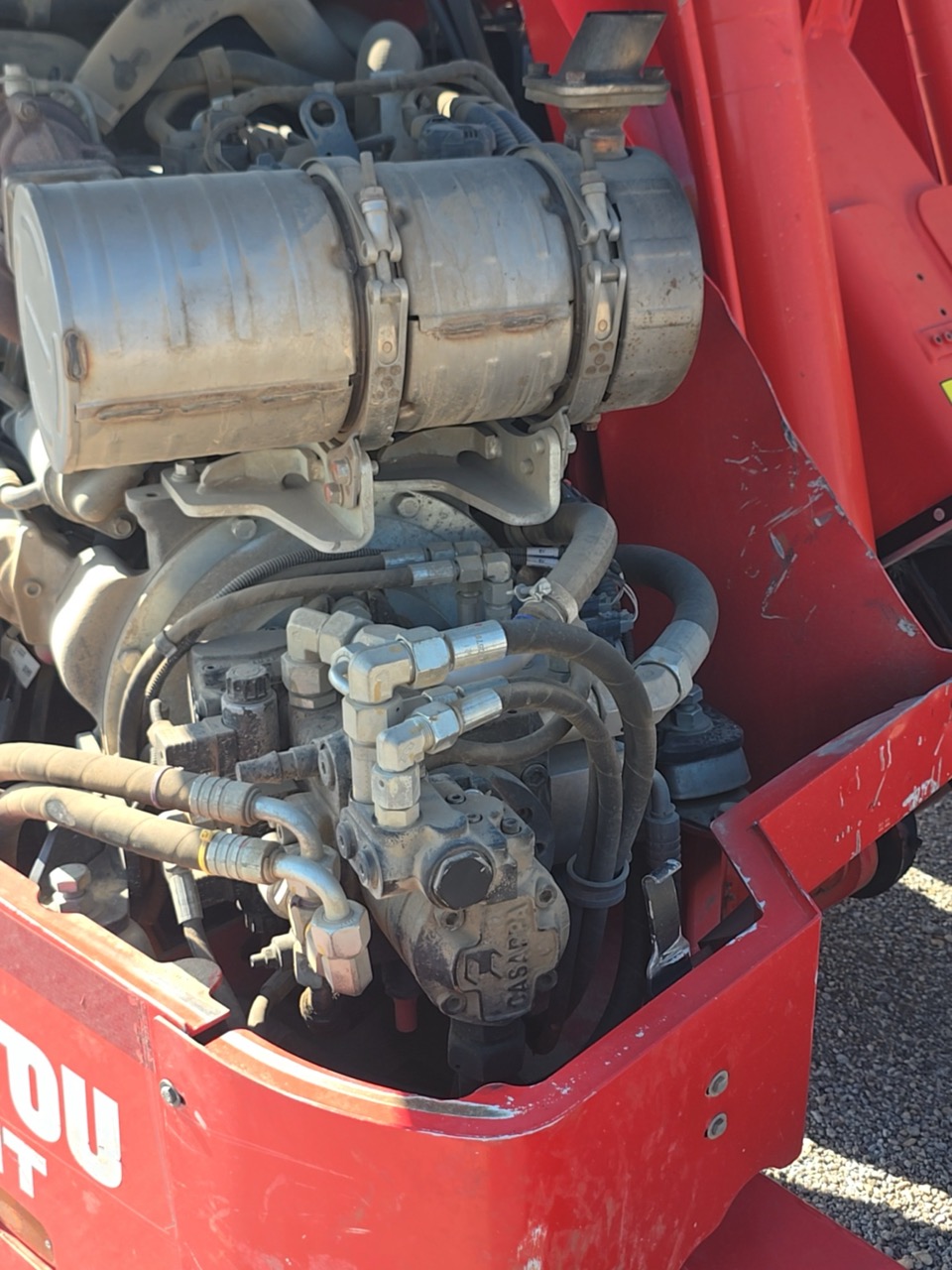

Engine: Yanmar 3TNV86CT
Engine Power: 42 HP / 31 kW
Engine Speed: 2,800 RPM
Number of Cylinders: 3
Engine Displacement: 1.568 L
Hydraulic Pressure: 3,916 PSI
Hydraulic Flow: 12 GPM
Service Weight: Approx. 6,019 LBS.
