Norland GlassPak66 Bottling Line – 2020 – 25oz Glass Bottle Filler, Capper, Rinser

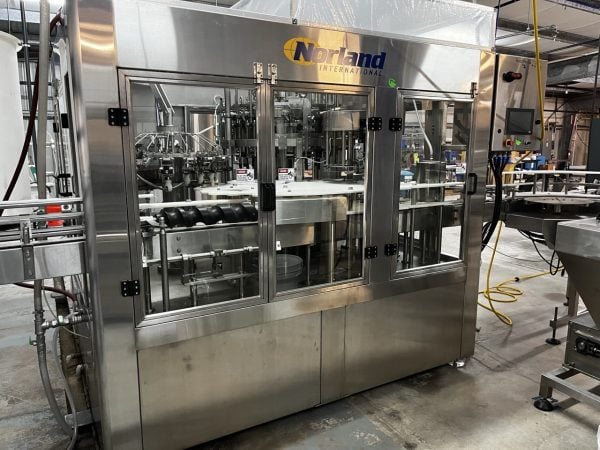

Norland International GlassPak66 25oz Glass Bottling Line, 2020:

This line was previously used for filling 25oz aluminum bottles of water at a rate of up to 70 BPM, it is a flexible solution suitable for filling both aluminum and glass.

This line is capable of running still and carbonated/sparkling products and requires nitrogen pressurization to run still and carbon dioxide pressurization for carbonated/sparkling products.

GlassPak66 Automatic Beverage Bottling and Capping Solution:

Pre-Rinse: inverted pre-rinse for tap water or sanitizing solution, includes recirculating pump for recycling sanitizing rinse solution.

Bottle Filling:
– 18 Heads
– Counter pressure style bottle filler with Double-Pre-Evacuation Feature

Each head performs four main functions during the filling process:

1). Removing the majority of air from the empty bottle
2). Purging and pressurizing the bottle with carbon dioxide
3). Filling the bottle under pressure.
4). Relieving the pressure and releasing the bottle to complete the filling process.

Feed table
– Designed to hold complete slip of empty cans for semi-automatic feed onto Glass Pack drive
conveyor
– Spacer Wheel Add-on, control box
– 52″ x 60″ Empty Can Table
– Variable Speed Drive Control
– 5 RPM AC Drive motor
– Max can size 16.9 oz (500ml)

Pack-Off Conveyor
– Durable Stainless / Extruded Aluminum Steel Frame
– Central Drive Motor
– Delron steel drive chain
– Delron Long-Life conveyor material
– Includes stainless steel drip pan and adjustable legs
– SS and UHMW guide rails

Powered conveyor system infeed and exit for the GlassPack unit:
– Durable Stainless / Extruded Aluminum Steel Frame
– Central Drive Motor
– Delron steel drive chain
– Delron Long-Life conveyor material
– Includes stainless steel drip pan and adjustable legs
– SS and UHMW guide rails

Diaphragm Pump
Dryer
