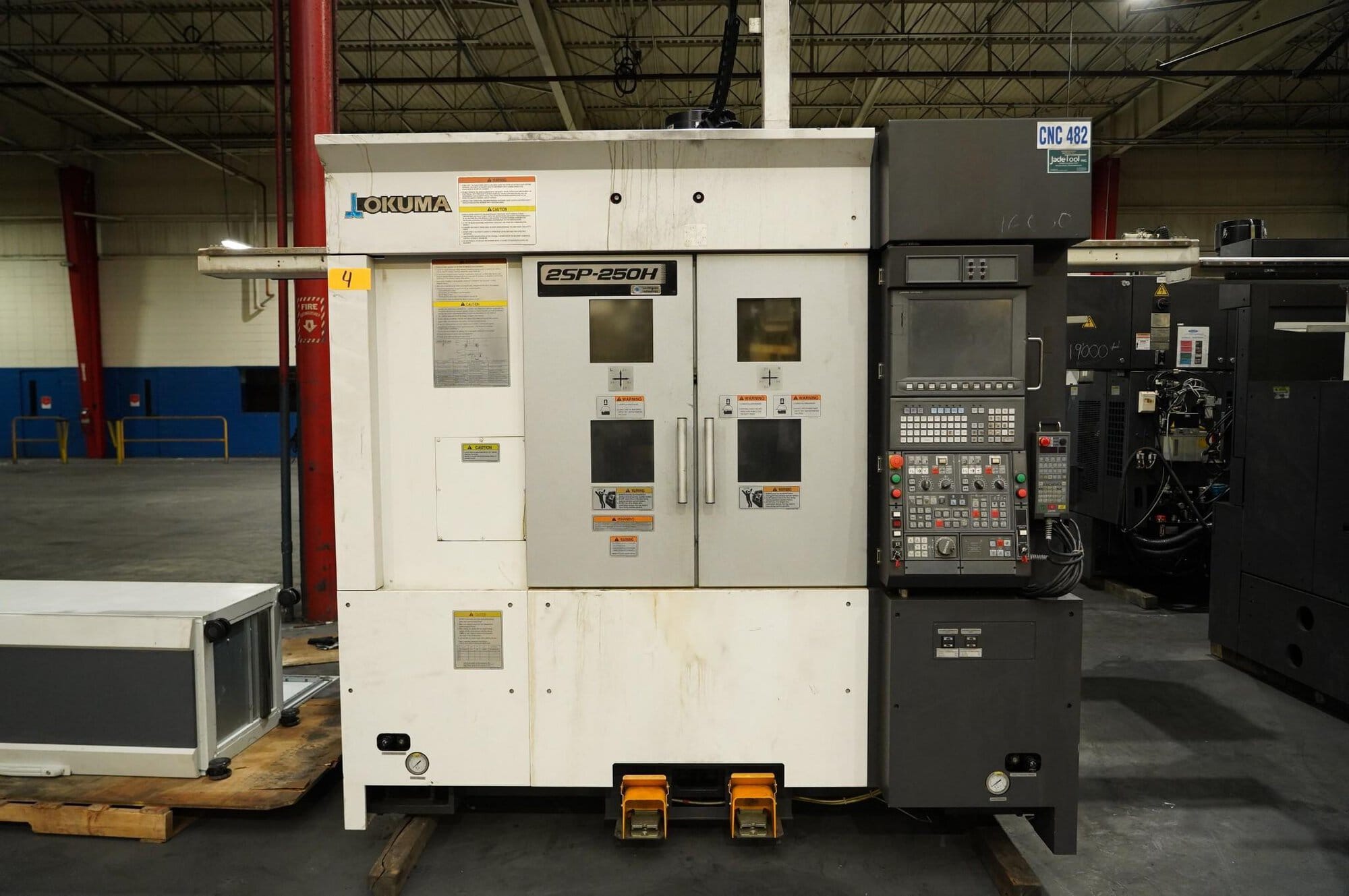

Okuma 2SP-250H Twin Spindle Twin Turret CNC Lathe, 2017 – Robot Loader, Chip Conveyor, Transformer, Inspection Reports from Gosiger

Max Turning Diameter: 8.66″
Max Turning Length: 5.91”
Travel X-Axis: 5.91”
Z-Axis: 6.10”
Speed Range: 50-4500 rpm

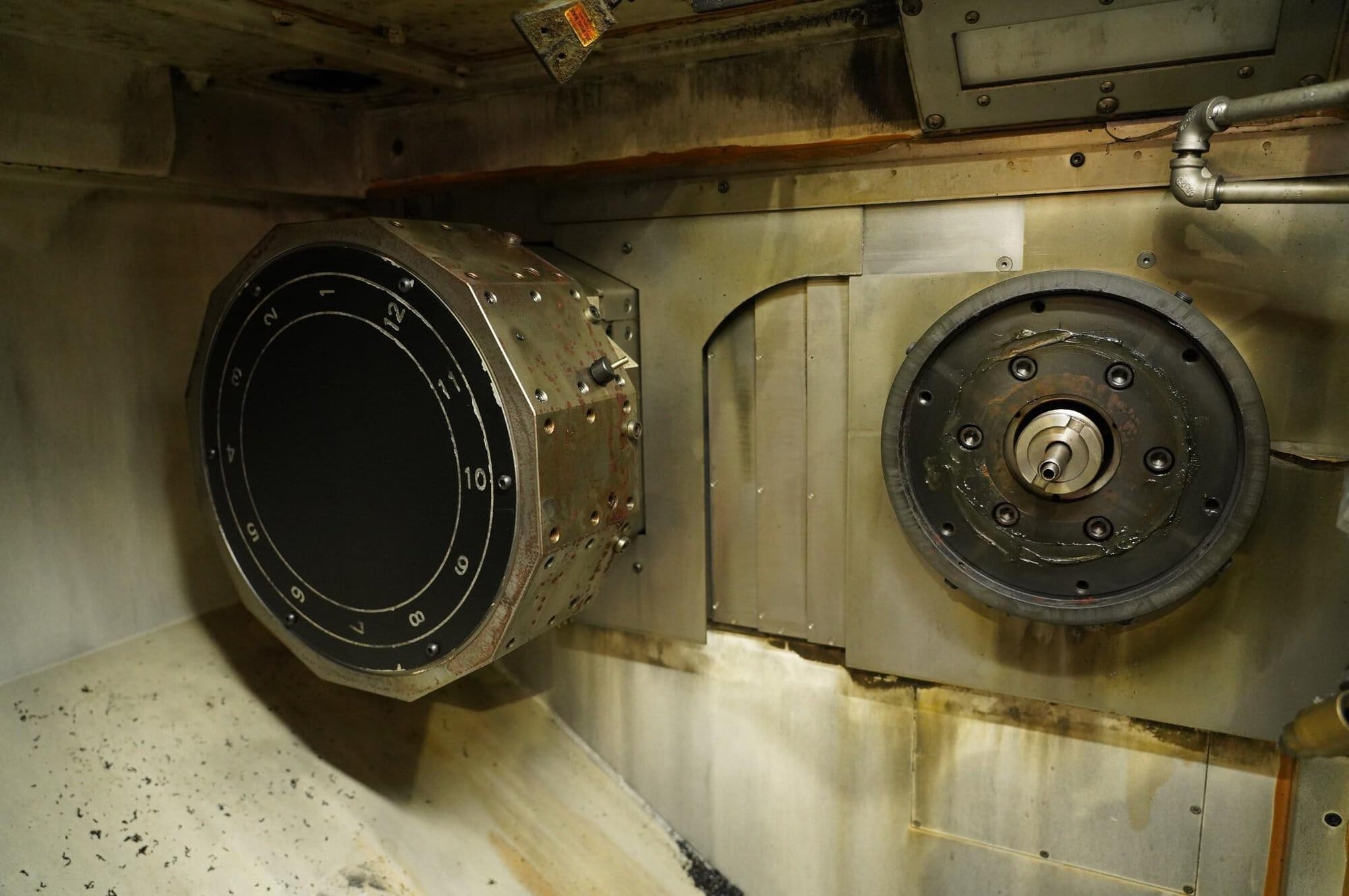

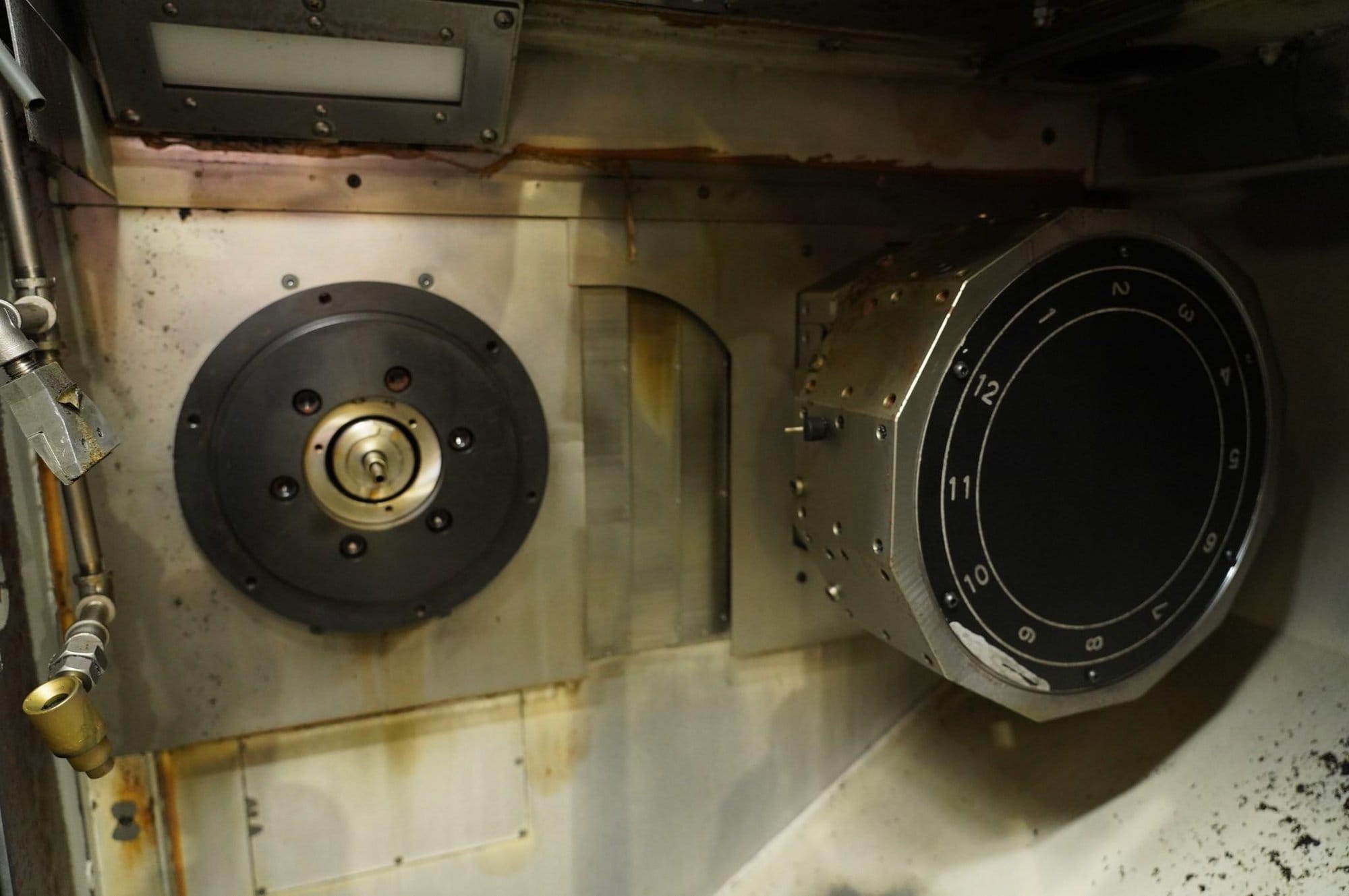

Turret Type: V12 NC
Motor Spindle Drive: 15/10 hp

Equipped With:

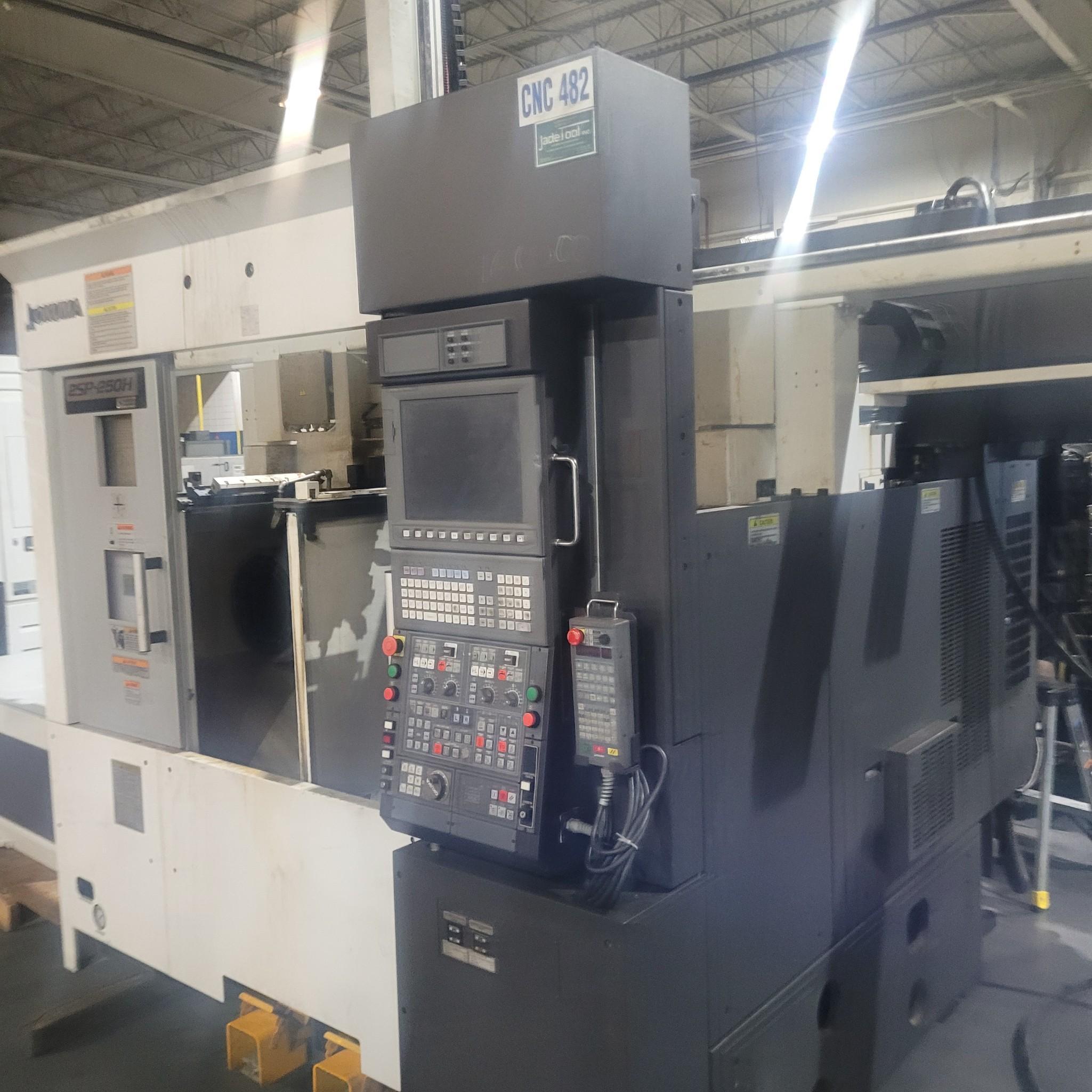

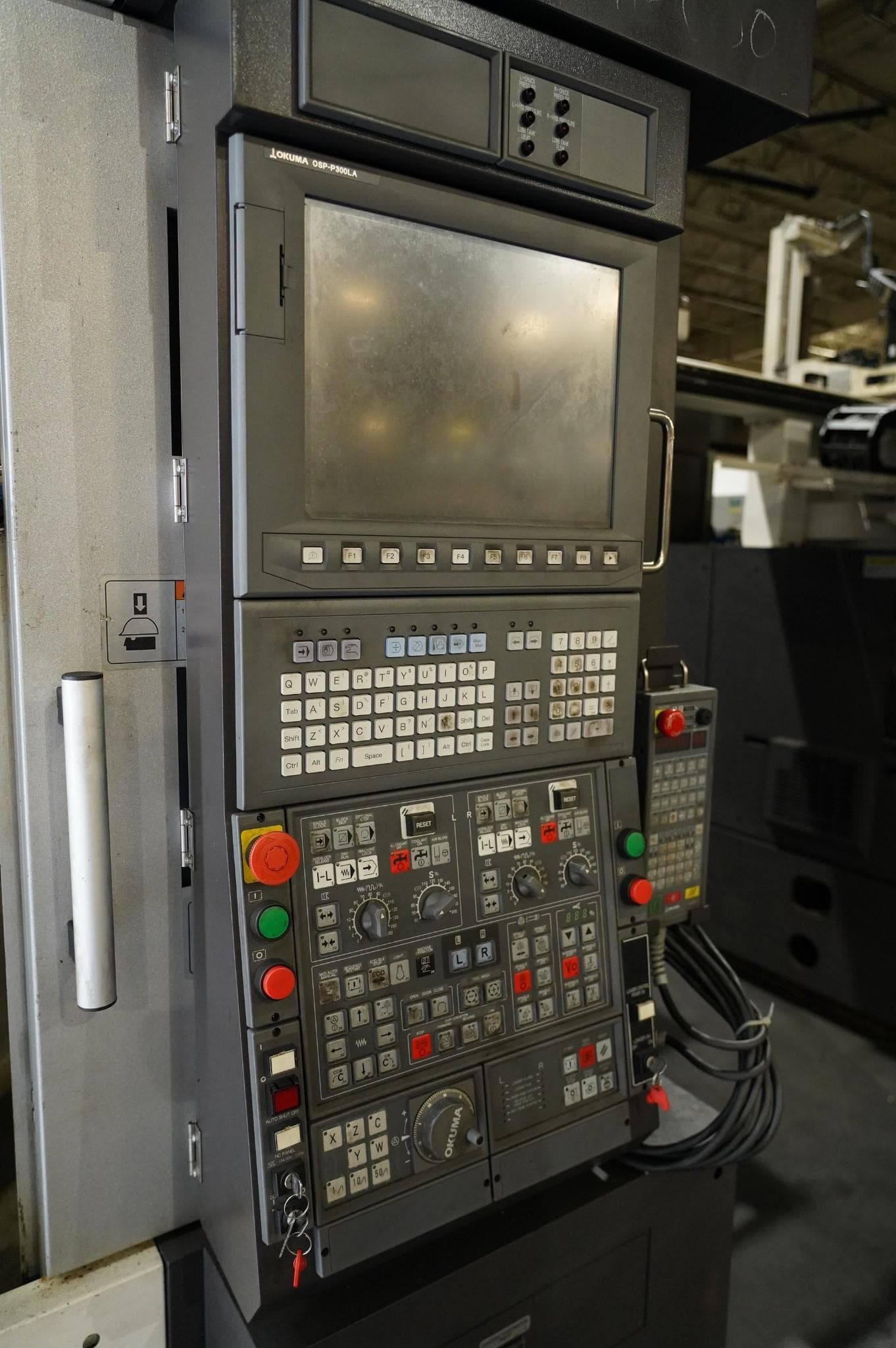

Okuma OSP-P300LA Control

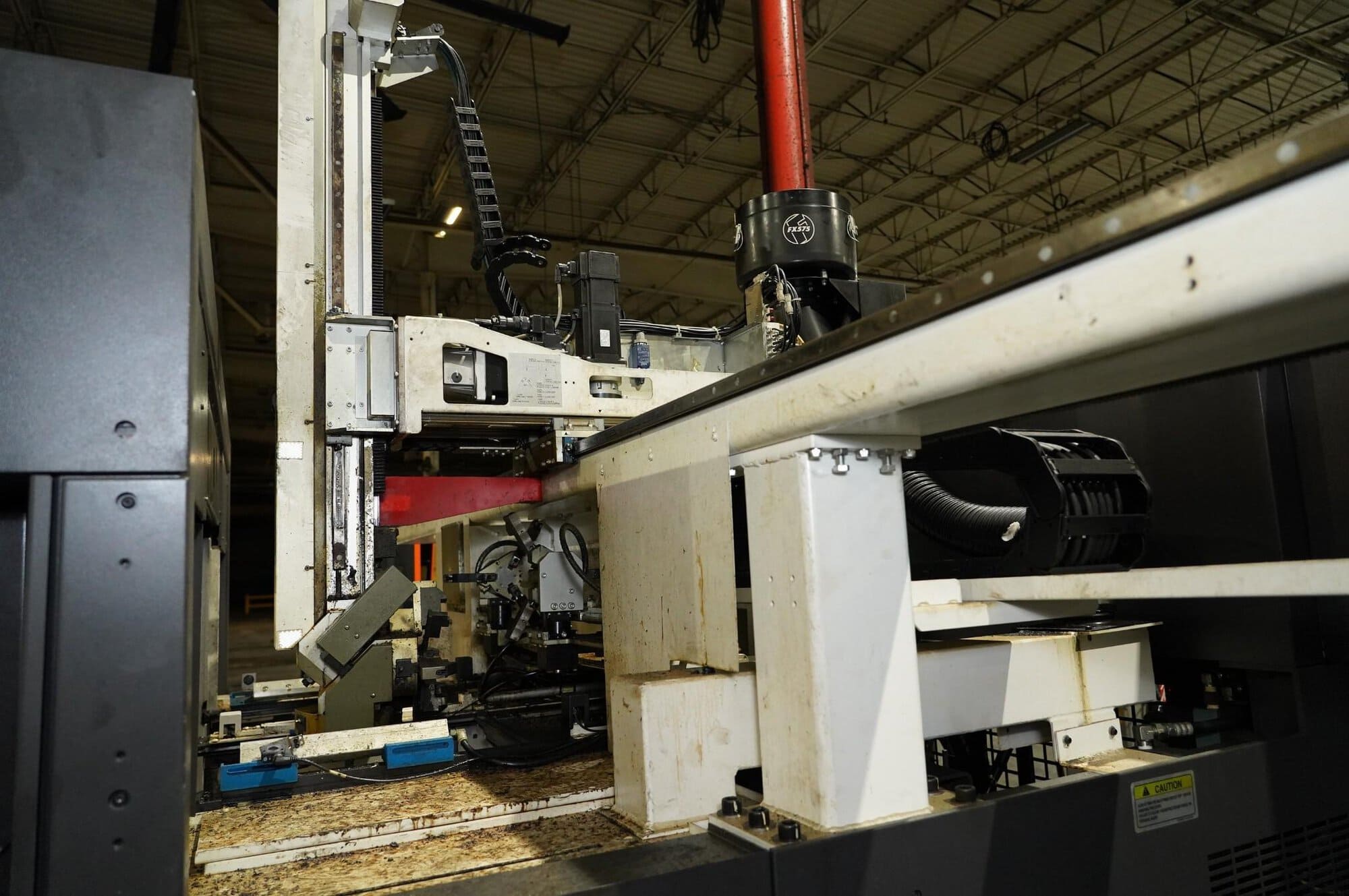

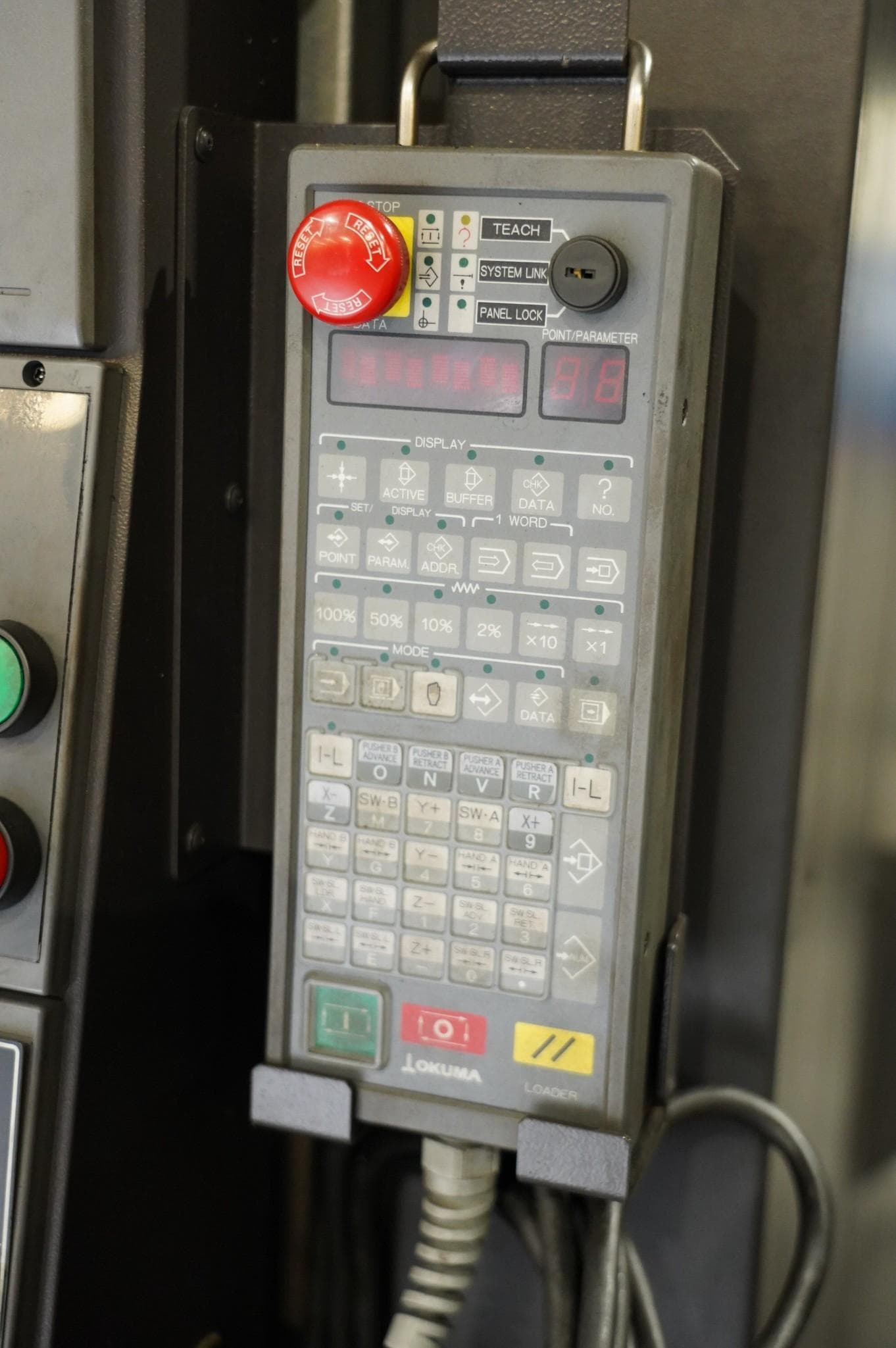

Robot Loader

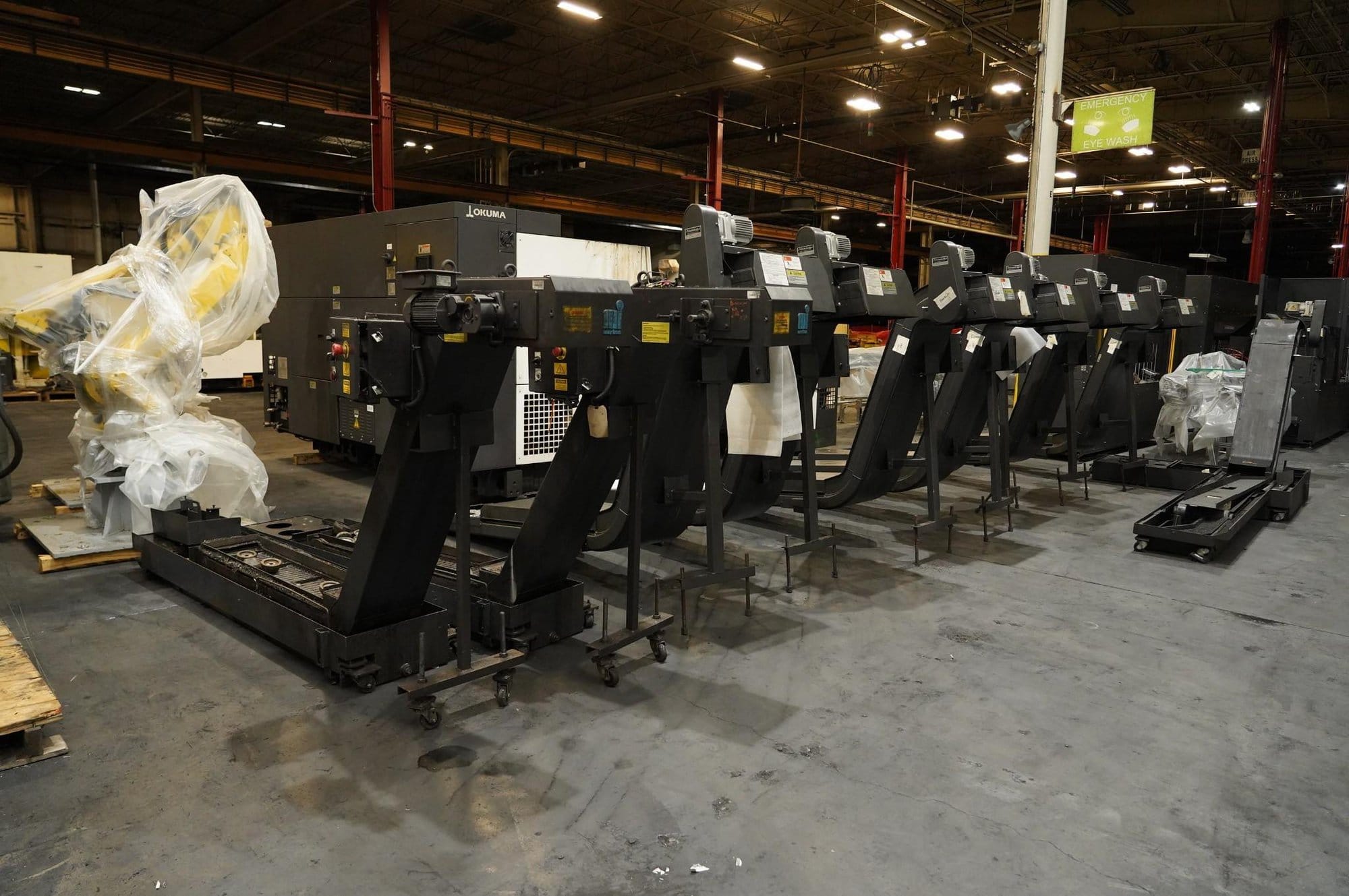

Chip Conveyor

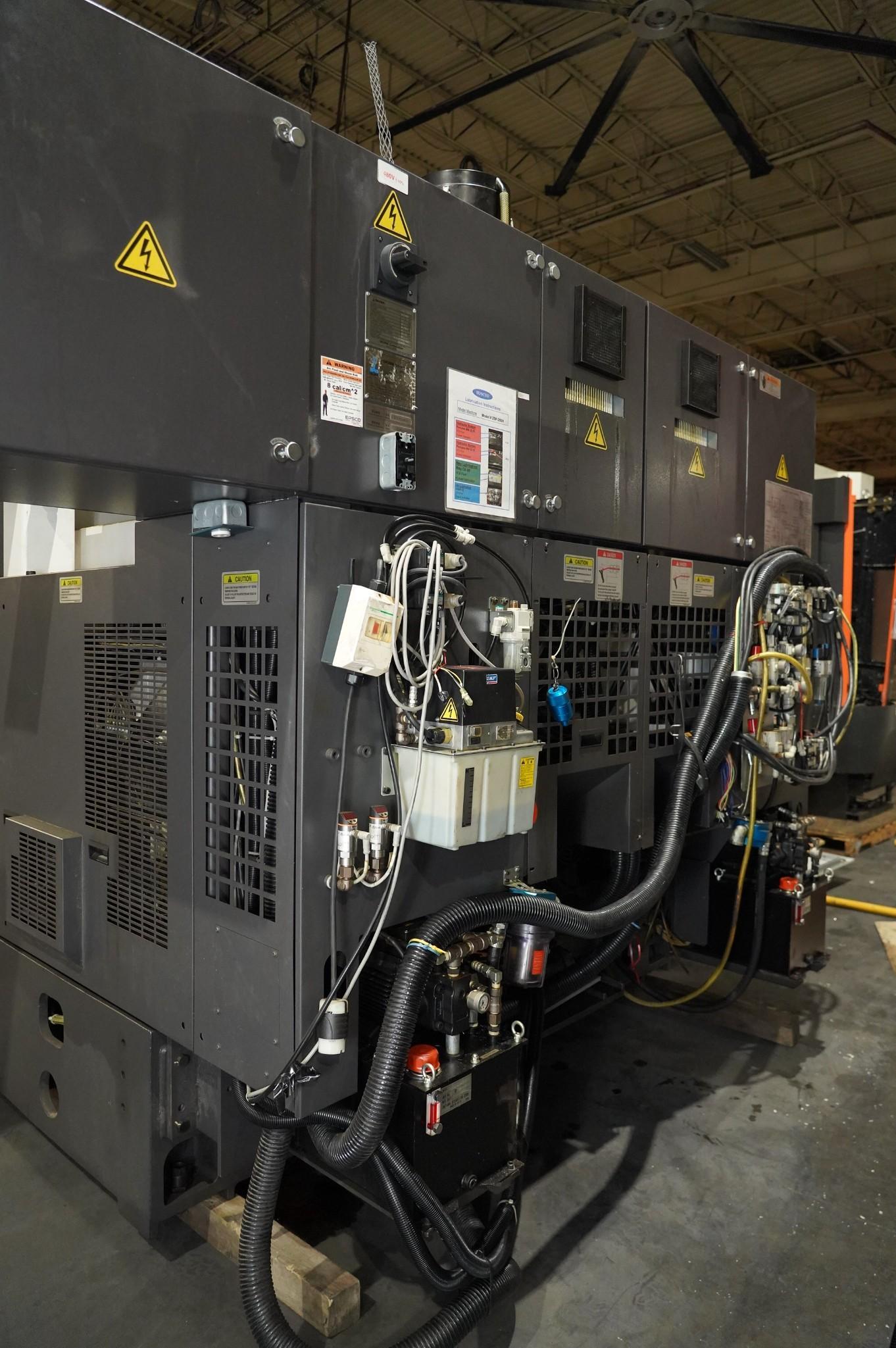

Transformer
220/480, 3 Phase, 60 Hz, 55.1 kVA, Full Load Current 144.7 / 66.3 A, Largest Motor Rating 48 A, Interrupting Capacity 30 / 10 kA, SCCR of Control Panel 10 kA

**Have Inspection Reports from Gosiger**

Machine powered on without any major alarms
Had to set the coolant low input and air PSI input in order to move the axis.
Machine had a Battery life alarm due to being out of service, Backups performed
Machine had a broken load cable track on top and was missing the chucks R-L side.
Machine is equipped with air knife and one was broken.
Axis and spindles operate normally.
Loader axis operate normally.

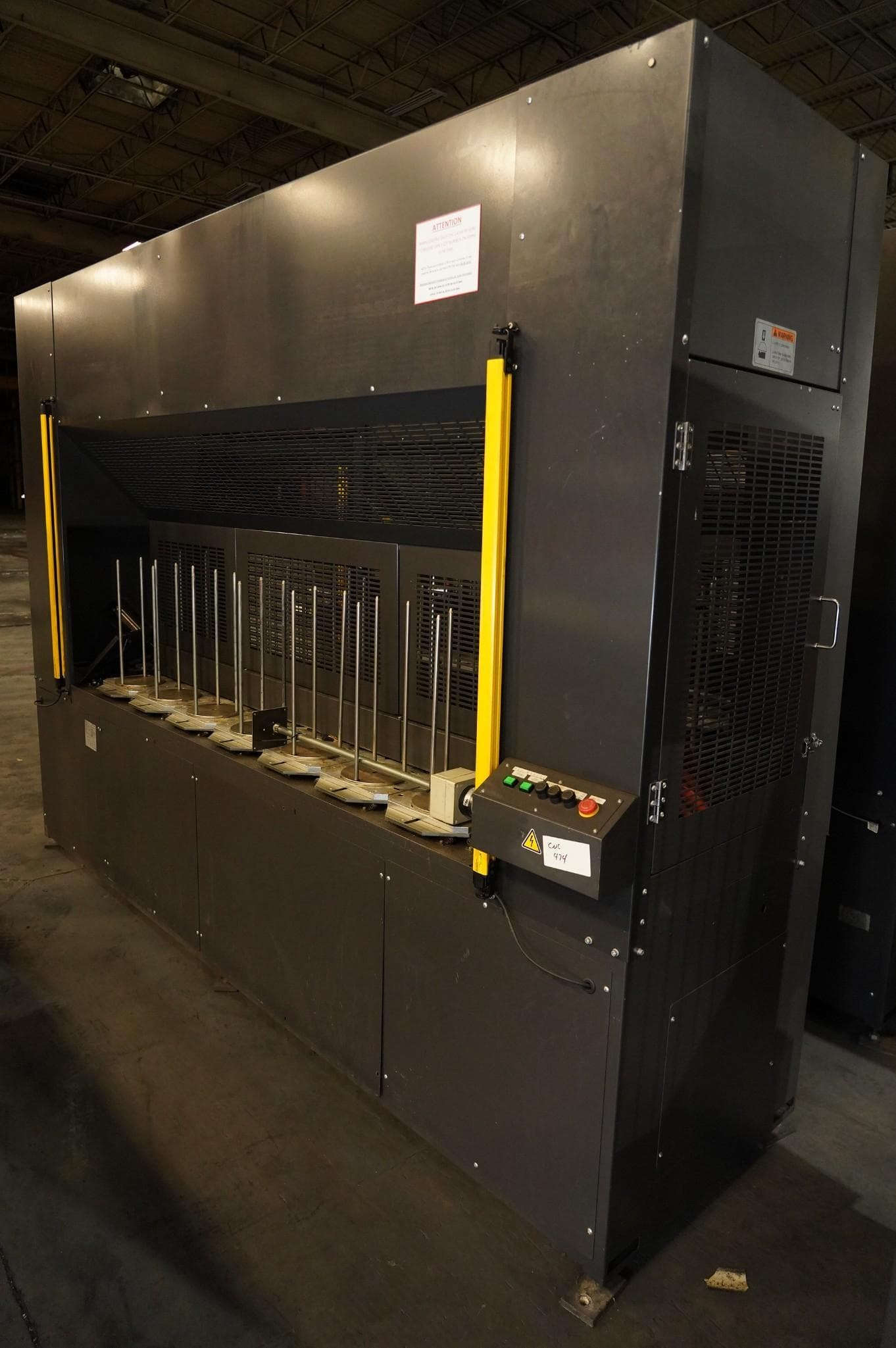

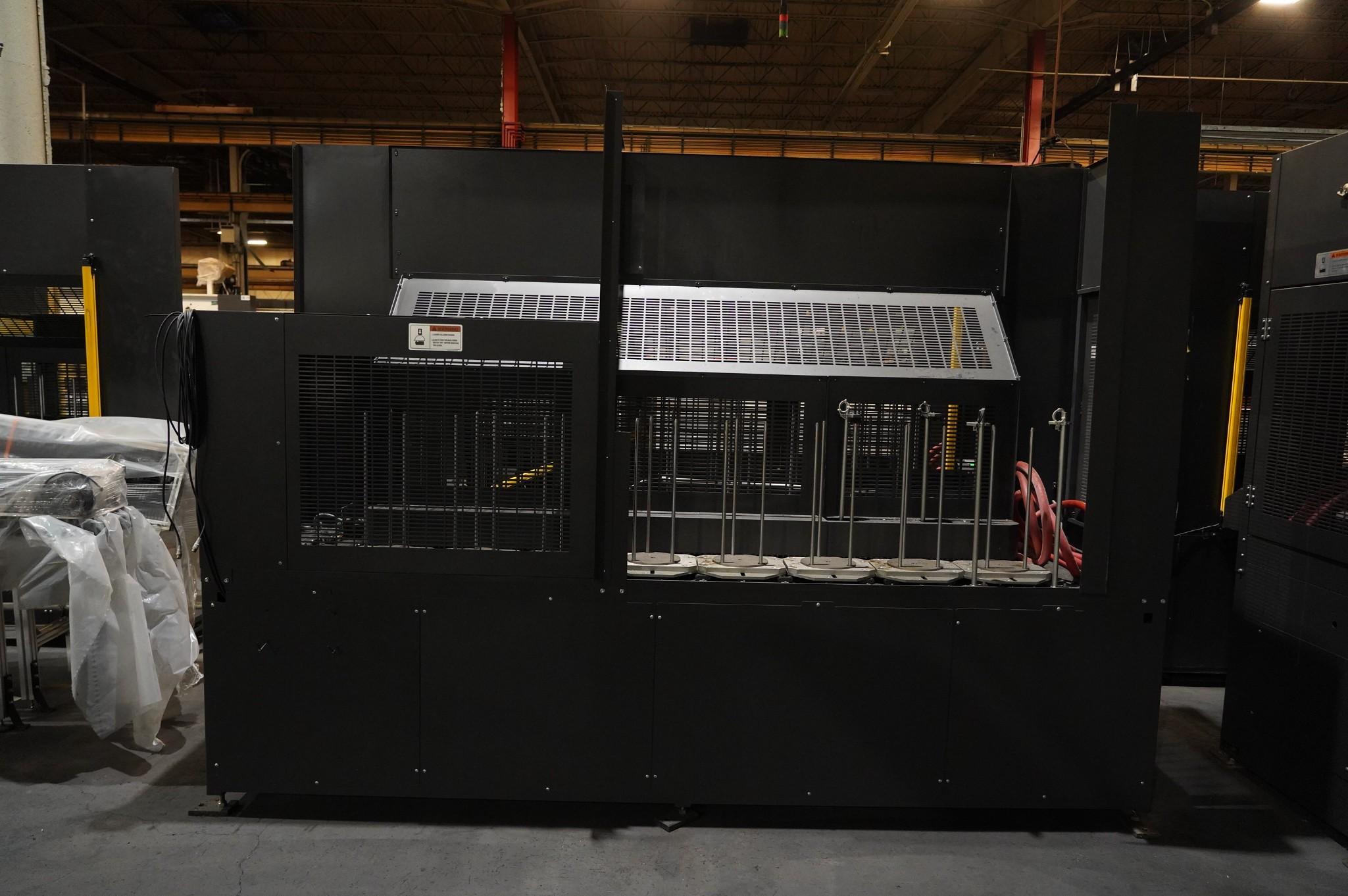

Machine was test without stocker table installed and appears that when it was in operation the parts were placed on a conveyor. inbound outbound.
