Palmary MAX-12S Centerless Grinder With Dressers, 2008
$17,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Standard grinding range (Dia.): .04″ – 1.57″
Capacity increases with special arrangement: 1.18″ – 2.36″
Grinding wheel size (O.D. x width x I.D.): 12″ x 6″ x 4.75″
Grinding wheel speed:1900 R.P.M.
Grinding wheel motor: 7-1/2 HP x 4P
Regulating wheel size (O.D. x width x I.D.): 8″ x “6” x 3.5″
Regulating wheel speed: 10 ~ 300 R.P.M. (Variable)
Regulating wheel motor: 1.5 KW servo motor
Regulating wheel tilt angle: +5ยฐ ~ -3ยฐ
Regulating wheel swivel angle: ยฑ5ยฐ
Hydraulic pump motor: 1 HP
Coolant pump motor: 1/8 HP
Machine Dimensions: 69″ x 41.5″ x 55″H
Net weight: 3,630 Lbs.
Equipped With:
Pressurized Hydrostatic Spindle & Regulating Wheel Bearings
Hydraulic Wheel Dressers
Infinitely Variable Regulating Wheel Speeds, Servo Controlled Motor, Digital Display for Speed
(Two) Work Rests & Blades, One for Thrufeed Presently on the Machine, the Other for Infeed
Machine Dials are “Inch” Graduations
Independent Upper & Lower Slide Adjustments
Coolant System with Both Paper & Magnetic Separator

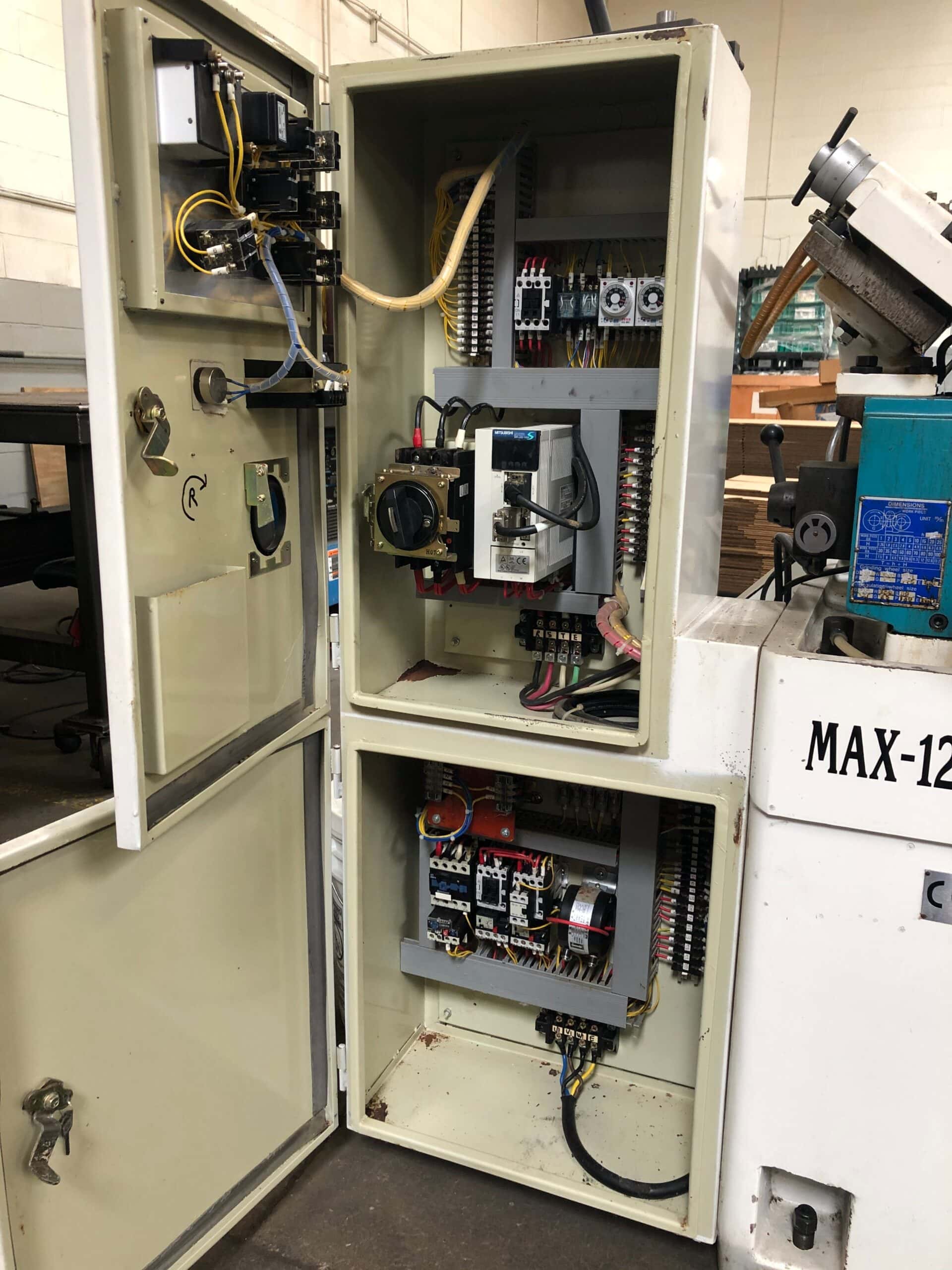

3/60/230-460 Volts Motors

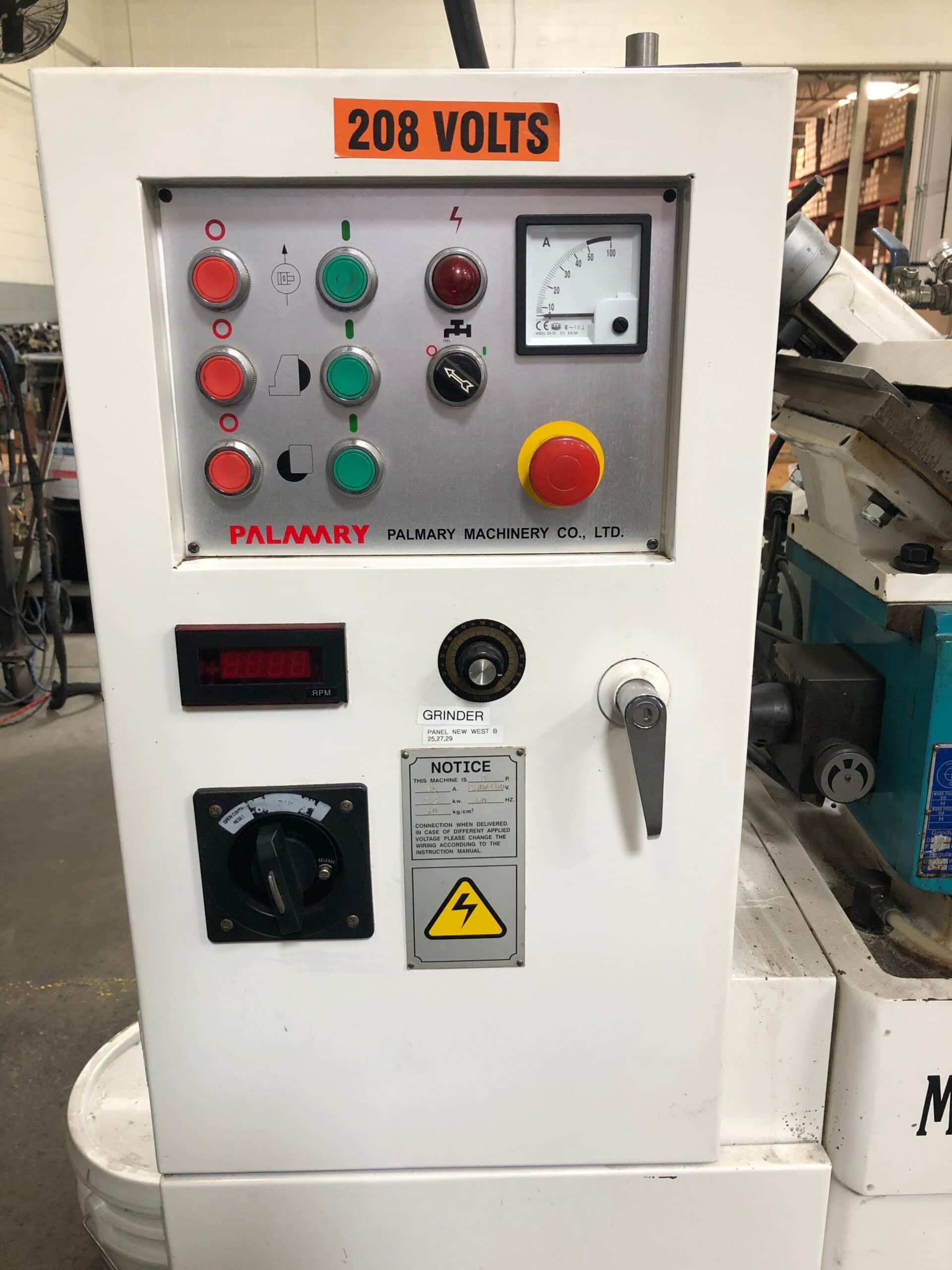

Machine is Presently Wired for 230 Volts/3/60/35 Amps
