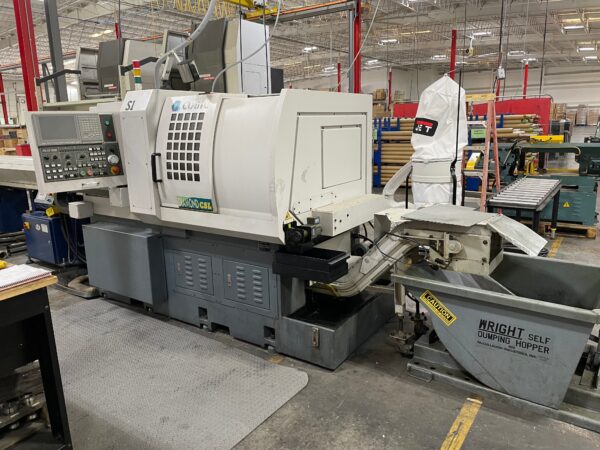

Poly Gim Cubic Diamond 42 CSL CNC Swiss Lathe, 2008 – Bar Feeder, B Axis, Live Tooling
$34,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Machining Diameter: 1.65″
Max Machining Length: 10.55″
Max Drilling Diameter: 1.02″
Max Tapping Diameter: M16
Turret: 26 Stations
Spindle Speed: 200-6,000 RPM
Spindle Hole Diameter: 1.65″
Spindle Motor: 10 HP
Indexing Spindle Orientation: C axis
Rapid Speed X1 / Z1 / Y1 Axis, X2 / Z2 / Y2 Axis: 1.1811/min
Machine Weight: 9500 LBS
Equipped With:
Mitsubishi Meldas 60S Series Control12โ

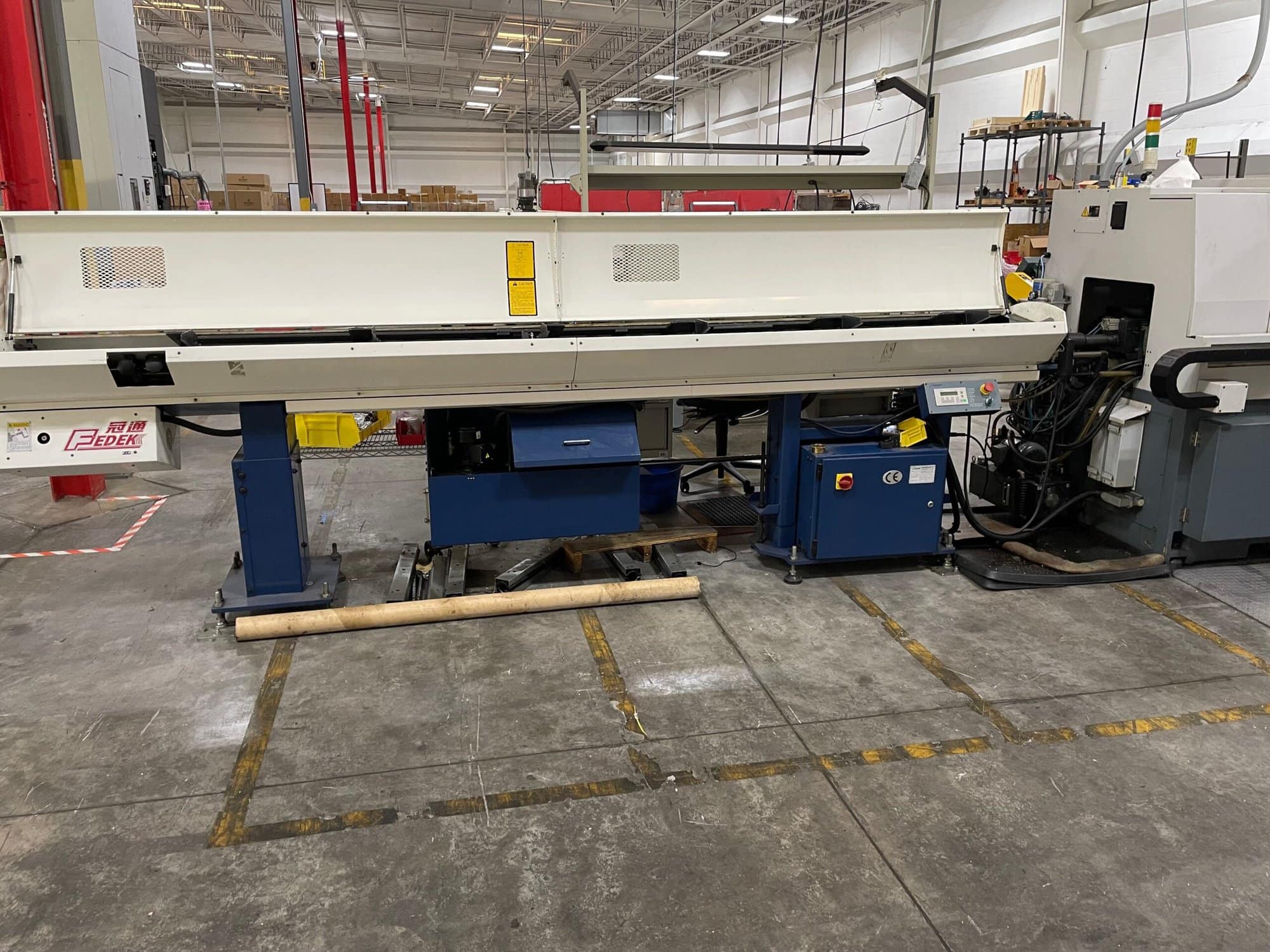

Fedek Model Sunny 542-37 Hydrodynamic Magazine Bar Feeder
B Axis With 3 Live Tools (Programmable Adjustment)
6 Radial Live Tools (Main Spindle)
2 Live Axial Tools (Main Spindle)
2 Additional Fixed Axial Tools (MainSpindle)
3 lIve Tools on The Sub Spindle
Cubic Barfeed Collets and Pads
Chip Conveyor W/ Hopper
CF Axis On Main Spindle
Cubic Guide Bushings
Jensen Tool Holder
