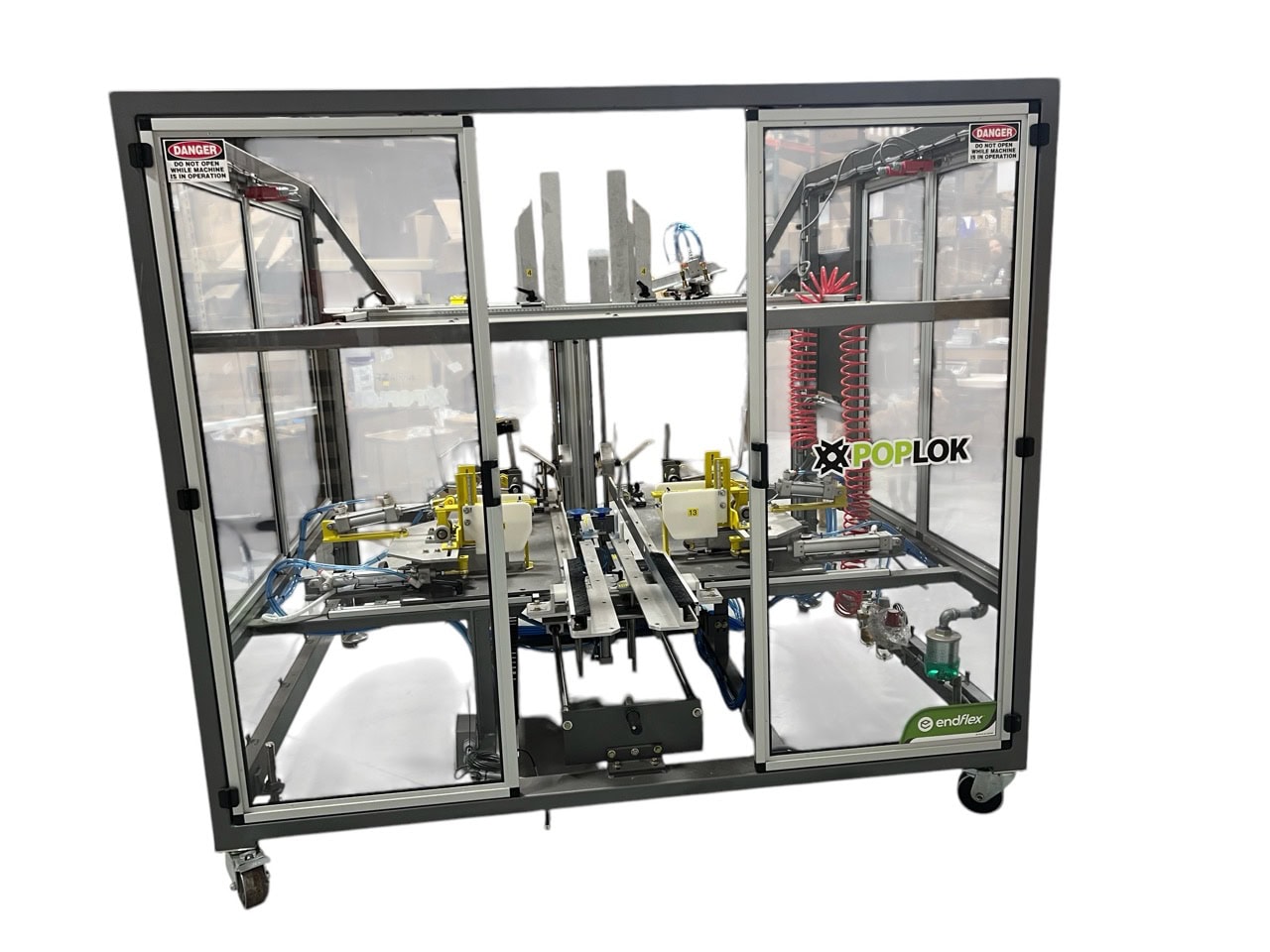

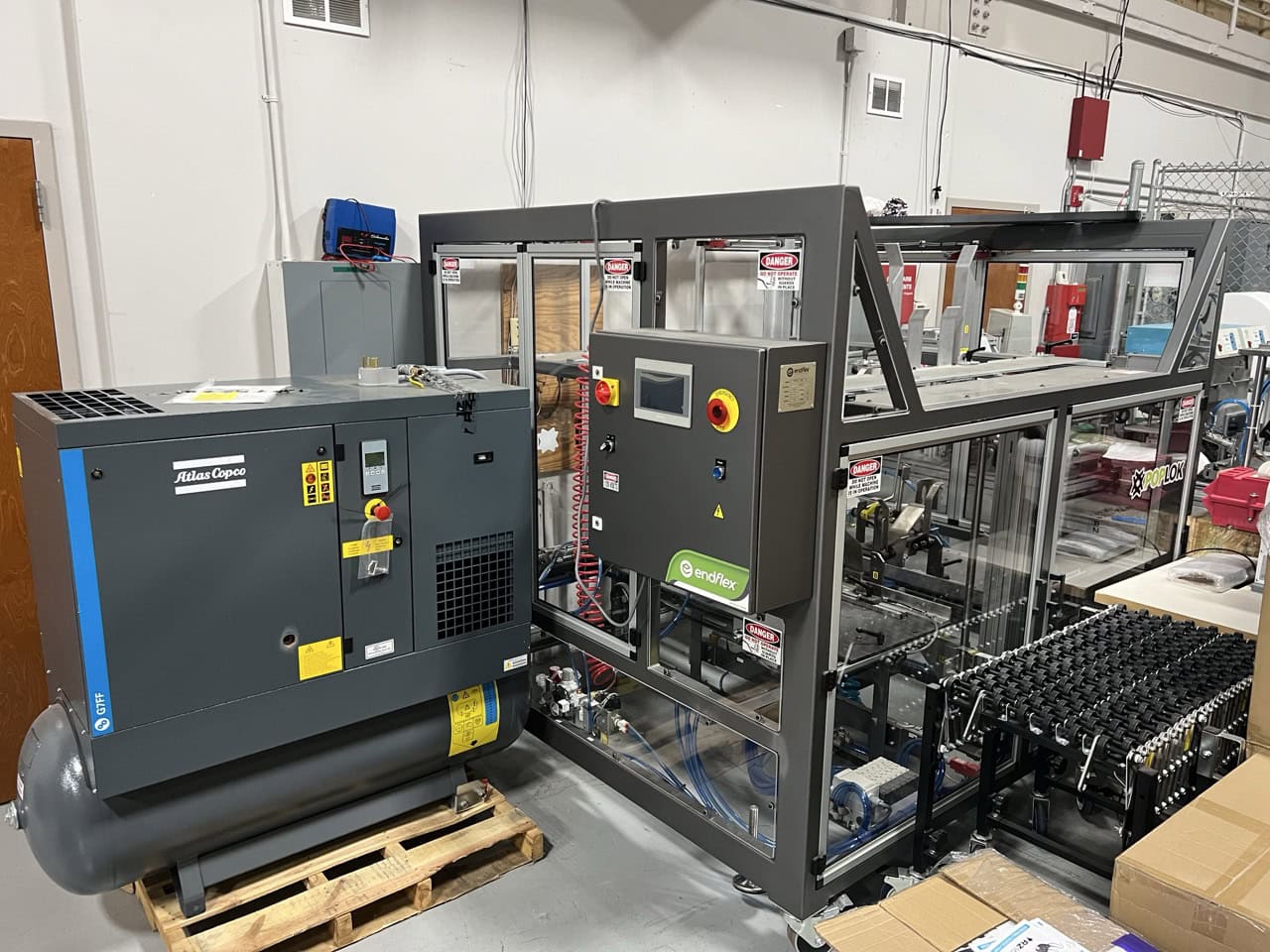

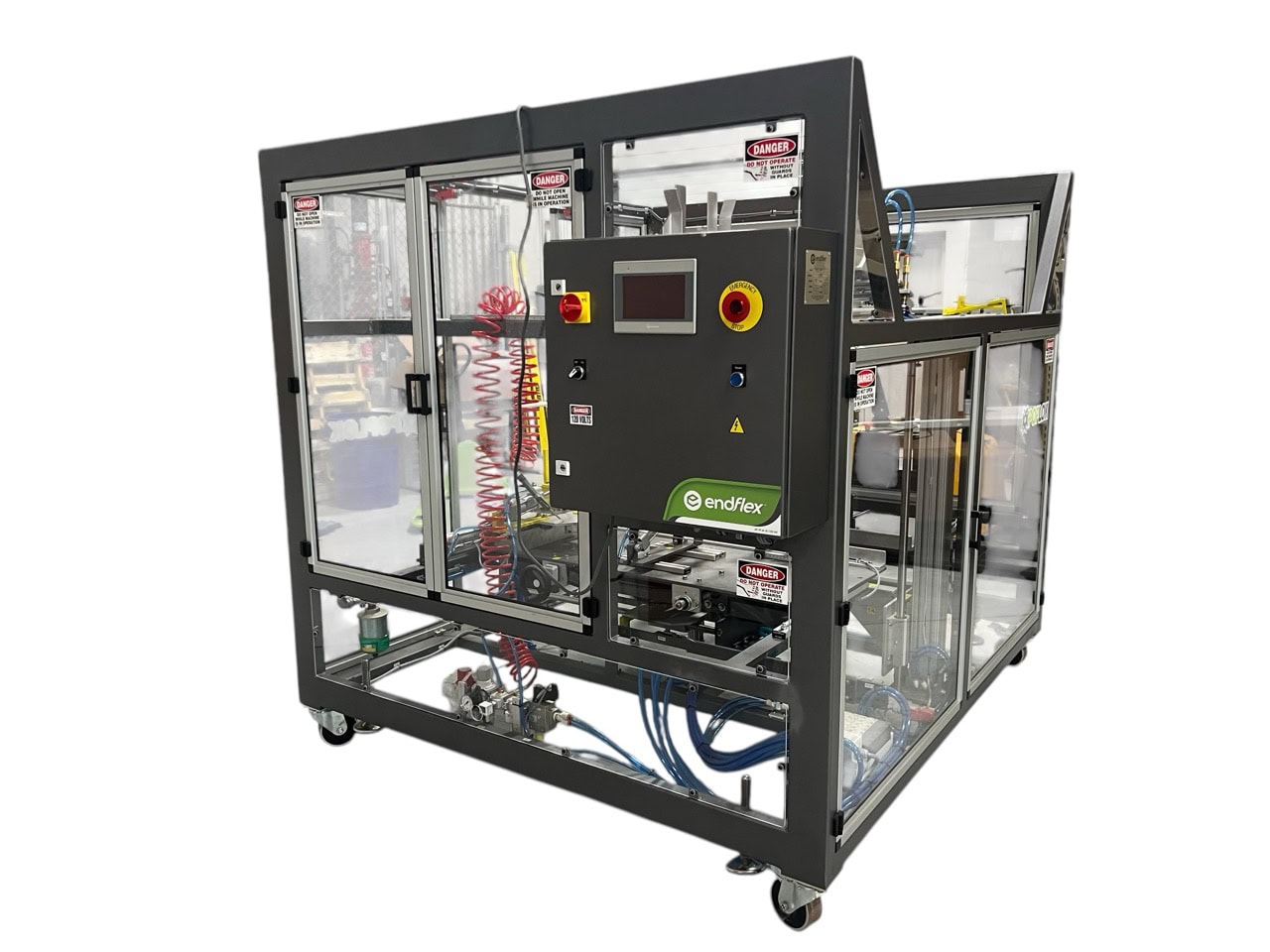

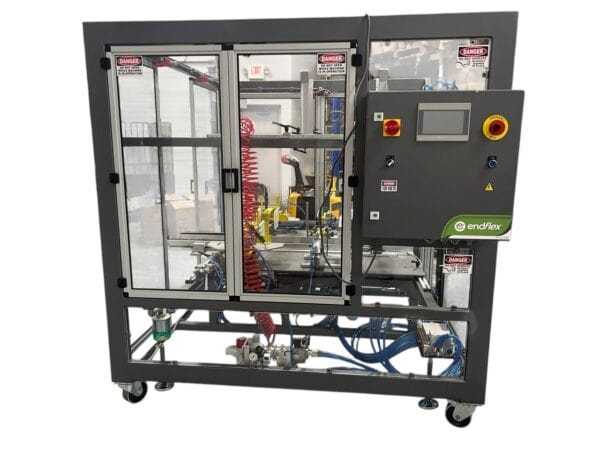

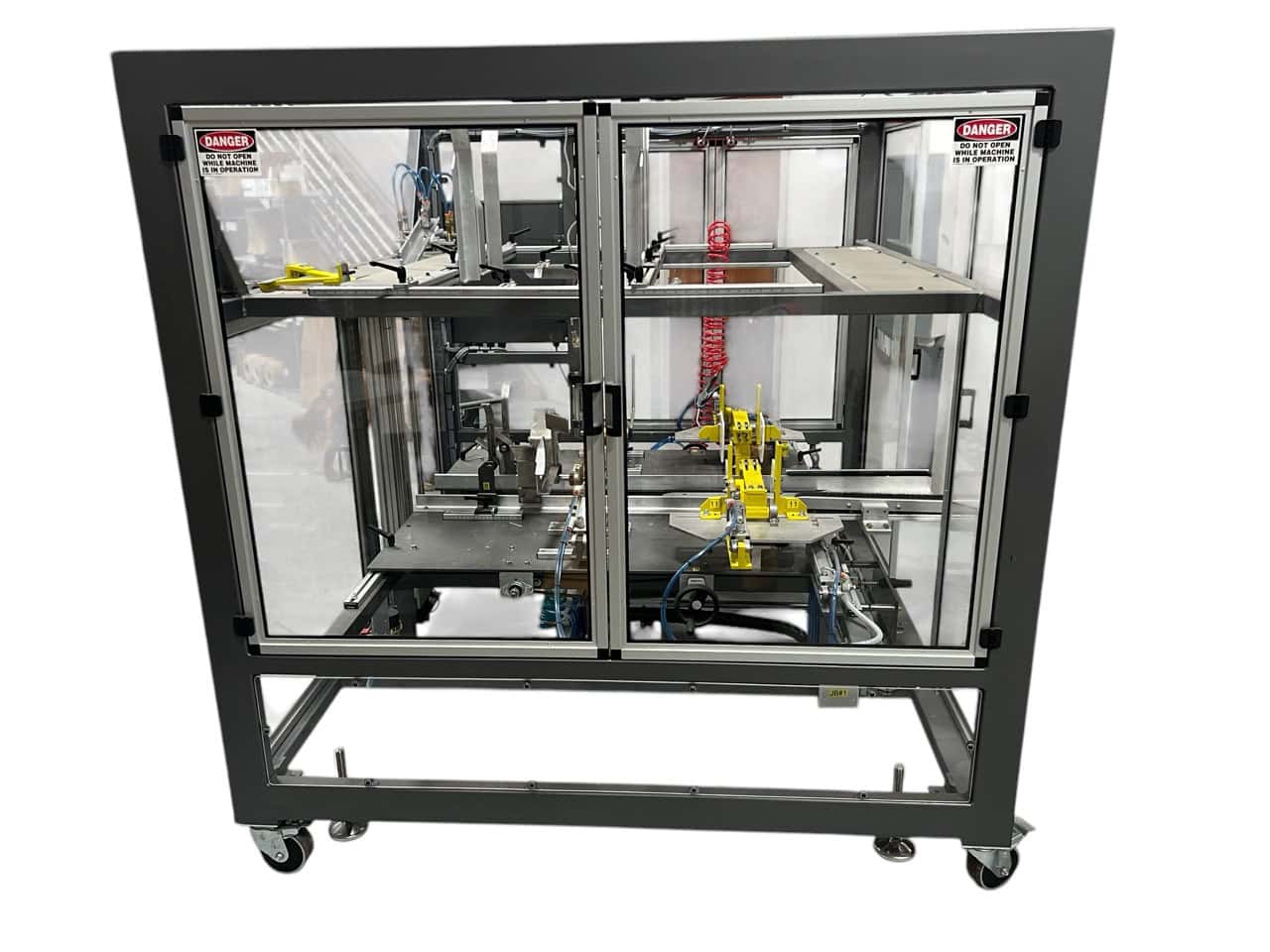

EndFlex Poplok AHL-110 Trayformer 2-Tuck Dual Station, 2020 – For Fold & Tuck Trays

Used EndFlex Poplok AHL-110 Trayformer 2-Tuck Dual Station, 2020 – For Fold & Tuck Trays:

– Roll over tray type with tuck closure
– designed for self locking blanks
– Speeds up to 20 Trays/min

– Electrical requirements: 120VAC, 1 Ph
– Air requirements: 32 SCFM@80 PSI (Air line minimum ID: 1/2″)

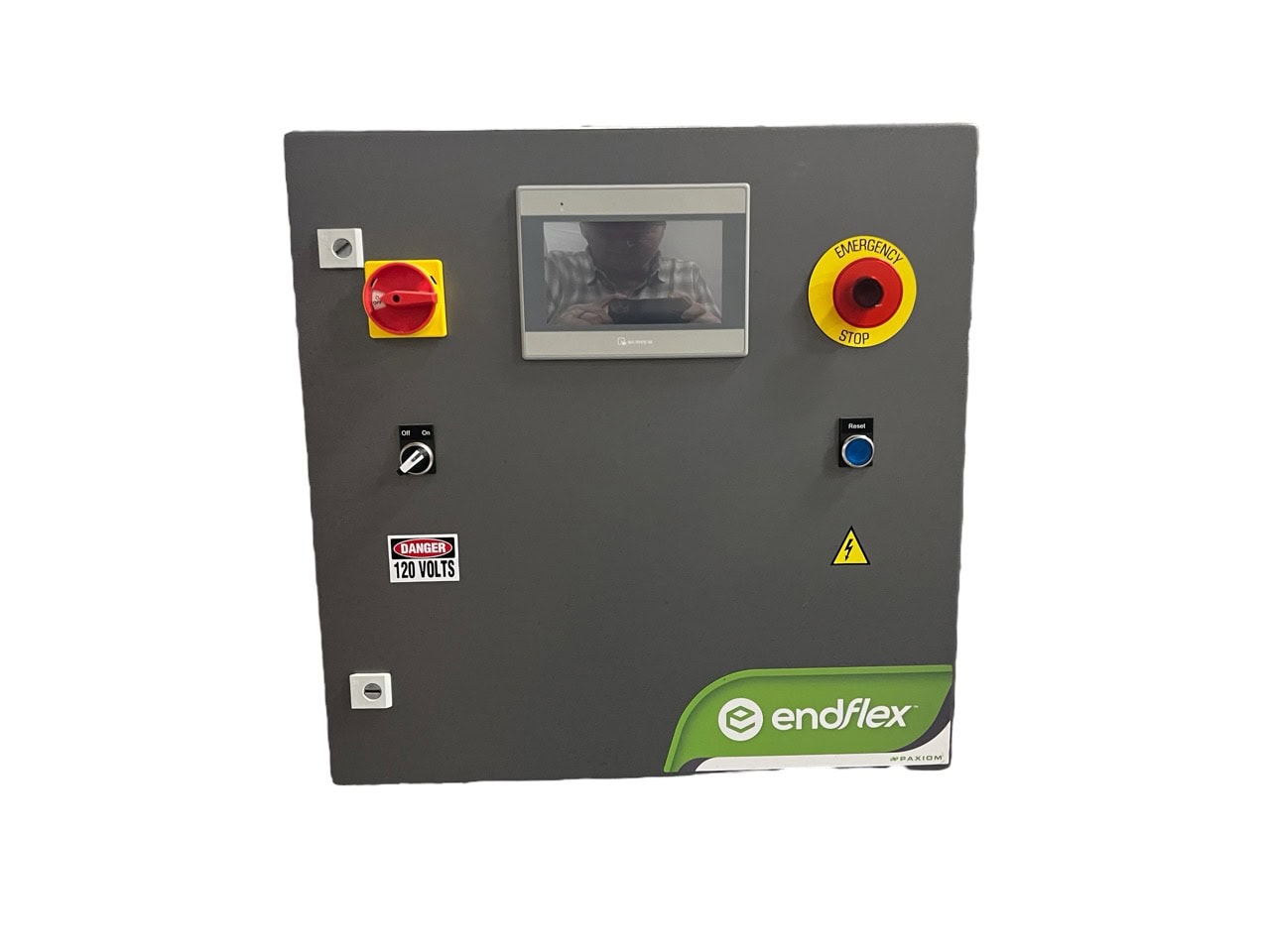

– Omron PLC

– No mandrel or tooling for different sizes required

Standard tray size range:
Without lid (formed):
– Minimum: 8″ L x 5″ W x 2″ D
– Maximum: 21″ L x 15″ W x 5″ D
Without lid (knockdown):
– Minimum: 9″ A x 16″ B
– Maximum: 25″ A x 37″ B

With lid (formed):
– Minimum: 8″ L x 5″ W x 2″ D
– Maximum: 21″ L x 10.5″ W x 5″ D
With lid (knockdown):
– Minimum: 16″ A x 16″ B
– Maximum: 36″ A x 37″ B

Case or Tray Sizes;
Tray #1
Case Size
8.5″L x 6.5″W x 2.5″D
Knockdown
20.56″L x 19.38″W

Tray #2
Case Size
8.5″ x 6.5″ x 6″
Knockdown
30.18″ x 32.38″

Tray #3
Case Size
12.5″ x 8″ x 6.5″
Knockdown
34.5″ x 36.38″

120v 1ph

30SCFM @ 80PSI
