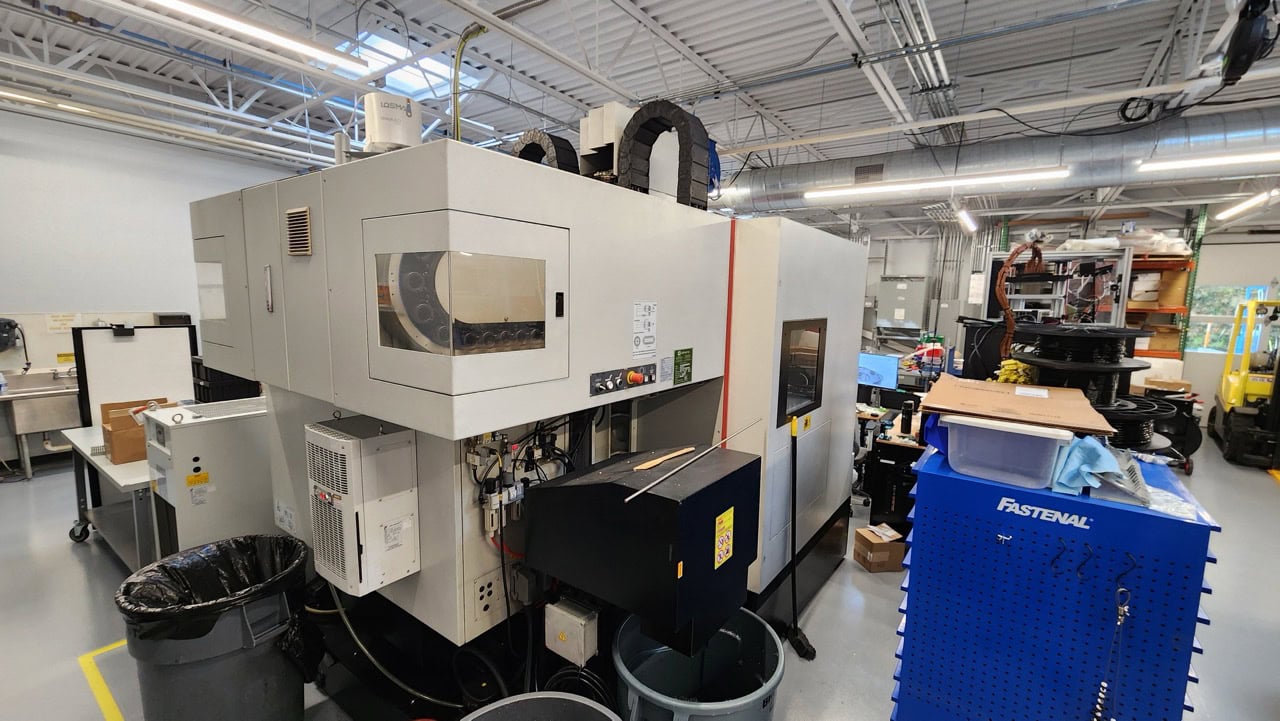

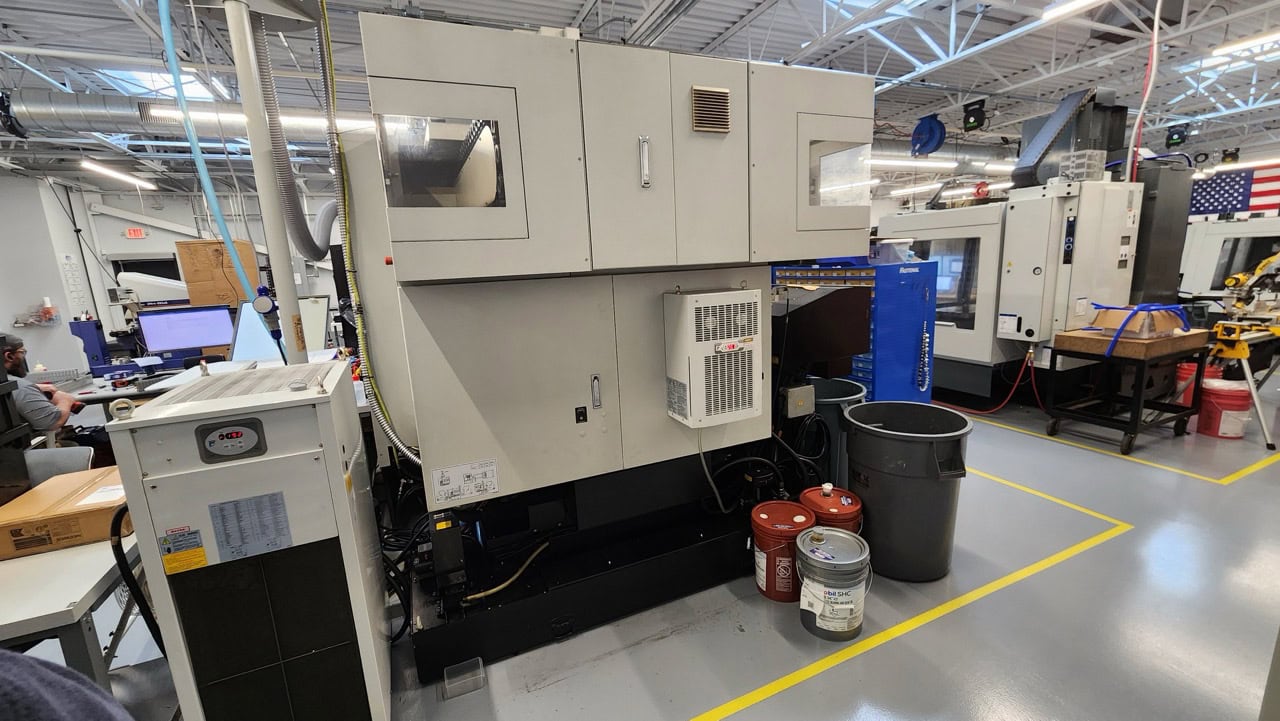

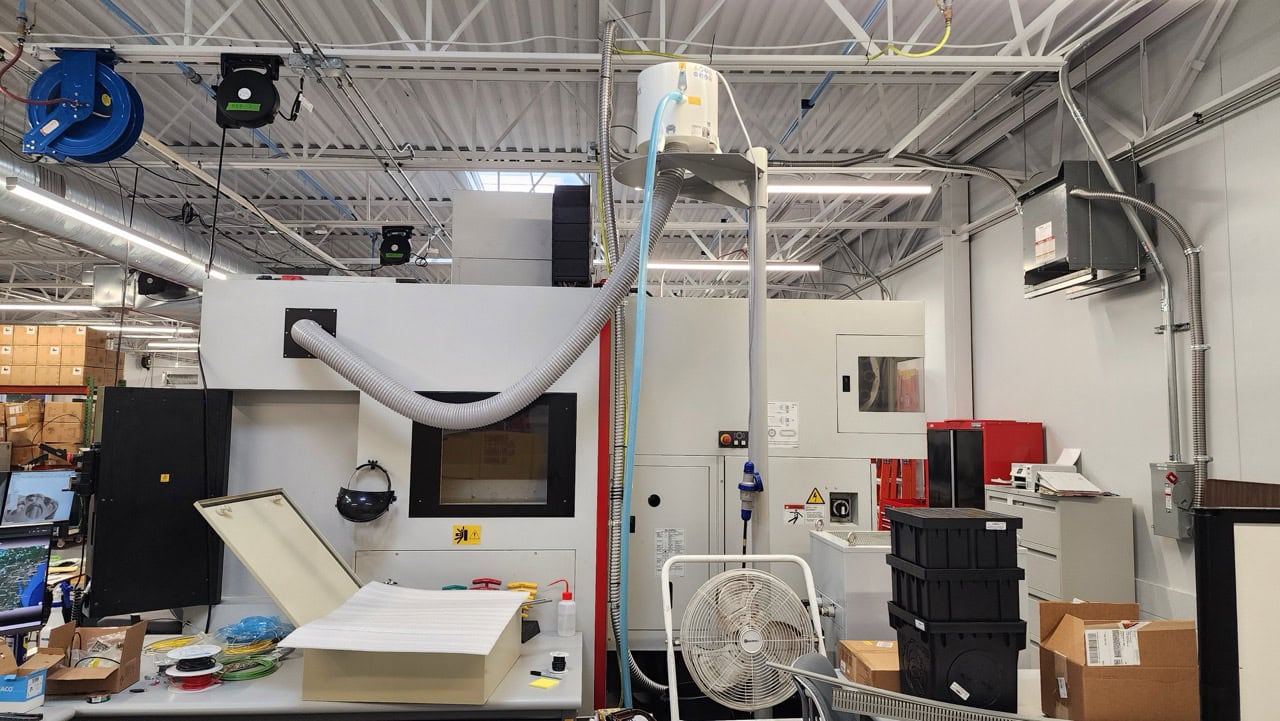

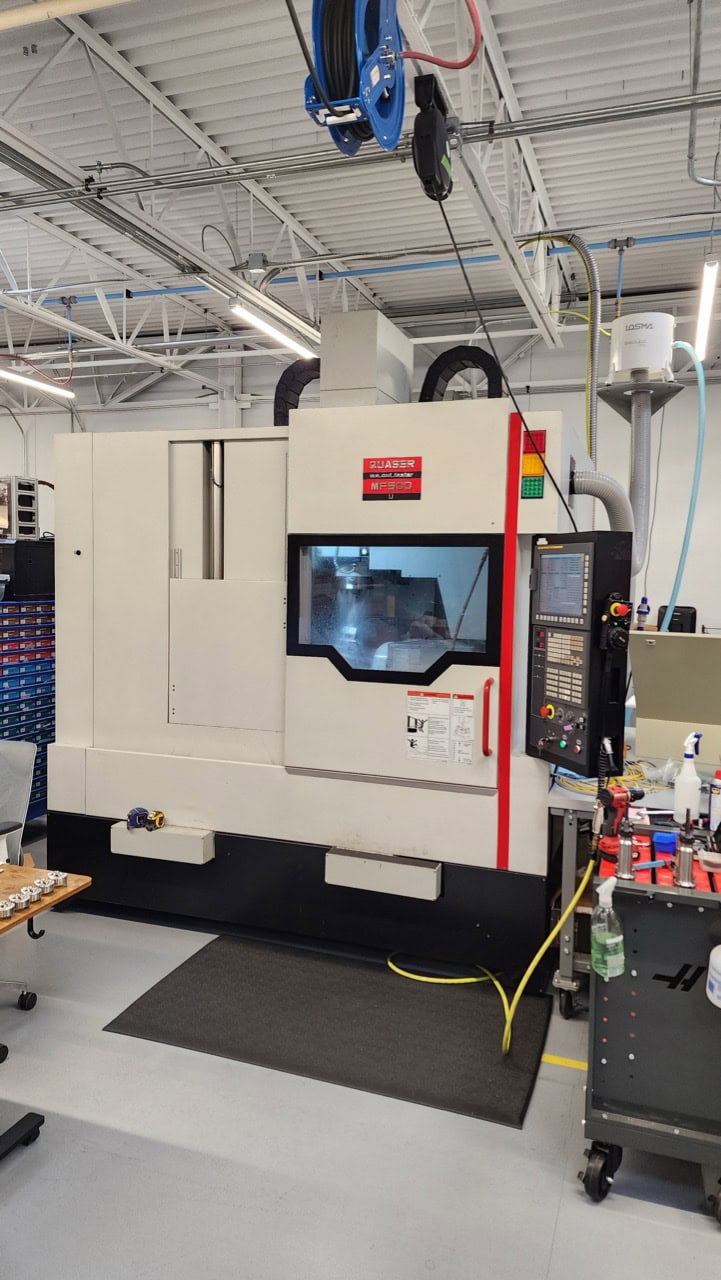

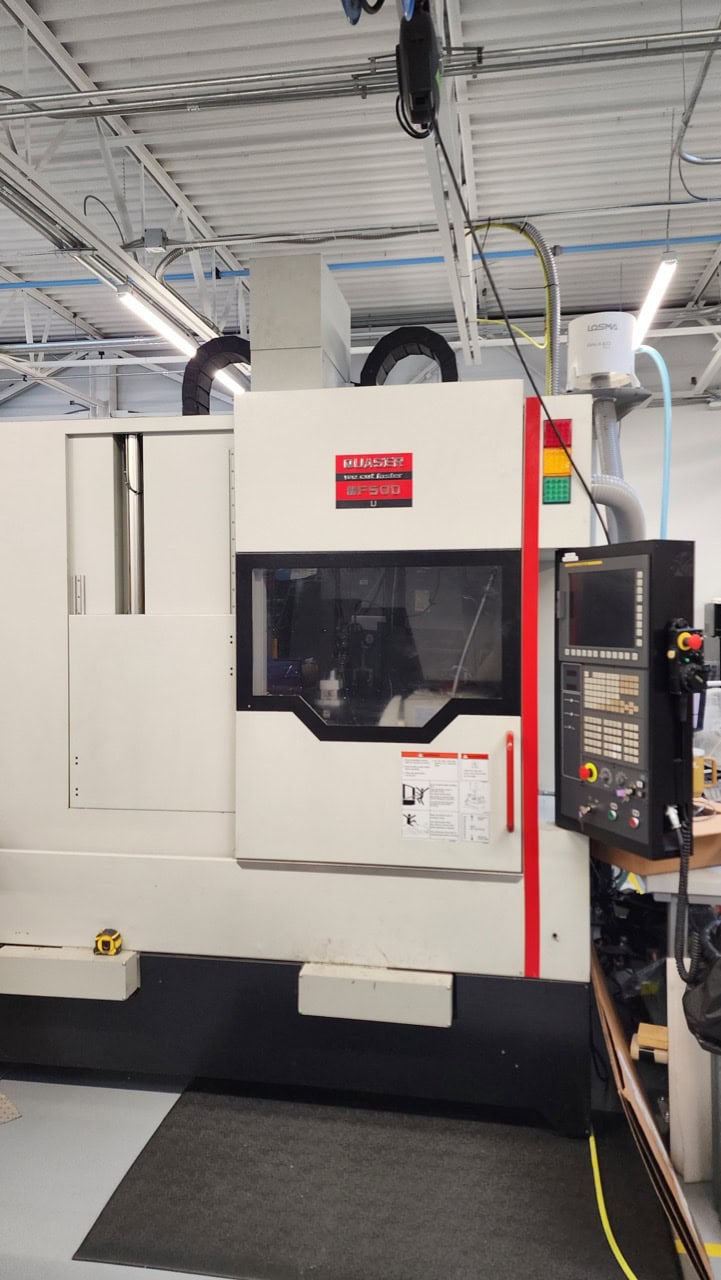

Quaser MF500U.15C 5-Axis VMC, 2018 – Through Spindle Coolant, Chip Conveyor, LOW HOURS
$89,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Diameter: 16.14″
Max Swing: 19.7″
X-Axis Travel: 21.65″
Y-Axis Travel: 24.8″
Z-Axis Travel: 24.0″
A-Axis Travel: +30° ~ -120°
C-Axis Travel: 360° Continuous
Table Load Capacity: 441 lbs
Max Workpiece Size: 19.7″ × 11.8″
Table Surface To Spindle Nose: 0.79″ ~ 20.9″
Spindle Taper: BBT40
Max Spindle Speed: 15,000 RPM
Tool Magazine Capacity: 120 (Dual-Arm)
Max Tool Diameter: 3.0″
Max Tool Diameter (Without Adjacent Tool): 4.9″
Max Tool Length: 11.0″
Max Tool Weight: 15.4 lbs
Tool Change Time (CTC): 9 sec
Repeatability (ISO 10791-4): 0.0003″
Machine Height: 125″
Floor Space (W×D): 89.8″ × 126.8″
Equipped With:

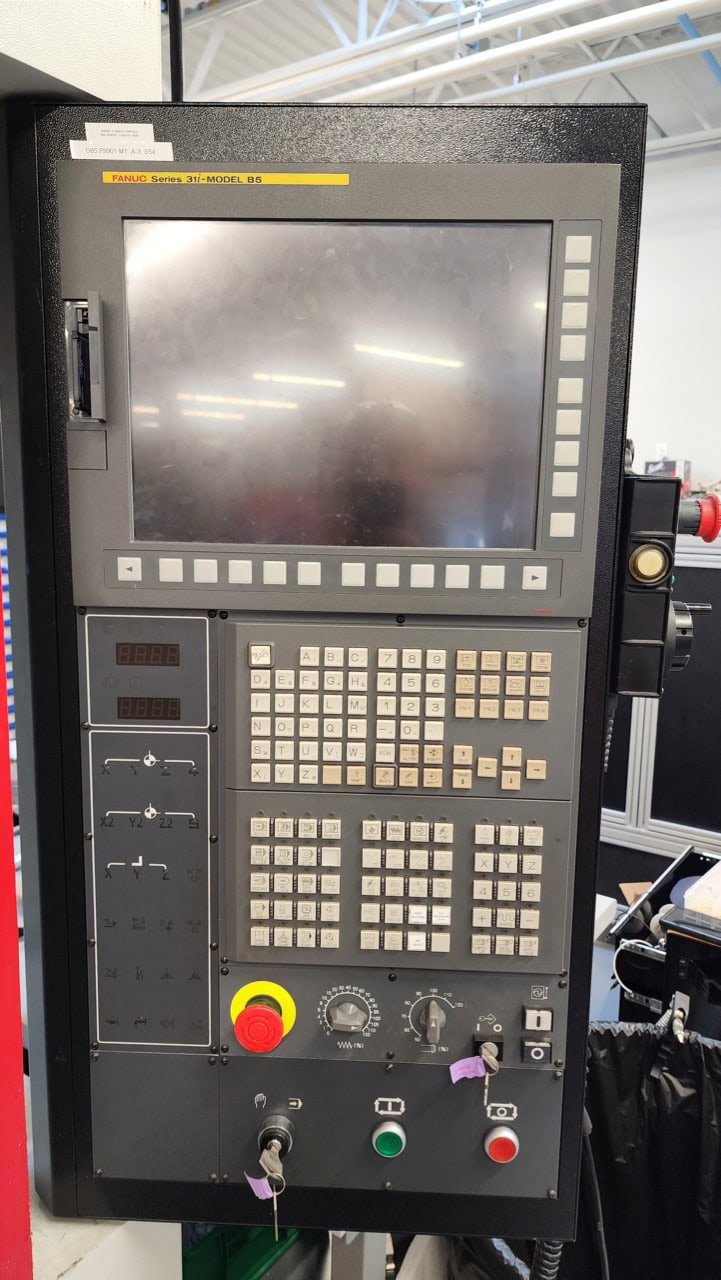

FANUC 31i-B5 CNC Control System
120 Tool Automatic Tool Changer (Dual-Arm)
Full 5-Axis Rotary/Trunnion Table
15,000 RPM Spindle
Coolant Through Spindle System
Automatic Lubrication System
Chip Conveyor
Rigid Tapping
Work Light And Status Light
All Available Manuals
