Rigao RGNF-30B Automatic Tube Filler and Sealer, 2008

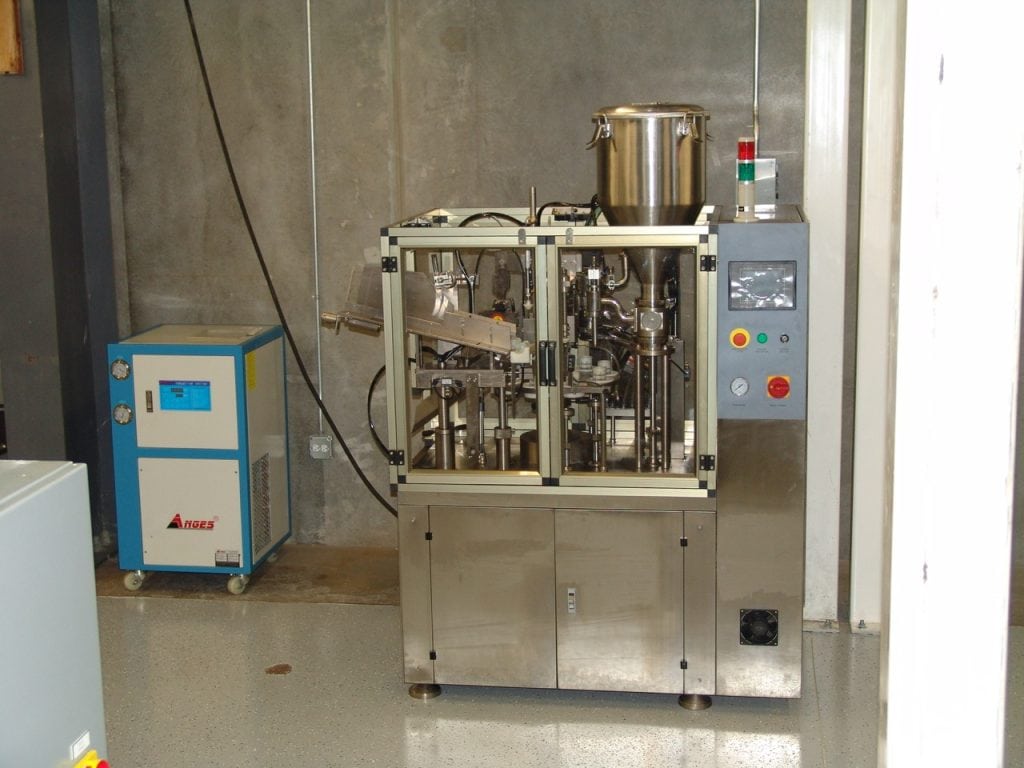

Used Rigao RGNF-30B Automatic Tube Filler and Sealer, 2008:

Listing includes Anges AC-2 Chiller Designed for filling various semi-viscous and viscous materials into plastic tubes. The plastic tubes undergo internal heating and sealing processes. Features replaceable embossed date and batch number stamps. This equipment serves pharmaceutical, food, cosmetic, and chemical industries. A completely automated control system handles tube loading, orientation marking, filling, sealing, code imprinting, and final product delivery. The tube filling and sealing machine allows rapid adjustments, making it adaptable for different soft tube dimensions.

Rated voltage: 220V
Rated current: 20A
Filling amount: 5-520ml/piece
Produce speed: 180-2400 pieces/hour
Air pressure: 0.5-0.7Mpa
Power: 5KW
Dimensions: 1900x850x1900mm
Gross weight: about 750kg

Features:
– Space-efficient design requiring minimal area
– Robust stainless steel framework
– Automated pneumatic tube feed mechanism – Smart temperature regulation and cooling units
– User-friendly touchscreen operation interface
– 316 food-grade stainless steel product contact components
– Complete safety enclosure with interlocked doors
– Sensor-driven automatic orientation system
– Quick filling volume adjustment through hand wheel control
– Built-in cooling exchange system
– Adaptable parts for soft tubes from 30ml to 240ml capacity
– Customizable lot date and alphanumeric coding components
– Production rate ranges from 30-60 soft tubes/minute based on tube specifications and material type.
