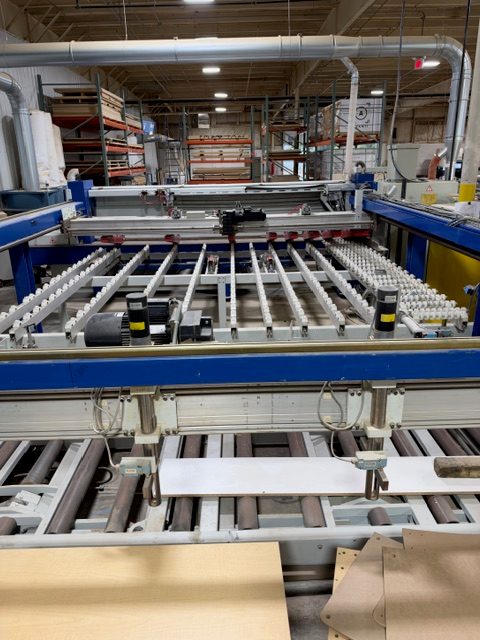

Schelling FM-H 430/410 Automatic Panel Saw, 2001 – Rear Lift Table

Cutting Length: 169″
Cutting Width: 161″
Maximum Saw Blade Projection: 3.75″

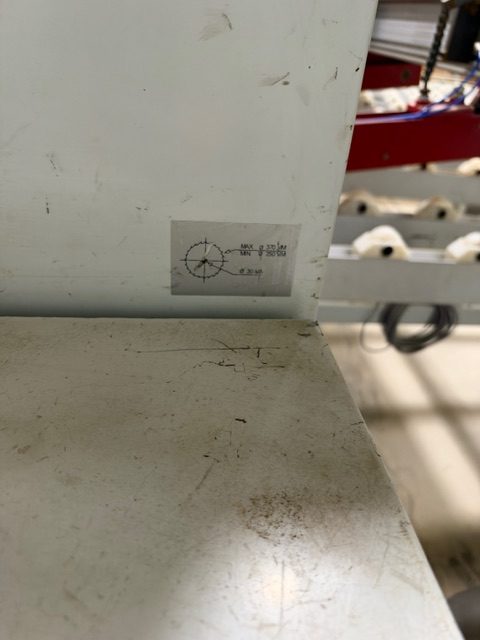

Maximum Main Saw Blade Diameter: 17.72″
Main Saw Motor: 25 HP
Maximum Saw Carriage Speed: 394 FPM
Saw Carriage Speed Range: 3.3–394 FPM
Maximum Pusher Speed: 262 FPM
Pusher Travel: 161″

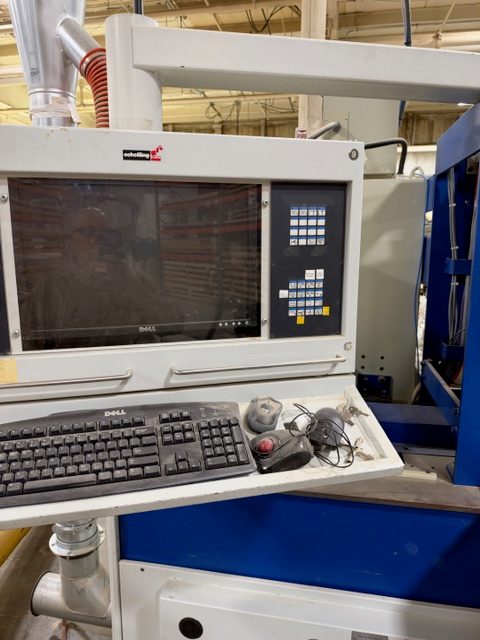

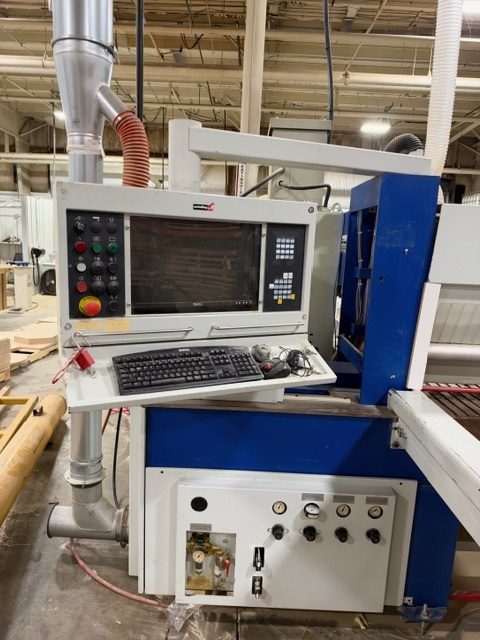

Control Type: PC-Based CNC Control

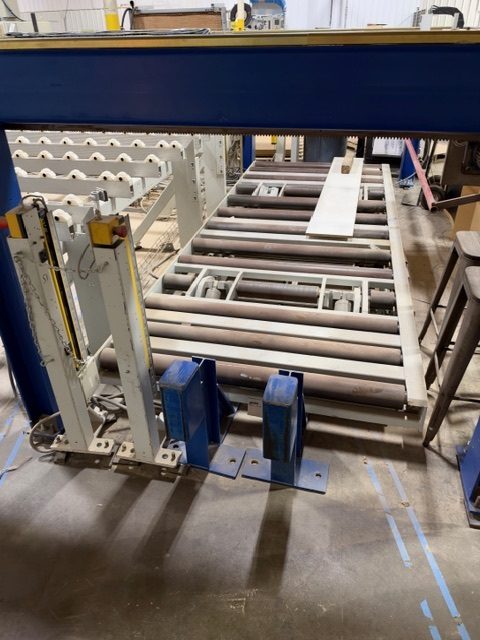

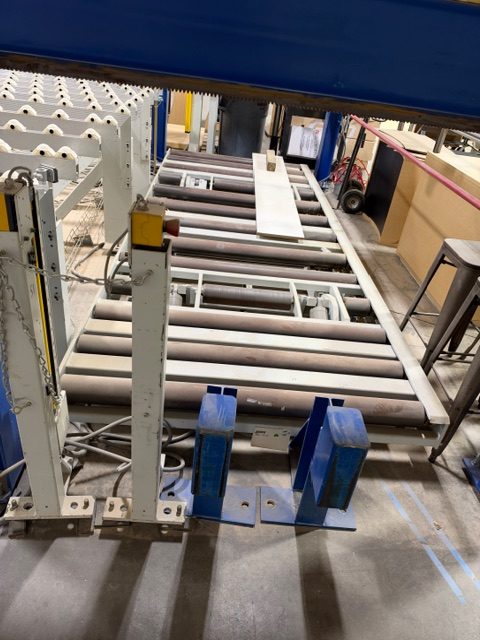

Panel Loading: Automatic Rear Lift Table

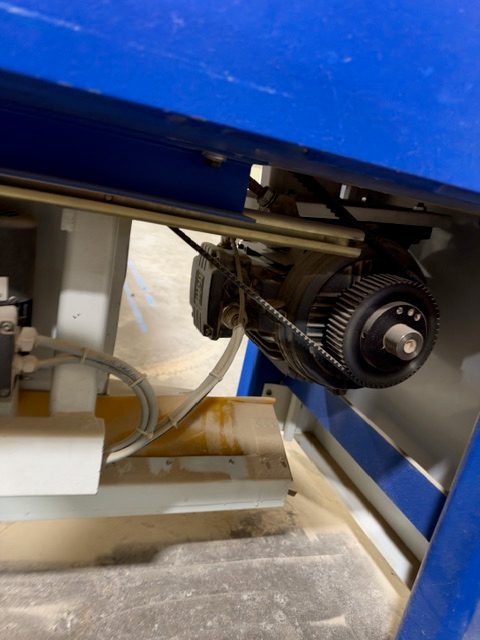

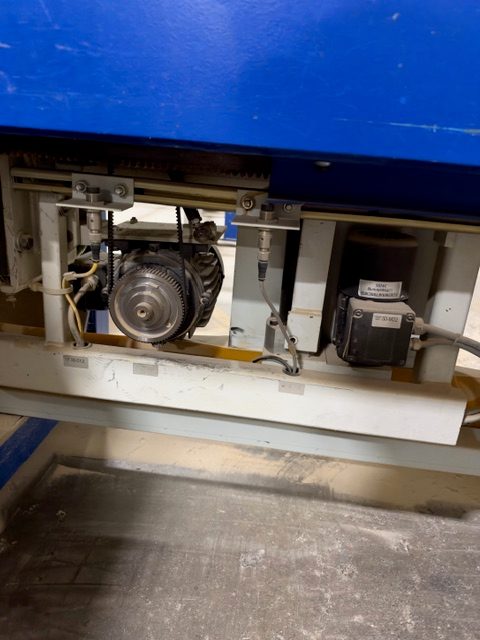

Saw Carriage Drive: Rack And Pinion

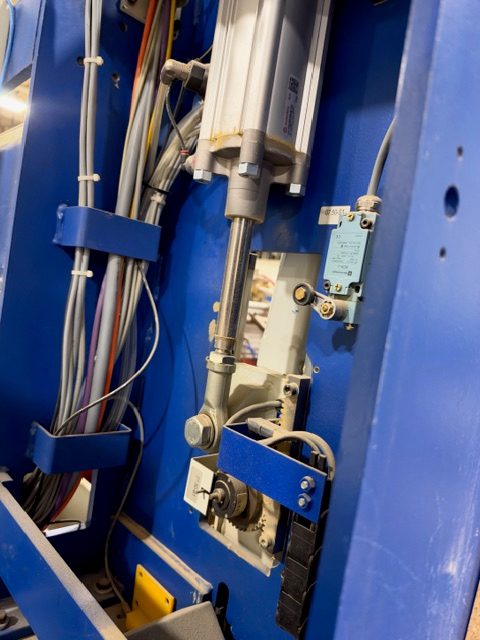

Side Alignment: Pneumatic
Equipped With:
– Automatic Rear Lift Table
– PC-Based CNC Control

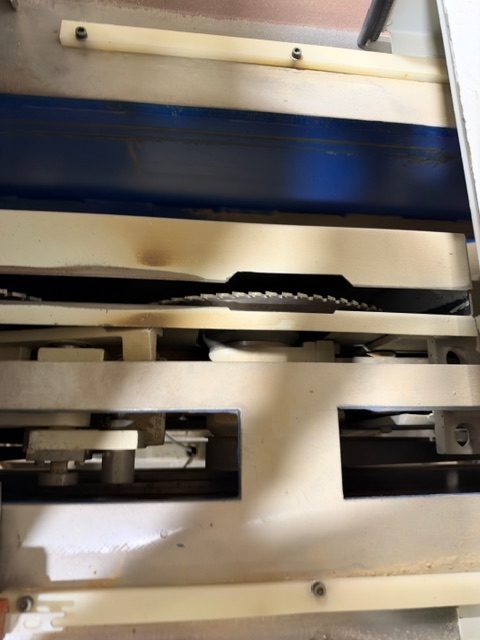

– Main Saw And Scoring Saw
– Automatic Panel Feeding System
– Pneumatic Side Aligners
– Programmable Panel Pusher
– Variable Speed Saw Carriage
– Automatic Gripper Clamping System

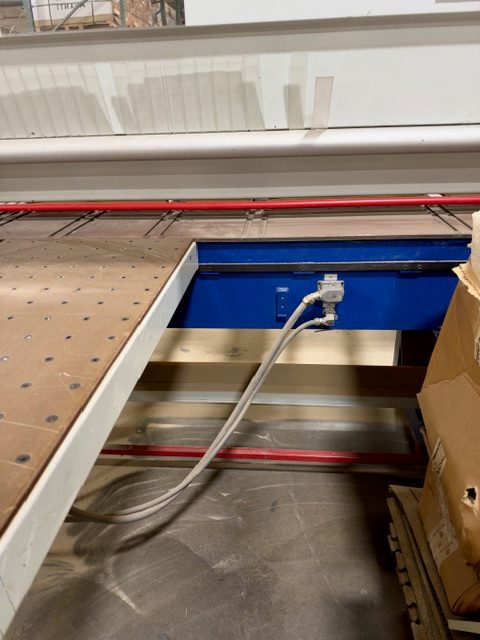

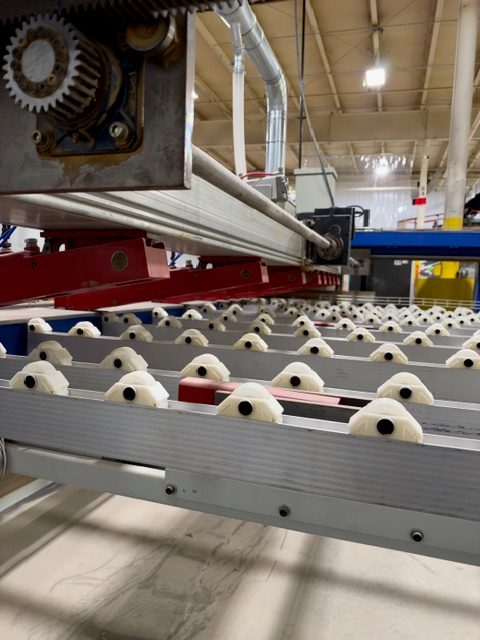

– Front Air Flotation Tables
– Pressure Beam Clamping System
