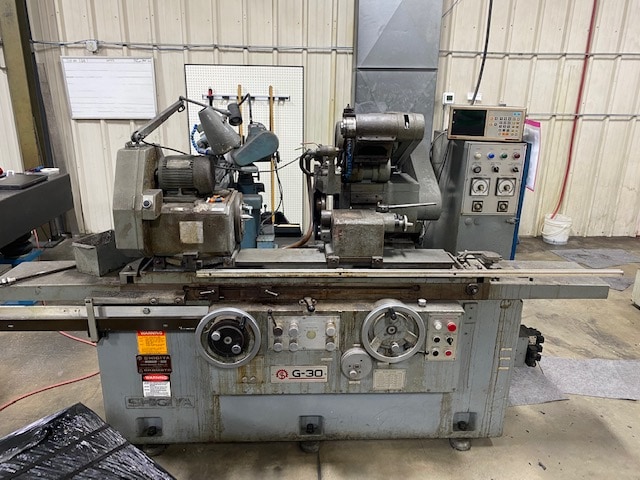

Shigiya GUA-30-60H OD ID Universal Cylindrical Grinder, 2011 – 11.8″ x 23.6

$18,900.00

Request a Quote to Instantly See Pricing

Machine Type:
Grinders
Model:
GUA-30-60H
Make:
Shigiya
Year:
2011

Swing: 11.8″
Distance Between Centers: 23.6″
Longitudinal Table Speed: 2″ to 160″ per min
Table Swivels (total): 10 degs
Max Stroke of Wheelhead (Manual): 6.9″
Rapid Traverse (Hydraulic): 1.6″
Max Auto Infeed Stroke: 0.4″
Auto Infeed Rate: 0.00004″ to .004″
Plunge Infeed Rate: 0.0008″ to .06″
One Rev of Handwheel: 0.04″
Wheelhead Swivels Left & Right: 30 Degrees
Grinding Wheel Size: 14″ x 1-2″ x 5″
Grinding Wheel Speeds (2): 1675 / 2013 rpm
Workhead Spindle Taper: No. 4 MT
Workhead Spindle Speeds (9): 13 to 252 rpm
Workhead Swivel Range (Total): 120 Degrees
Tailstock Spindle Taper: No. 4 MT
Tailstock Spindle Travel: 1.2″
Machine Weight: Approx 7000 Lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
