Signode Muller 1825B Stretch Wrapper – 2022 – Rotary Ring System with Corner Post Device

Signode (Muller) Octopus 1825B Automatic Rotary Ring Stretch Wrapper, 2022:

This unit is optioned with corner post device and top sheet dispenser:
– Corner post device (CPD) is a cost saving system that automatically inserts 4 solid corner posts at the pallet corners.
– Integrated top sheet dispenser provides automatic weather proofing without taking up floor space

Standard specs:
– Structure: aluminum frame
– Speed: 25-40 rpm
– Loads per hour: up to 100 loads per hour depending on load size and wrap pattern
– Maximum load size: 48″W x 54″L x 92″H
– Minimum load size: 36″ W x 36″ L x 28″ H

Film delivery system:
– Film capacity: 20″ W x 10″ Diameter
– Film payout: tach feedback
– Pre-stretch level: up to 300%
– Tension control: variable (10 pre-programmed tension levels)
– Film threading: easy S film carriage
– Cut and seal: impulse heated cut wire and heat seal pad

Controls:
– PLC: Allen Bradley CompactLogix

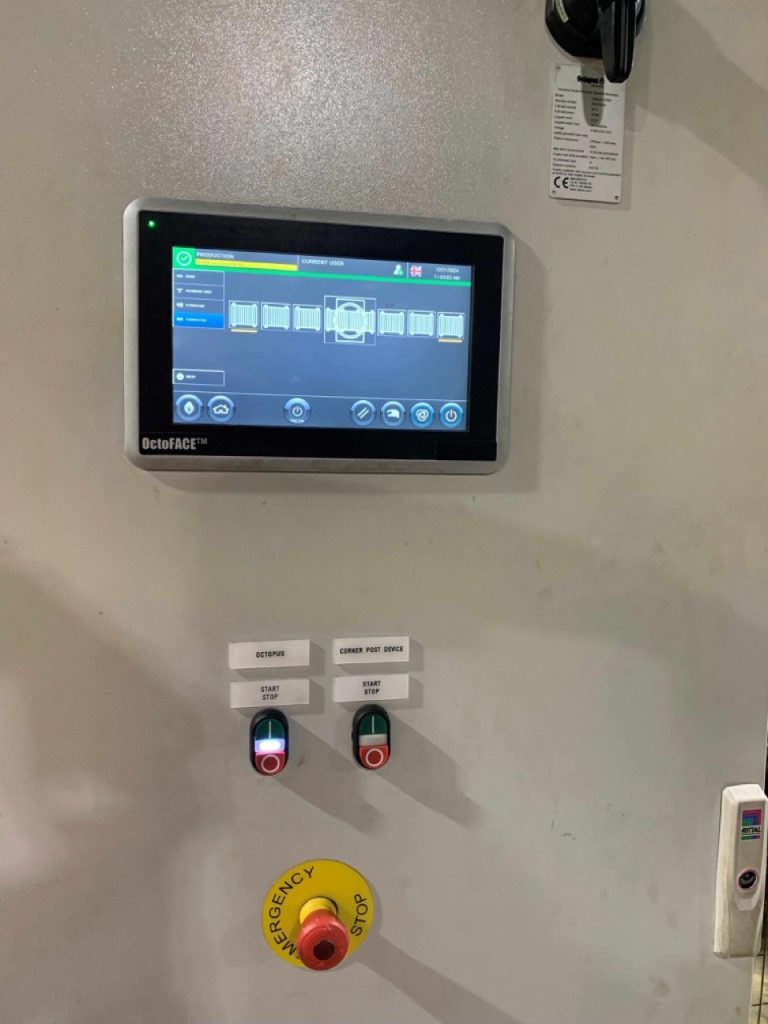

– Operator interface: OctoFACE Color HMI
– Load height sensing: Photoeye
– Wrap settings: single wrap, double wrap, banding, overlap, overwrap
– Electrical safety: category 3 Electrics
– Disconnect switch: lockable
– Electrical enclosure: NEMA 12

Air and power requirements:
– Power: 480V /3 Ph/ 60Hz / 30 Amps
– Pneumatics: 80 PSI, 3 CFM

Ring lift and rotation:
– Lift method: reinforced belt
– Lift motor: SEW Eurodrive
– Rotation method: reinforced belt
– Rotation motor: SEW Eurodrive

Additional standard features:
– Safety fence with electrical lockout switch
– Load indexing and safety photoeyes
– Automatic pass through

**Drawing to show footprint available upon request**
