Sioux Steam-Flo ASME-Certified Low-Pressure Steam Generator – 15 PSI, 279 sq ft Heating Surface
$19,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Equipment Overview

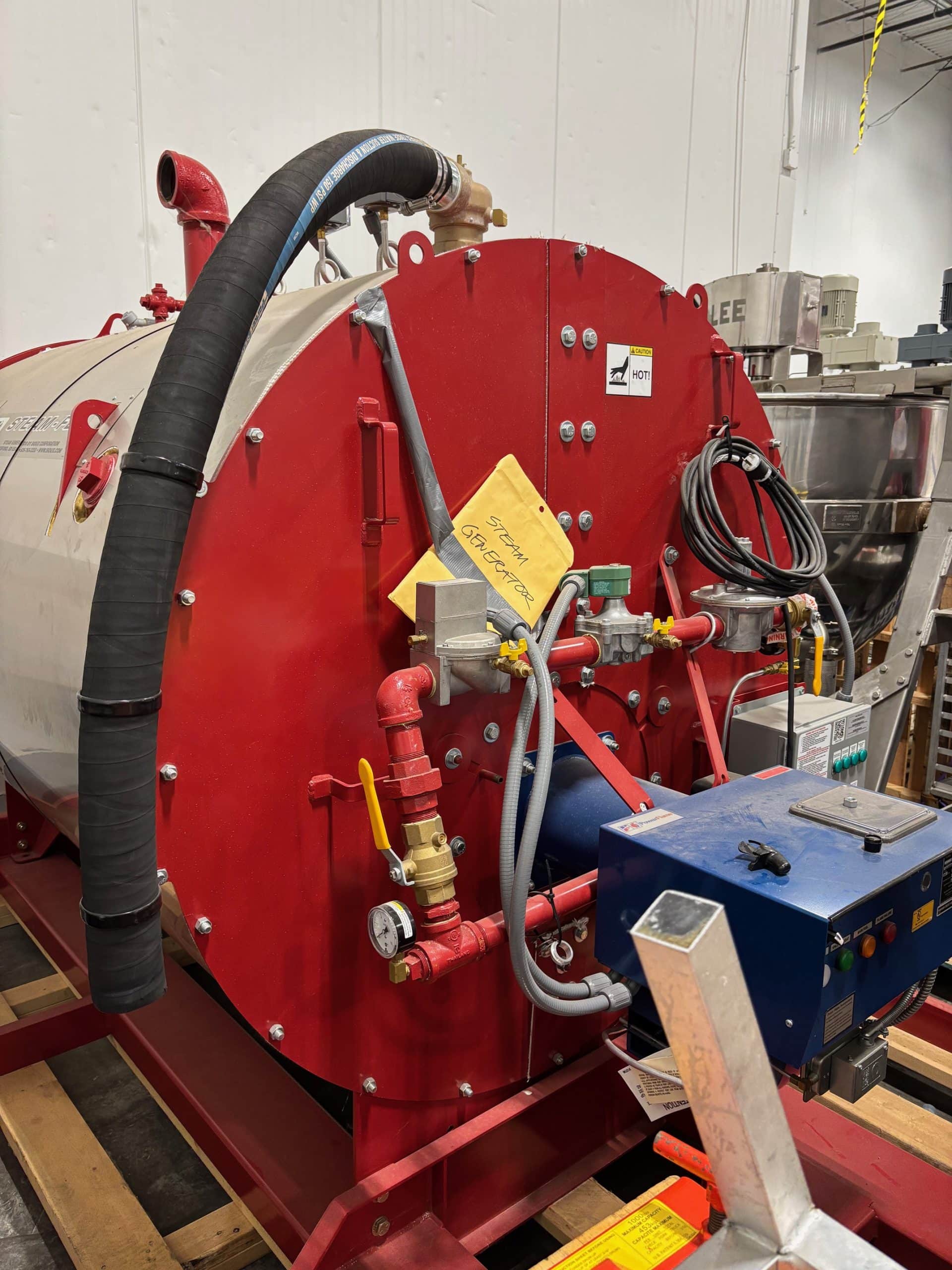

This Sioux Steam-Flo steam generator is a certified low-pressure ASME unit mounted on a portable steel skid. Rated at 15 PSI for steam and 30 PSI for water, it offers a 279 sq ft heating surface with a 2,000 lb/hr relief valve capacity. Designed for process heating, thawing, sterilization, and other commercial/industrial steam applications.
Key Features and Specifications
Steam Output Range (family): ~370 to 3,450 lb/hr
Certification: ASME ‘H’ Stamp for heating boilers
National Board Registration: 5811
Maximum Steam Pressure: 15 PSI
Maximum Water Pressure: 30 PSI
Max Water Temperature: 250°F
Heating Surface: 279 sq ft
Relief Valve Capacity: 2,000 lb/hr
Serial / ID: 22-5811
Mounting: Welded steel skid, forklift accessible
Connections: Steam and water lines visible, electrical control cabinet mounted
Use Case: Soil steaming, process heating, jacket support, thawing, and cleaning
