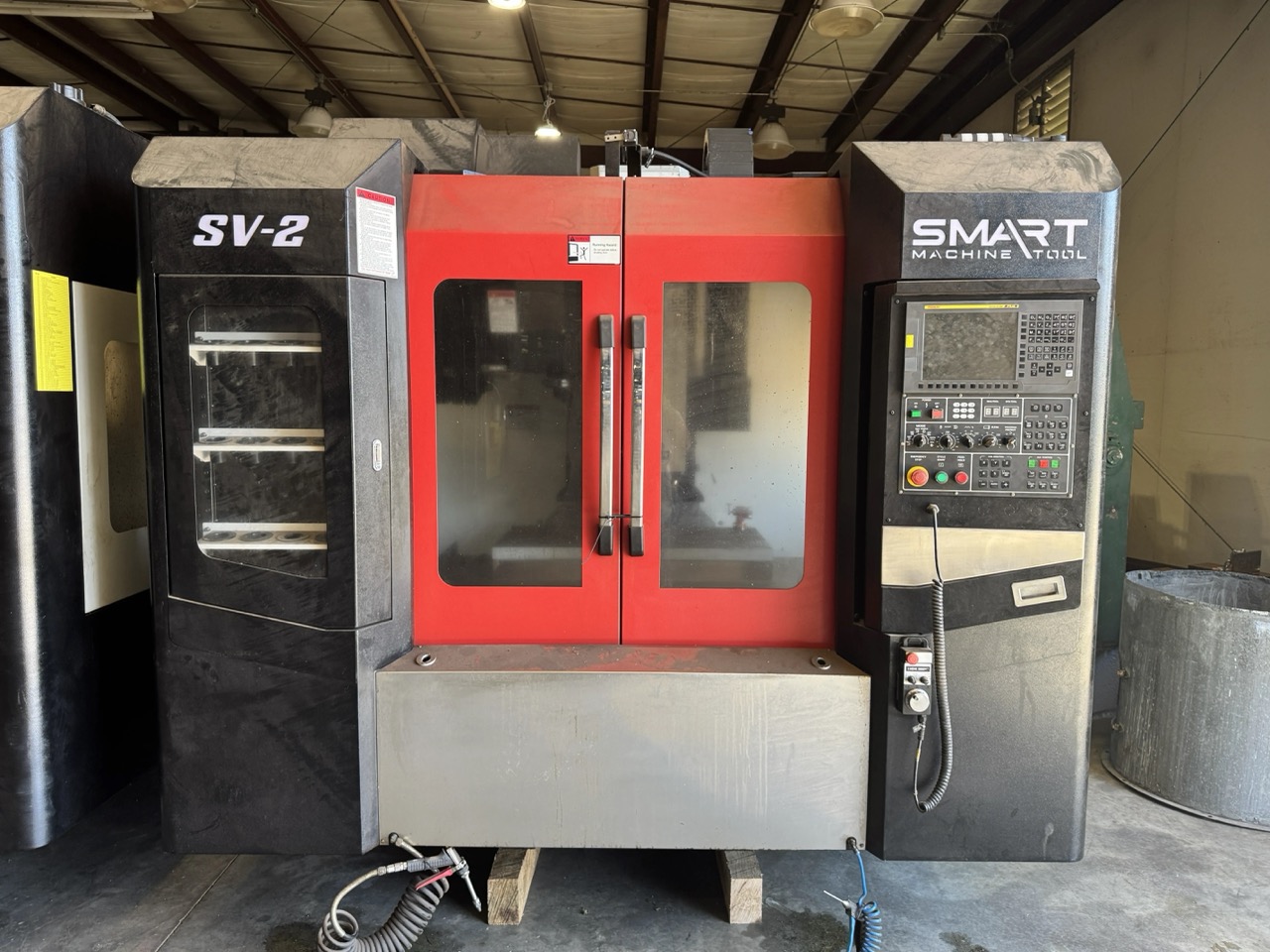

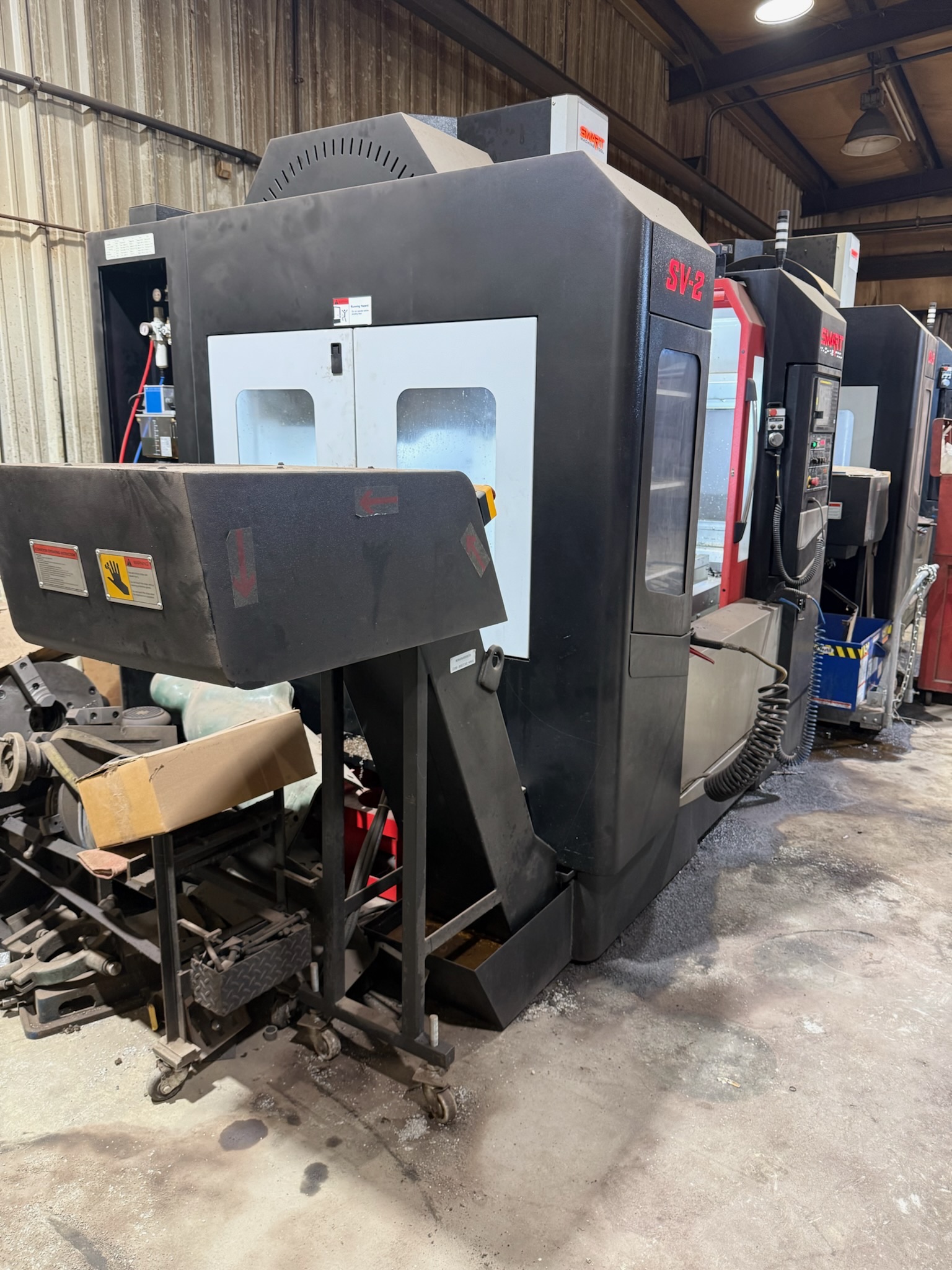

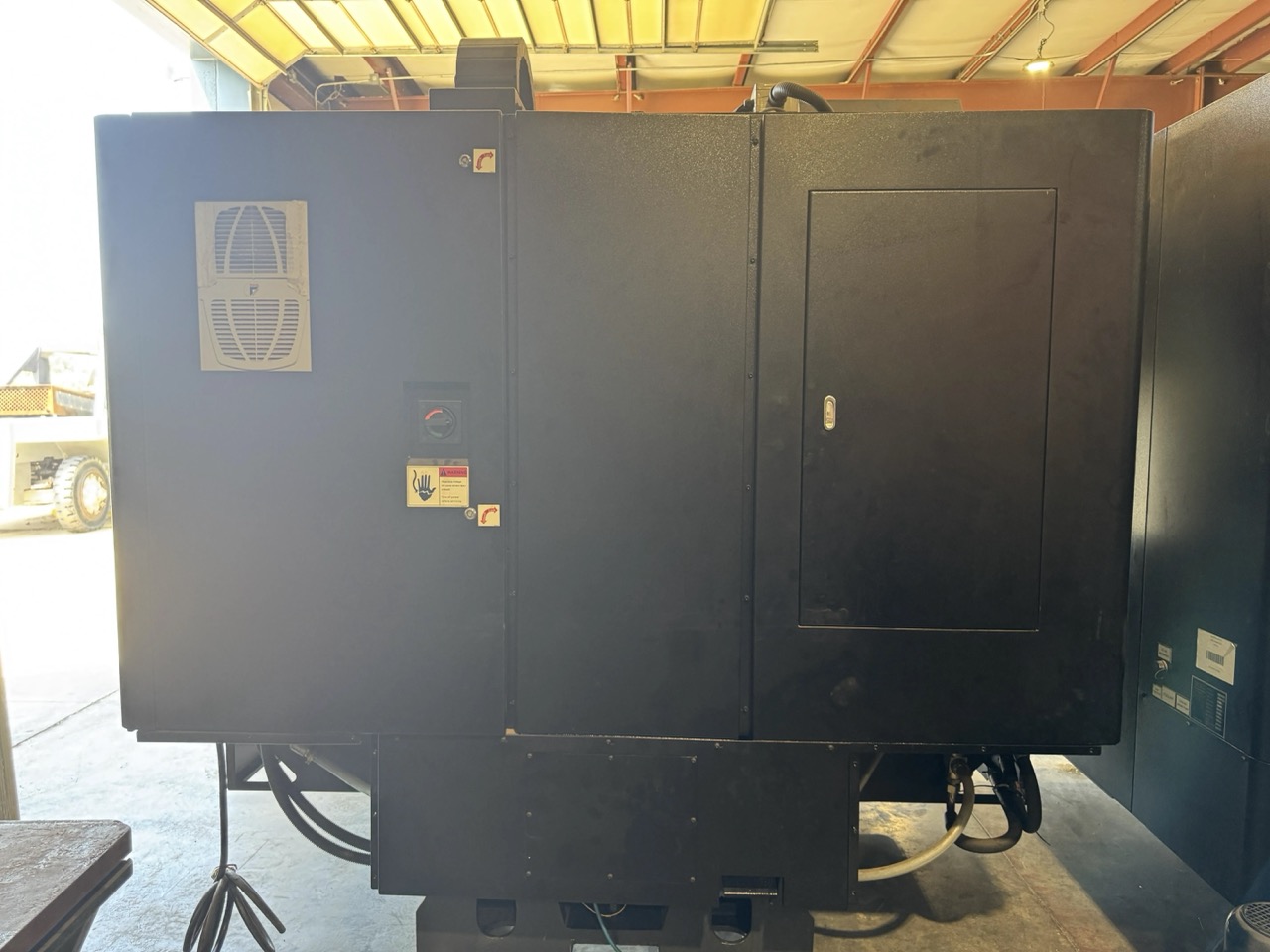

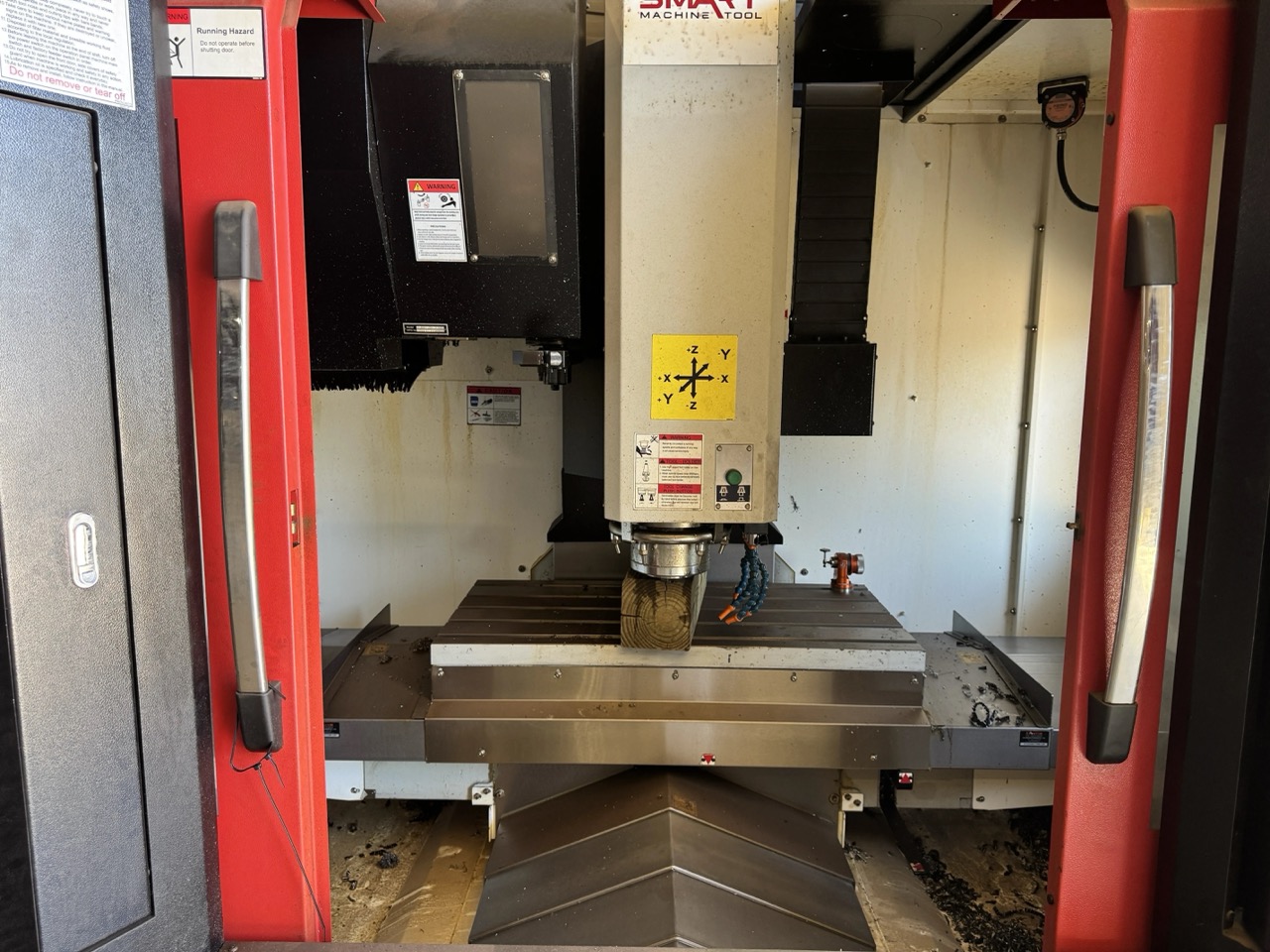

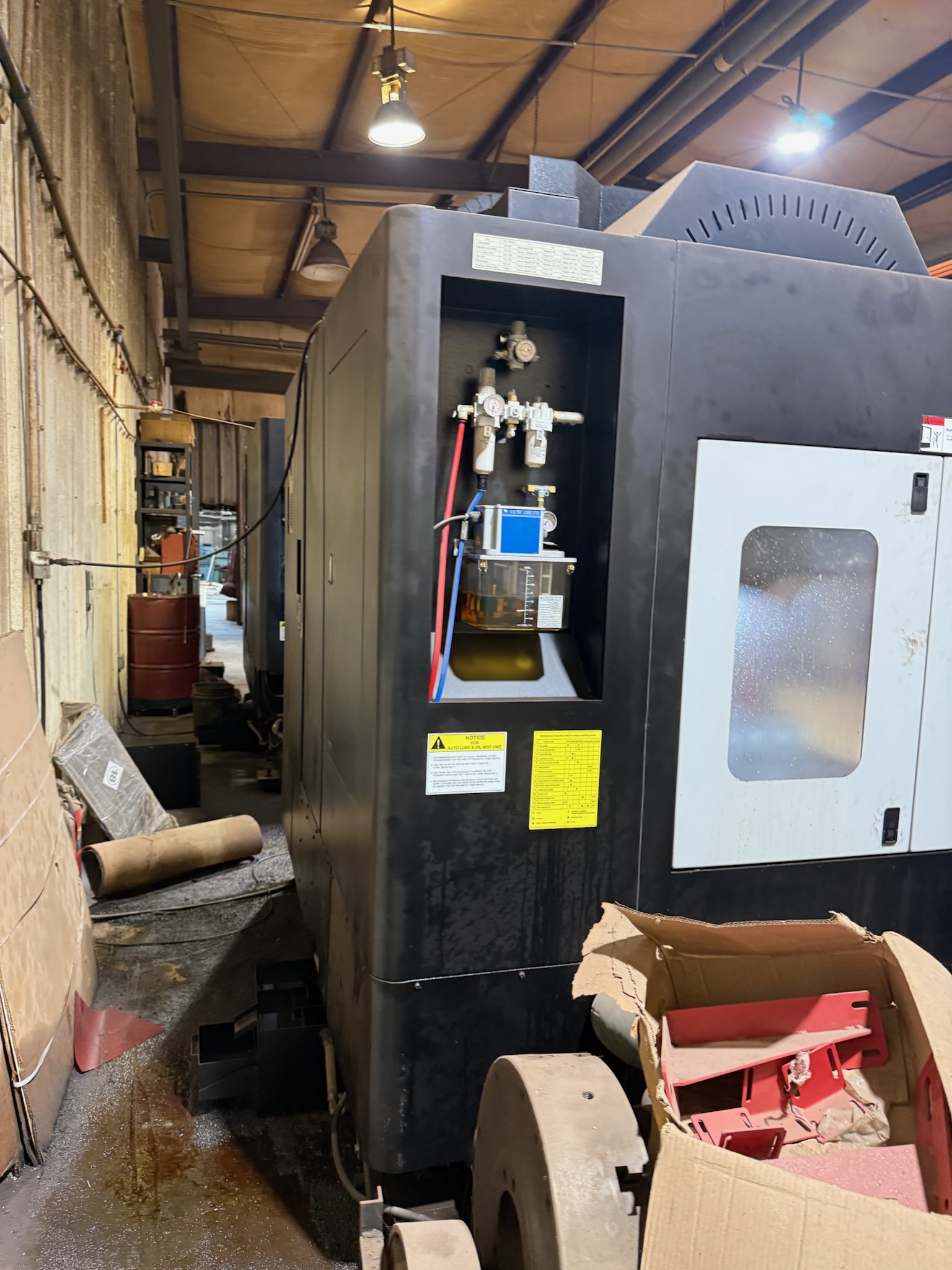

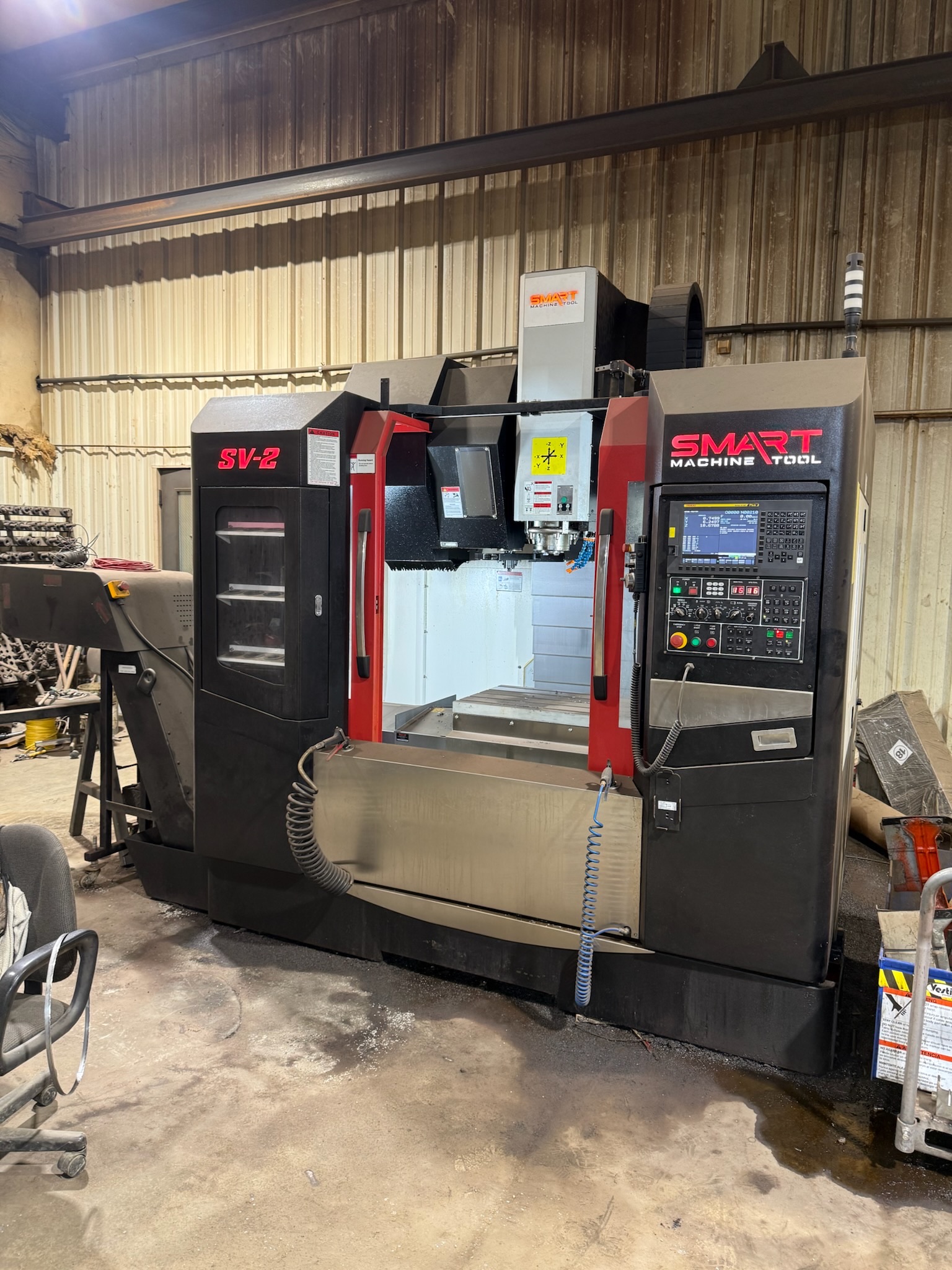

Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 2
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 3
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 4
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 5
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 6
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 7
MWH
60694965063

Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4″ X Travel – VMC Mill

$44,900.00

Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 2
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 3
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 4
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 5
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 6
Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4" X Travel – VMC Mill - Image 7

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Vertical Machining Centers
Make: Smart
Model: SV2
Year: 2022
Machine Location: Illinois
Stock #: 965063

Clean 2022 Smart Machine Tool SV-2 CNC vertical machining center equipped with Fanuc control, CAT40 spindle, 30-station tool changer, fast 1,890 IPM rapids, and a compact 31.4″ x 19.6″ x 19.6″ work envelope ideal for precision milling, job shop production, and prototype machining.

Spec Details
Manufacturer Smart Machine Tool
Model SV-2
Year 2022
Machine Type CNC Vertical Machining Center / VMC

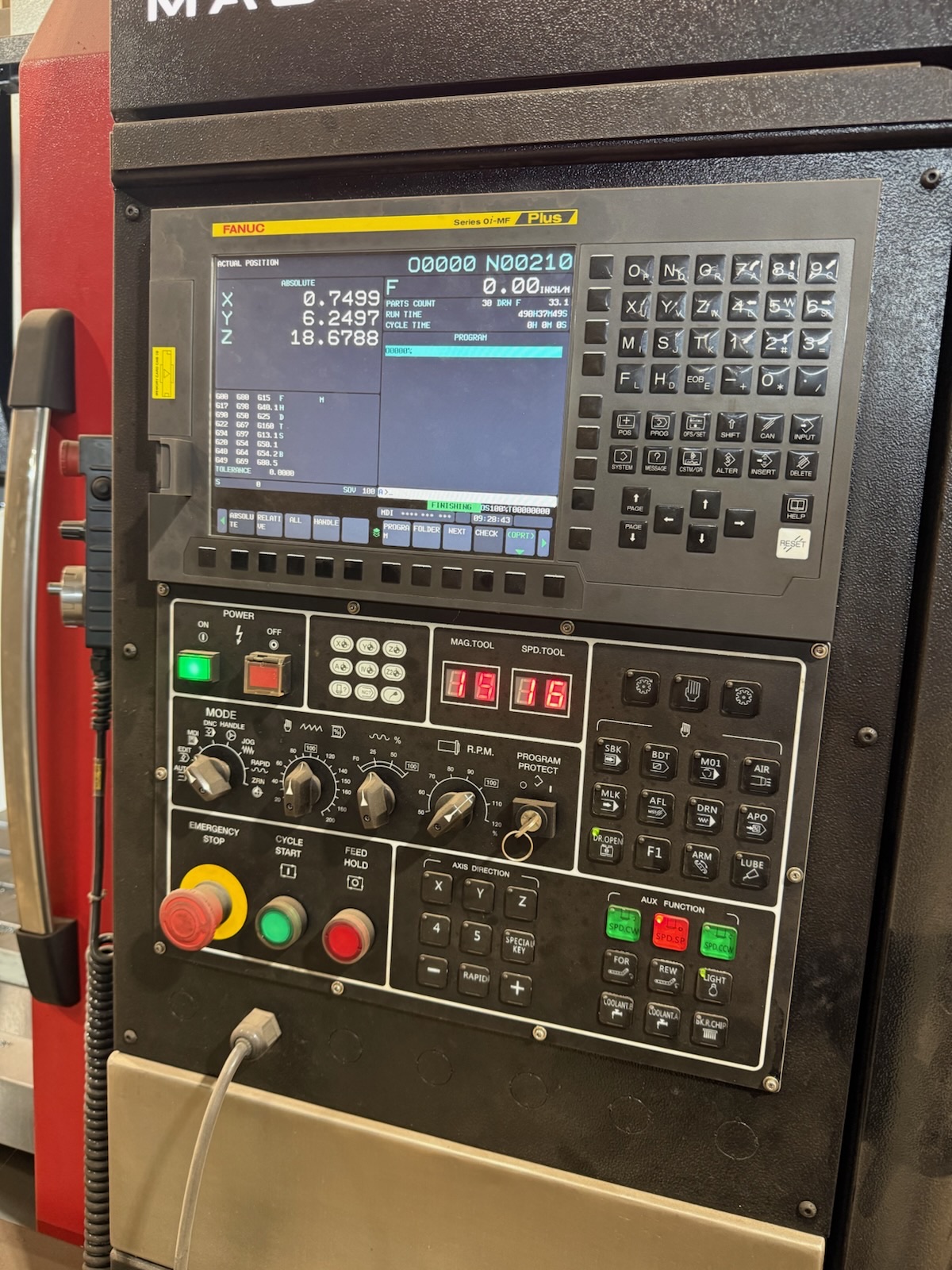

Control Fanuc 0i-MF Plus CNC Control
X-Axis Travel 31.4″
Y-Axis Travel 19.6″
Z-Axis Travel 19.6″
Table Size 19.6″ x 39.2″
Spindle Taper CAT40 / Big Plus
Spindle Speed 10,000 RPM
Spindle Motor 20/25 HP
Tool Changer 30-Station Side-Mount ATC
Rapid Traverse 1,890 IPM
Cutting Feedrate Up to 394 IPM
Power 220V / 60Hz
Approx. Machine Dimensions 134.6″ L x 98″ W x 110.2″ H
Approx. Machine Weight 11,000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
