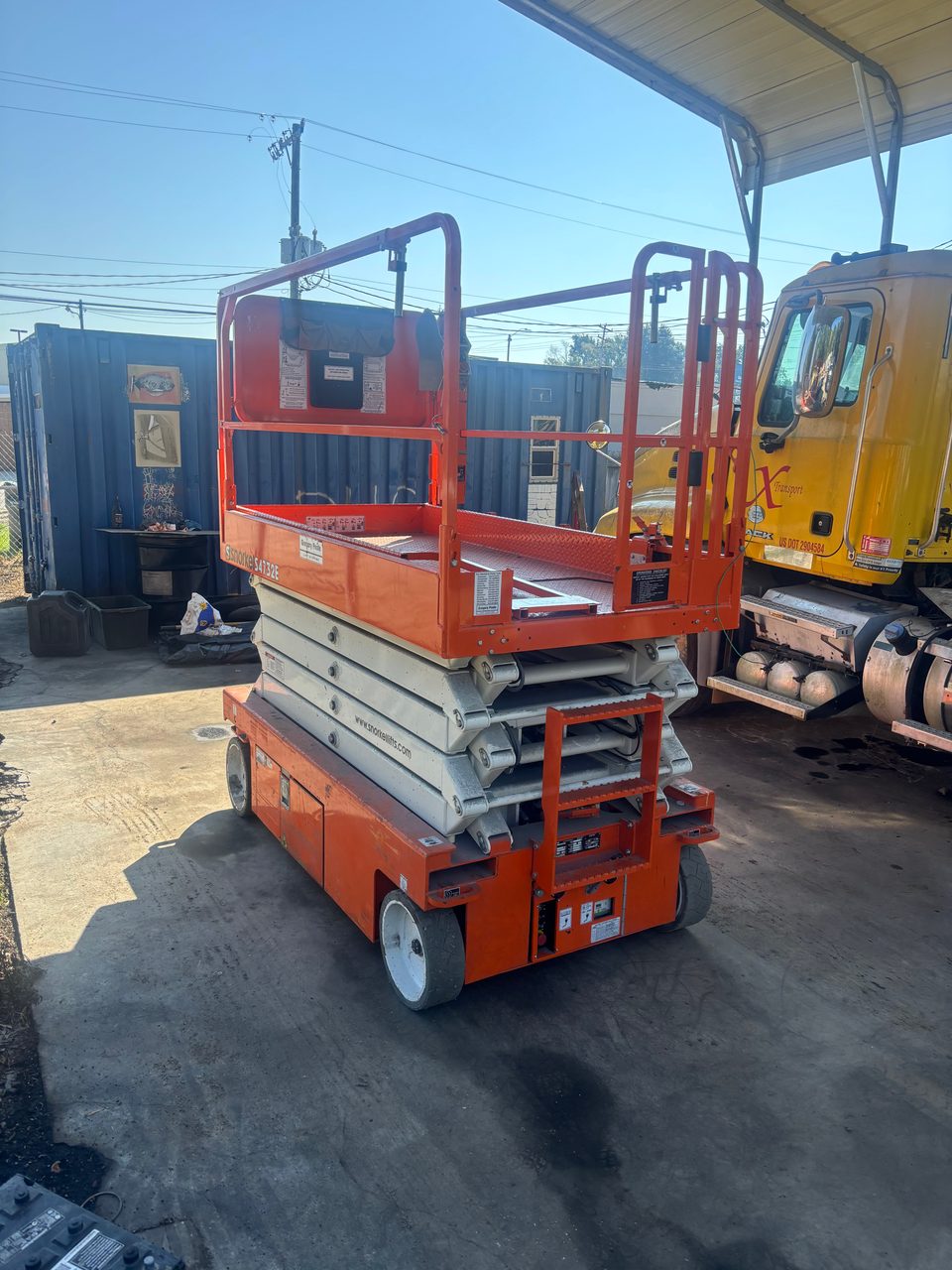

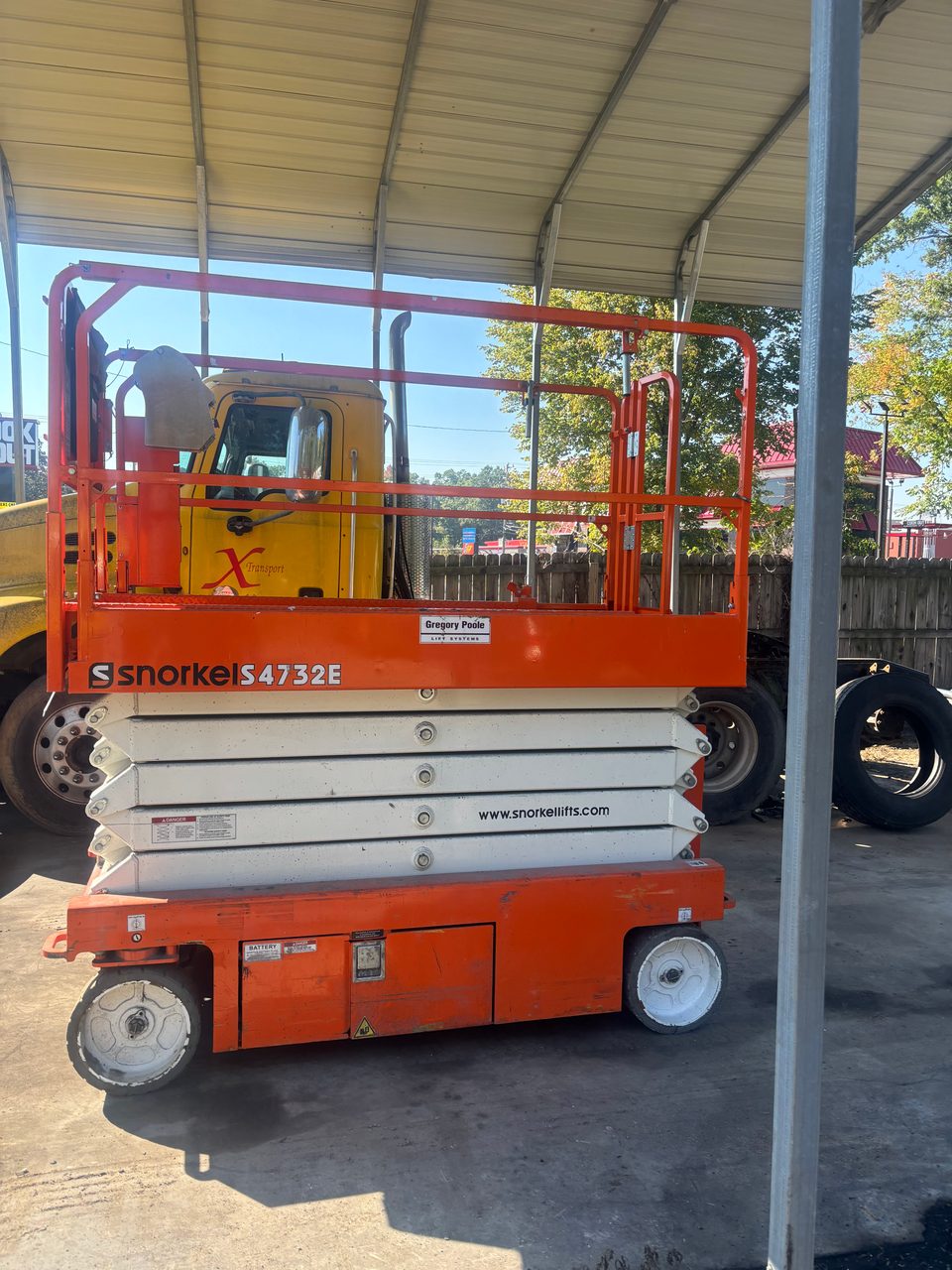

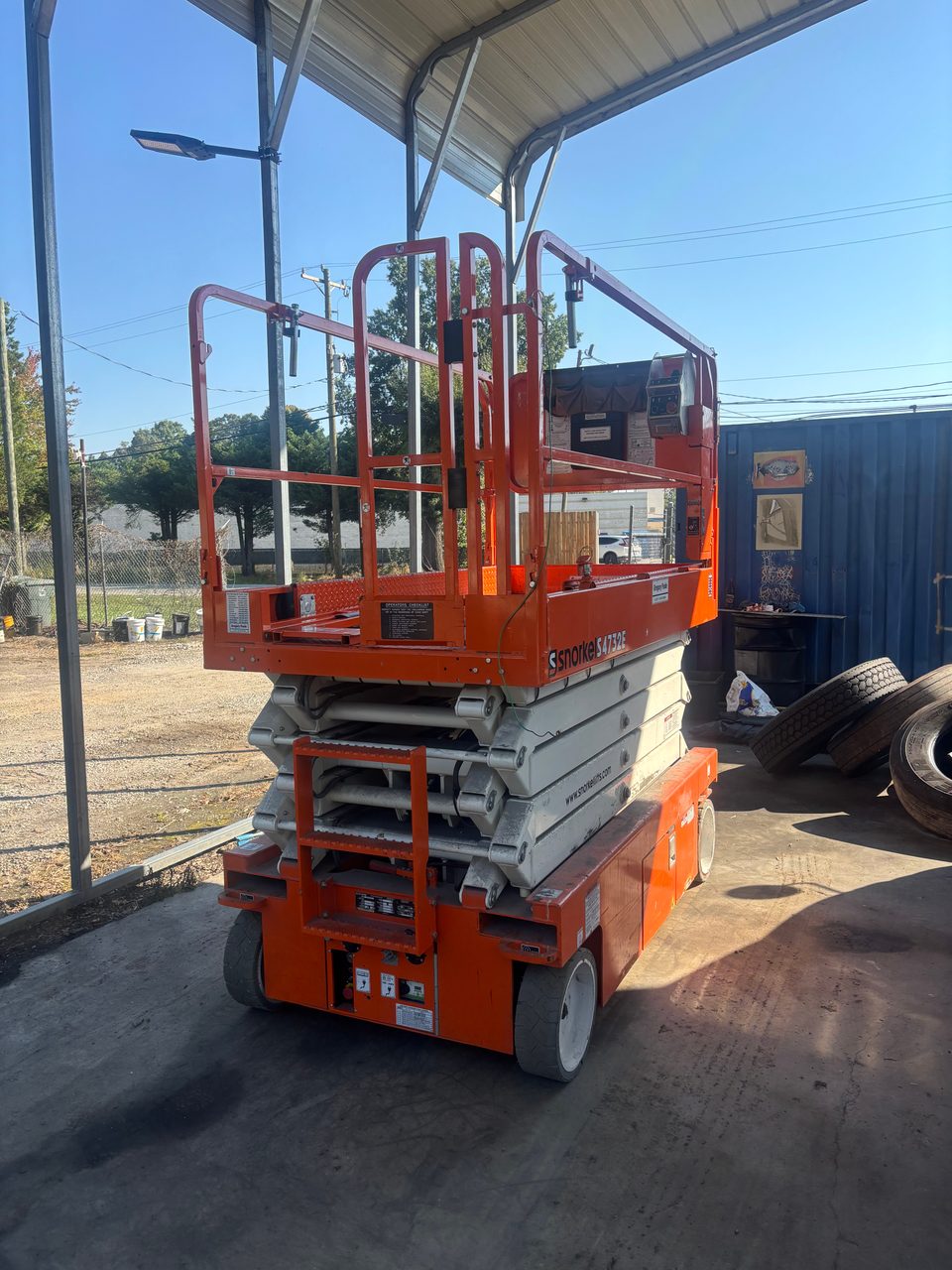

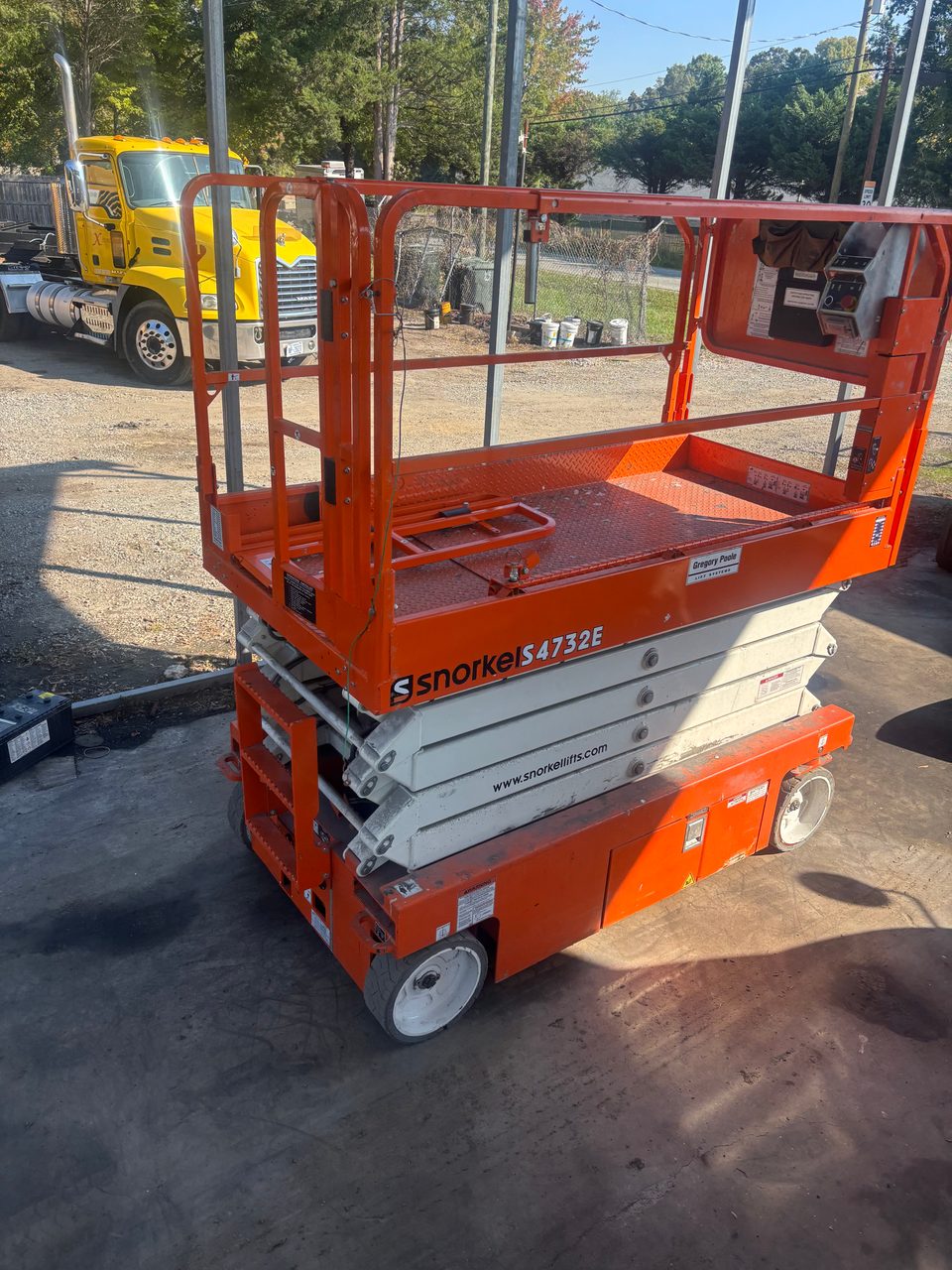

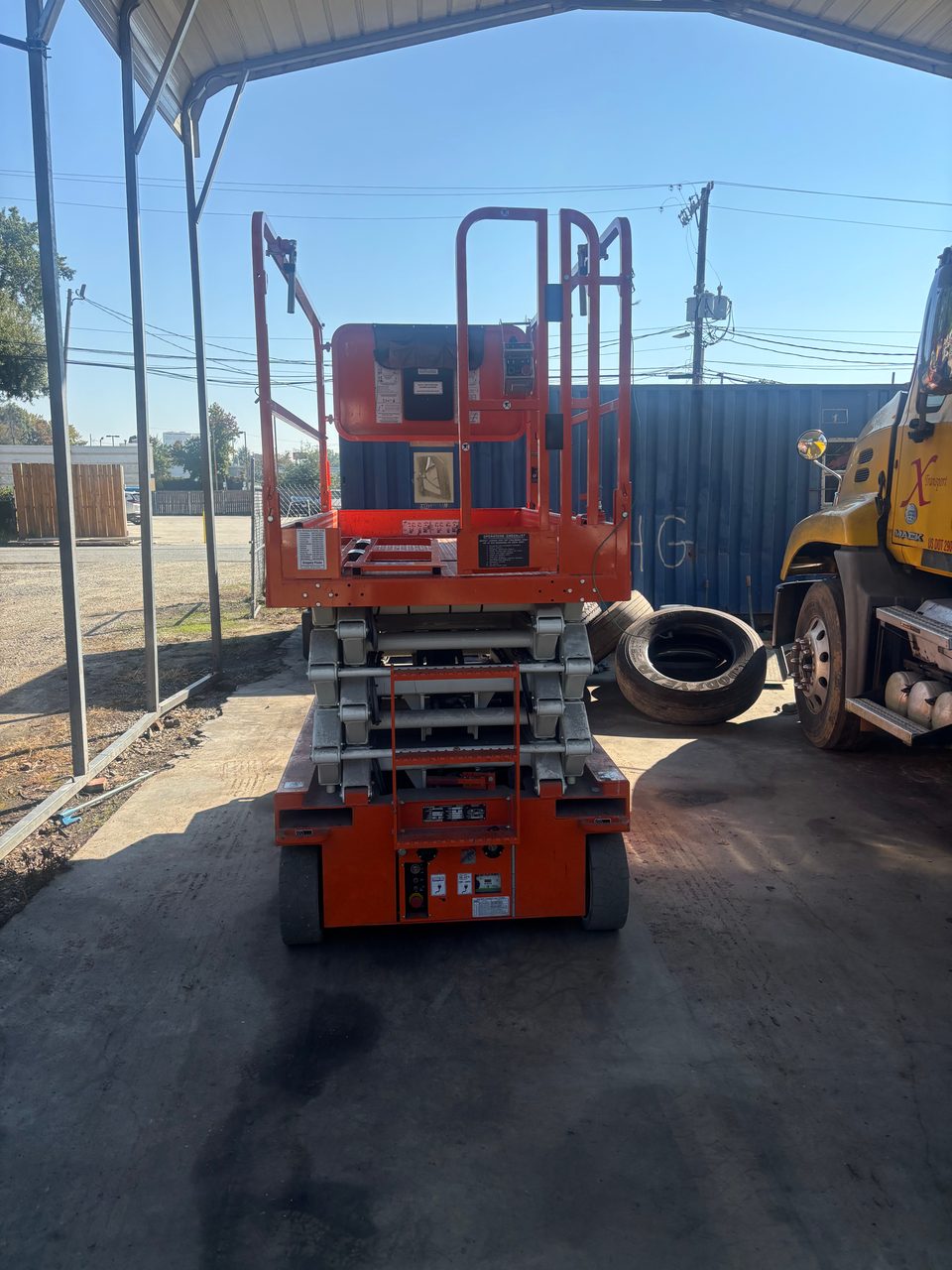

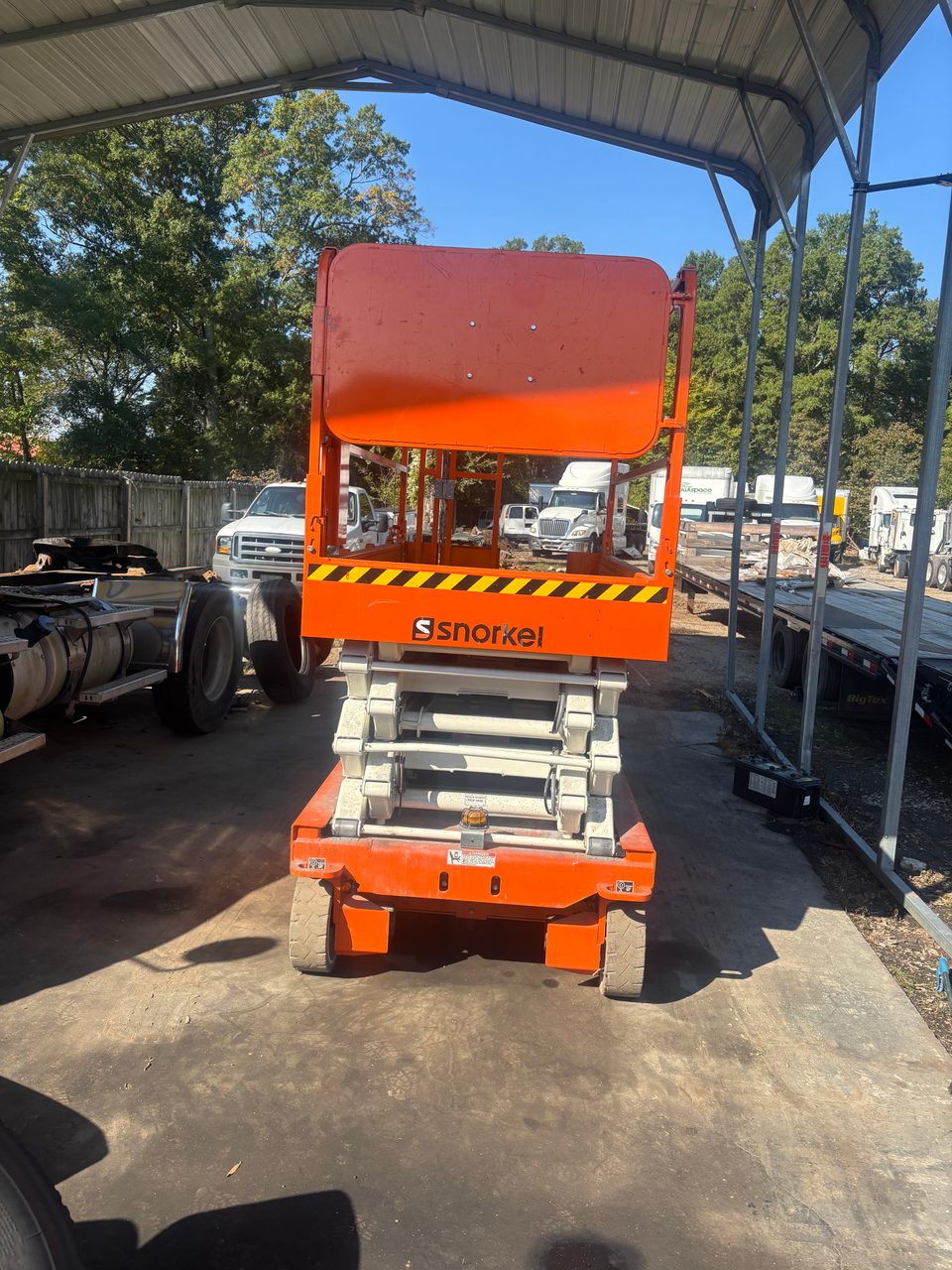

Snorkel S4732E Aerial Lift, 2023

The 2022 Snorkel S4732E Electric Scissor Lift is designed for elevated access in warehouses, manufacturing facilities, and other indoor work environments. Featuring a 38-foot working height, a roll-out platform extension, and non-marking tires, this electric-powered lift provides a spacious work platform and maneuverability for maintenance, installation, and material handling applications.

MACHINE TYPE: Electric Scissor Lift
POWER SOURCE: 24V DC Battery Electric
MAXIMUM WORKING HEIGHT: 38 FT
MAXIMUM PLATFORM HEIGHT: 32 FT
PLATFORM CAPACITY: 700 LBS
PLATFORM CAPACITY (EXTENSION): 250 LBS
PLATFORM DIMENSIONS (STOWED): 43″ x 84.38″
PLATFORM DIMENSIONS (EXTENDED): 43″ x 132.38″
DECK EXTENSION LENGTH: 48″
OVERALL LENGTH: 90.6″
OVERALL WIDTH: 47″
STOWED HEIGHT: 94.2″
HEIGHT WITH GUARDRAILS FOLDED: 76.88″
GROUND CLEARANCE (STOWED): 2.63″
GROUND CLEARANCE (ELEVATED): 0.75″
MAXIMUM DRIVE HEIGHT: 32 FT
MAXIMUM DRIVE SPEED (STOWED): 2.0 MPH
MAXIMUM DRIVE SPEED (ELEVATED): 0.4 MPH
GRADEABILITY: 25%
TURNING RADIUS (OUTSIDE): 95″
DRIVE SYSTEM: 2-WHEEL DRIVE
TIRES: 15″ x 5″ NON-MARKING SOLID RUBBER

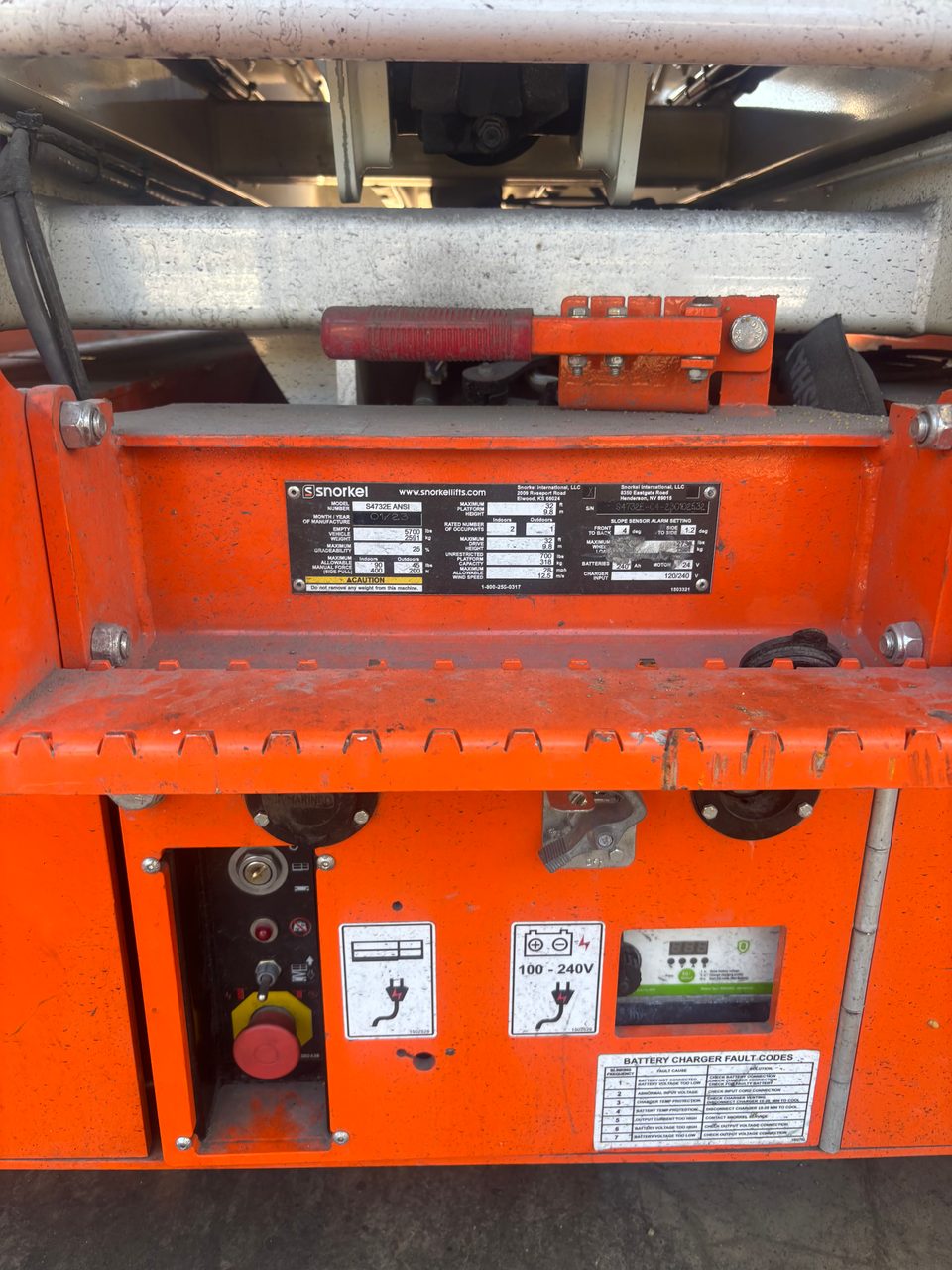

CHARGER: 25 AMP
WEIGHT: APPROX. 5,700 LBS
MAXIMUM WIND SPEED: 28 MPH
BATTERIES: (4) 6V 240AH AGM

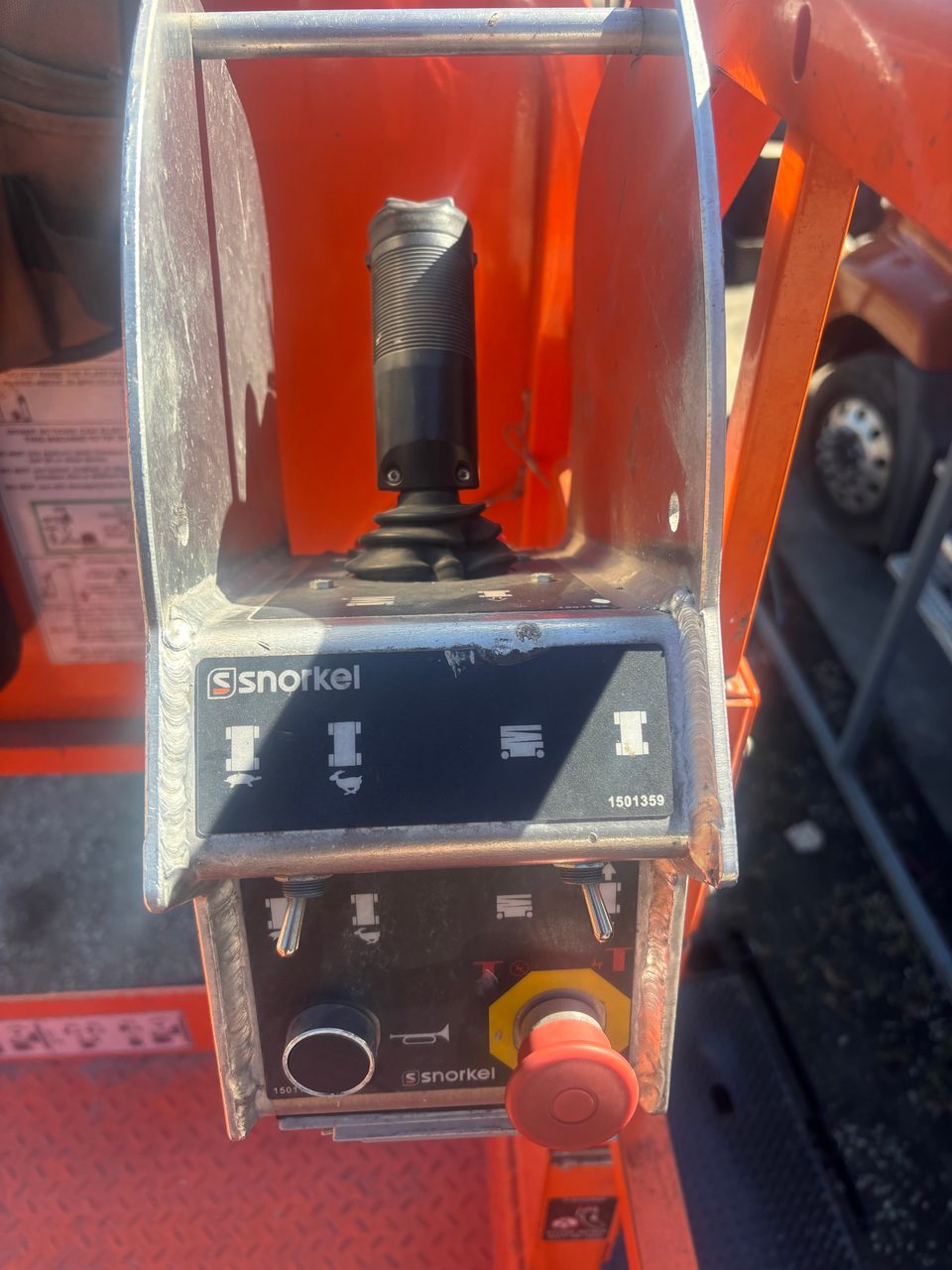

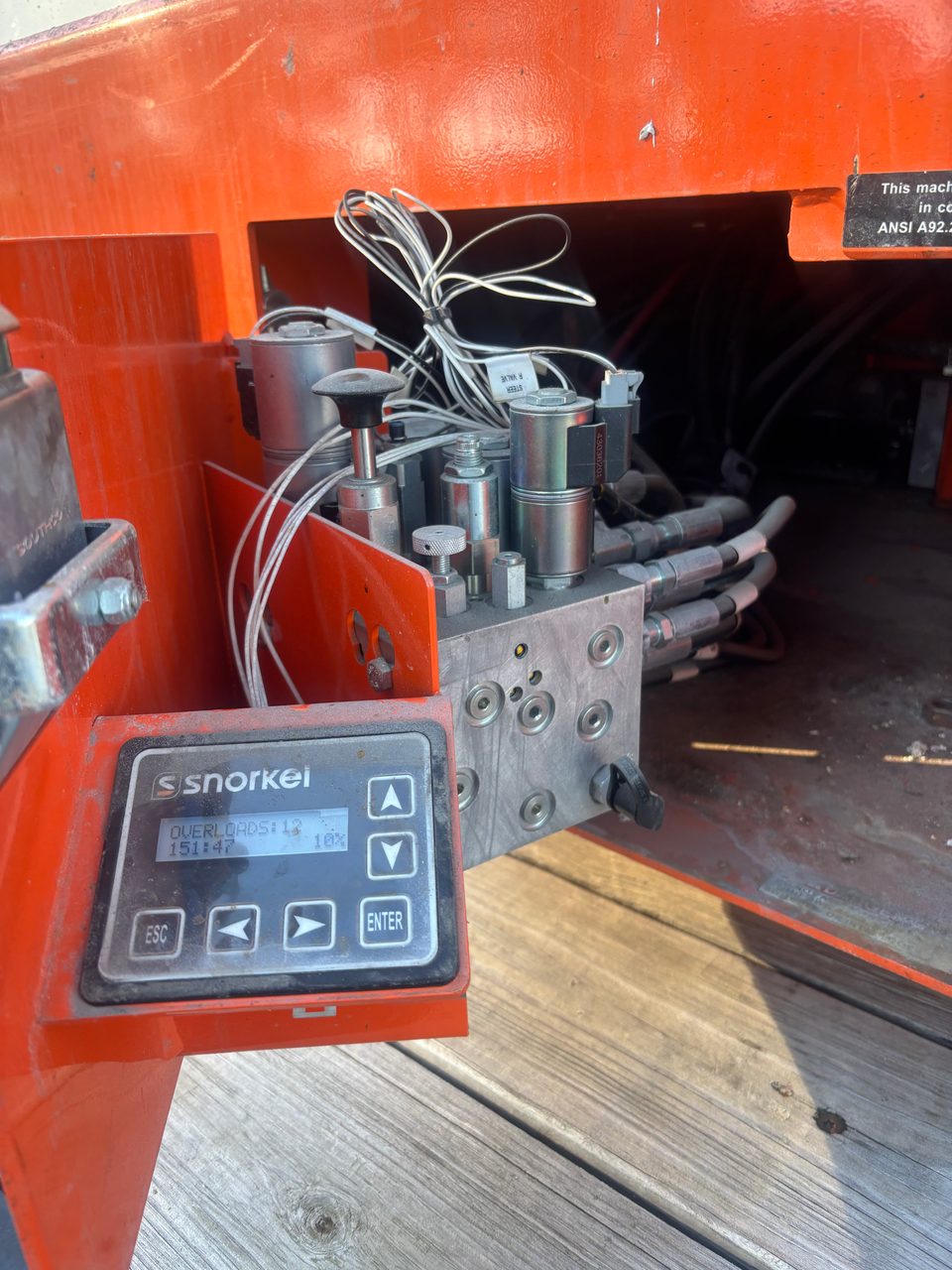

CONTROLS: Proportional
