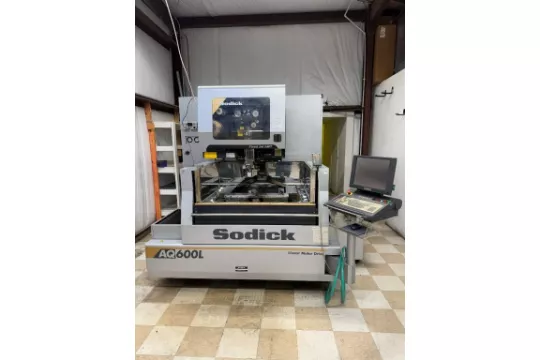

Sodick AQ600L CNC 5-Axis Wire EDM 2011
$26,136.88
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X-Axis Travel 23.62″
Y-Axis Travel 15.75″
Z-Axis Travel 11.81″
U/V Axis Travel 3.15″ – 4.73″
Max Dimensions ( SUB) 31.1″ x 21.65″ x 9.84″
Max WP Weight (submerged) 1,741 lbs.
Work Tank Dimensions (inside) 44.68″ x 35.03″
Wire Diameter 0.006″ – 0.012″
Taper Angle ยฑ20ยฐ
Wire Speed 16.53″ per sec (420 mm / sec)
Machine Dimensions 94.48″ x 115.35″ x 86.02″
Machine Tool Weight 10,648 lbs.
Equipped with:
LN2W Control
Linear Motor Drives

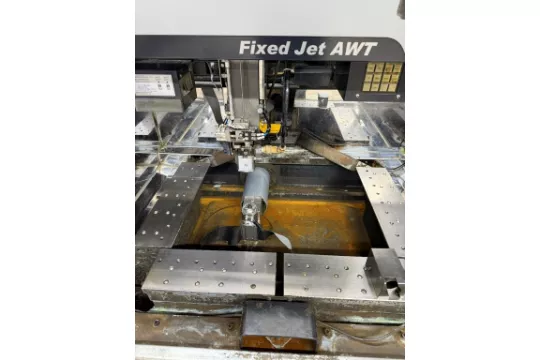

AWT
Dielectric System

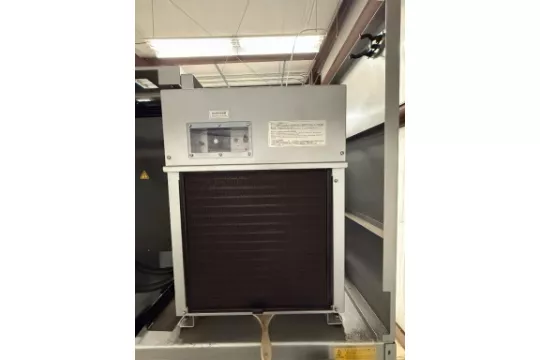

Chiller
Wire Chopper
