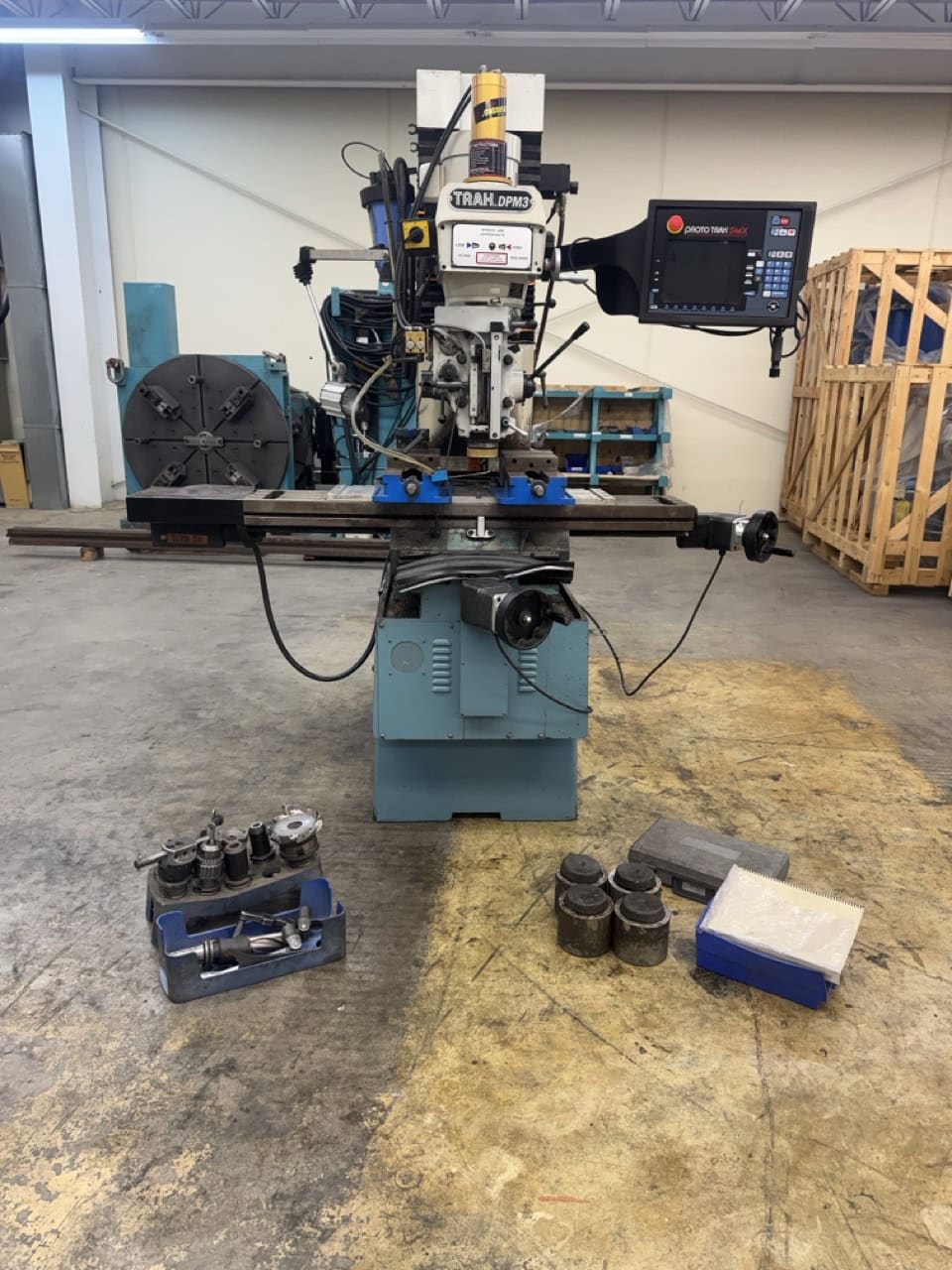

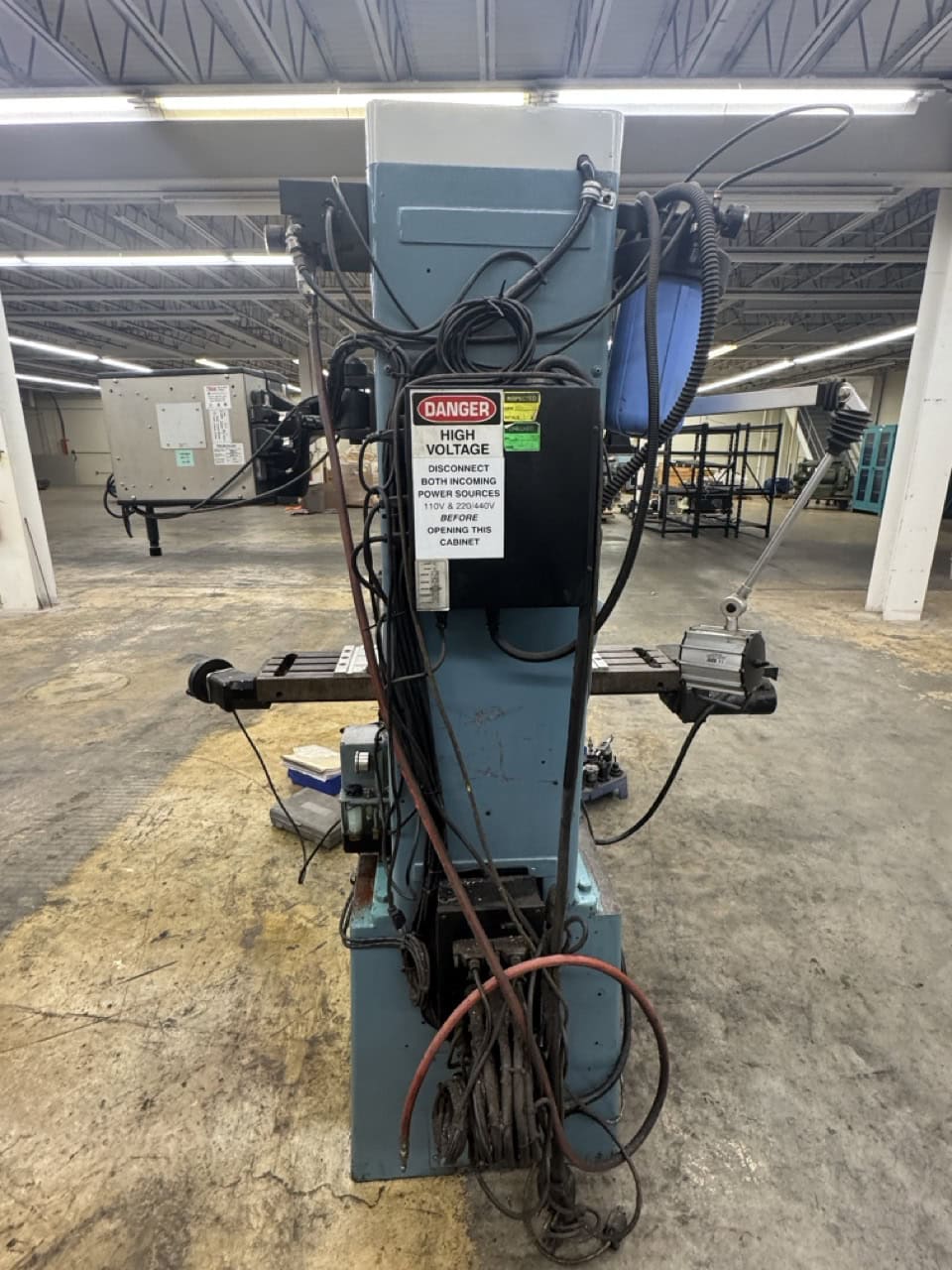

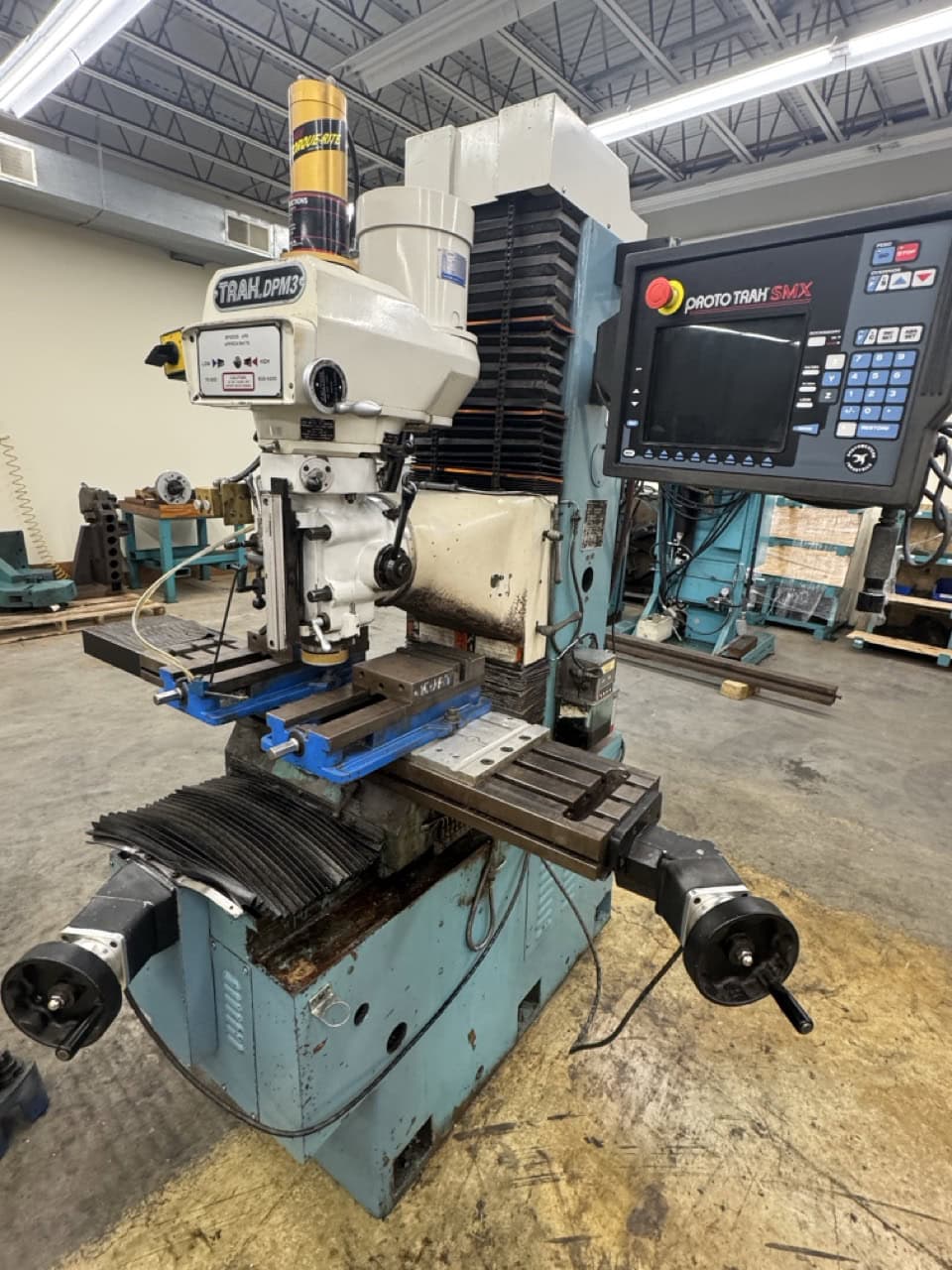

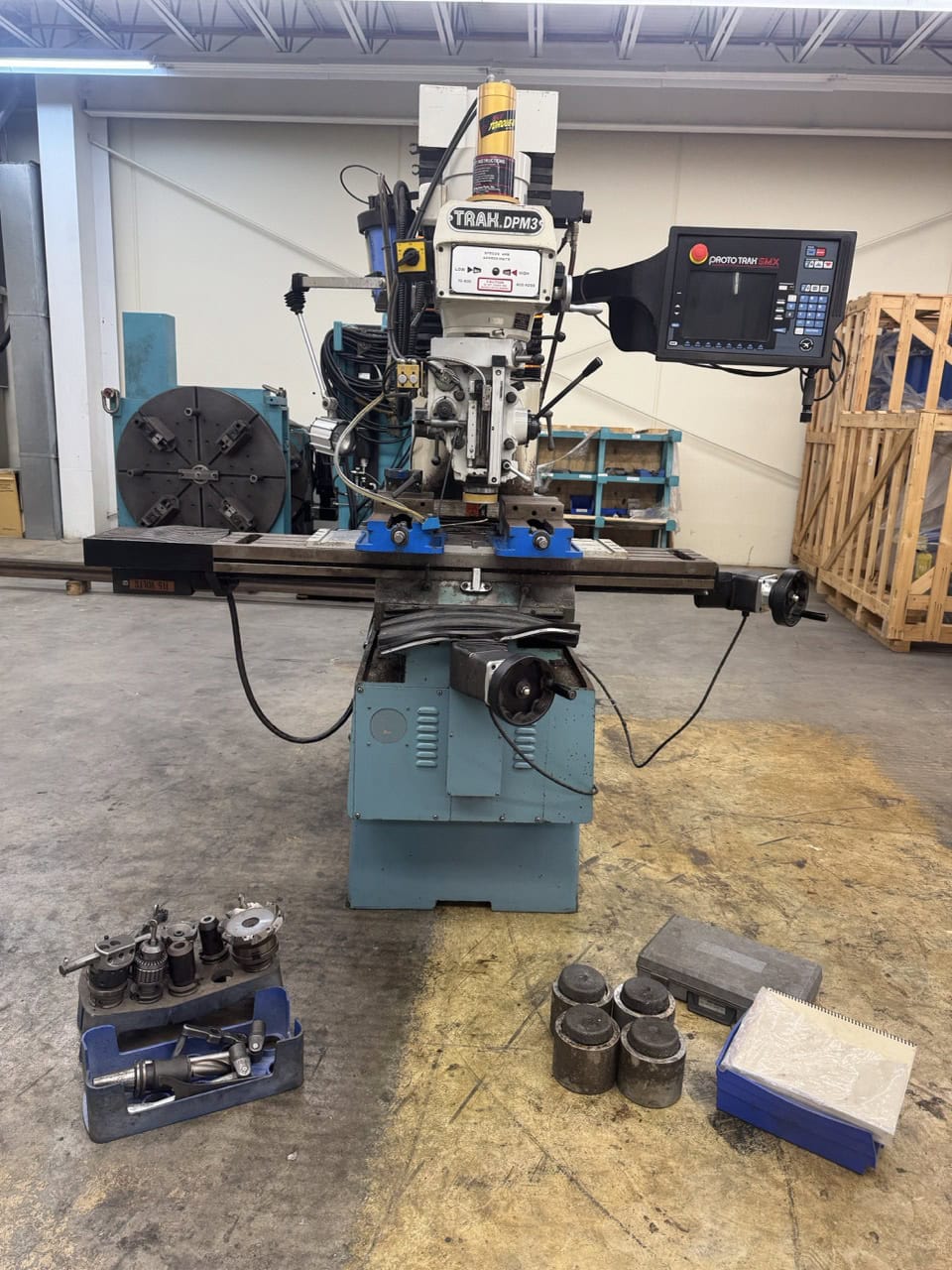

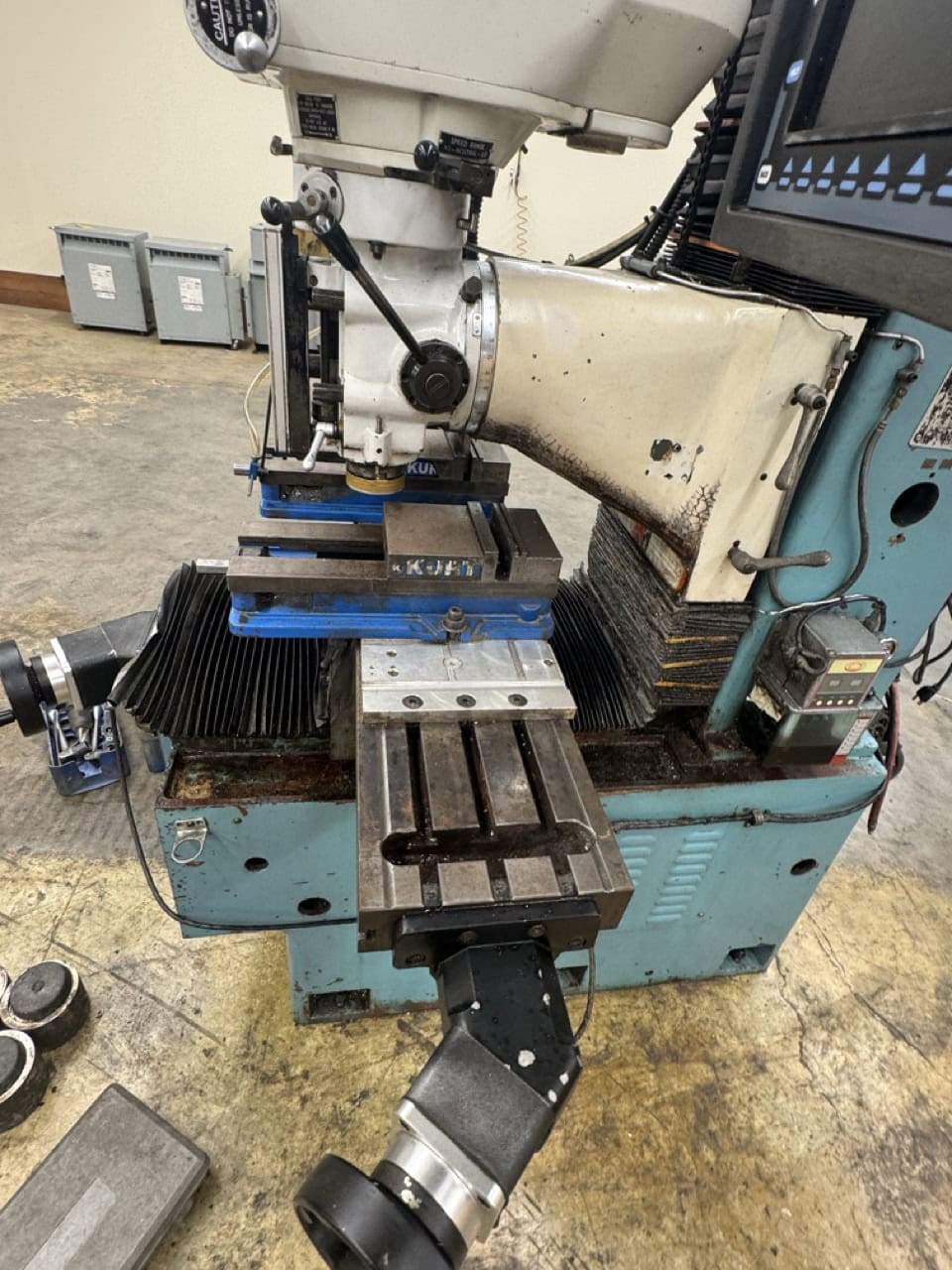

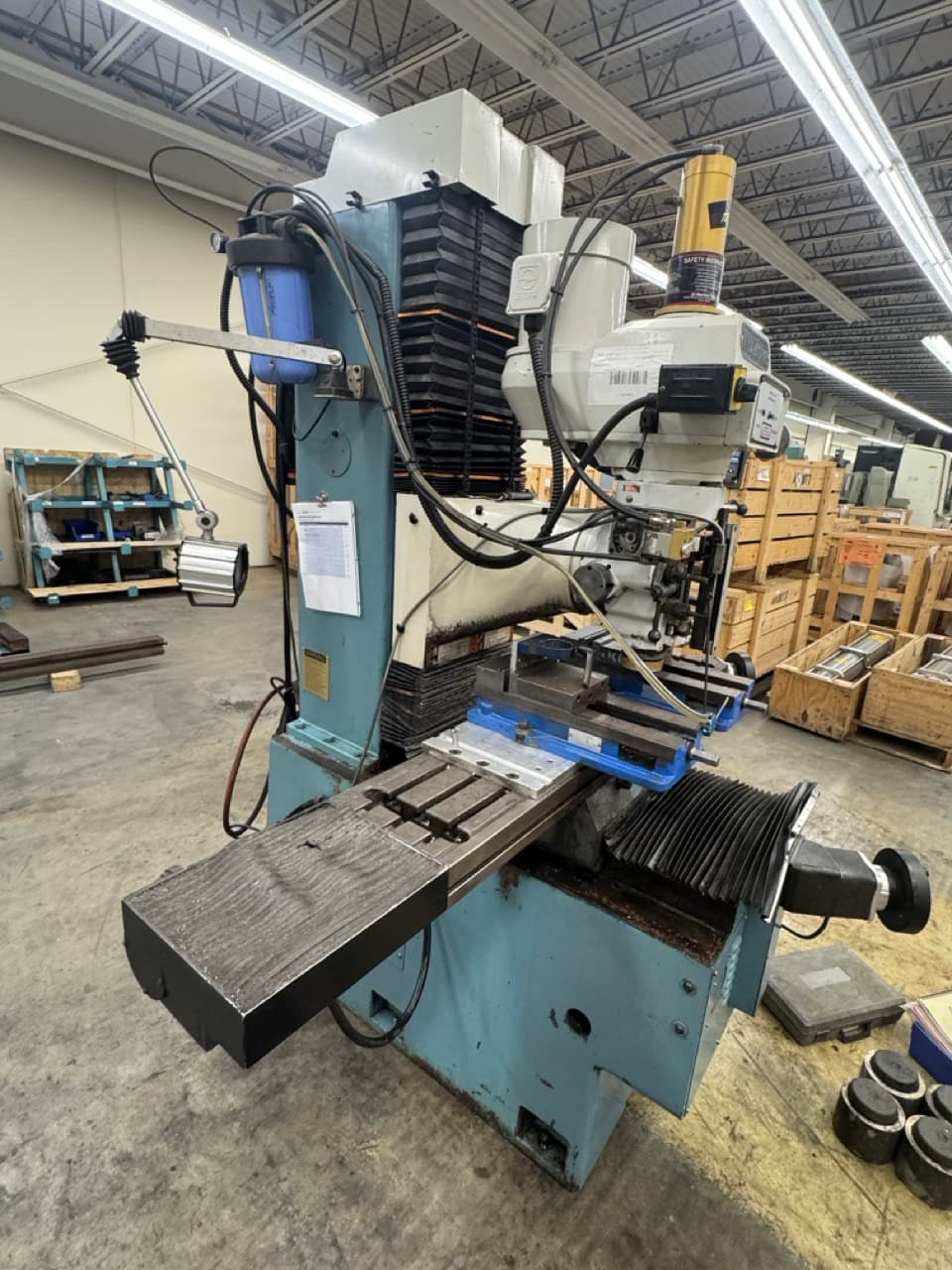

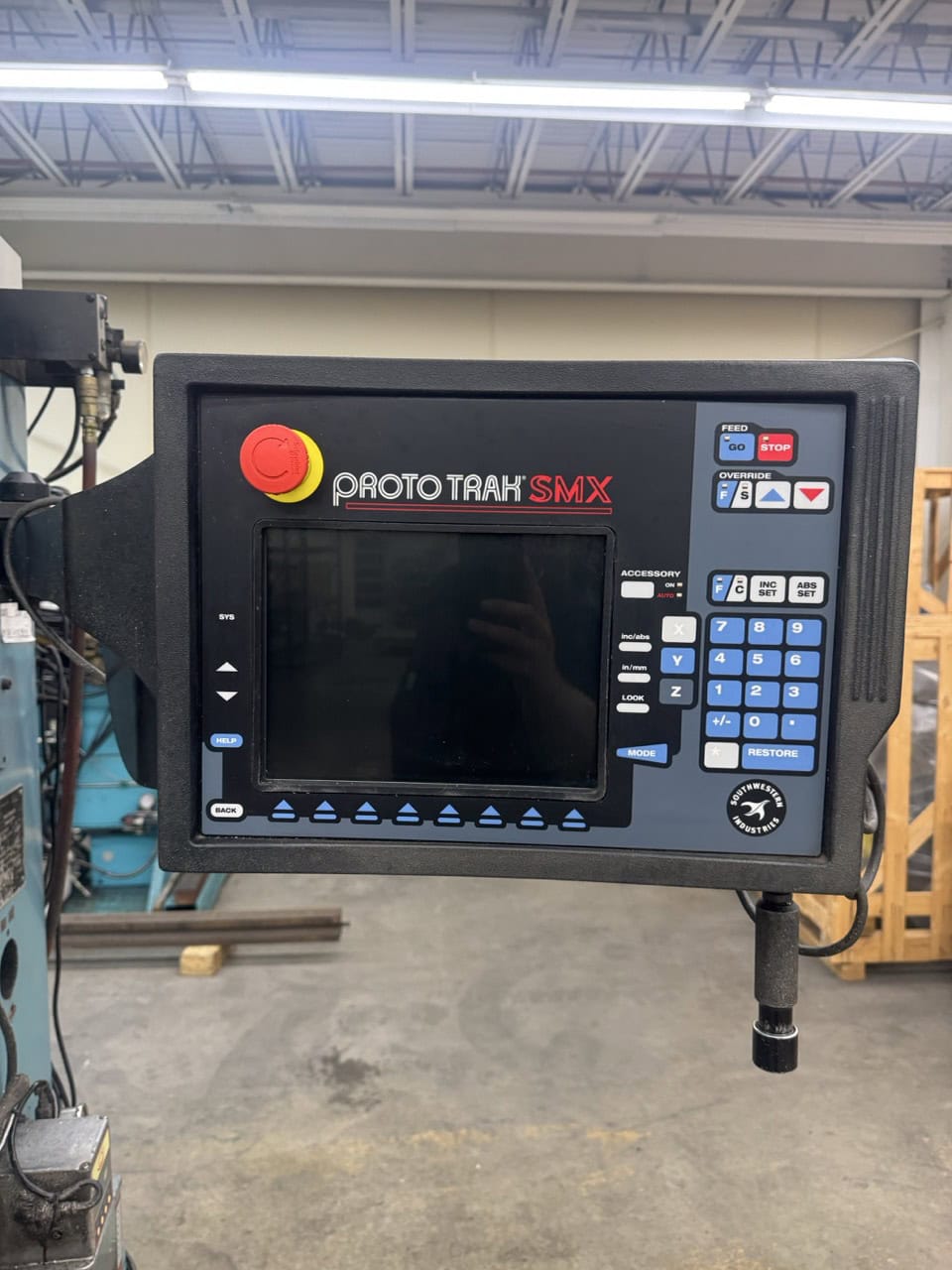

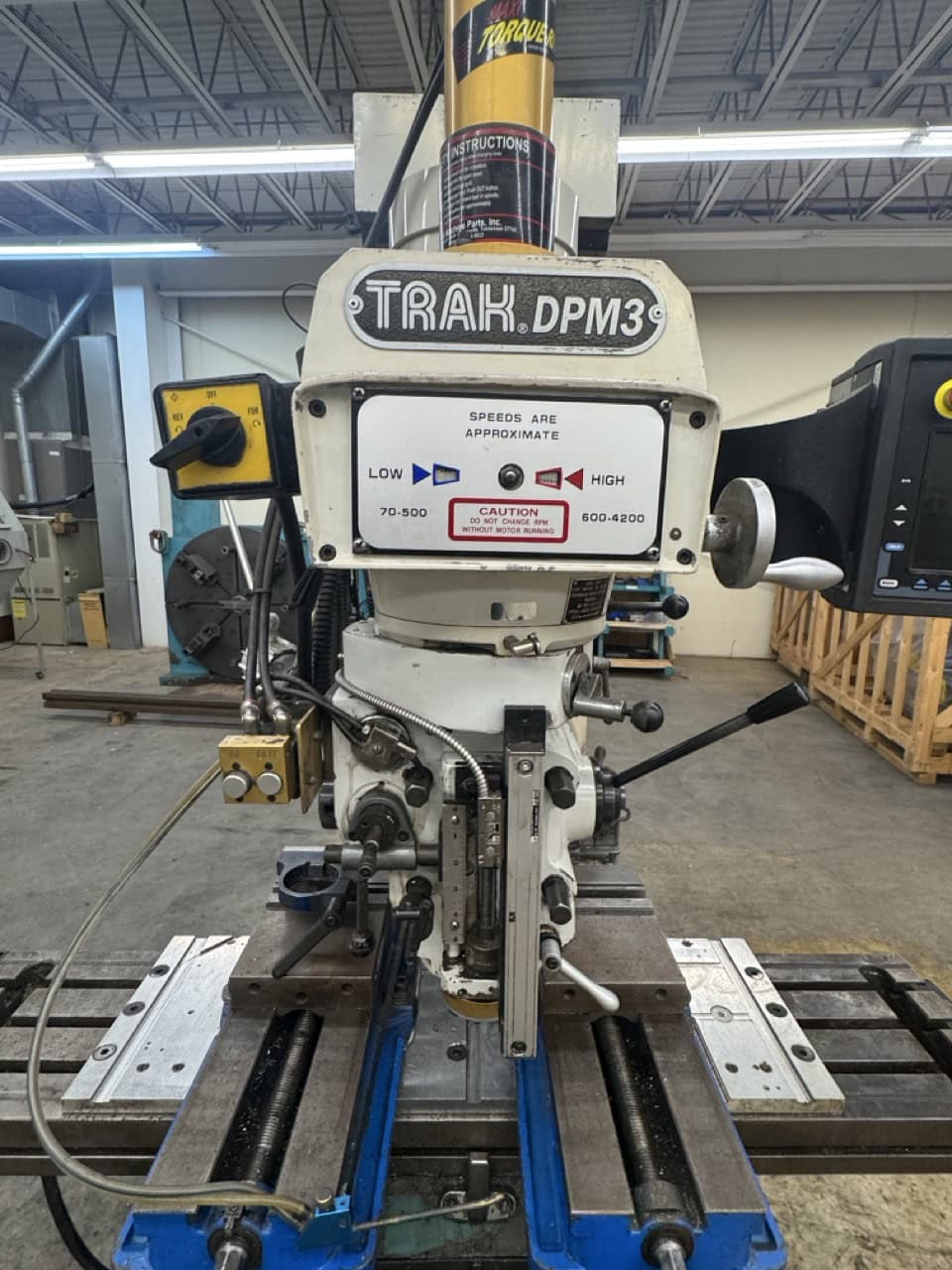

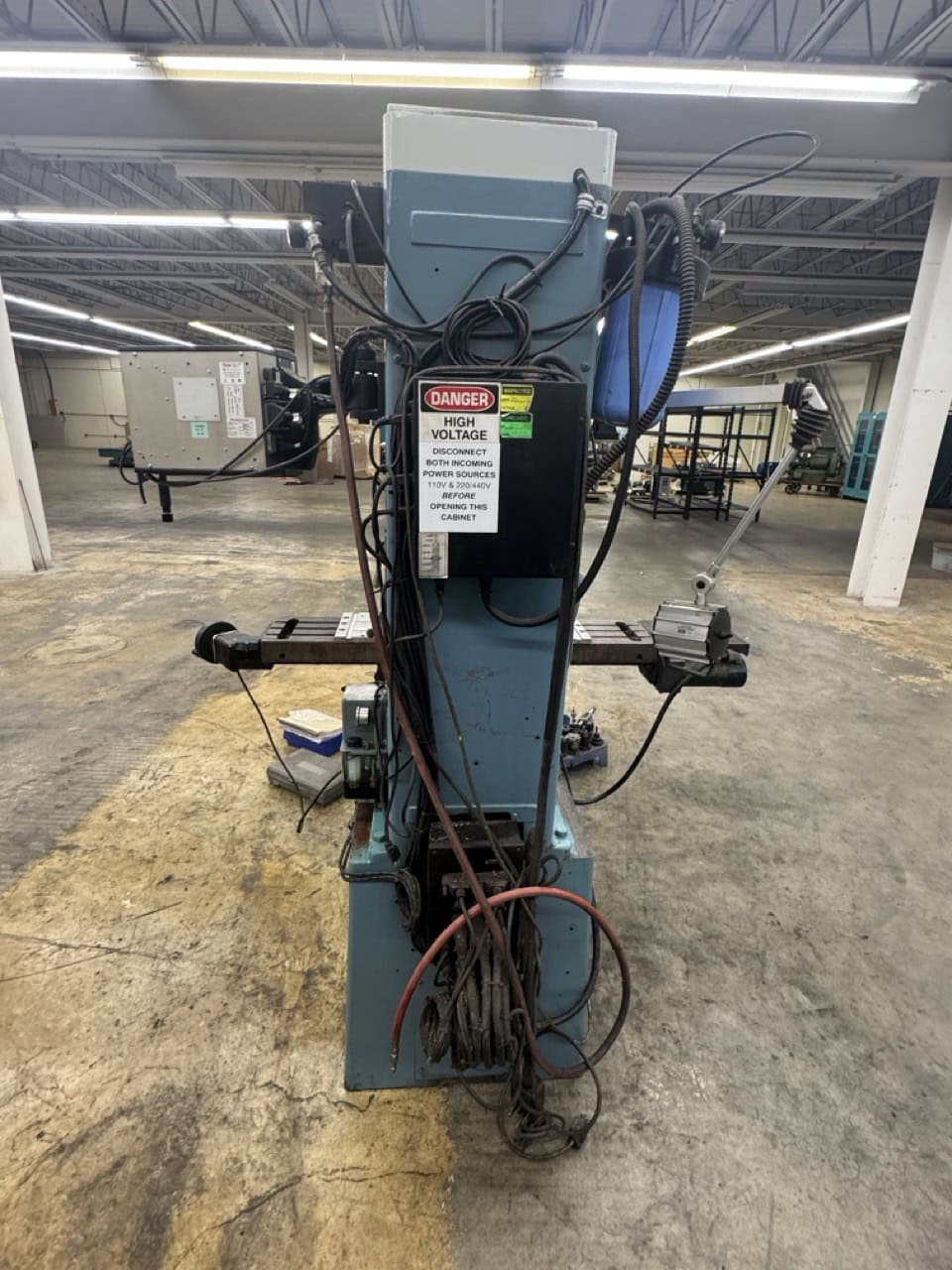

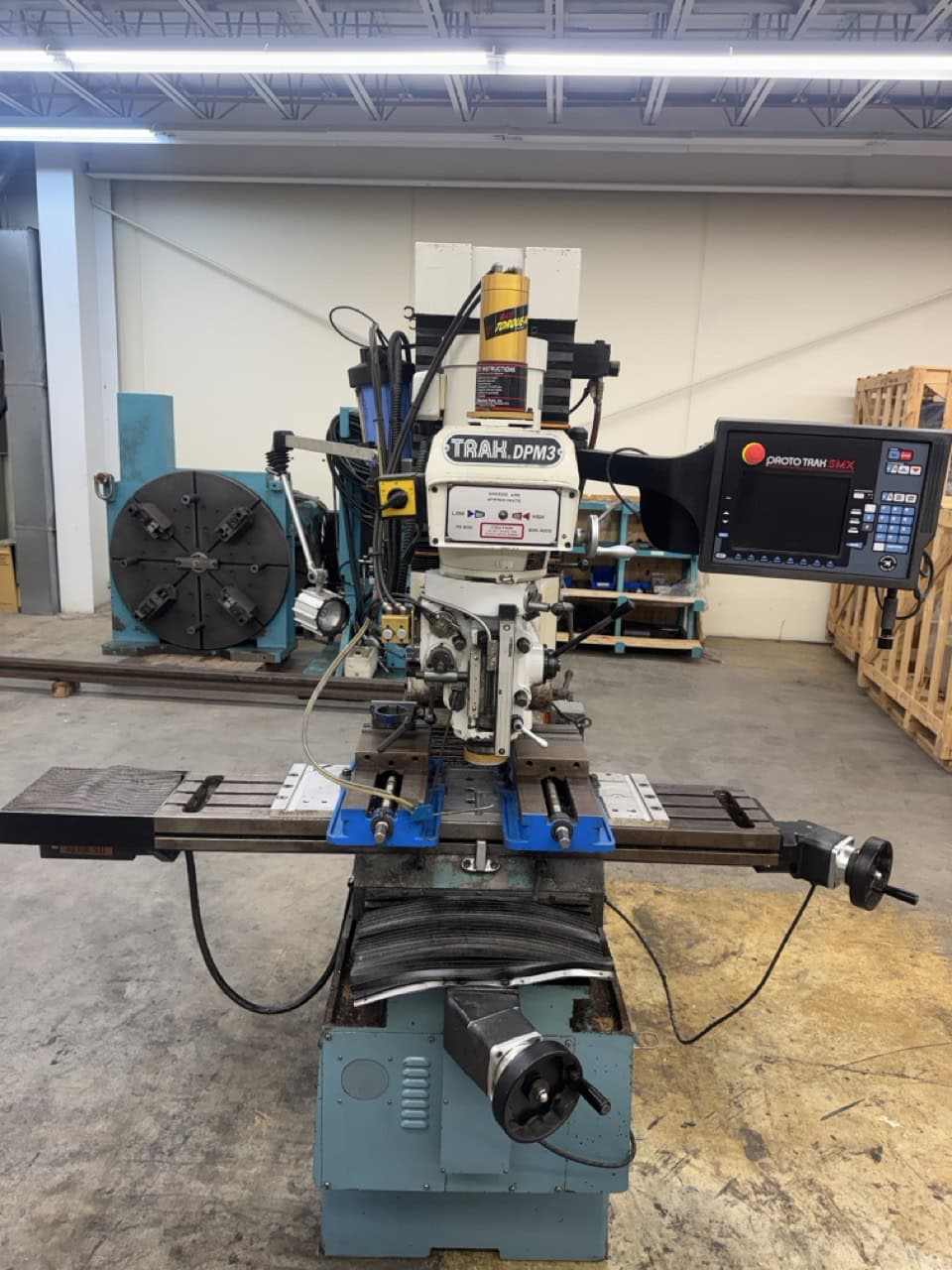

Southwestern Industries Trak DPMSX3P Vertical Mill, SMX CNC Control, 2012

Table Size – 50” x 10”
Travel (X, Y, Z axis) – 31 x 17 x 23.5″
Quill Diameter – 3 15/16″
Maximum Quill Travel – 5”
Spindle Taper – NMTB 40
Spindle RPM 5000
Spindle Center to Column Face – 19”
Spindle Motor Power – 5 HP
Power requirements, control – 110V; 1P; 10A
Power requirements – 220V;3P; 17.5A
Maximum Weight of Workpiece – 1320 lbs.
Height of table from bottom of bed – 38”
Max spindle nose to table – 23.5”
Min height – 85”
Max height – 95”
Width of machine including table – 73”
Footprint of Machine – 24” x 44”
Weight 4400 lbs
