SCS 2035CR Cleanroom Parylene System – Full Chamber w/ Adhesion Module + FilmMetrics F-20
$50,250.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Equipment Overview

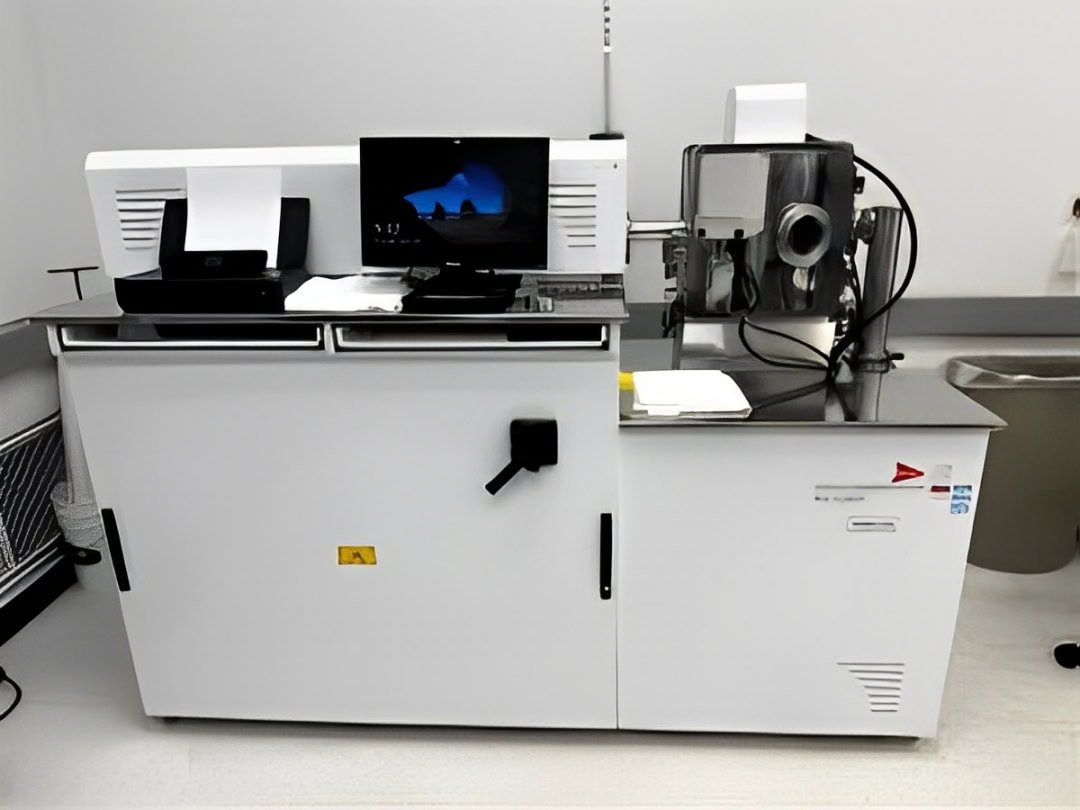

The SCS 2035CR is a vertically-oriented, fully-automated Parylene deposition system designed for cleanroom use in critical coating applications. This turnkey system includes adhesion control, advanced thermal control, and real-time process monitoring. Ideal for medical, defense, and MEMS device coating environments.
Key Features and Specifications
Chamber Size: 14″ diameter x 14″ high (vertical, ~35L capacity)
Design: Dual-door system with cleanroom compatibility
Process Type: Fully-automated Parylene C/G/N deposition
Control System:
-PC with proprietary SCS software
-Touchscreen terminal (15”)
-Remote cleanroom terminal included
Monitoring & Control:
-Real-time chamber/vacuum graphing
-Recipe-driven programmable cycle runs
-Integrated print and data logging
Pump/Chiller System:
-Direct-drive vacuum (23 CFM @ 60Hz)
-Cold trap
-Mechanical chiller
Safety Systems:
-Full interlocks
-Heated dimer load door
-UPS for power-loss mitigation
Adhesion System:
-SA-014-1009-1 chamber system
-Spare parts (heaters, restrictors, seals, vacuum kit
Dimensions & Power:
-Approx. 40–60” H, standard 120V/208V configuration
