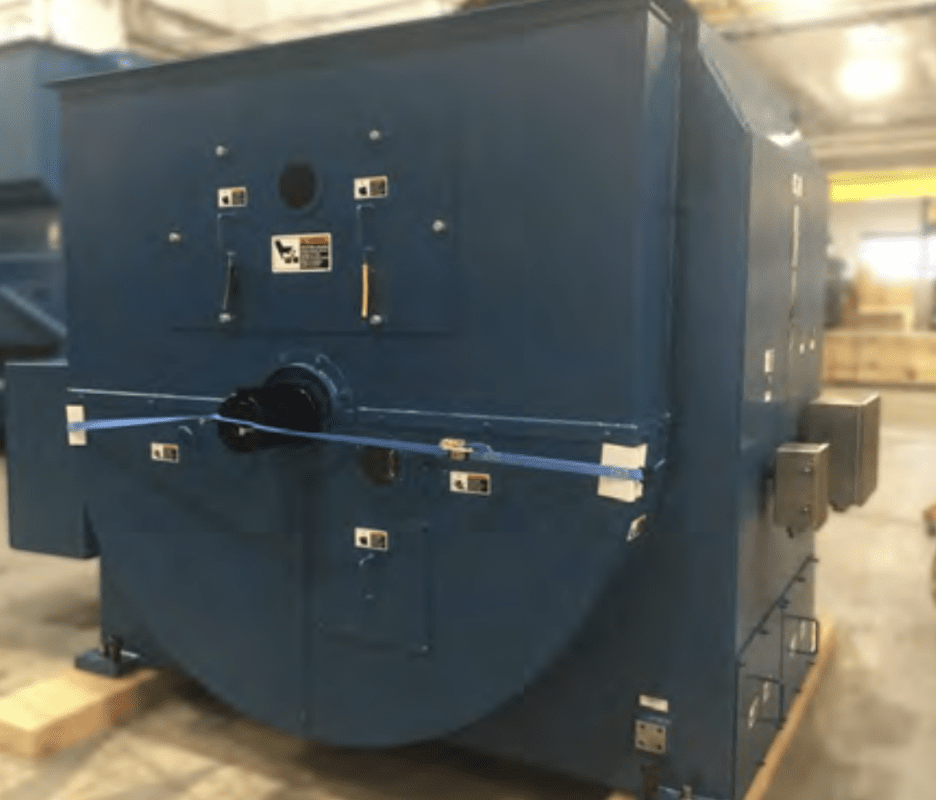

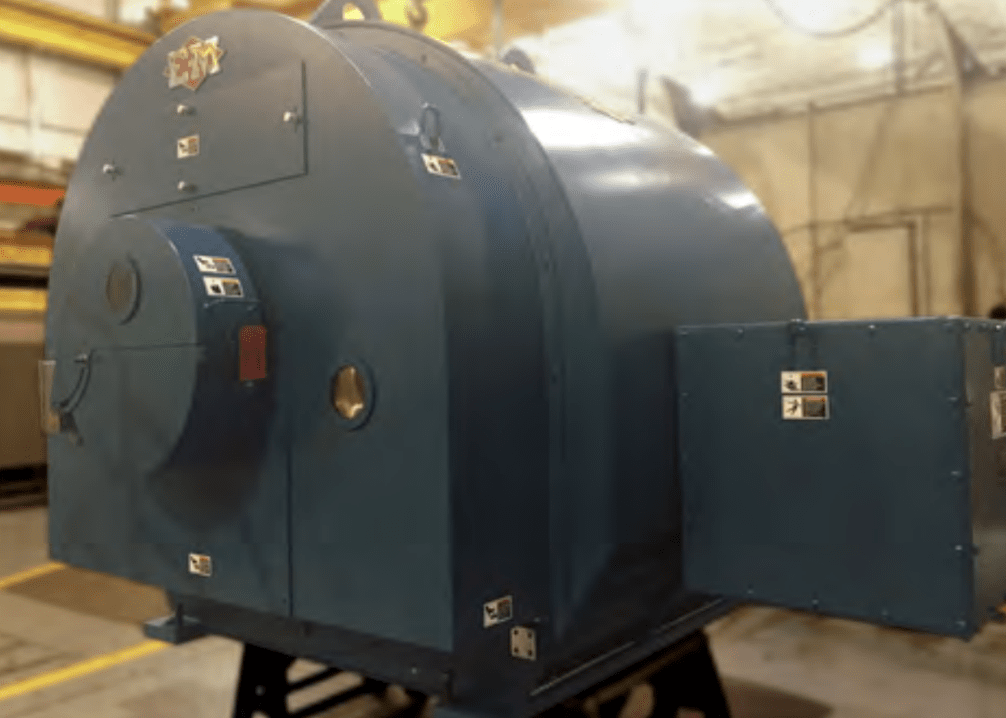

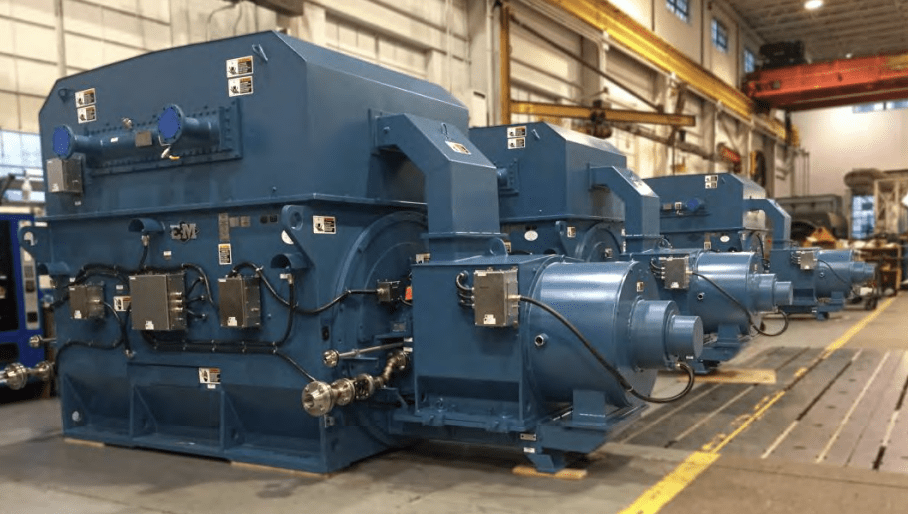

Synchronous USRM-000691-14-SM Motor, 2017
$199,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Frame: 128
Output: 10550 kW
Rated voltage: 12470V
Stator Connection Y
Rated current: 499.4 A
Poles: 04
Frequency: 60 Hz
Rated speed :1800 rpm
Duty: S1
Power factor: 1
Excitation: BRUSHLESS
Rated torque: 41280.5 Ib.ft
Pull-out torque: 61920.7 Ib.ft
Mounting: IM1001
Protection Degree: IP55
Cooling: IC81W
Overload: 1.5x1n per60 s
Stator insulation class: F
Stator temperature rise: Class B
Service factor:1,00
Rotor insulation class: H
Rotor temperature rise: class F
Ambient temperature: 40 C
Altitude: 7200 ft
Approx. weight: 60060 Ib
Rotor Inertia (J=GD^2/4): 12496 Ib.ft^2
Noise level: 85 dB(A)
Vibration: STANDARD 1.8 mm/s rms
Overspeed: 1.25xn per 120s
Starting method : FREQUENCY INVERTER
Coupling : DIRECT
Direction of rotation – CLOCKWISE
