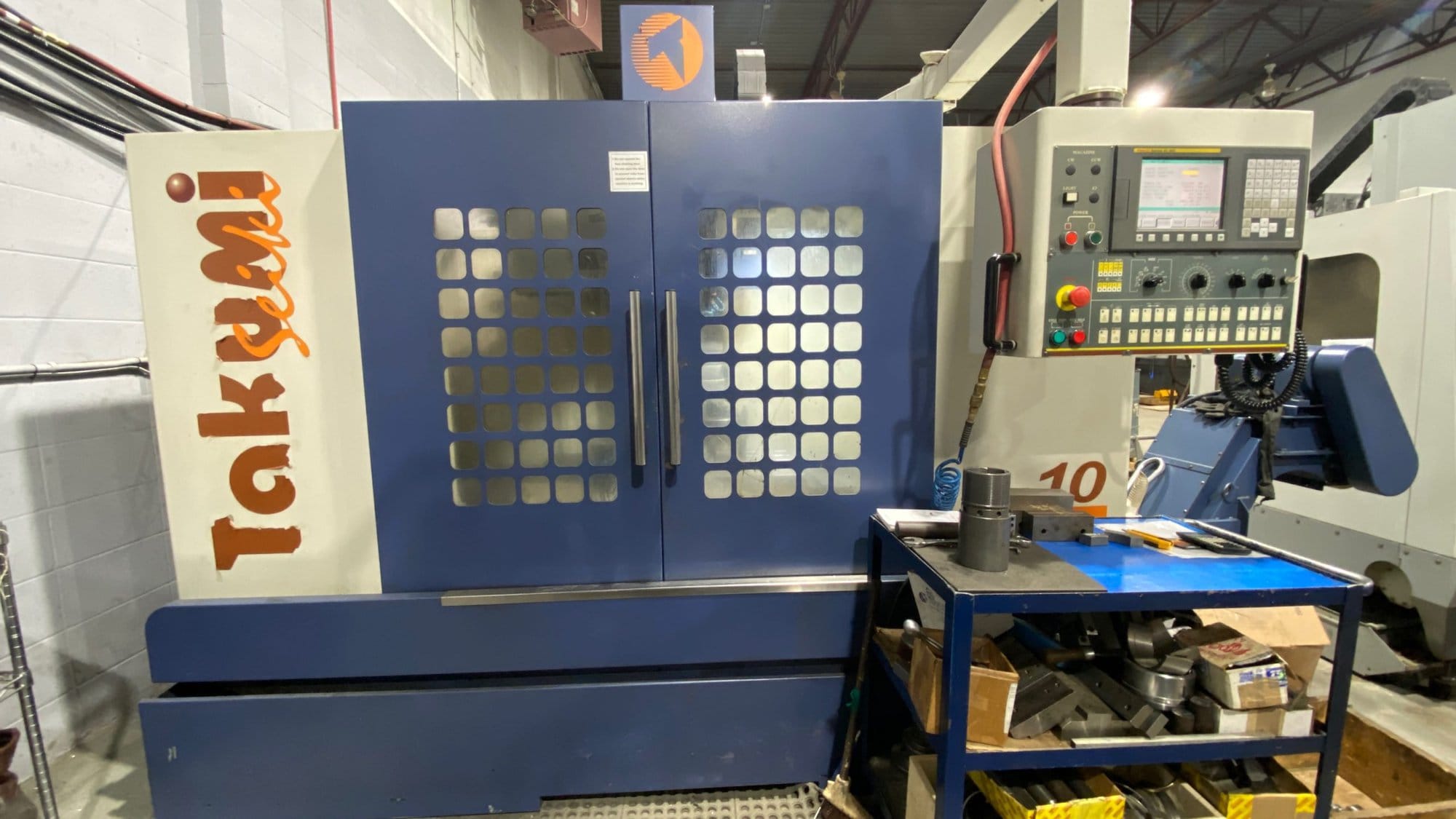

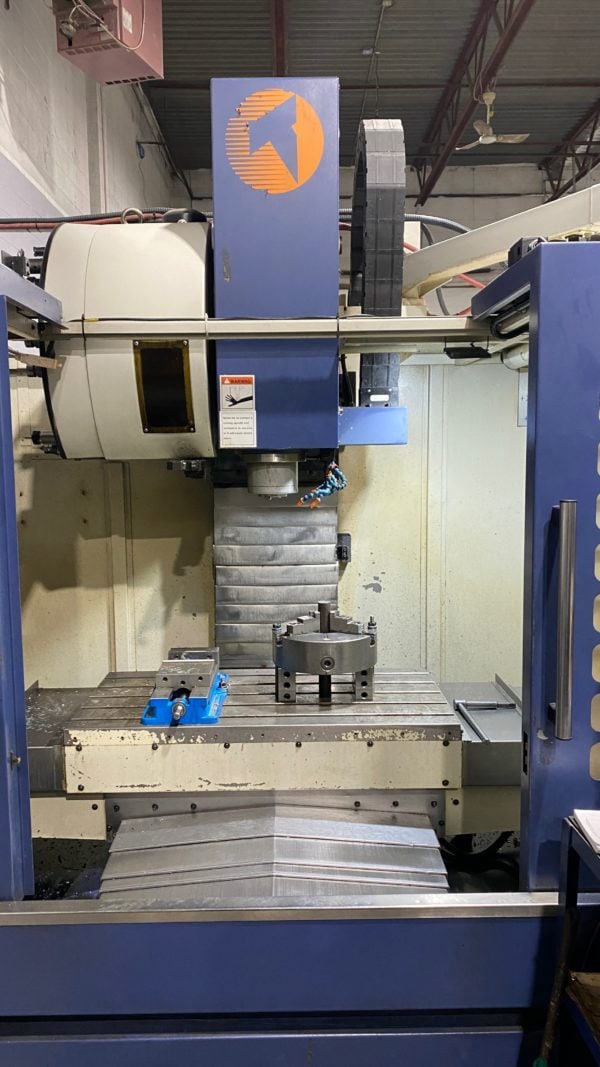

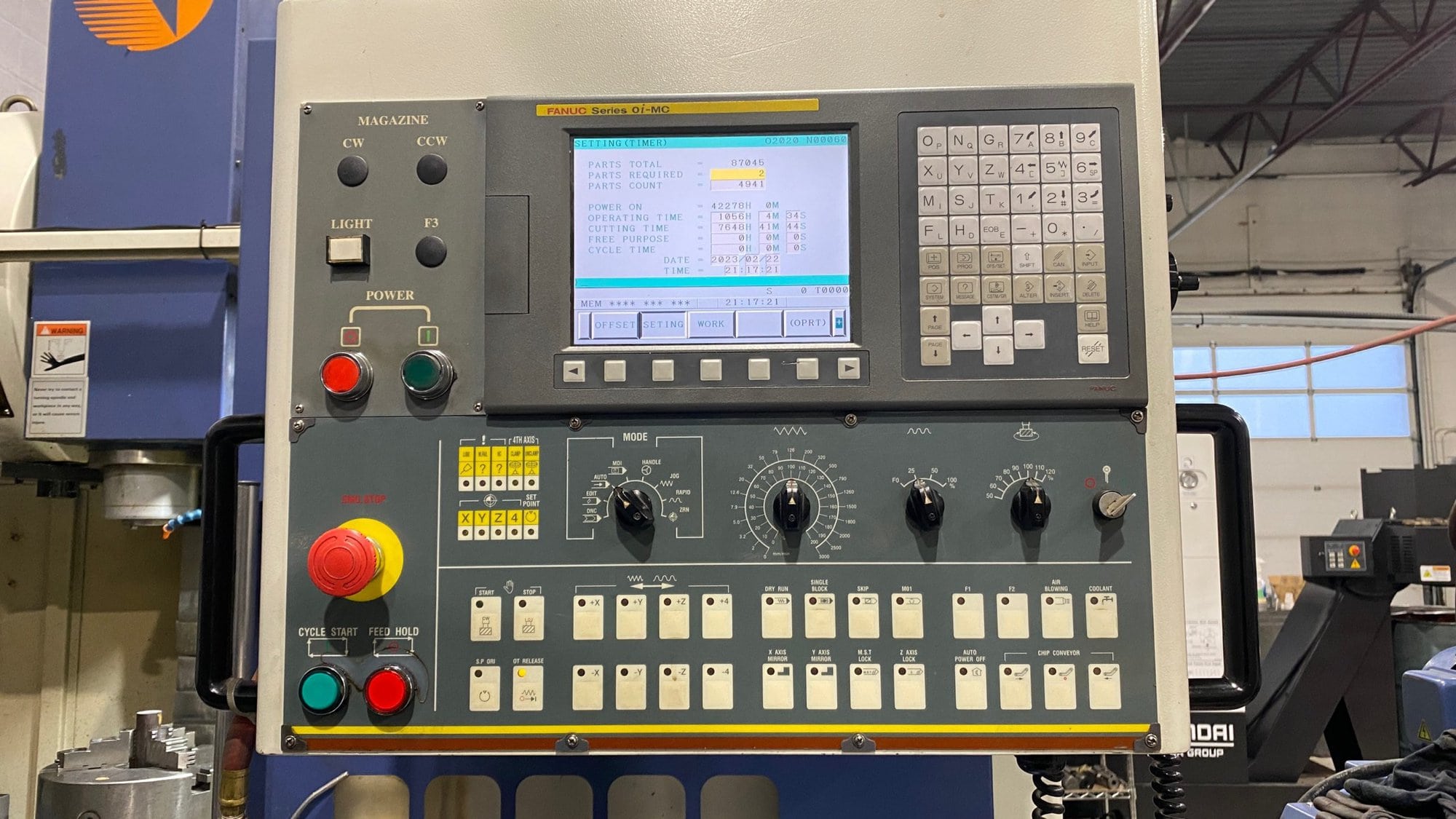

Takumi Seiki V10 CNC VMC-2008, CAT40, 12k RPM Spindle, Tool Changer
$34,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table size: 42″ x 26″
X-axis travel: 40″
Y-axis travel: 26″
Z-axis travel: 24″
Distance from spindle nose to table surface: 6.3″ to 28.3″
Spindle Speed: 12,000 RPM
Spindle motor power: 20 HP
Tool capacity: 24 + 1 ATC
Rapid traverse rate (X/Y/Z): 1,417 IPM (inches per minute)
Cutting feed rate: 0.04 – 393.7 IPM
Machine dimensions (W x D x H): 110.2″ x 89.8″ x 114.2″
Machine weight: 17,600 lbs

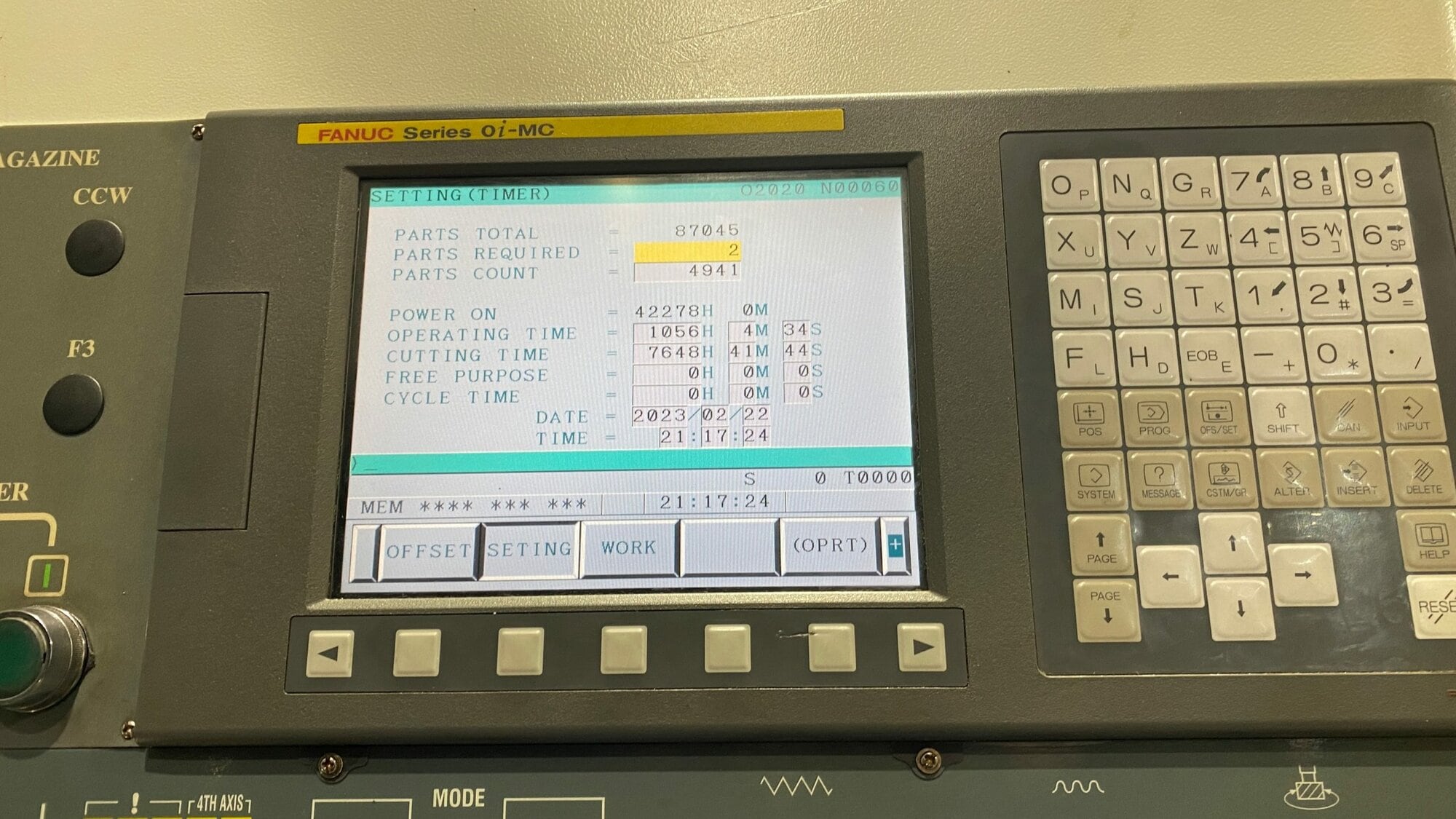

Cutting Hours: 7700
Equipped With:
21 + 1 Side-Mouth Tool Changer
CAT 40 Taper Size
