Titan Force 1600 Small Hole EDM Drill, 2023 – Tilting Drill Head, 6-Axis Rotary

Machine Travel Dimensions

X Axis: 53.00″
Y Axis: 16.00″
Z Axis: 16.00″
Machine Net Weight: 5,900 Lbs
Machine Footprint: 114″ X 69″ X 78.75″

Work Area Specifications

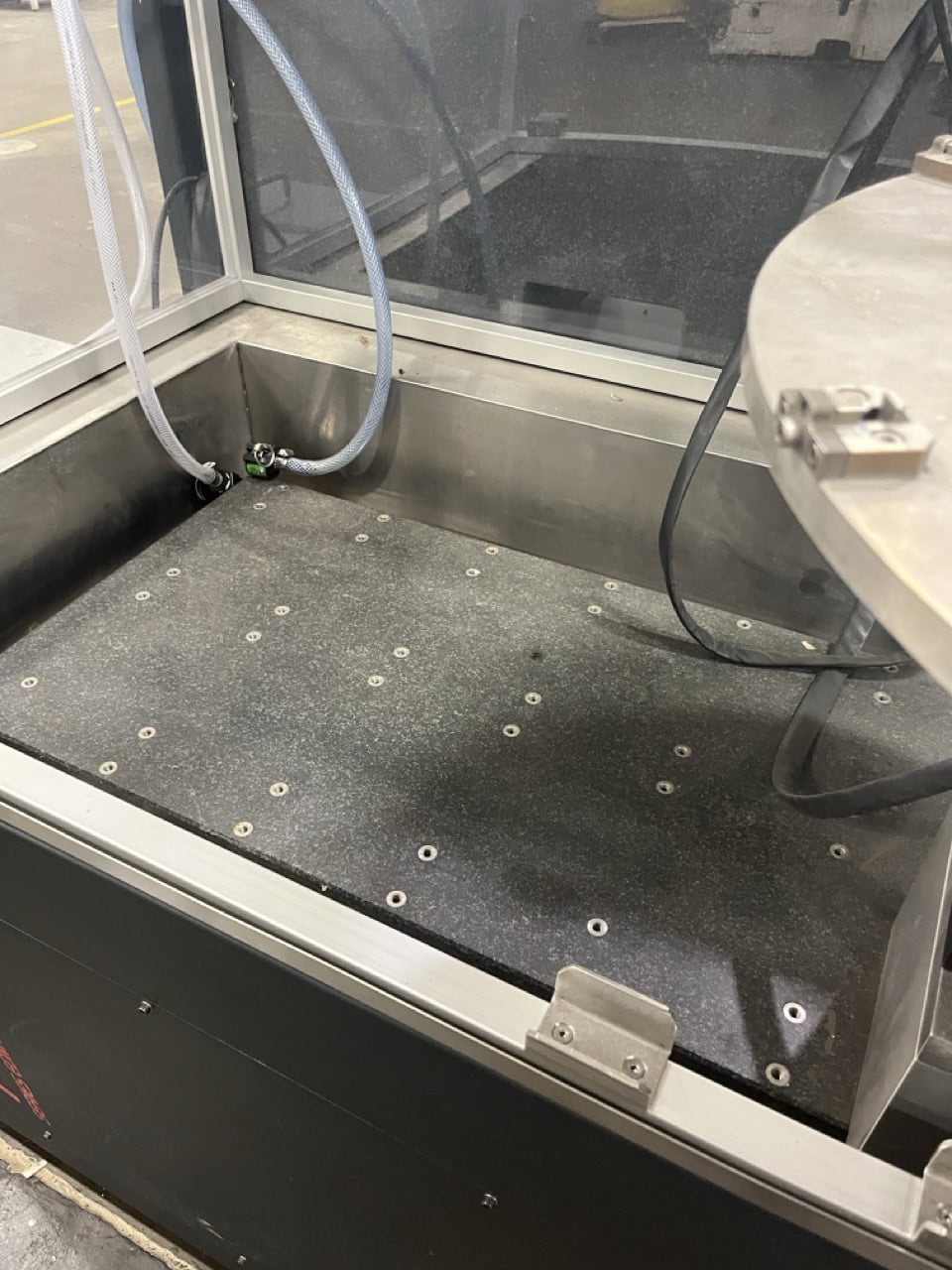

Granite Table Size (X/Y): 64.00″ X 20.00″
Work Table Size (X/Y): 67.00″ X 32.00″
Max Weight Of Work Piece: 3,100 Lbs

Machine Tooling Specifications

Electrode Diameter: .004″ ~ .118″
Max Length Of Electrode: 16.00″

Machine Generator Specifications

Type: Switching (High Current Fet)
Amperage Setting: 0.5A – 70A (0.5A Increments)
On-Time Setting: 255 Steps
Off-Time Setting: 255 Steps
Servo Feedrate: 1200Mm / Min
Meters: Voltmeter

Utilities/Environmental

Input Power: 3 Phase, 200-240Vac, 60Hz, 4Kva
Ambient Temperature: 55-75°F
Relative Humidity: 40-50%

Equipped With:

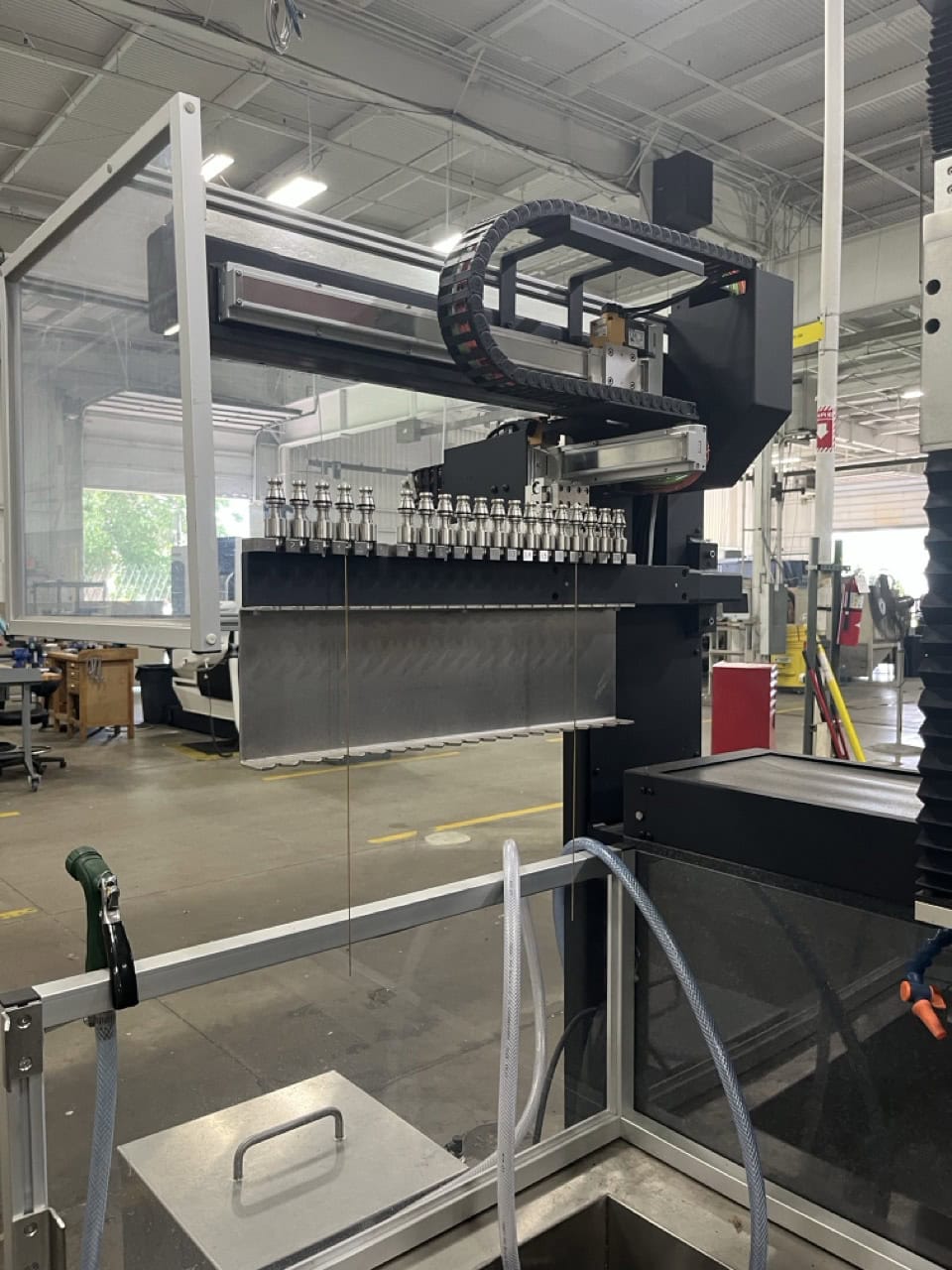

30 Station Automatic Electrode Changer

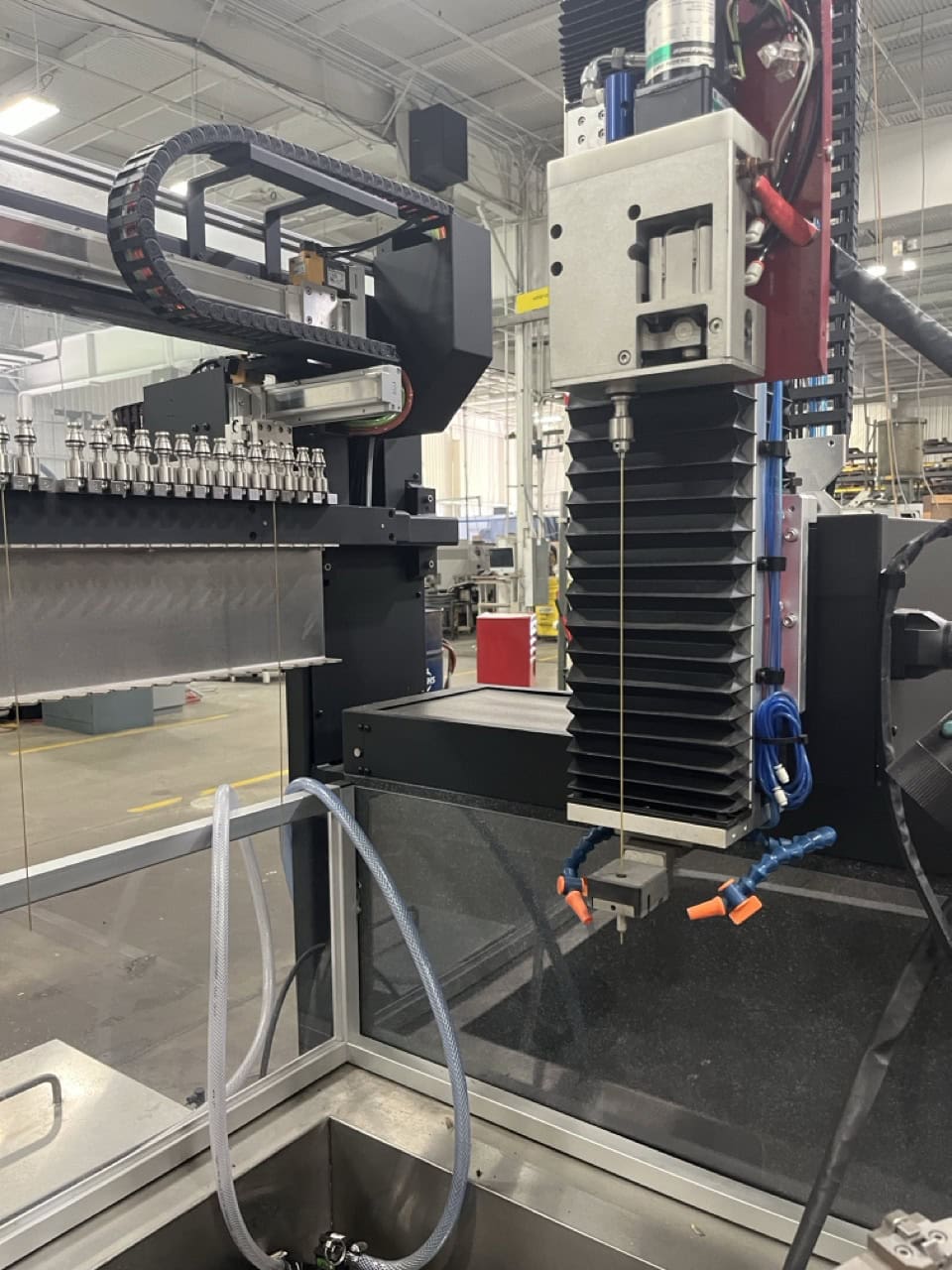

CMC Programmable Tilting Drill Head

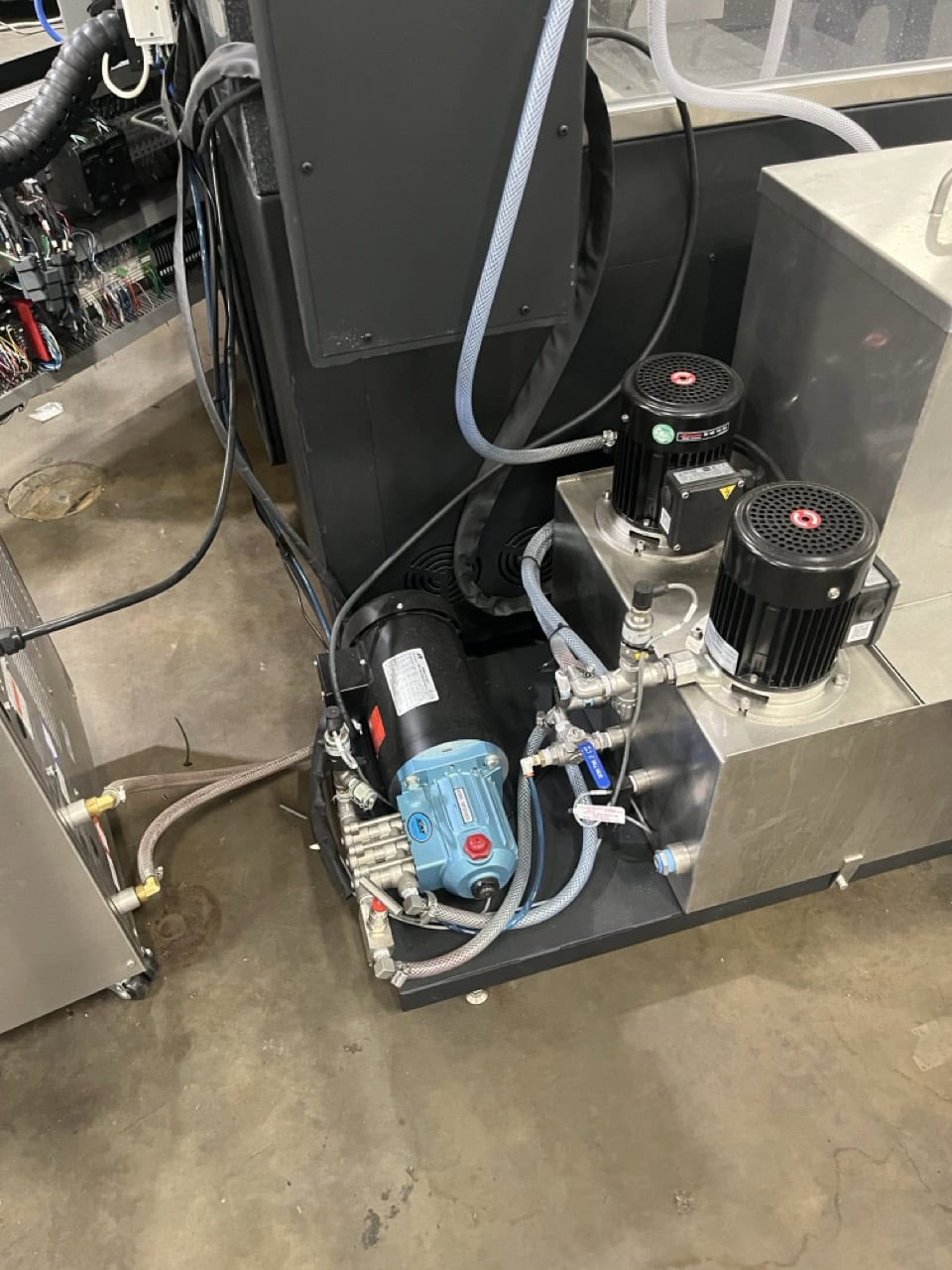

CAT High Pressure Pump Upgrade
30 Gallon EDM Filtration System
Signal Tower Type 3
M Code Interface With 3 Additional M Codes

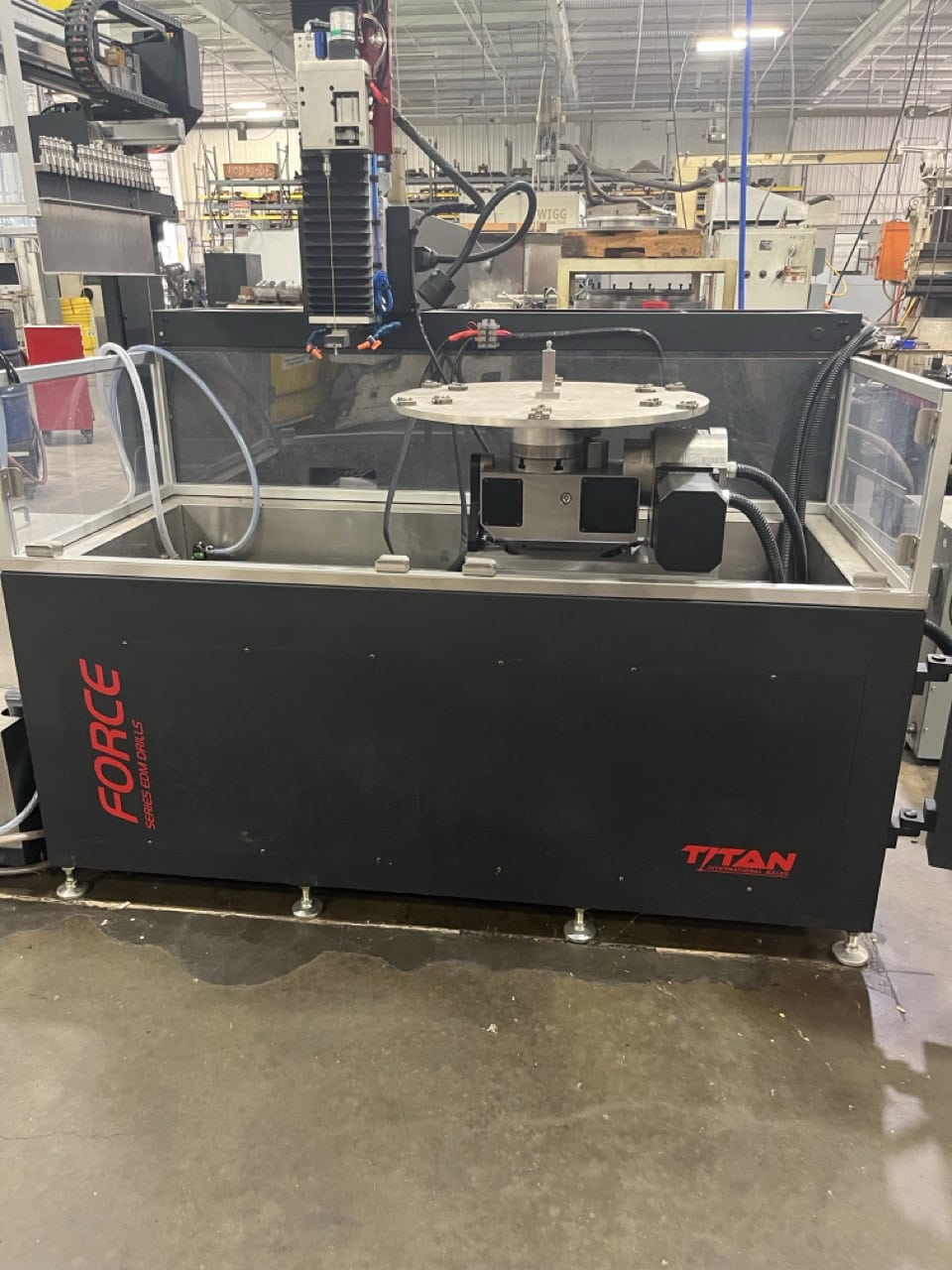

TR-6 Axis Rotary Table With Edm Package
