Toyota Electric Forklift Truck, 2005 – Brand New Battery & Charger

– Length To Fork Face: 6.4ft in
– Overall Width: 3.11ft in
– Overall Height – Mast Lowered: 14.95ft in
– Wheelbase: 4.01ft in
– Height To Top Of Overhead Guard: 7.21ft in
– Max Fork Height: 10.95ft in
– Free Lift: 5.71in
– Front Wheel Tread Width: 31.3in
– Gradeability: 20%
– Rear Wheel Tread Width – Max: 32.29in
– Right Angle Stack: 6.85ft in
– Turning Radius: 5.53ft in

Mast
– Lift Speed: 81ft/min
– Lower Speed: 98ft/min
– Load Center: 24in
– Load Capacity: 3500lb

Specifications
Electrical System
– Control Drive: Transistor Invertor
– Control Power Steering: Electromagnetic Contactor
– Battery Voltage: 48 V
– Battery Capacity: 510 Ah

Engine
– Fuel Type: Electric
Operational
– Operating Weight: 5214lb
– Tire Type: Cushion
– Number Of Front Wheels: 2
– Number Of Rear Wheels: 2
– Max Speed: 10.6mph
– Drawbar Pull: 2080lb
– Tire Size: Front – 18 x 6 x 12-1 / 8, Rear – 14 x 4-1 / 2×8
– Hydraulic System Relief Valve Pressure: 2280psi

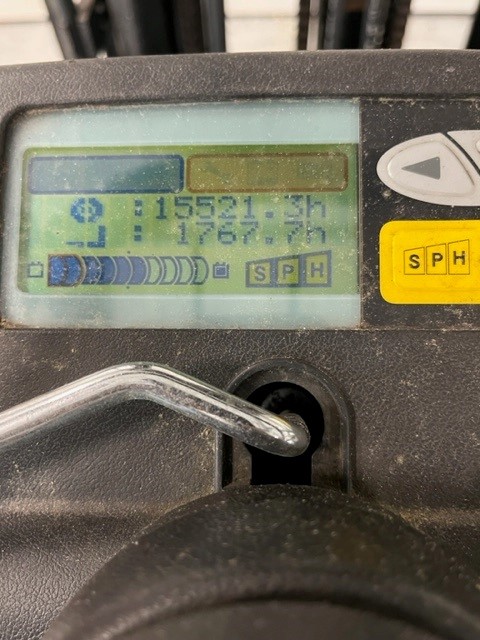

Approximately: 15,000 Hours
