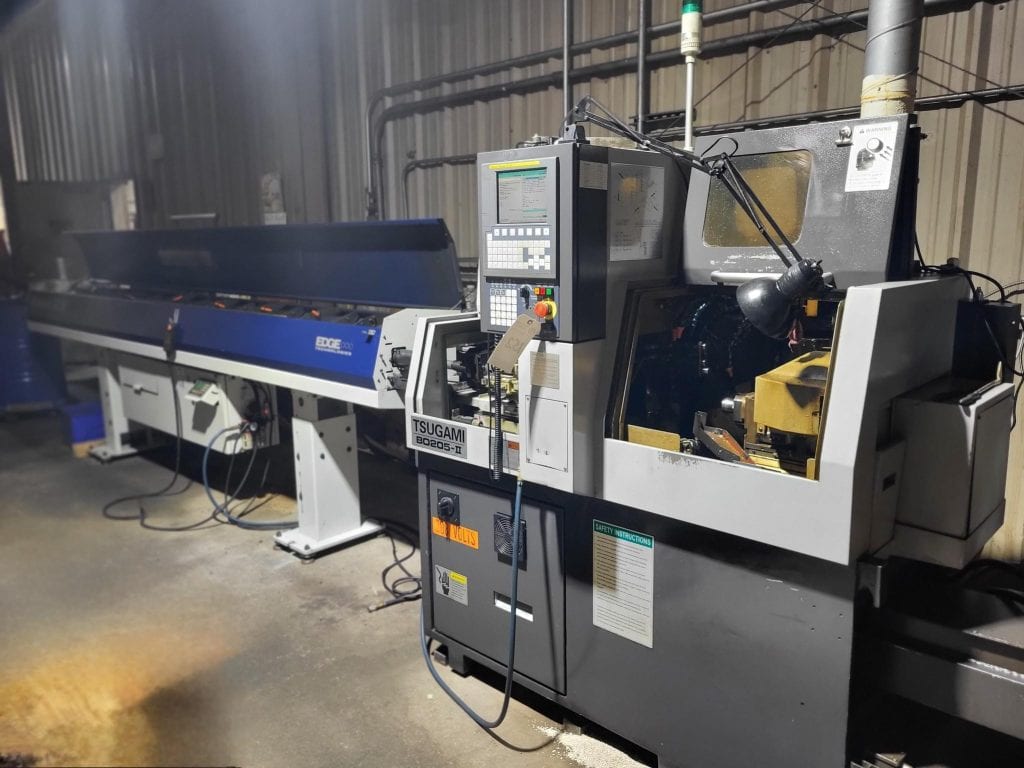

Tsugami B0205-II 5-Axis CNC Swiss Lathe, 2013 – Fanuc OI-TD Control, Edge Bar Feeder, High Pressure Coolant, Chip Conveyor

Max. Barstock Diameter: 20 mm
Max. Machining Length: 210 MM (8.26″)
Max. Machining Length (Guide Bushing): 45 mm (1.77″)
Max. Main Spindle Drilling Diameter: 10 mm (.39″)
Max. Main Spindle Tapping Diameter: M10
Max. Back Spindle Chucking Diameter: 20 mm (.79″)
Max. Back Spindle Drilling Diameter: 8 mm (.31″)
Max. Back Spindle Tapping Diameter: M8
Main Spindle Speed: 200 – 10,000 RPM
Main Spindle: 5 HP
Back Spindle Speed: 200 – 12,000 RPM
Back Spindle: 3 HP
Total Tool Capacity: 21
Tool Size: 0.5″ x 0.05″ x 3.35″
Total Axis: 5
Machine Dimensions: 66″x45″x67″
Weight: 4,410 lbs

EQUIPPED WITH:
Fanuc OI-TD CNC Control
Edge Technologies MM320 Bar Feeder
MP Systems AT V-2 H08 SD High Pressure Oil Coolant System
LNS Chip Conveyor
