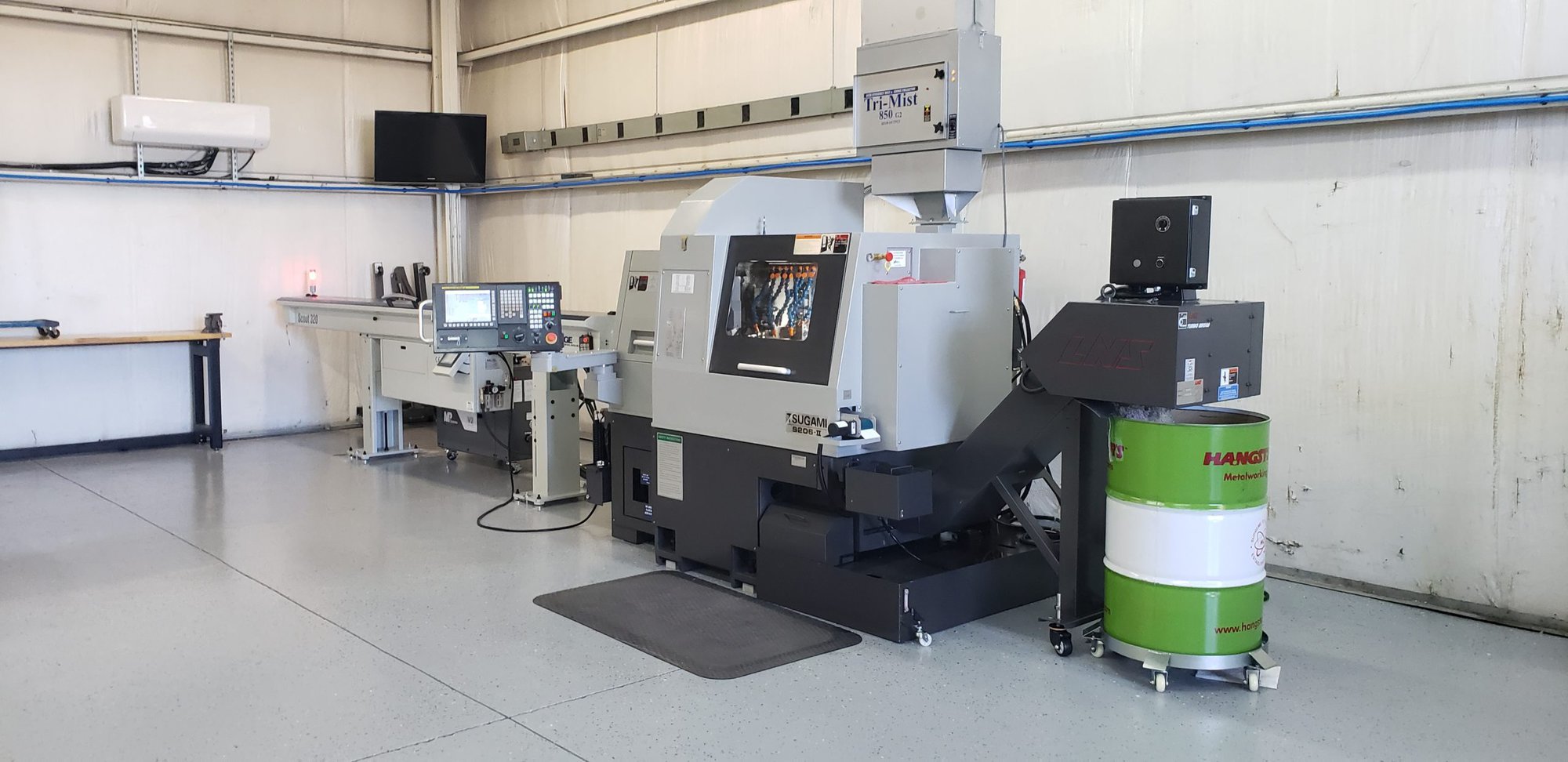

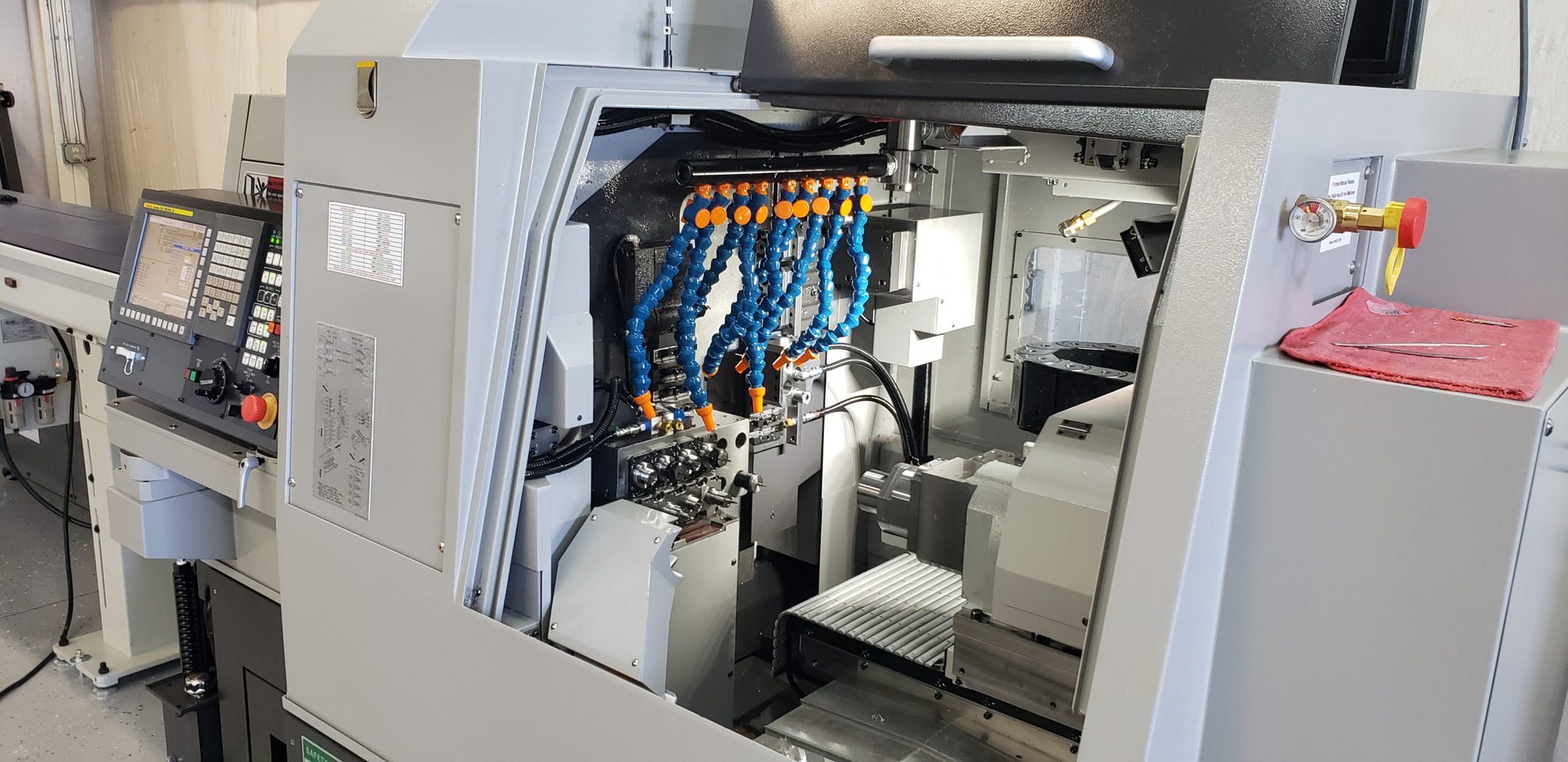

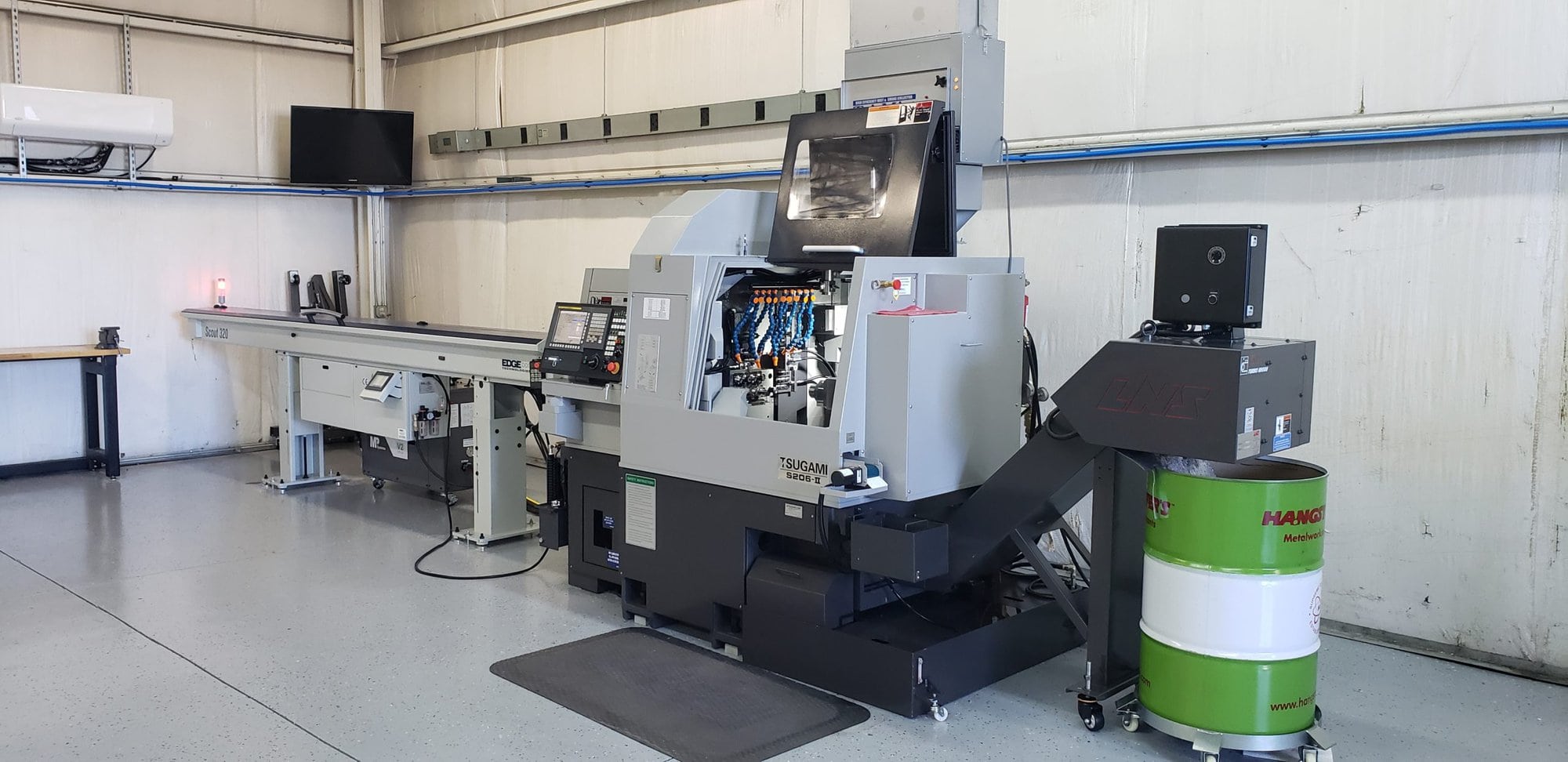

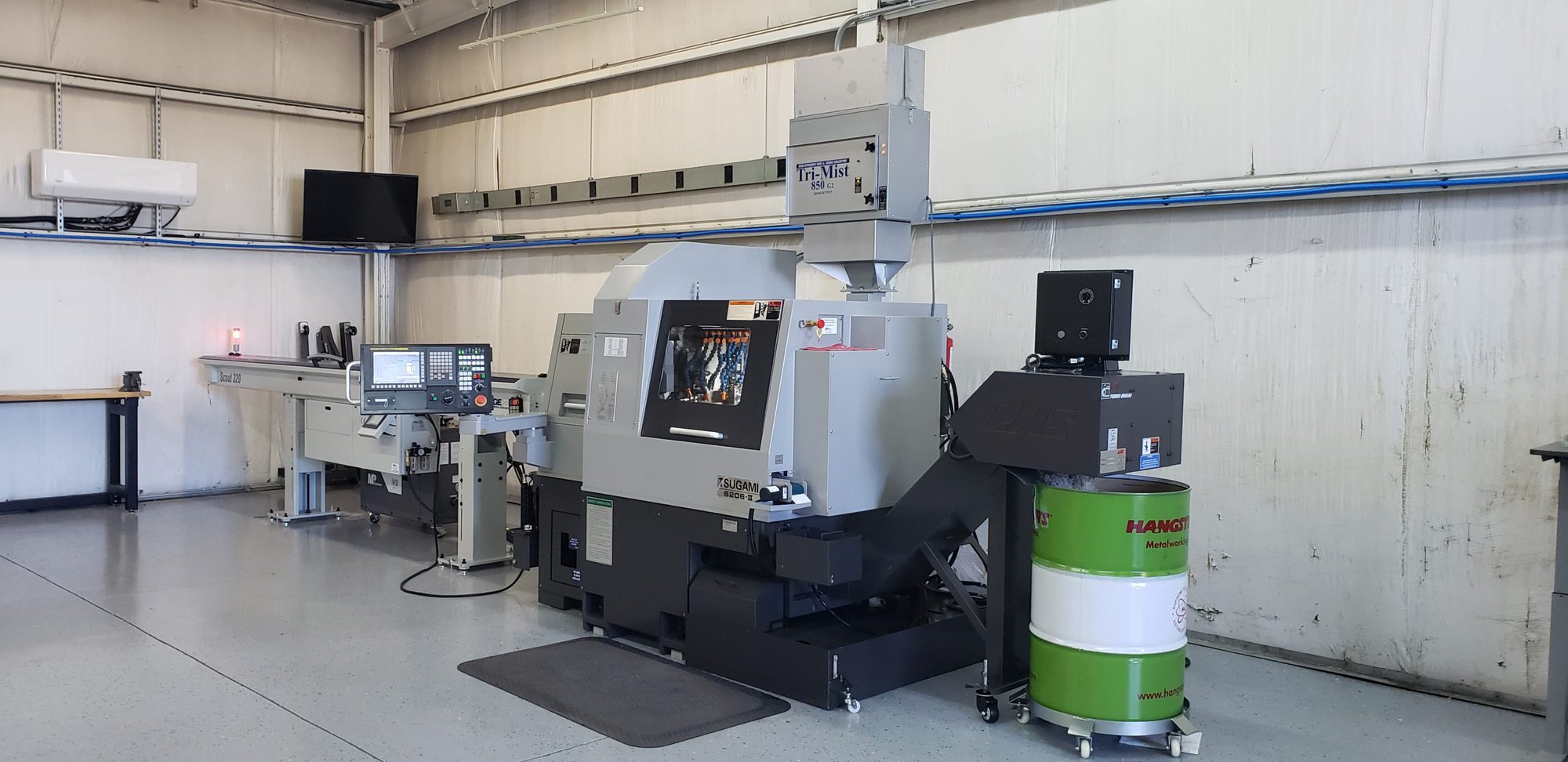

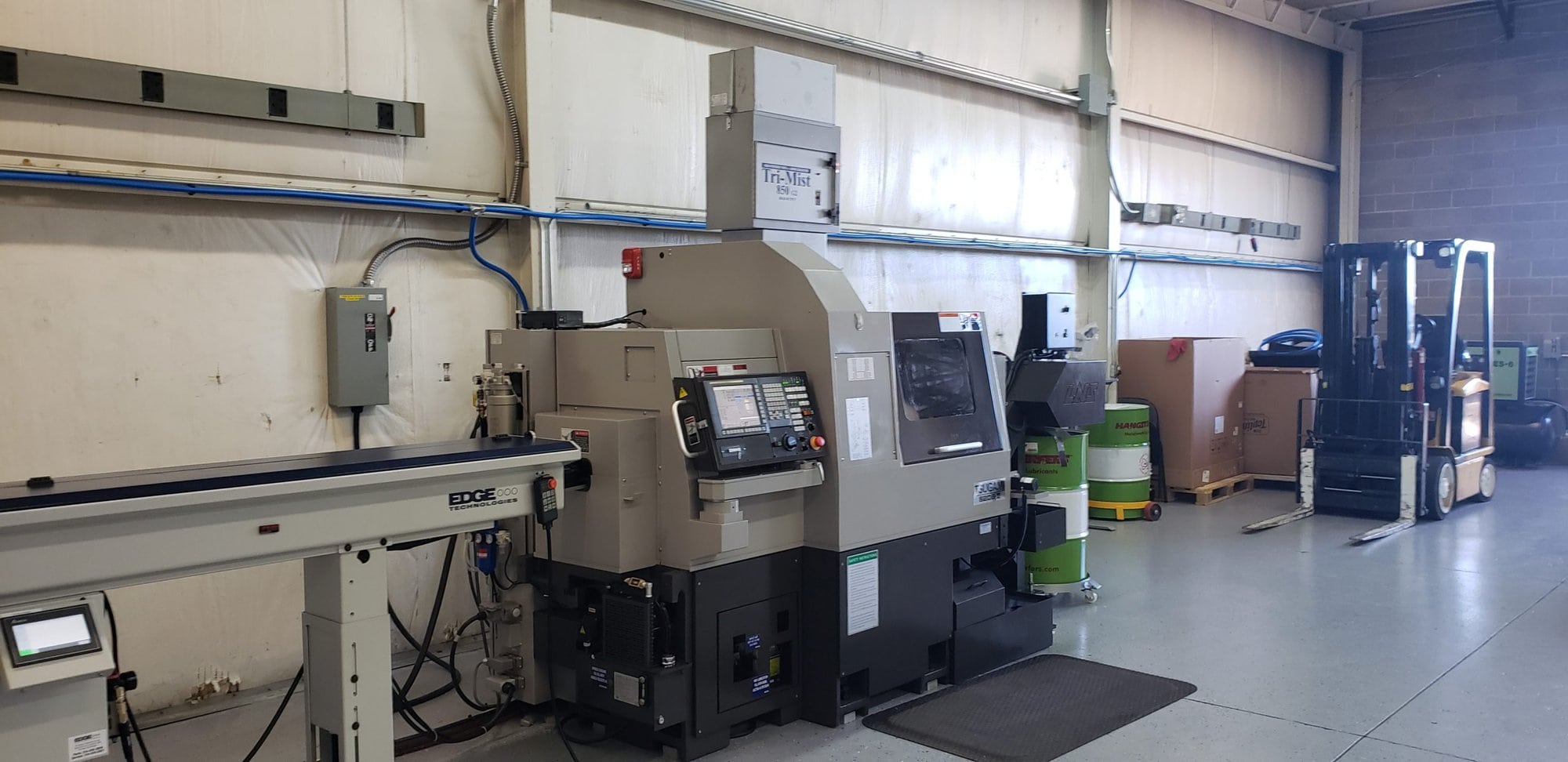

Tsugami S206-II CNC Swiss Lathe, 2022 – Warranty, MP System, Fire Trace, Chucker Kit, Chip Conveyor, Thread Whirling Unit

$264,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Maximum Bar Stock: 20 mm
# Axes: 6
Sliding Headstock / Guide Bushing: YES
Convertible: Run w/o Guide Bushing (chucker):
YES
Max Headstock Stroke w/ Guide Bushing: 210 mm, 9.84”
Max Headstock Stroke w/o Guide Bushing: 45 mm, 1.77”
# Tool Positions (std / max): 33 / 47
# Live Tool Positions (std / max): 15 / 24

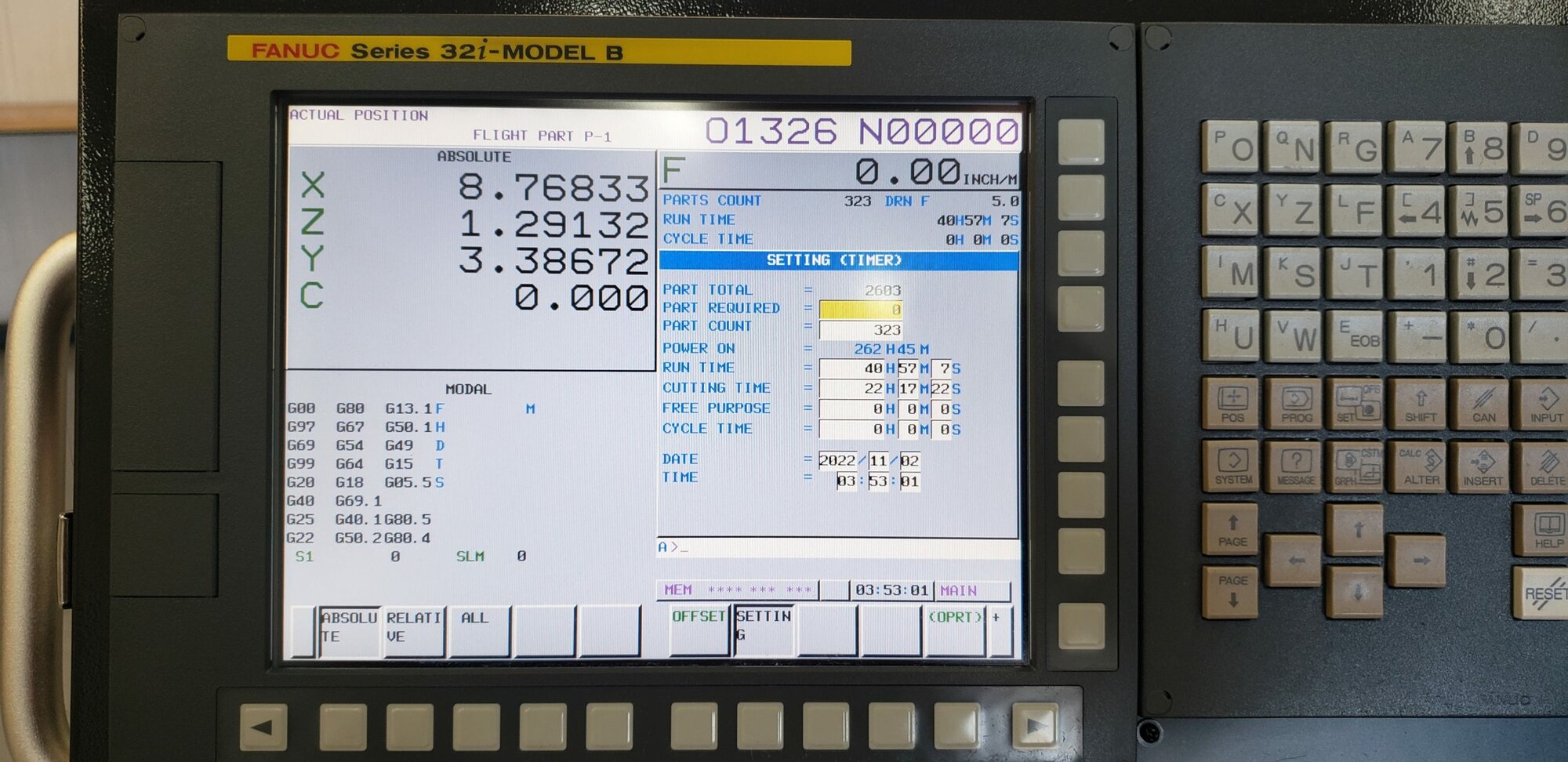

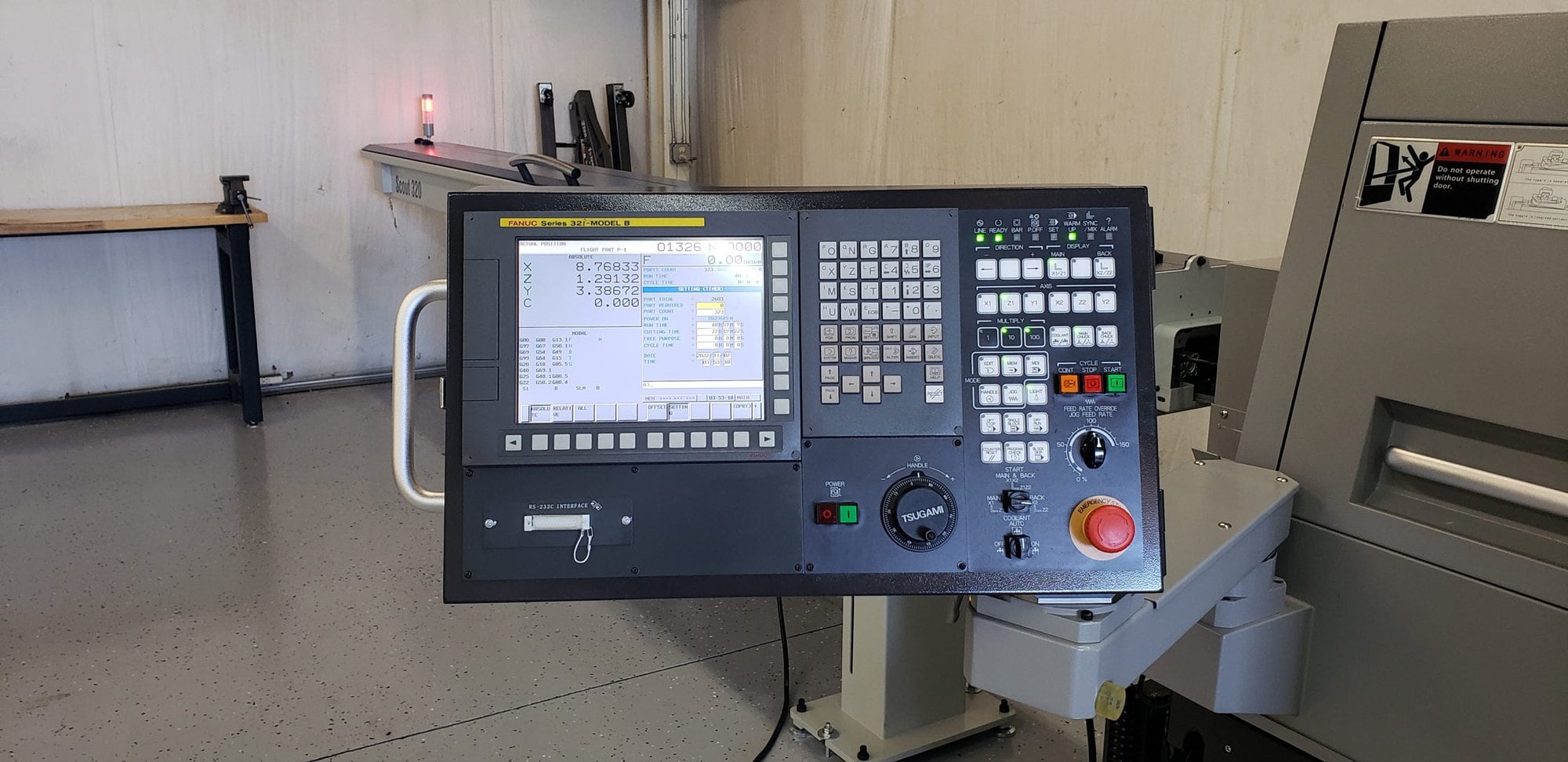

Control FANUC 32i-B
Main Spindle Speed: 200 – 10,000 rpm
Sub Spindle Speed: 200 – 10,000 rpm
Live Tool Speed: 10,000 rpm
Main Spindle Motor: 2.2 / 3.7 kW
Weight: 8,267 lbs., 3,750 kg
Footprint: W x D x H 91” x 50” x 77.5”; 2,325 × 1,270 × 1,970 mm

Options –

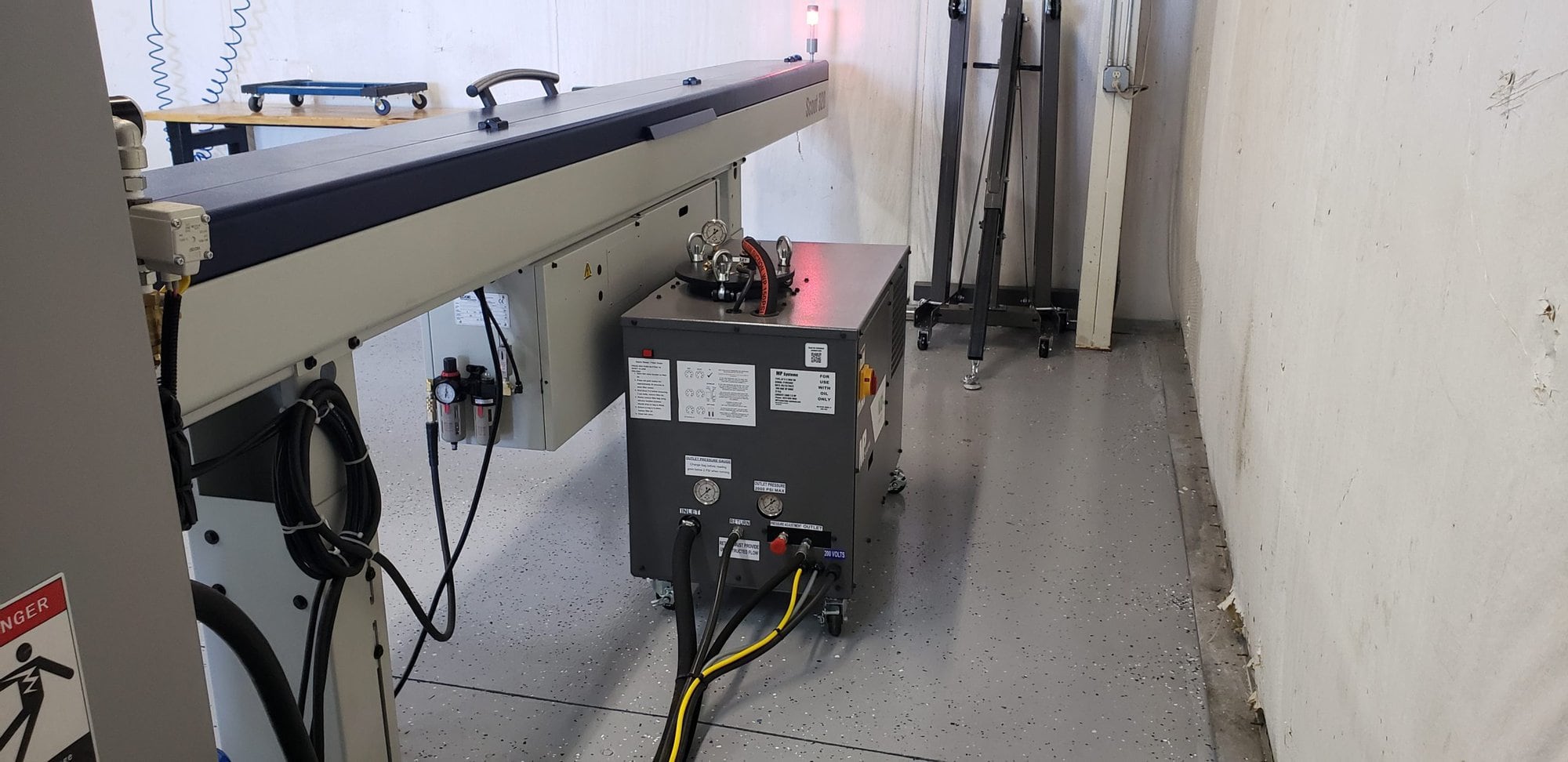

MP System 2,000 PSI Coolant System
Thru Sub Coolant
Oscillation Cutting on X1 & Z1 Axes

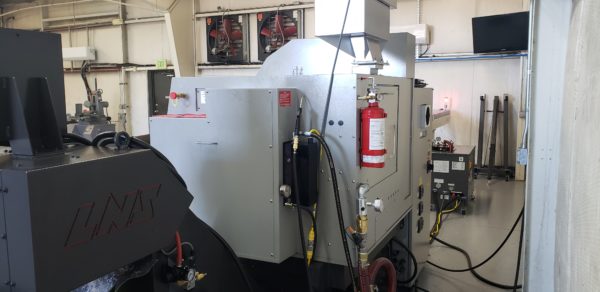

Fire Trace
Chucker Kit
Chip Conveyor
Sub Spindle NSK Face Drill Unit
Thread Whirling Unit
TF30 Collet Sleeve Nut and Spring for 1.00 Capacity
Pendant Type MPG
Edge Bar Feeder
Mist Filter Unit
Hepa Filter

****Warranty until July 2023 on parts***
