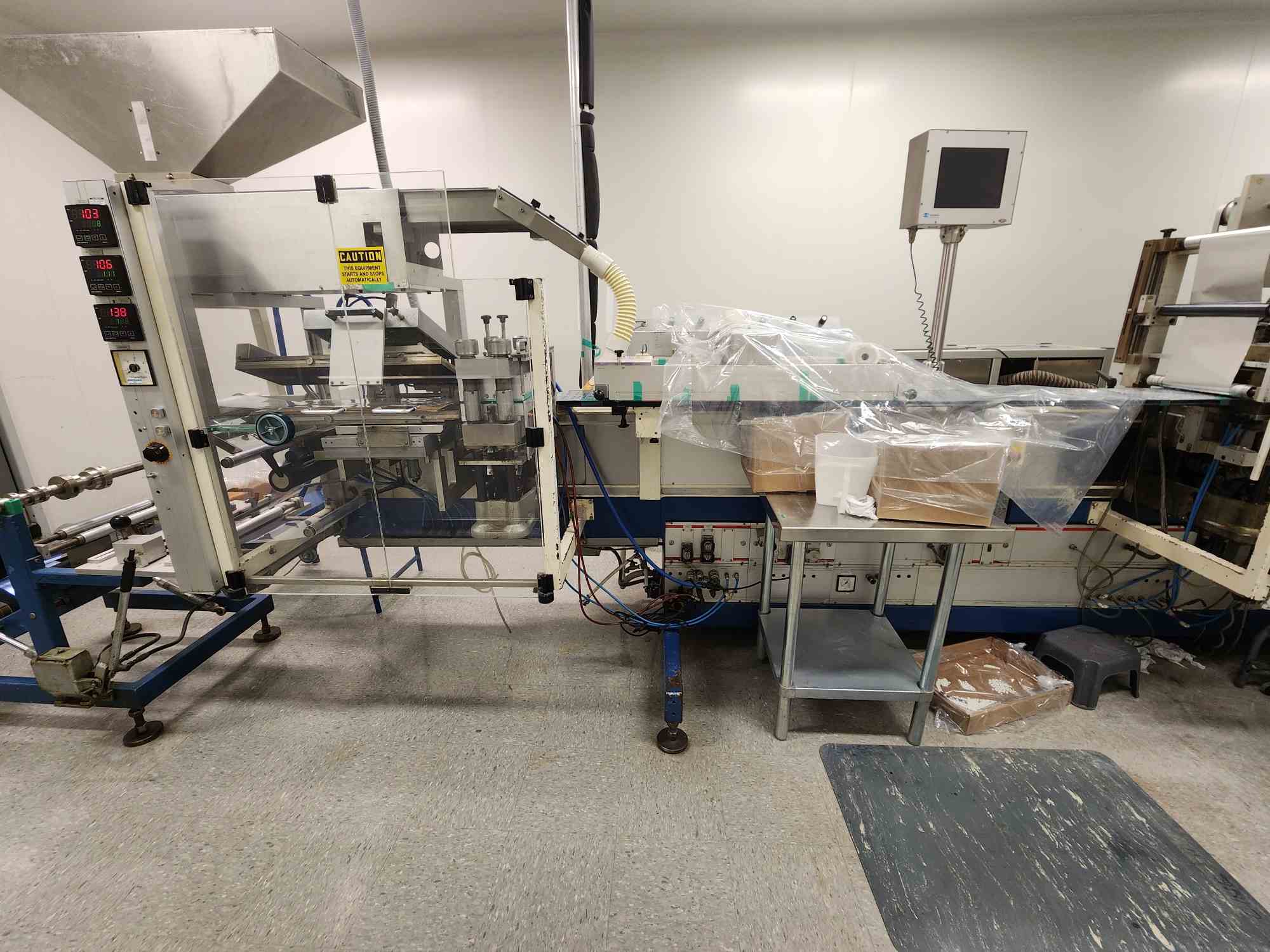

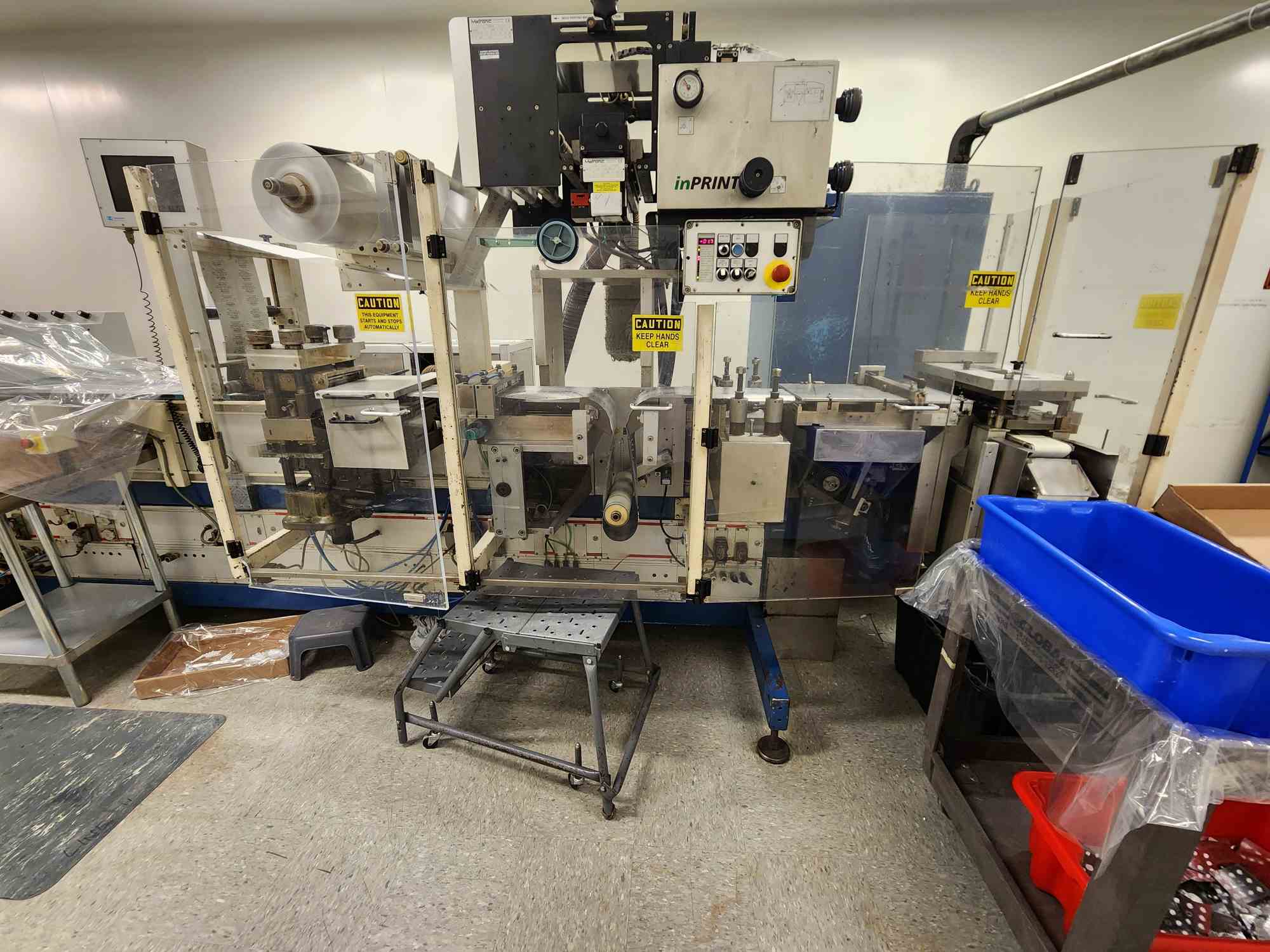

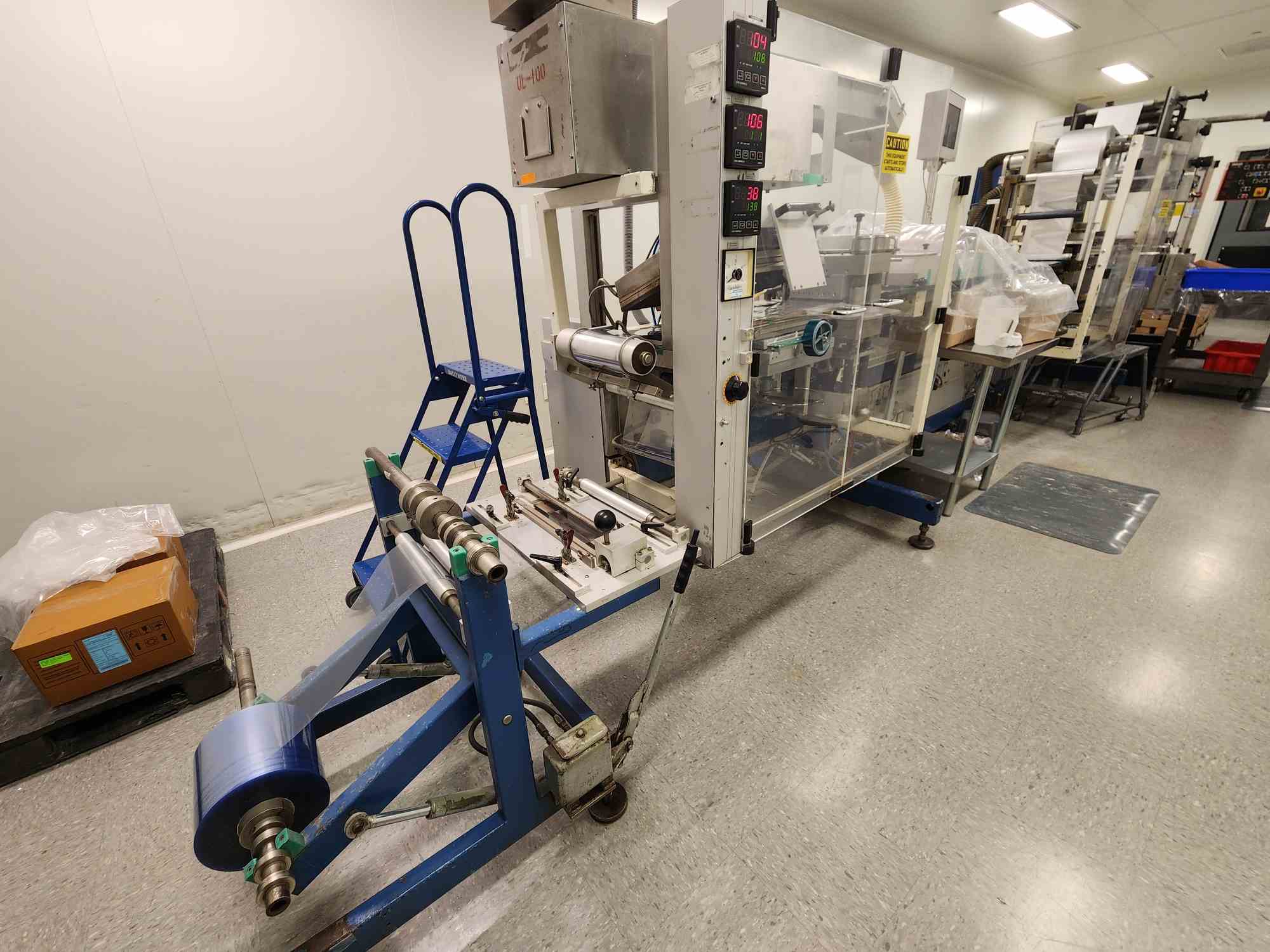

Uhlmann UPS 2-MT Blister Pack Machine, 1982

– Power installed: 11Kw.
– Power consumption: 5,5Kw.
– Production: 15–50 strokes per minute for 12mm.
– Depth forming: 15–40 storkes per minute for 28mm.
– Depth forming Index: Max. 145–222mm.
– Format range: forming area 220mm.
– Length: 188mm.
– Width Depth forming: 12 and 28 mm
– Forming reel: 460mm.
– Covering reel: Max. 300mm.
– Forming thickness: Min. 0,1mm-max. 0,5mm.
– Width covering foil: min. 90mm max. 210mm of the internal reel: 70……76 water consumption: aprox. 0,1 m3/h.
– Compress air consumption: aprox. 6 Nm3/h, without
pre- heating: aprox. 14Nm3/h, with pre-heating.
