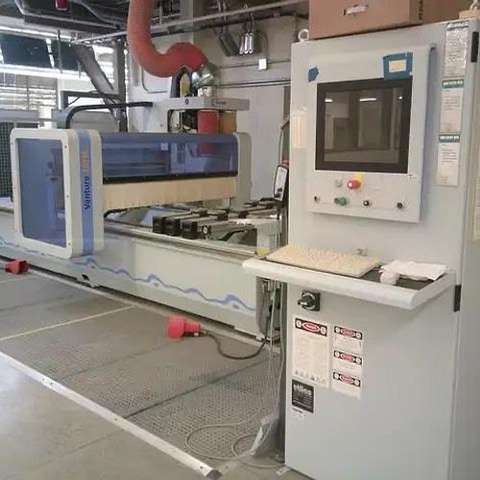

Weeke BMG 111 Venture 107 Wood Router, 2012 – Available now

$34,900.00

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

3 Axis
16 Router Tool Holder
18 Boring Spindles
Working range in X axis 3130 mm
Working range in Y axis 1250 mm
Working range in Z axis 100 mm
No. 2 work camps
Bar worktop

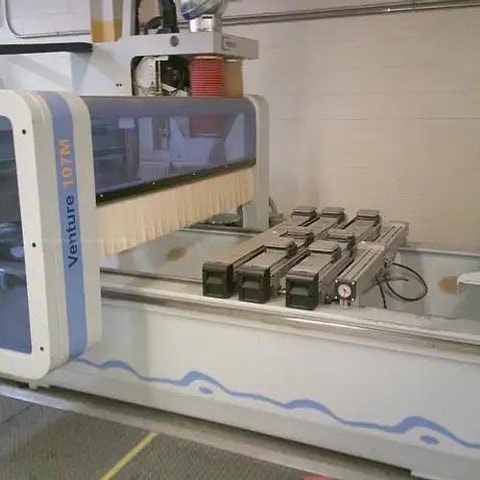

N° 6 manually adjustable bars for suction cup support
N° 4 pneumatic Bakelite bars for lifting the panel
N° 1 vertical electrospindle, with automatic tool change, KW 9, HSK cone type
N° 1 automatic lateral tool change system with 8 positions
N° 1 rear automatic tool change system with 8 positions

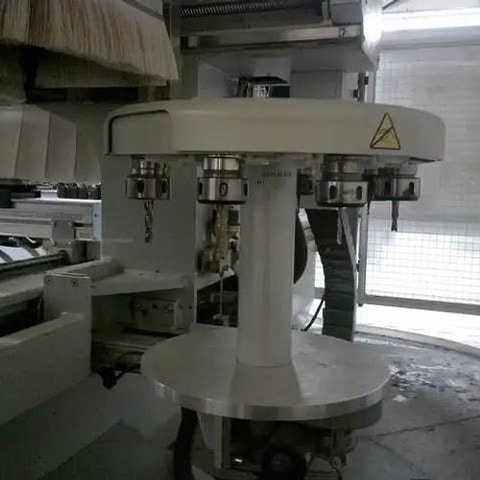

Drilling head with 18 spindles arranged as follows:
– N° 6 verticals on the X axis
– N° 6 verticals in Y axis
– N° 4 horizontal on the X axis
– N° 2 horizontal in Y axis

Equipped With:
Power Control PC 85 Numerical Control with WoodWOP Software
Vacuum Pod
Rail Machine
Grooving Saw
