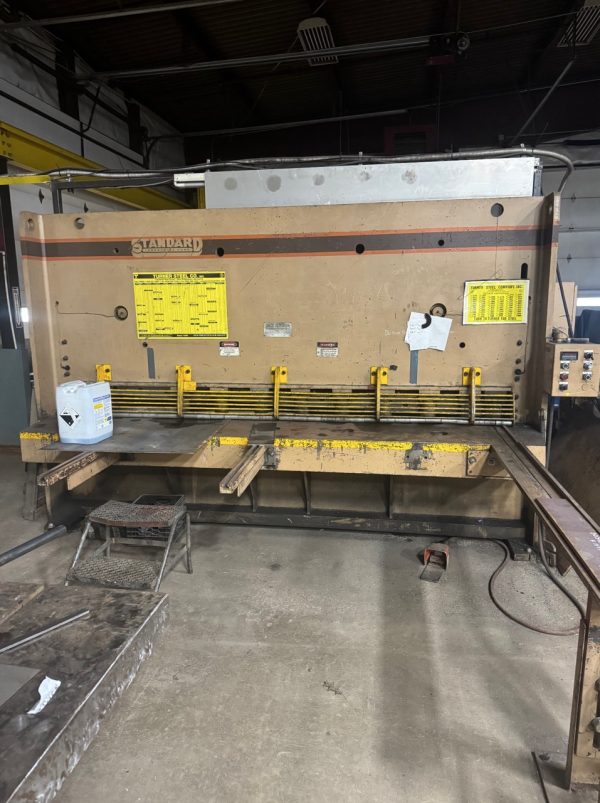

1/2″ x 10′ Standard AS Series Hydraulic Shear, 2005 – Backgauge

Shearing Length: 10′
Rake Angle: ~1/2° – 2°
Hold-Downs: Hydraulic, full length, with ~20+ hold-down cylinders across bed
Stroke Control: Variable, full length or shorter strokes
Backgauge: 36″ motorized backgauge (programmable to ±0.01″)

Blade Clearance Adjustment: Manual lever or handwheel (quick-set for different thicknesses)
Blades: 4-edge, high-carbon/high-chrome alloy, reversible
Hydraulics: Dual cylinder, full hydraulic drive
Pressure-compensated hydraulic system
Main Motor: 20–25 HP (depending on options at build)

Electrical: 220V, 3-phase, 60 Hz
Machine Dimensions: 14′ × 7′ × 6′
Machine Weight: 42,000lbs
