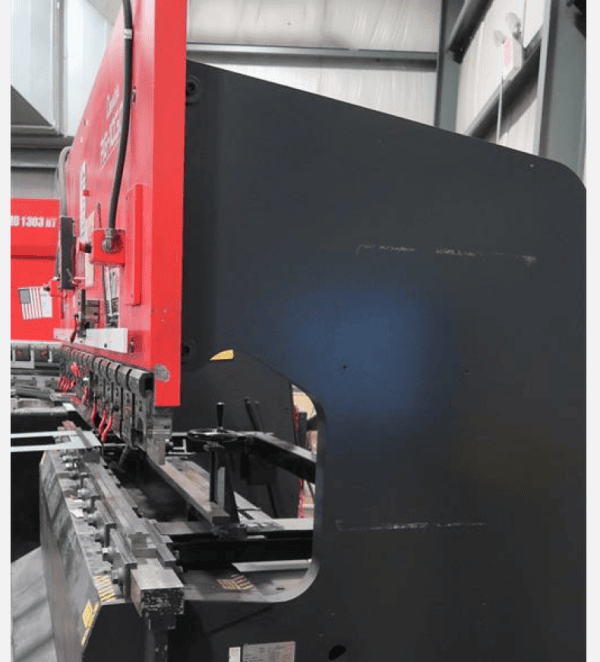

110 Ton x 10′ Amada 1030 LD Press Brake, 2000 – Backgauge
$24,900.00
Machine Type: Hydraulic Press Brakes
Make: Amada
Model: 1030 LD
Year: 2000
Capacity: 110 Ton x 10‘
Machine Location: Ohio
Stock #: 098884
Tonnage: 110 Ton
Overall Length of Bed and Ram: 118.2″
Distance Between Housings: 100.4″
Stroke of Ram: 3.94″
Open Height: 14.57″
Throat Depth: 15.76″
Main Motor: 15HP
Approximate Weight: 14,550 lbs.
Equipped With:
LD-2 Axis CNC Controller
Single Axis Back Gauge
Full Set of Upper Punch Holders, Tooling not Included
Flush Floor Mounted
Electric Foot Switch
Full Length Foot Treadle
Voltage: 230/460 V 3 Phase
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
