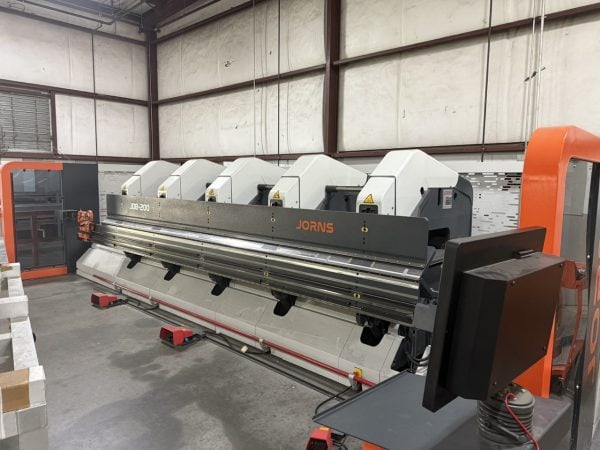

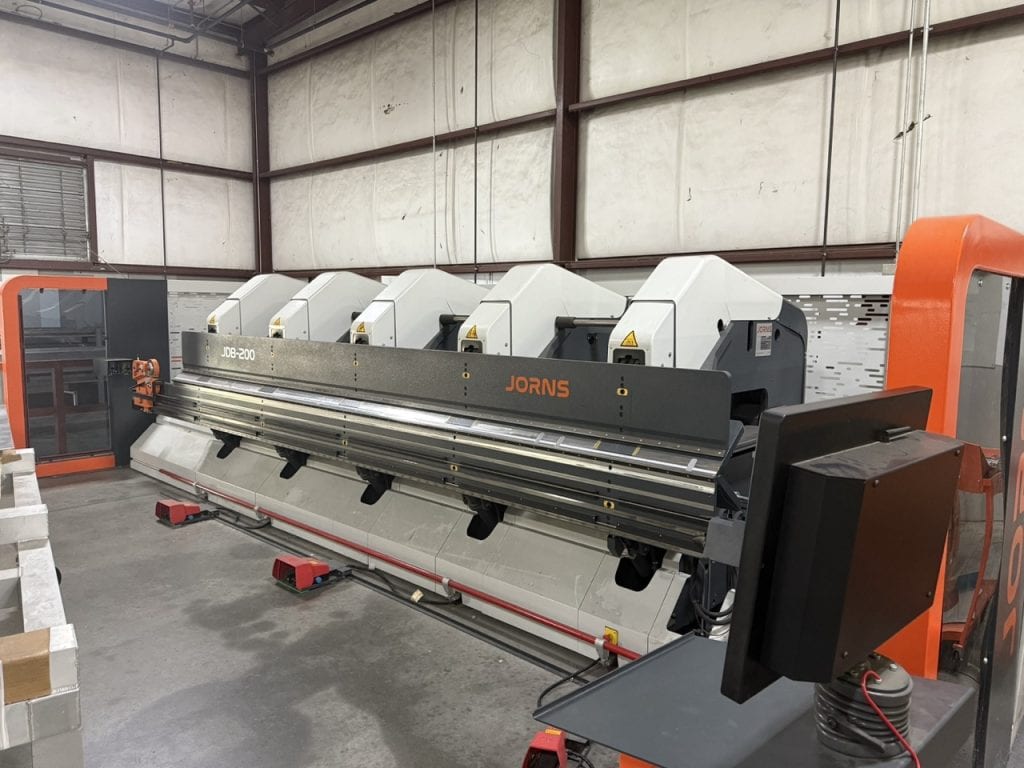

14 ga. x 17′ Jorns JDB-200G Folding Machine , 2021 – Slitter SL3 (3mm), Double Servo Pump, Hydraulic Cooling System

Maximum Bending Length: 204″ (5,200mm)

Bending Capacity w/ Auxiliary Bar:
Maximum Thickness Full Length, Mild Steel: 0.0787″ (2 mm)
Maximum Thickness Full Length, Aluminum: 0.125″ (3 mm)
Maximum Thickness Full Length, Stainless Steel: 0.059″ (1.5mm)

Slitter SL, 3mm Capacity, Hydraulic, 750mm/s

Detachable Including Support Roller

DSP, Double Servo Pump

Hydraulic Cooling System
CP300 Control System for Servo-Electric Gauge System
Additional SD Card for Control
Standard Safety Features
Geometry ‘G’
RH Hydraulic Material Thickness Adjustment
DP Dynamic Positioning
Pretension of Bending Beam
LED Operation of Control Lights
Infeed Table, Automated
Electric Clamping Fingers, Straight or Conical Bending (x4)
Electric Short Part Clamping Finger (x2)
Vacuum Gripper, Automated (x4)
