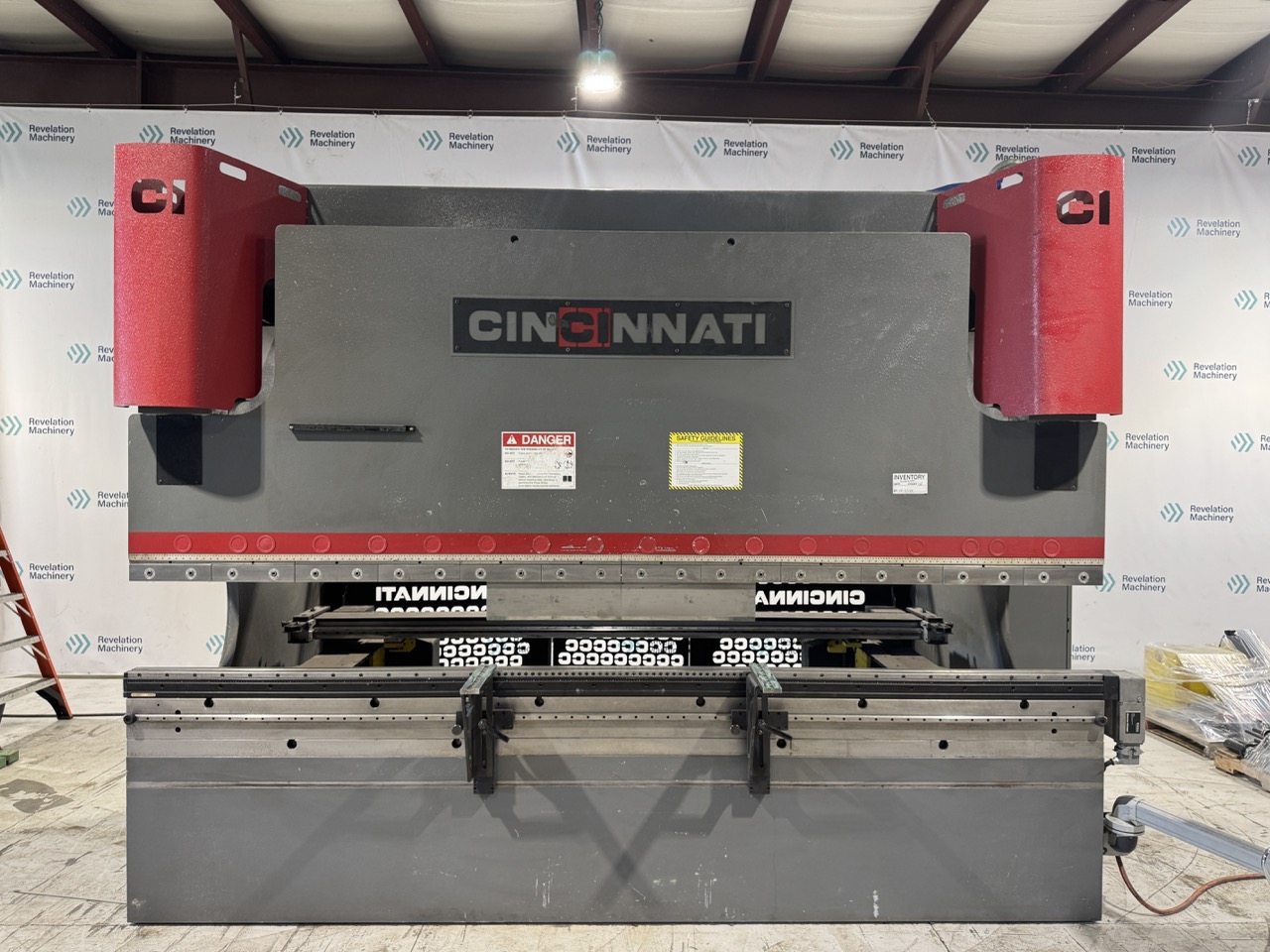

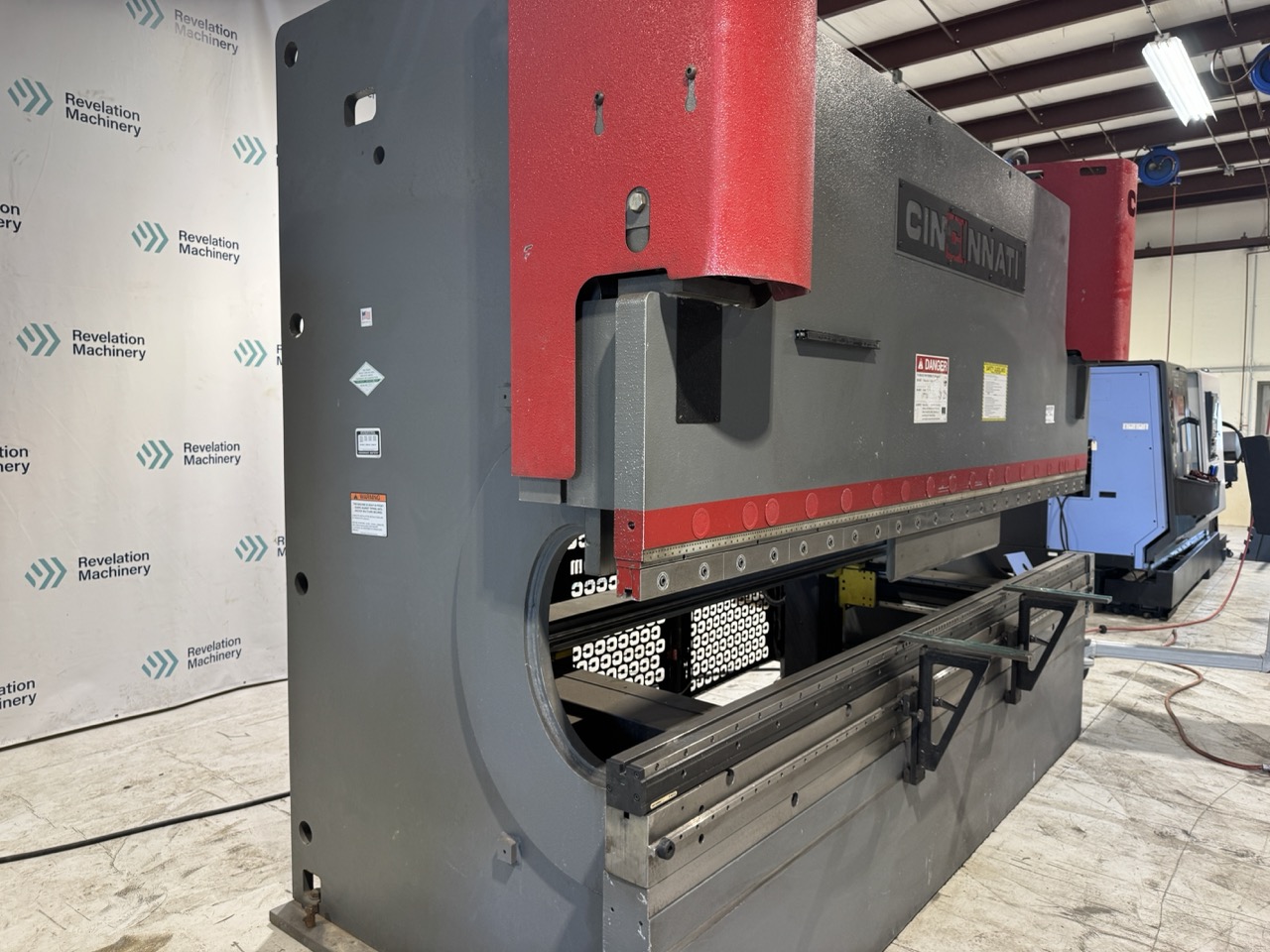

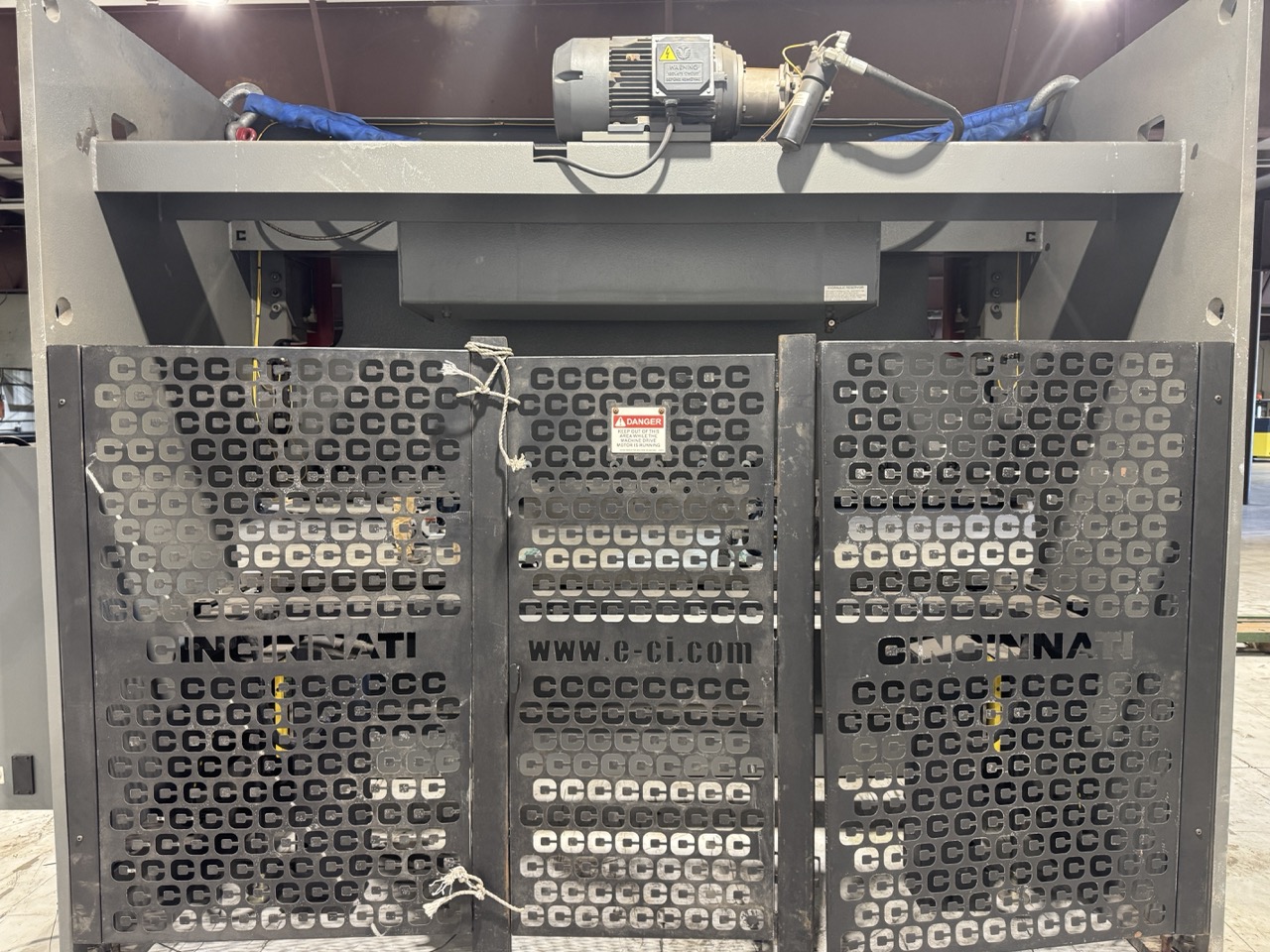

175 Ton x 10′ Cincinnati Hydraulic CNC Press Brake, 2020 – Baseform Press Brake w/ Touchscreen Control, CNC Crowning & Multi-Axis Backgauge

2020 Cincinnati 175BX10 hydraulic CNC press brake with 175-ton bending capacity, 12′ forming length, Cincinnati Baseform touchscreen control, CNC crowning, and multi-axis backgauge for precision sheet metal and plate forming.

Manufacturer Cincinnati Incorporated
Model 175BX10
Year 2020
Machine Type Hydraulic CNC Press Brake
Capacity 175 Tons
Overall Bed / Ram Length 12′
Forming Length 12′
Distance Between Housings 10′

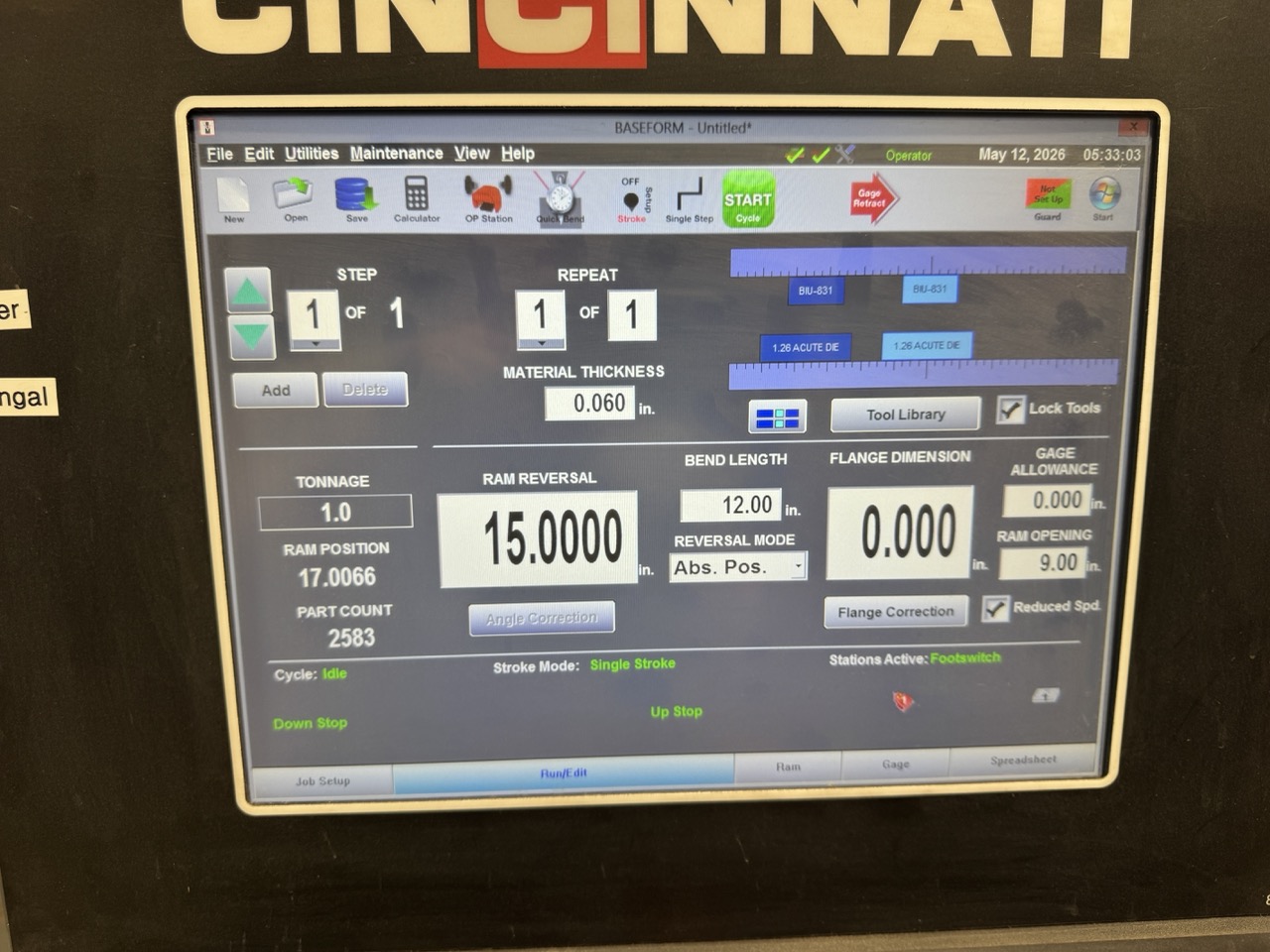

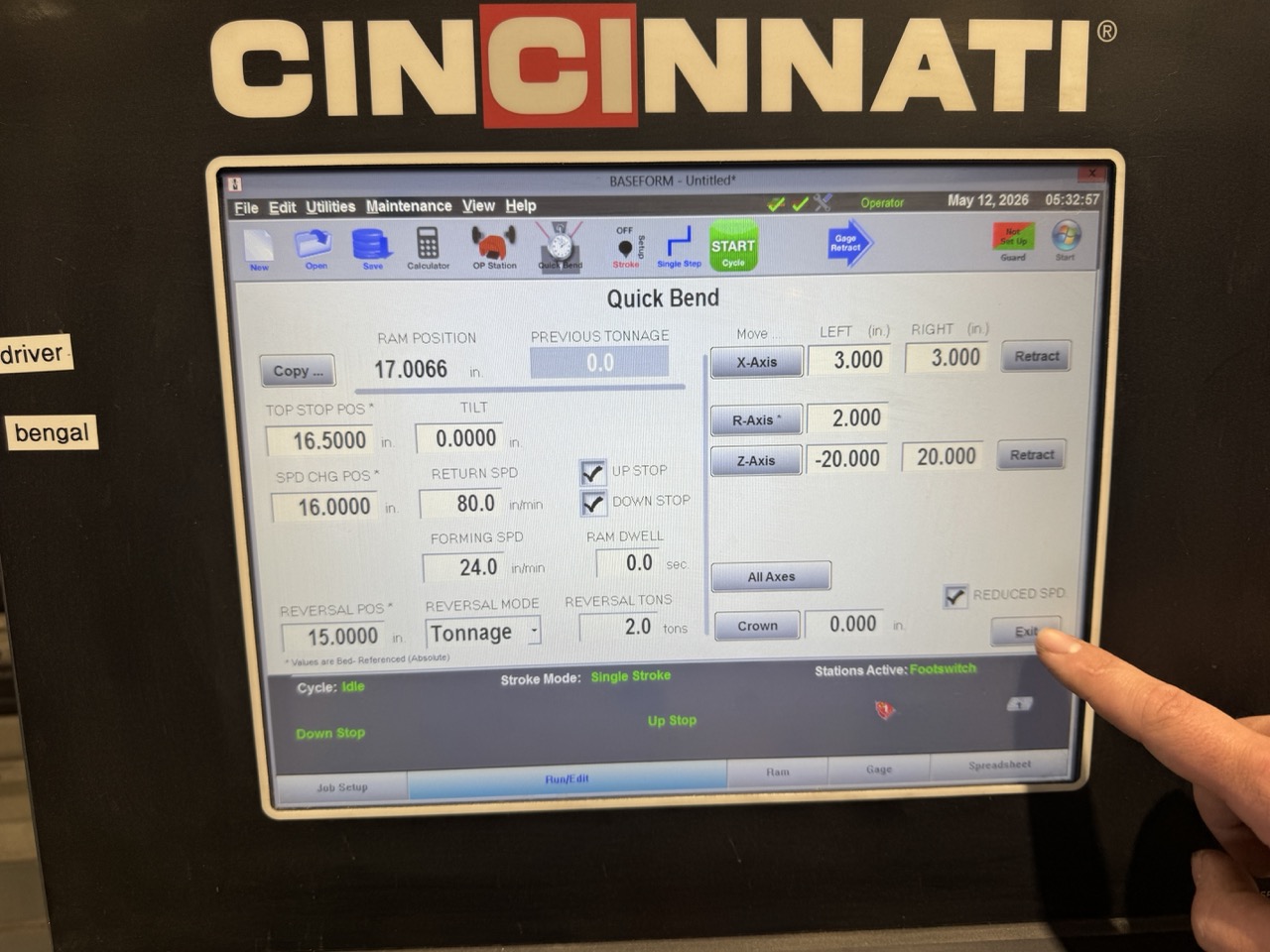

Control Cincinnati Baseform CNC multi-axis touchscreen control
Ram Control Y1 / Y2 synchronized hydraulic ram control
Backgauge CNC multi-axis backgauge; commonly X1, X2, R1, R2 configuration
Crowning CNC crowning
Stroke Approx. 10″ standard stroke, based on 175BX10 comparable listings

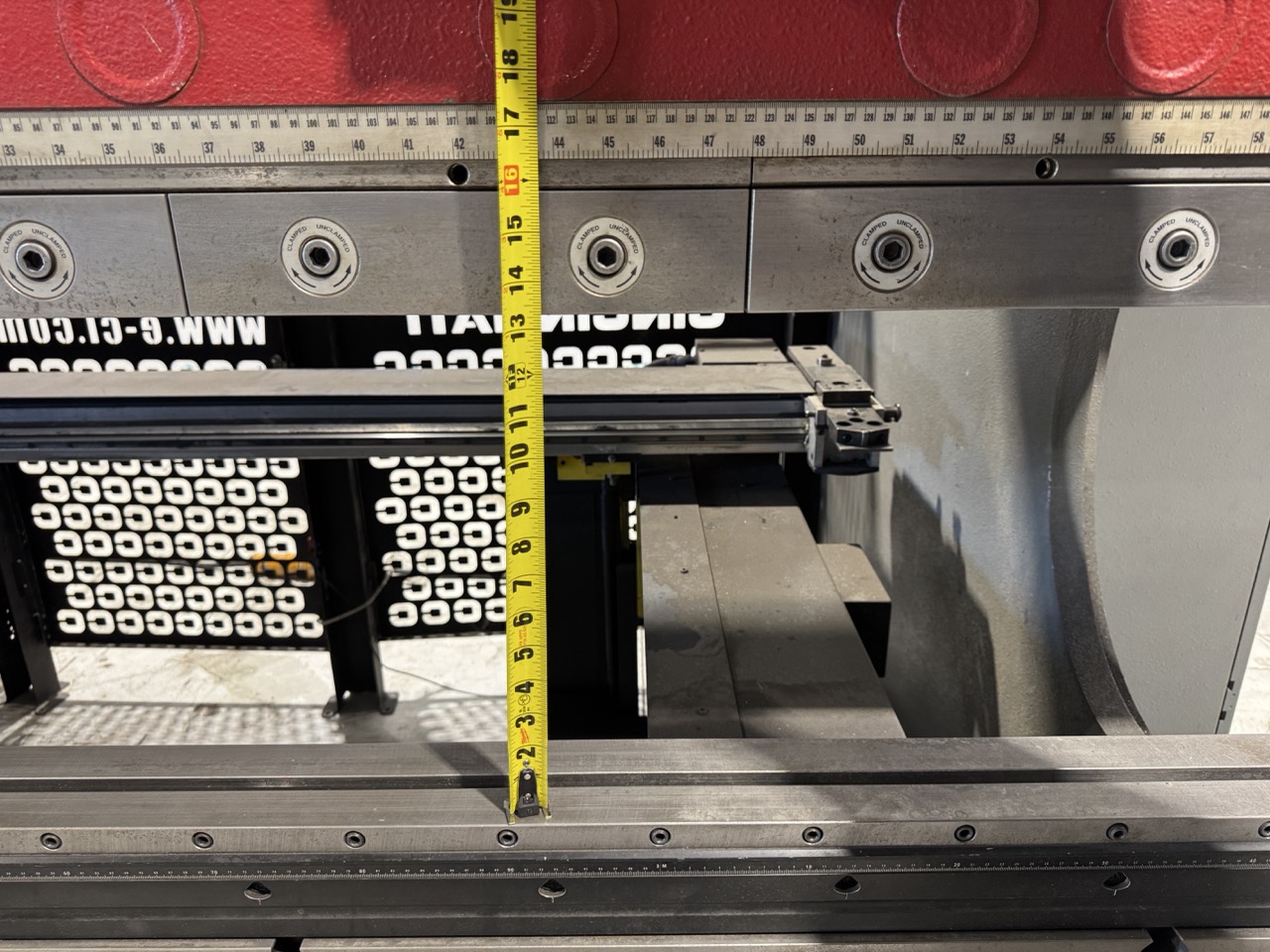

Open Height Approx. 17″
Closed Height Approx. 7″
Throat Clearance Approx. 16″
Approach Speed Approx. 300 IPM high approach speed
Forming Speed Approx. 10–24 IPM variable forming speed
Return Speed Approx. 80–190 IPM
Operation Foot pedal and CNC-controlled hydraulic operation

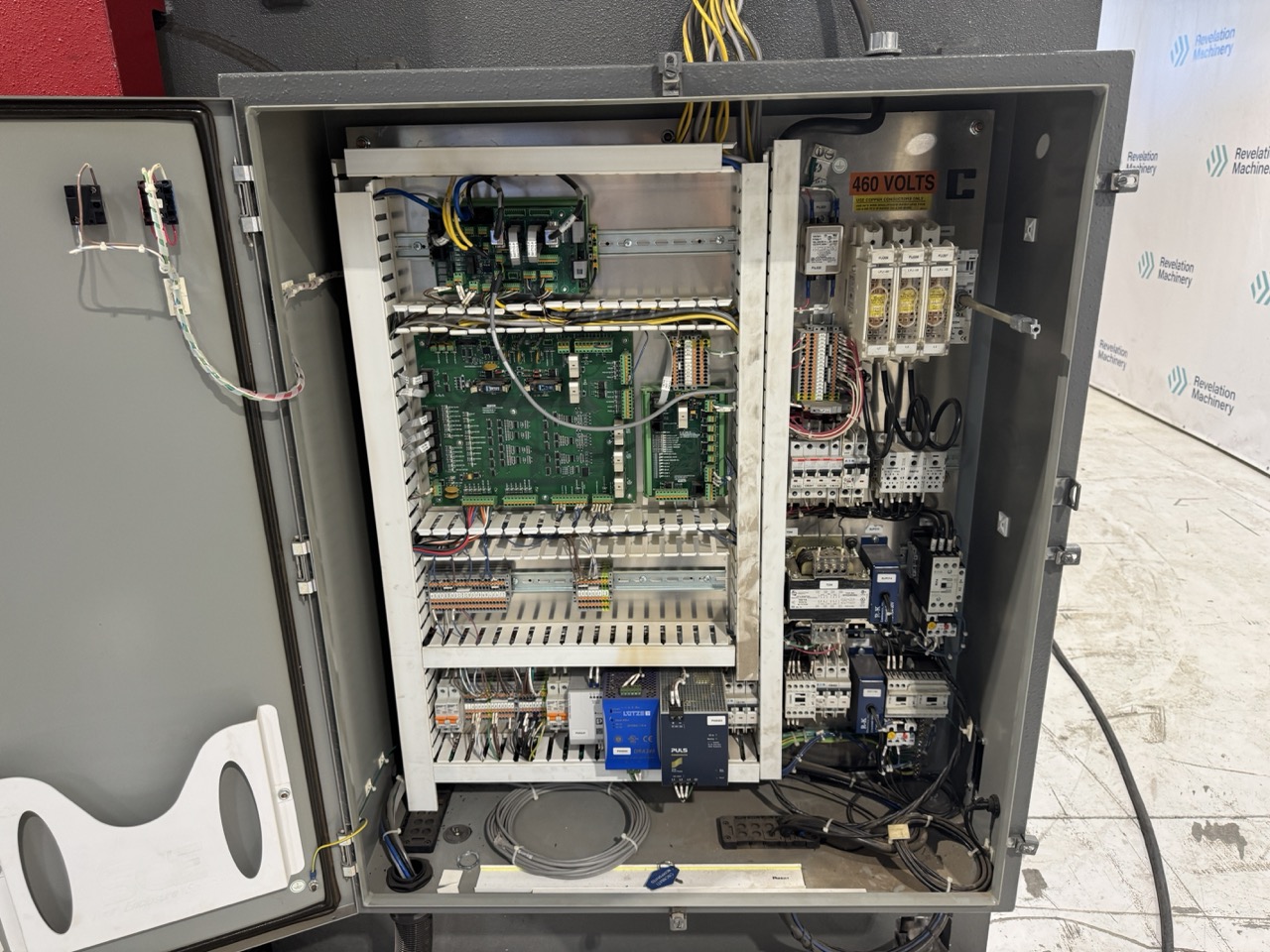

Electrical Verify data plate; common Cincinnati hydraulic brakes are 230V or 460V / 3-phase
Approx. Machine Height Approx. 113.5″ above floor on comparable 175BX10
Approx. Weight 25,000 lb
