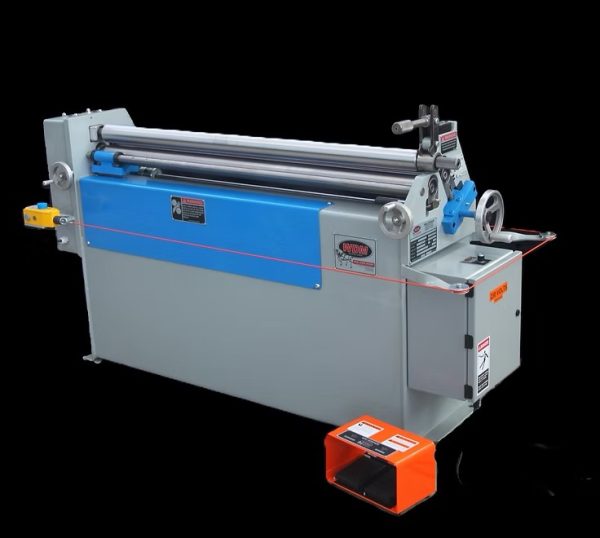

18 Gauge x 4′ 310-3-48 WDM Plate Roll, 2025

Capacity: 4′ x 18 Ga.
Diameter Of Rolls: 3
Rolling Speed: 20 FPM

– Minimum Rolling Diameter: Approximately
14 inches
– Motor: Electric helical gear motor with holding brake
– Power Requirements: 230/460V, 3-phase, 60Hz

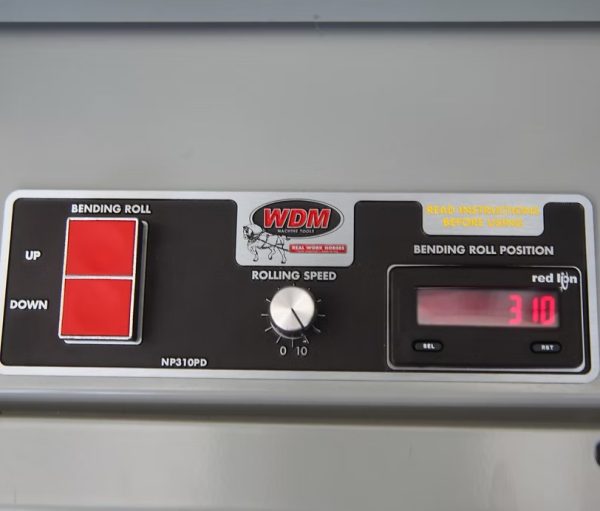

– Control Circuit: 24VDC
– Construction: All-welded steel frame with sealed ball bearings
– Safety Features: Emergency stop cable on three sides, guarded foot switch

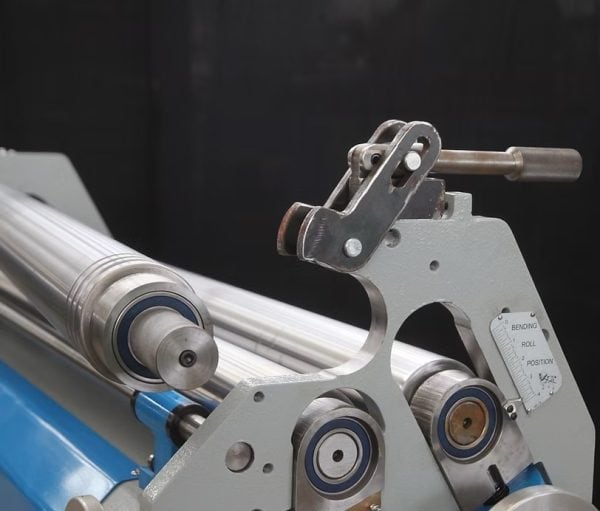

– Rolls: 1045 steel, crowned, machined to T63 micro-inch finish

Dimensions: 68″ L × 29″ W × 40″ H
Weight: Approximately 1,000 lbs
