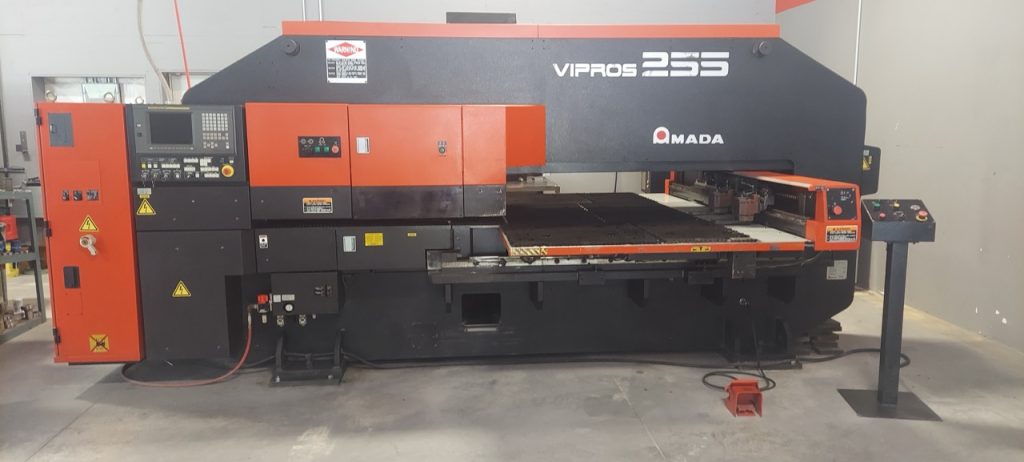

20 Ton Amada Vipros 255 Turret Puch, 2000

SPECIFICATIONS
Tonnage Capacity: 20 US Tons
Max Sheet Size (Without Repositioning): 50″ x 50″
Max Sheet Size (With Repositioning): 50″ x 100″
Max Material Thickness: 0.135″ (Mild Steel)
Throat Depth: 50″
Table Type: Brush Table

TURRET & TOOLING
Turret Stations: 31 Total
(4) Auto Index Stations
Tool Change Time: 1 Second Approx.
Tool Holder Type: Amada-style
Indexable Stations: Yes – up to 360°

CONTROL SYSTEM
CNC Control: Fanuc 18-P
Program Storage: Up to 1000 Programs
Input Method: Floppy Disk or RS-232

PERFORMANCE & POWER
Hit Rate (1″ Centers): Up to 300 Hits Per Minute
Hit Rate (Nibbling): Up to 900 Hits Per Minute
Axis Speeds (X/Y): 80 M/min (3,150 in/min)
Drive System: AC Servo Motors
Main Drive Motor: 5 HP
Electrical Requirements: 220V / 3 Phase / 60 Hz

DIMENSIONS & WEIGHT
Machine Footprint: Approx. 168″ x 128″
Height: Approx. 85″
Machine Weight: 22,000 lbs (approx.)
