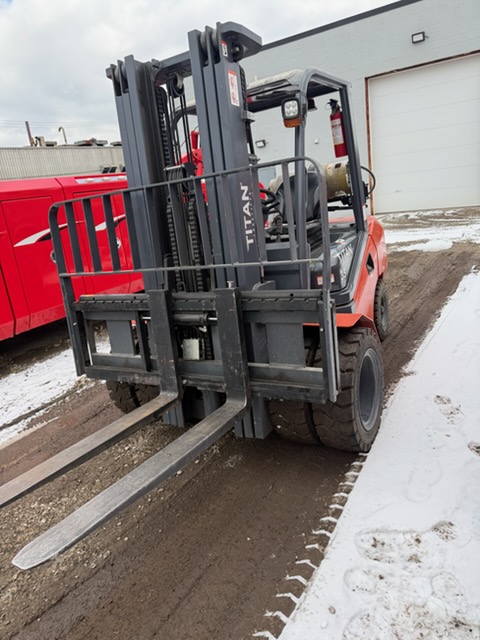

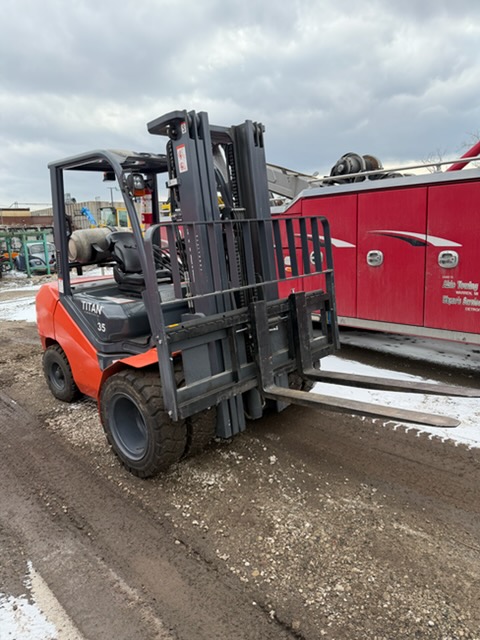

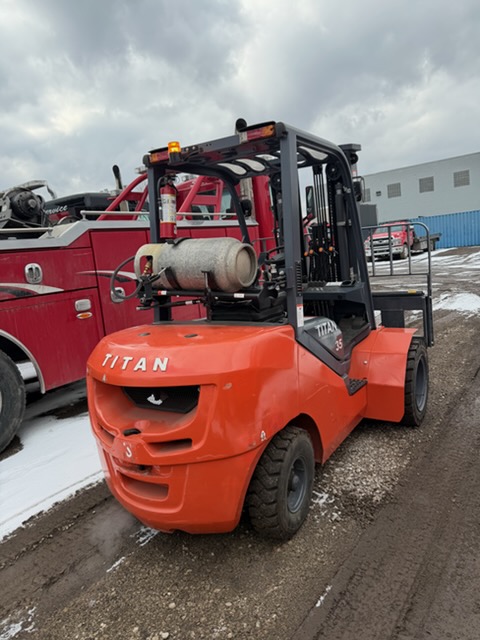

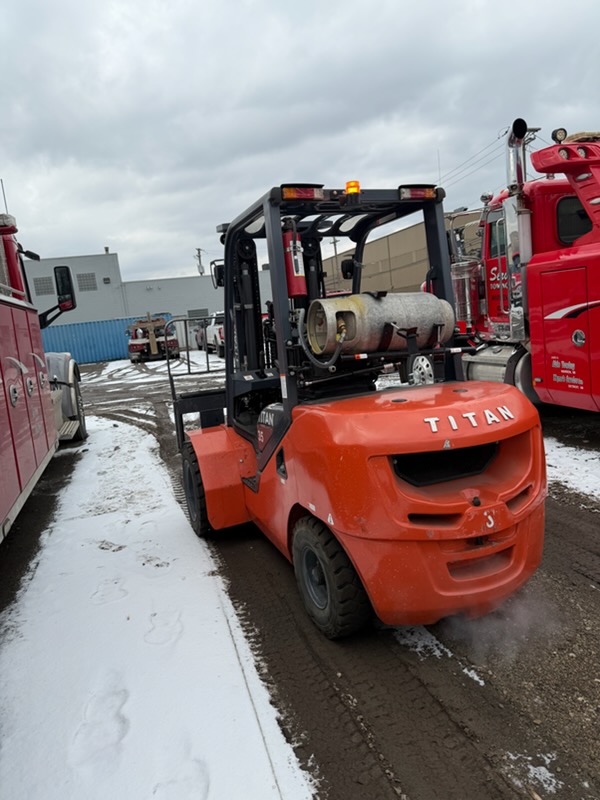

2022 Titan TG35S 7,700 LB LPG Pneumatic Forklift w/ Side Shift, 3-Stage Mast
$19,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Reliable and heavy-duty, this 2022 Titan TG35S LPG forklift offers up to 7,716 lb capacity, pneumatic tires, side shift, and an operator-friendly design suited for warehouses, manufacturing plants, and outdoor yards.
Spec Sheet โ 2022 Titan TG35S Forklift
Make: Titan
Model: TG35S
Year: 2022
Type: LPG/Gas pneumatic-tire forklift
Rated Capacity: 3,500 kg / 7,716 lbs
Load Center: 500 mm / 20 in
Tire Type: Pneumatic
Lift Height Range: 3,000โ4,800 mm / 119โ189 in
Fork Size: 1070 x 125 x 50 mm / 42 x 5 x 2 in
Mast Tilt: 6ยฐ forward / 12ยฐ back
Length to Fork Face: 2770 mm / 109 in
Overall Width: 1225 mm / 48 in
Ground Clearance: 135 mm / 5.3 in
Overhead Guard Height: 2090 mm / 82 in
Mast Lowered Height: 2175 mm / 85 in
Mast Extended Height: 4860 mm / 191 in
Turning Radius: 2480 mm / 97 in
Minimum Intersecting Aisle: 2530 mm / 99 in
Travel Speed: 19 km/h / 11.8 mph
Lift Speed, Full Load: 440 mm/s / 17 in/s
