3/8″ x 10′ Cincinnati 2510G CNC Mechanical Power Squaring Shear, 1985 – Backgauge

Name: 3/8" x 10' Cincinnati 2510G CNC Mechanical Power Squaring Shear, 1985 - Backgauge
SKU: 34313365603

$18,900.00

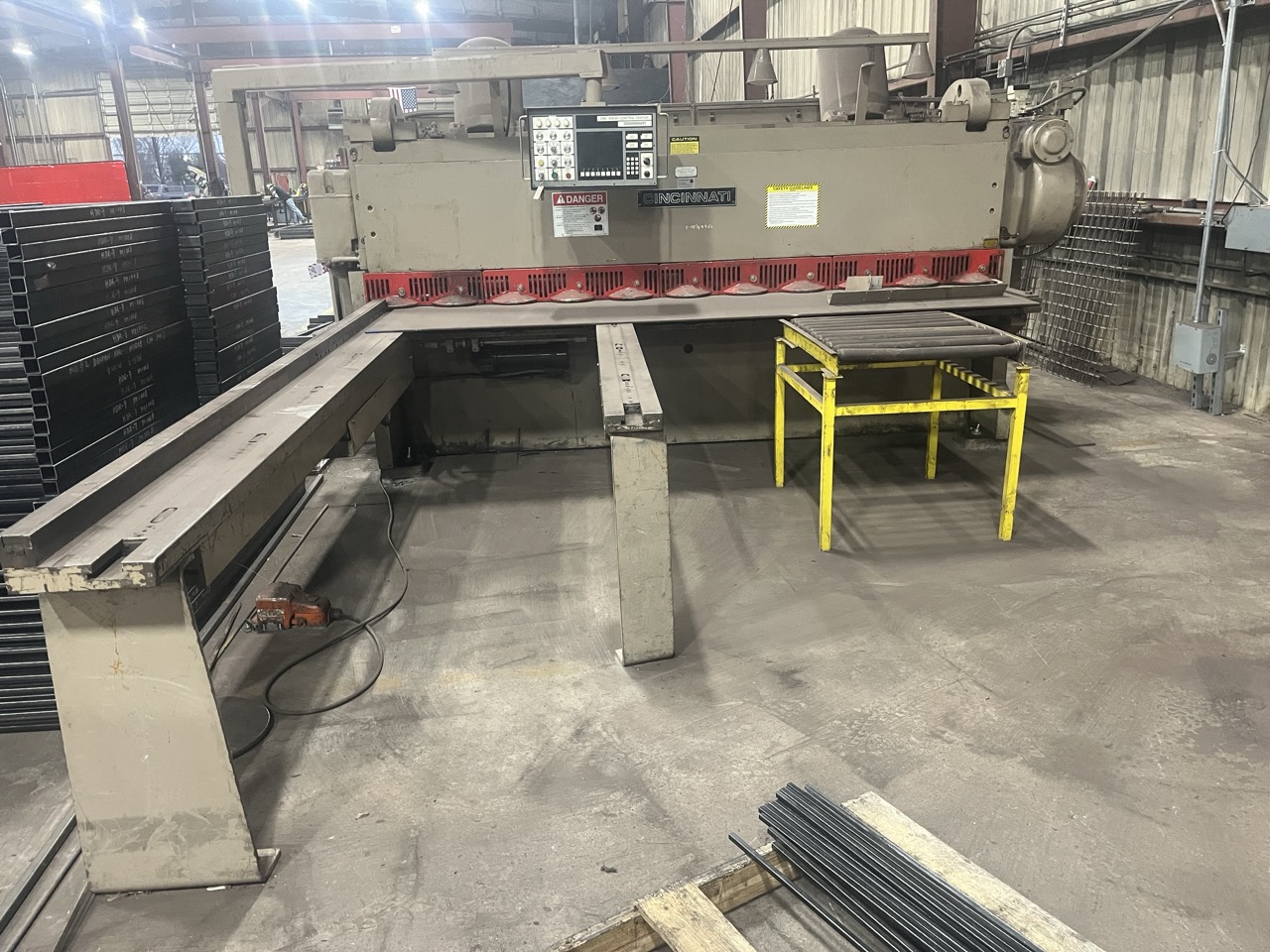

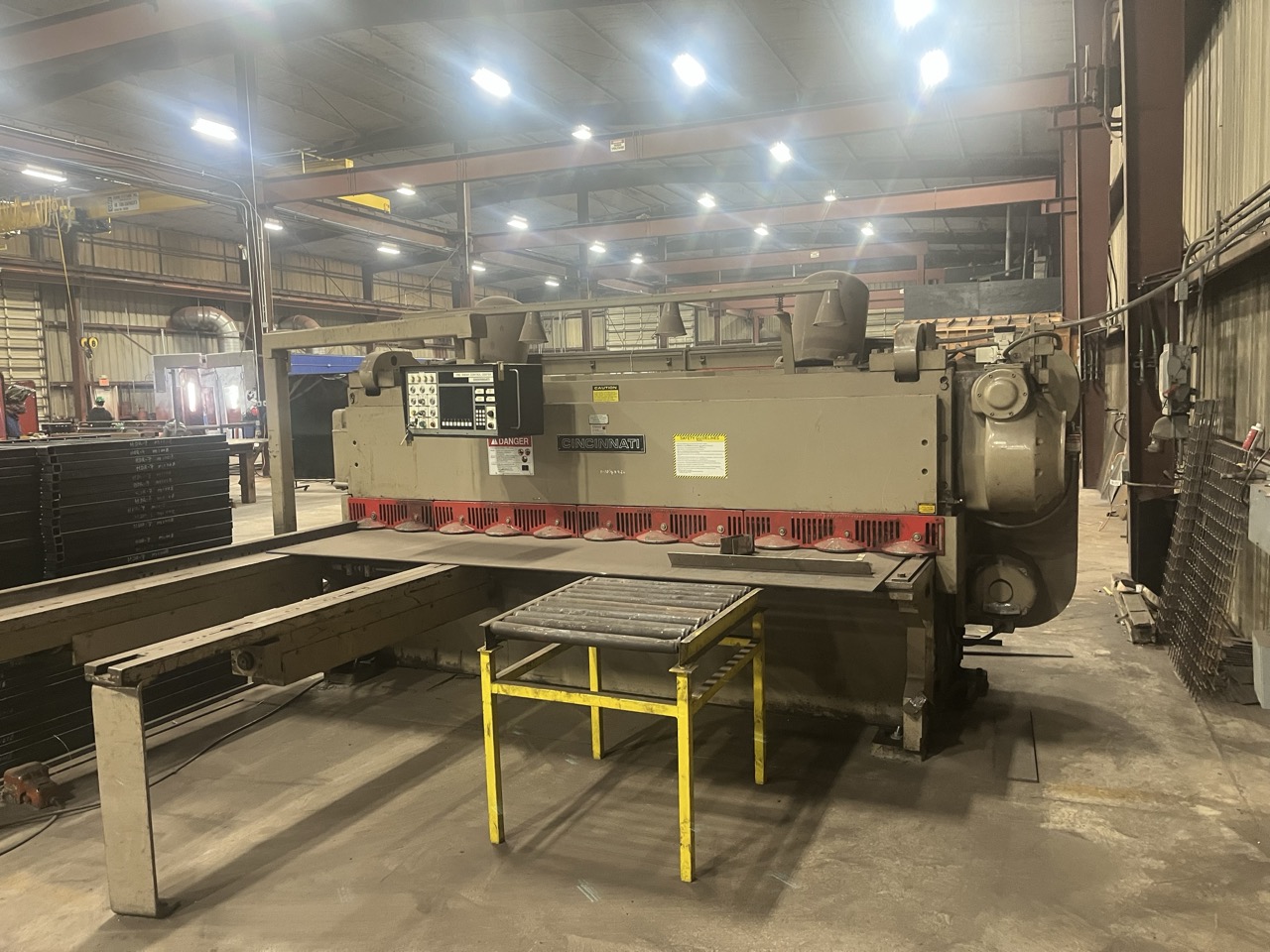

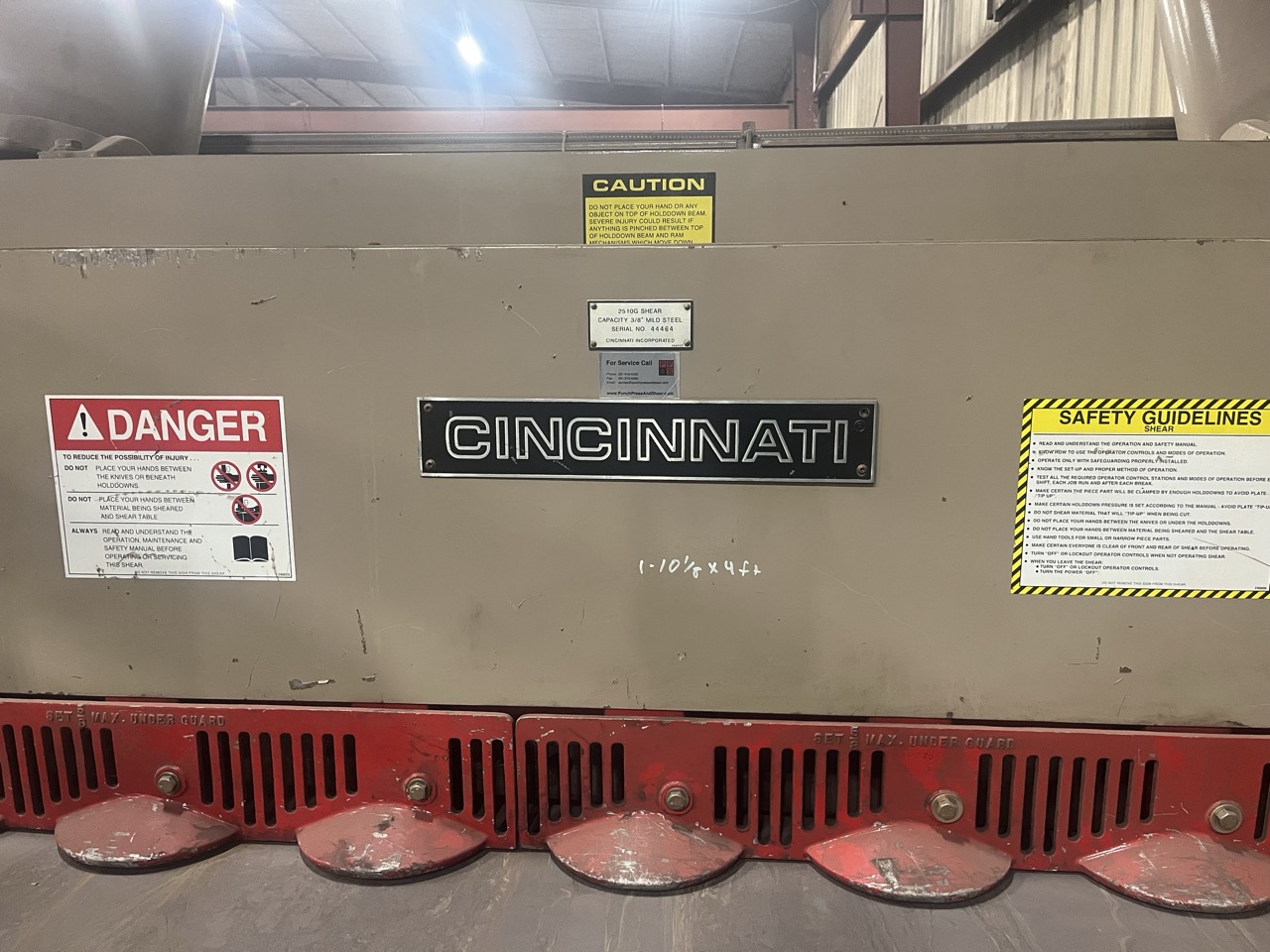

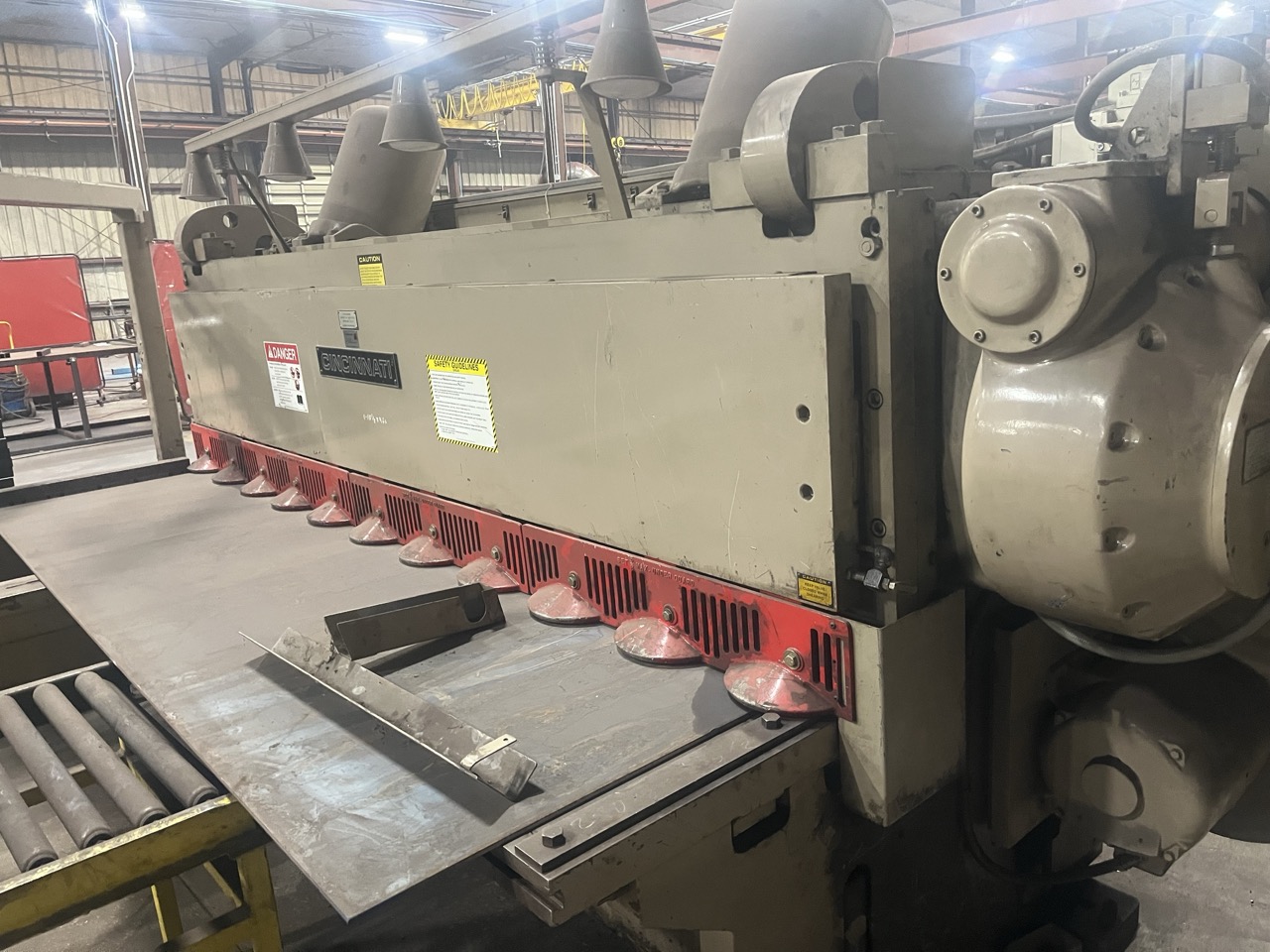

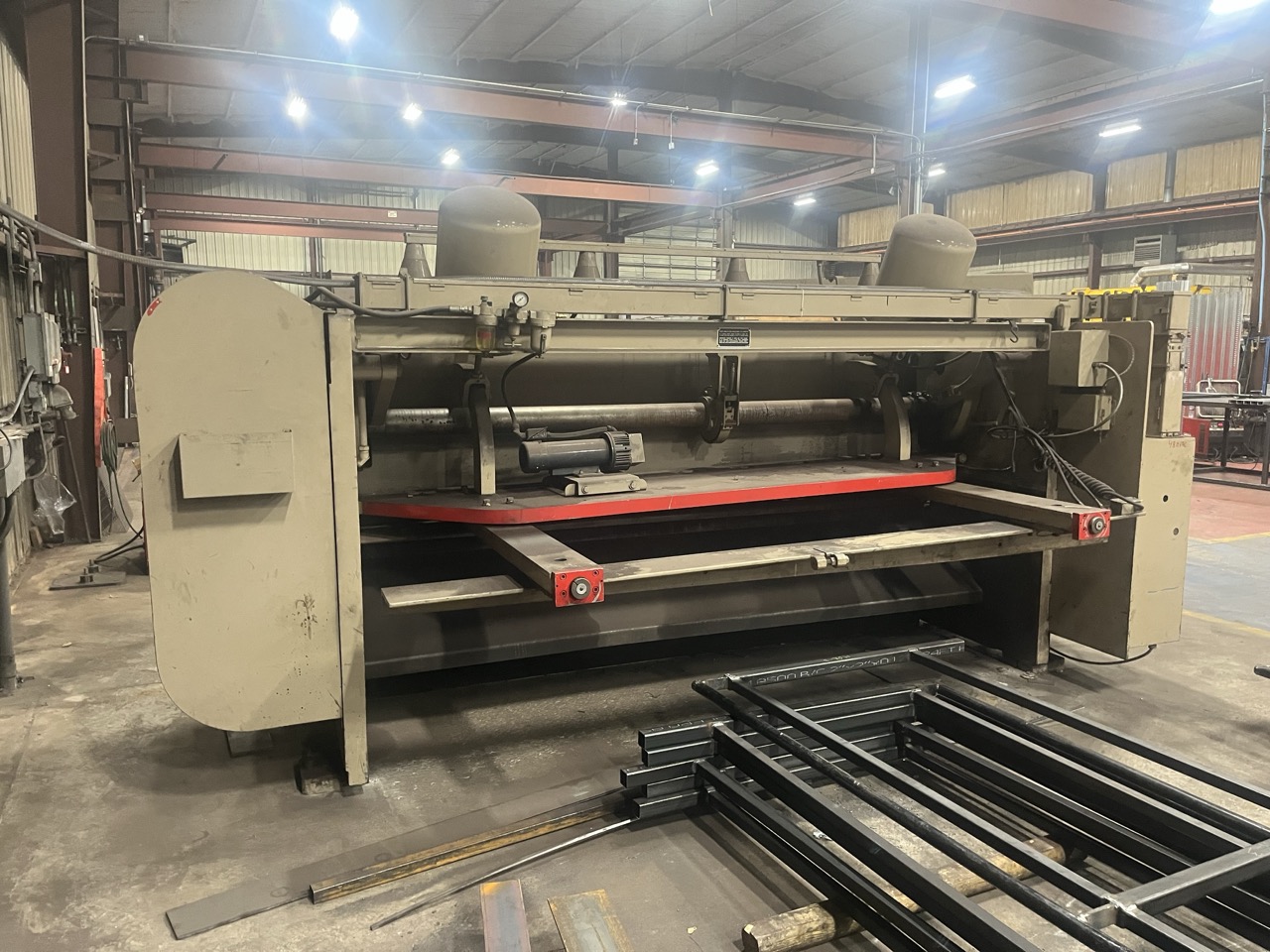

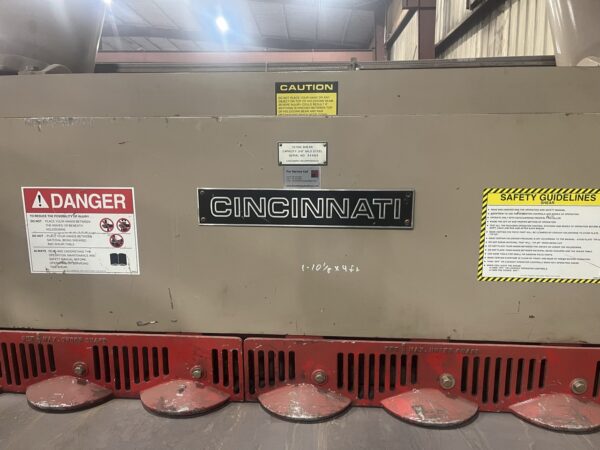

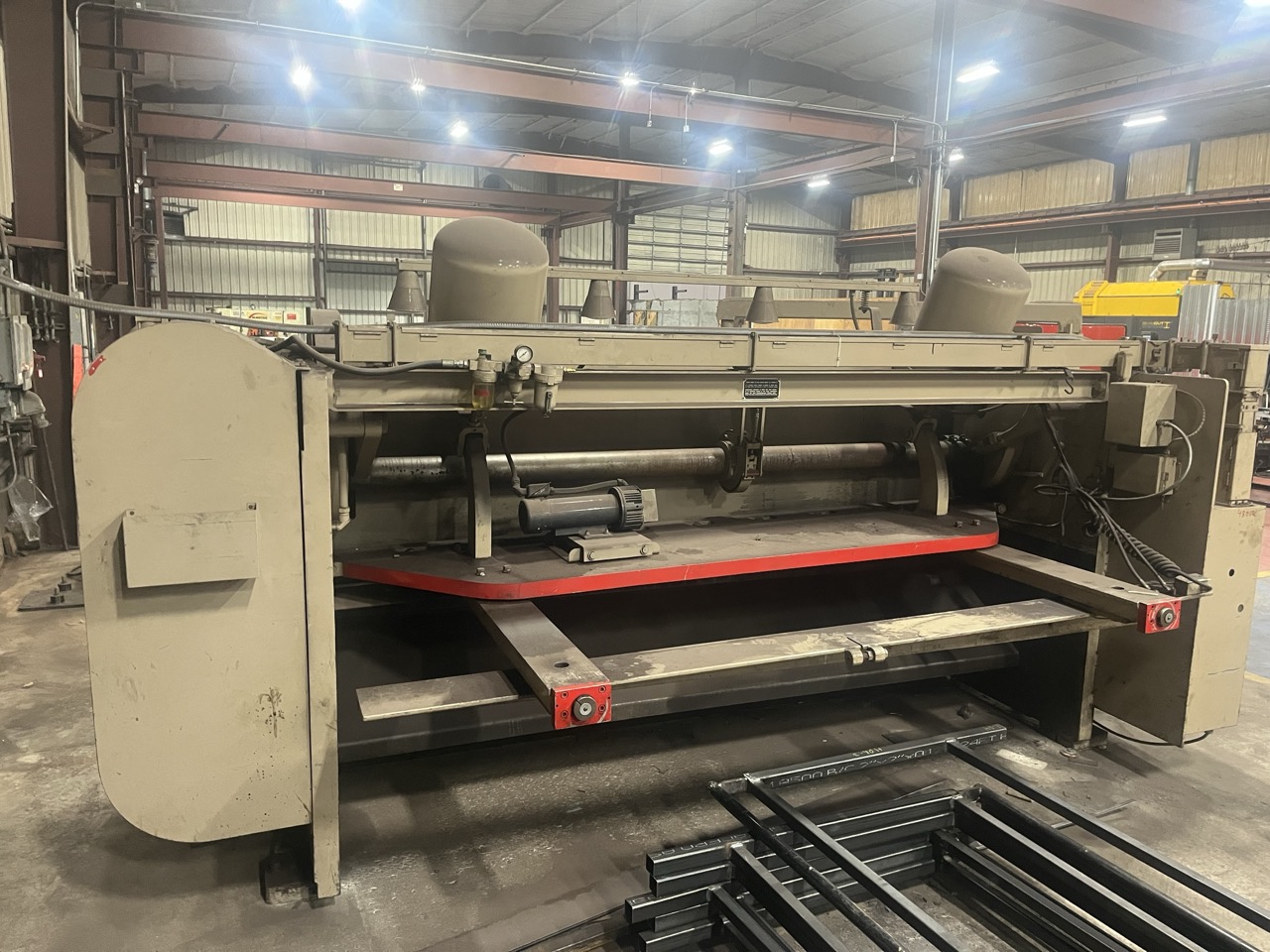

3/8" x 10' Cincinnati 2510G CNC Mechanical Power Squaring Shear, 1985 - Backgauge - Image 2

3/8" x 10' Cincinnati 2510G CNC Mechanical Power Squaring Shear, 1985 - Backgauge - Image 3

3/8" x 10' Cincinnati 2510G CNC Mechanical Power Squaring Shear, 1985 - Backgauge - Image 4

3/8" x 10' Cincinnati 2510G CNC Mechanical Power Squaring Shear, 1985 - Backgauge - Image 5

3/8" x 10' Cincinnati 2510G CNC Mechanical Power Squaring Shear, 1985 - Backgauge - Image 6

3/8" x 10' Cincinnati 2510G CNC Mechanical Power Squaring Shear, 1985 - Backgauge - Image 7

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Max. Thickness: 3/8″
Length: 10′
Approx. Shipping Weight: 26,400 Lbs
Motor: 10 Hp
Strokes Per Minute: 50
To Blade Edge: 7/8″
Standard Dist. Under Holddowns: 11/16″
Rake (Shear Angle) Taper Per Foot: 9/32″
Ram Adjustment: 11/16″
Standard Gaps (Throat Clearance): 18″
Number Of Holddowns: 11
Equipped With:

36″ Front Operated Powered Back Gauge
Squaring Arm
Support Arm

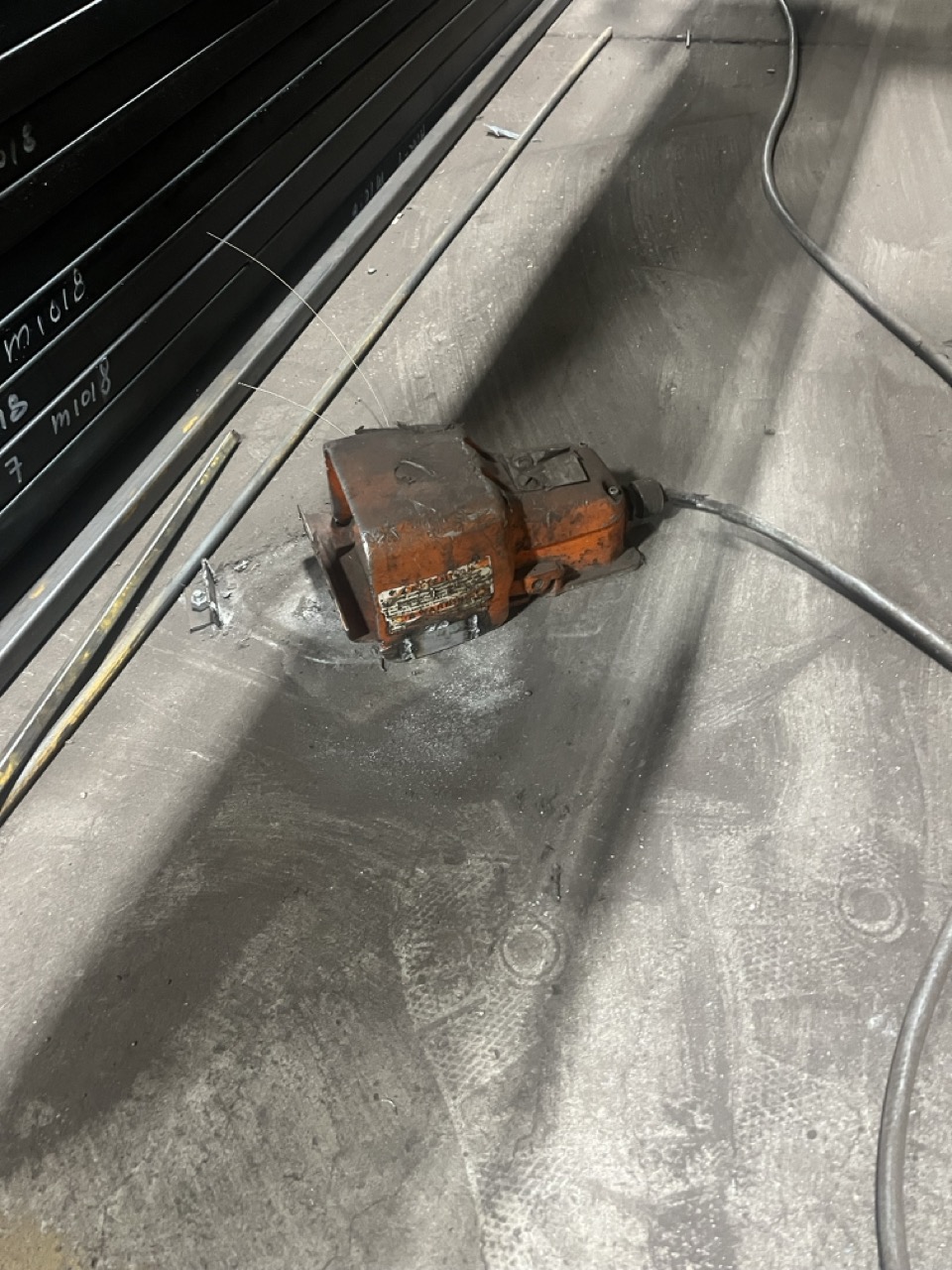

Foot-Switch
