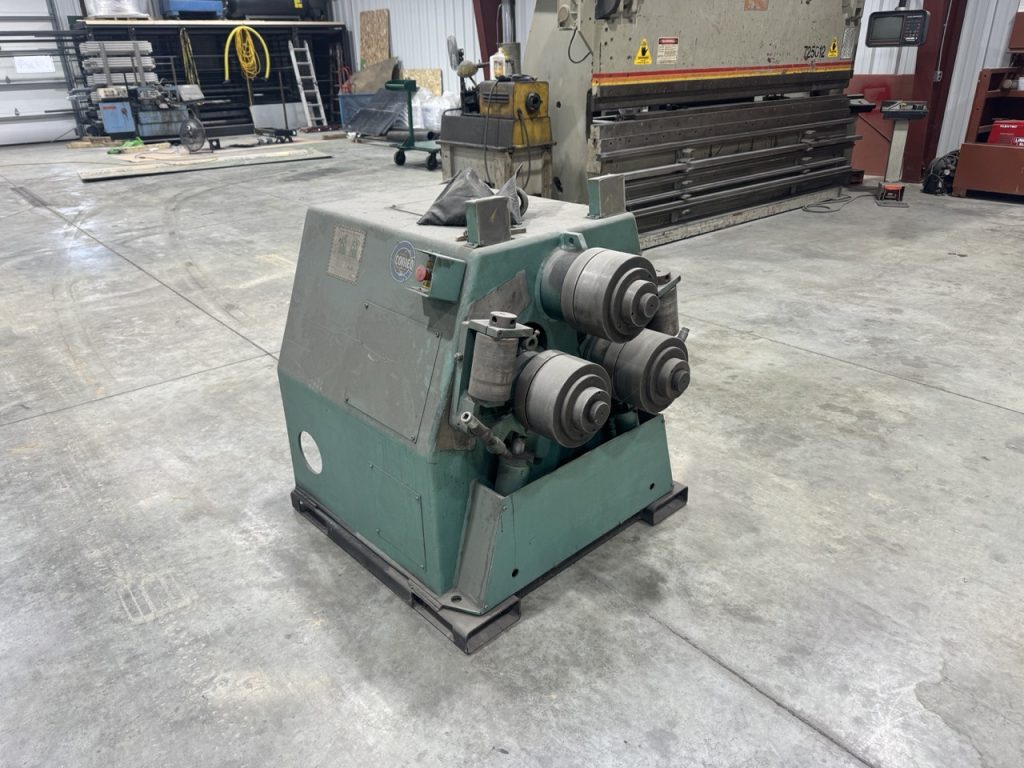

3″ X 3″ x 1/4″Roundo R-3 Hydraulic Angle Bending Roll,

Angles (Leg Out): 3" x 3" x 5/16"
Angles (Leg In): 2-1/2" x 2-1/2" x 5/16"
Flat Bar (on Flat): 3/4" x 8"
Flat Bar (on Edge): 5/8" x 3"
Pipe Capacity: 2-1/2" diameter (Standard Schedule 40 pipe up to 2")
Square Bar: Up to 1-3/4" (45 mm)
Round Bar: Up to 2" (50 mm)
Roll Diameter: 9" (225 mm)
Shaft Diameter: 3" (approx. 75 mm)
Bending Speed: Approximately 23 FPM (7 m/min)
Motor Power: 5 HP to 5.5 HP (4 kW)
Approx. Weight: 4,000 lbs
Approx. Dimensions: 41" x 45" x 41"
