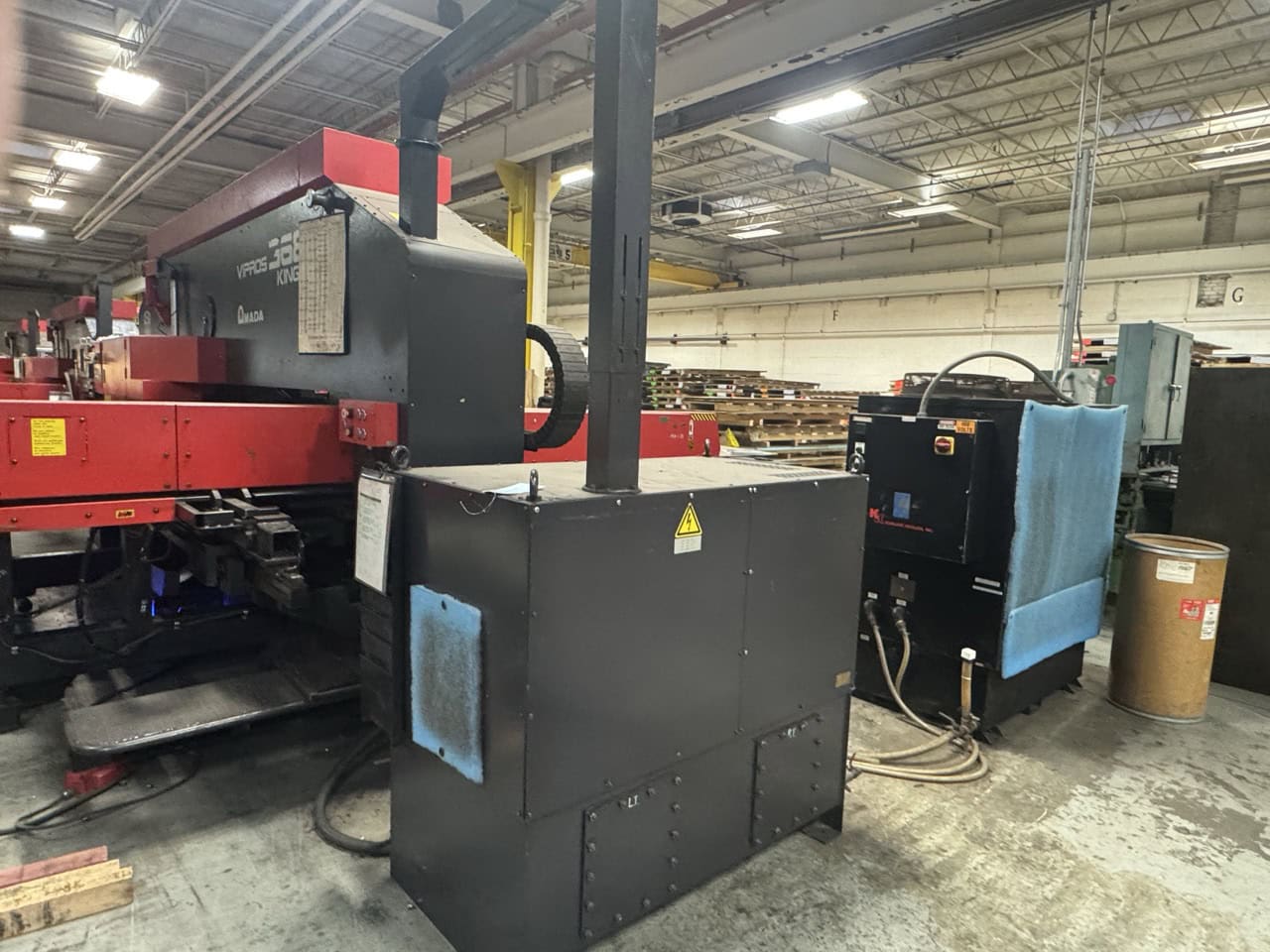

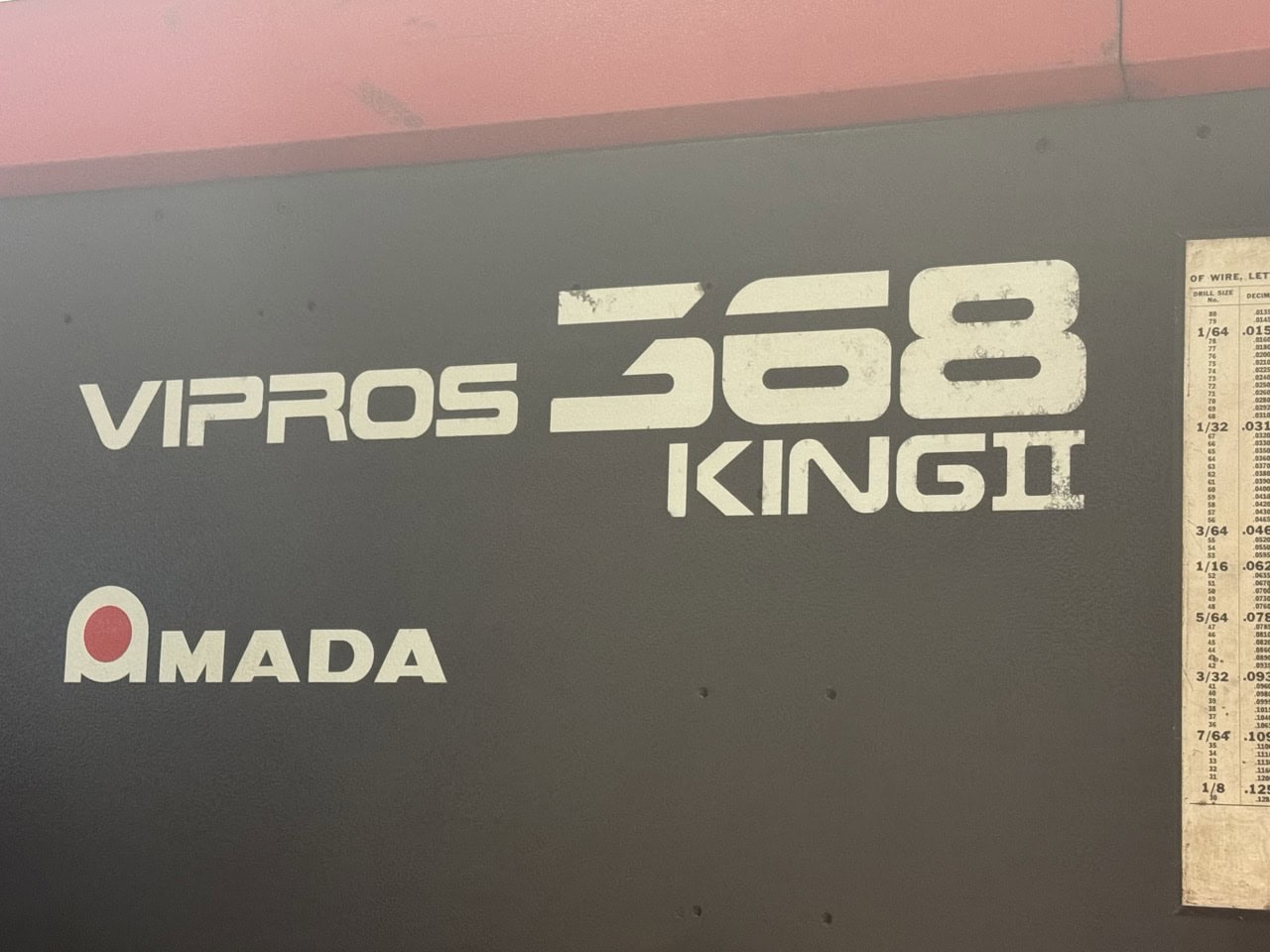

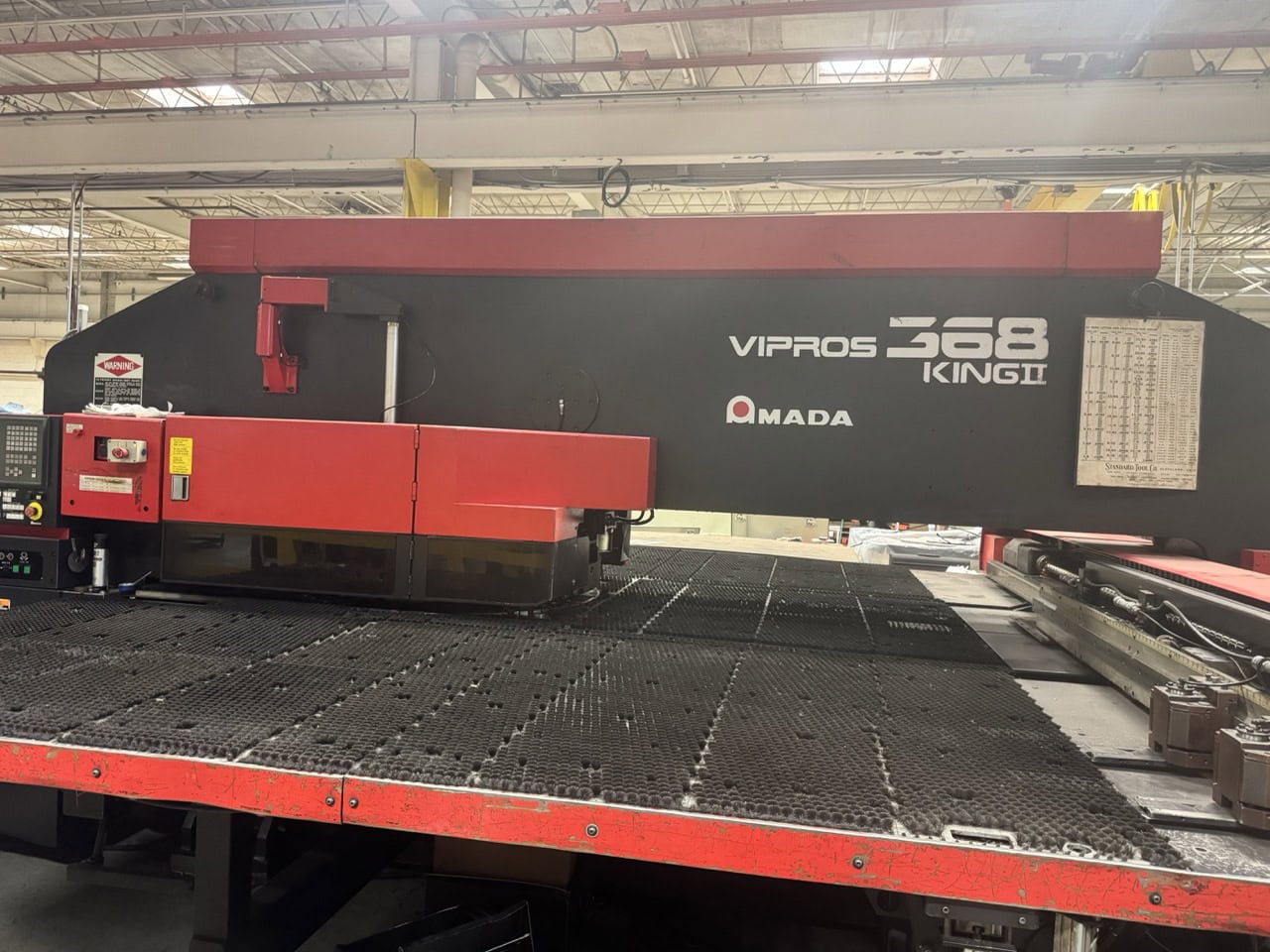

33 Ton Amada Vipros 368 King II Turret Punch, 1999 – Fanuc Control
$29,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Tonnage Capacity: 33 Tons
Maximum Sheet Size: 60โณ (Y) x 157.50โณ (X) with repositioning
Maximum Axis Travel: 60โณ (Y) x 78.74โณ (X)
Max. Linear Table Speed: 3150โณ per min.
Punching Accuracy: +/-0.004โณ Hole to Hole
Maximum Sheet Thickness: 0.125โณ
Maximum Material Weight: 132 lb.
Press Stroke: 1.575โณ
Maximum Hole Diameter: 4.5โณ
Tool Type: Amada Thick Turret
Turret Rotation Speed: 30 RPM

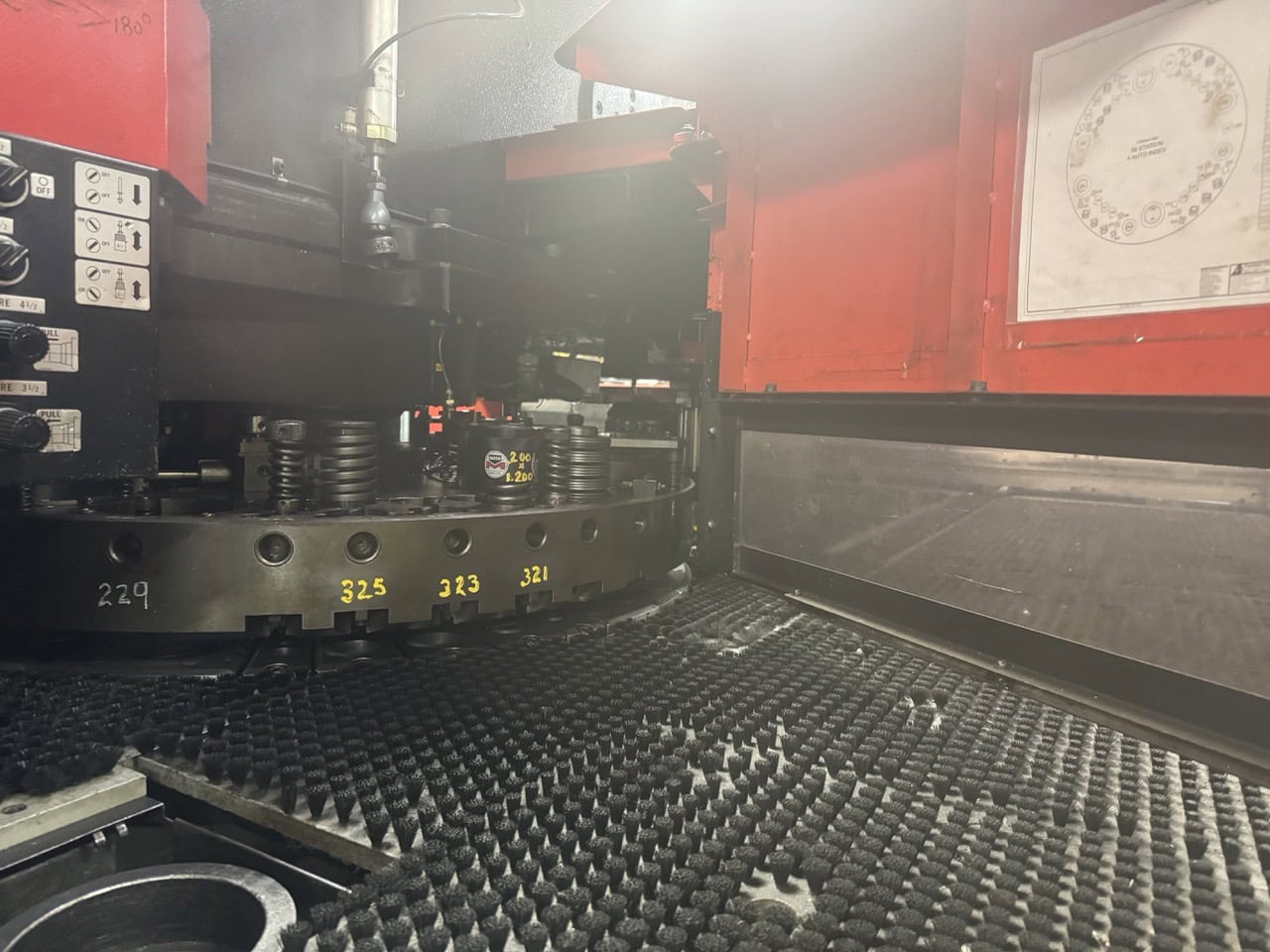

Turret Capacity: 58 Stations (4 auto-index)
Minimum Command Unit: 0.001โณ (X, Y)
Minimum Travel Unit: 0.001โณ (X, Y)
Equipped With:

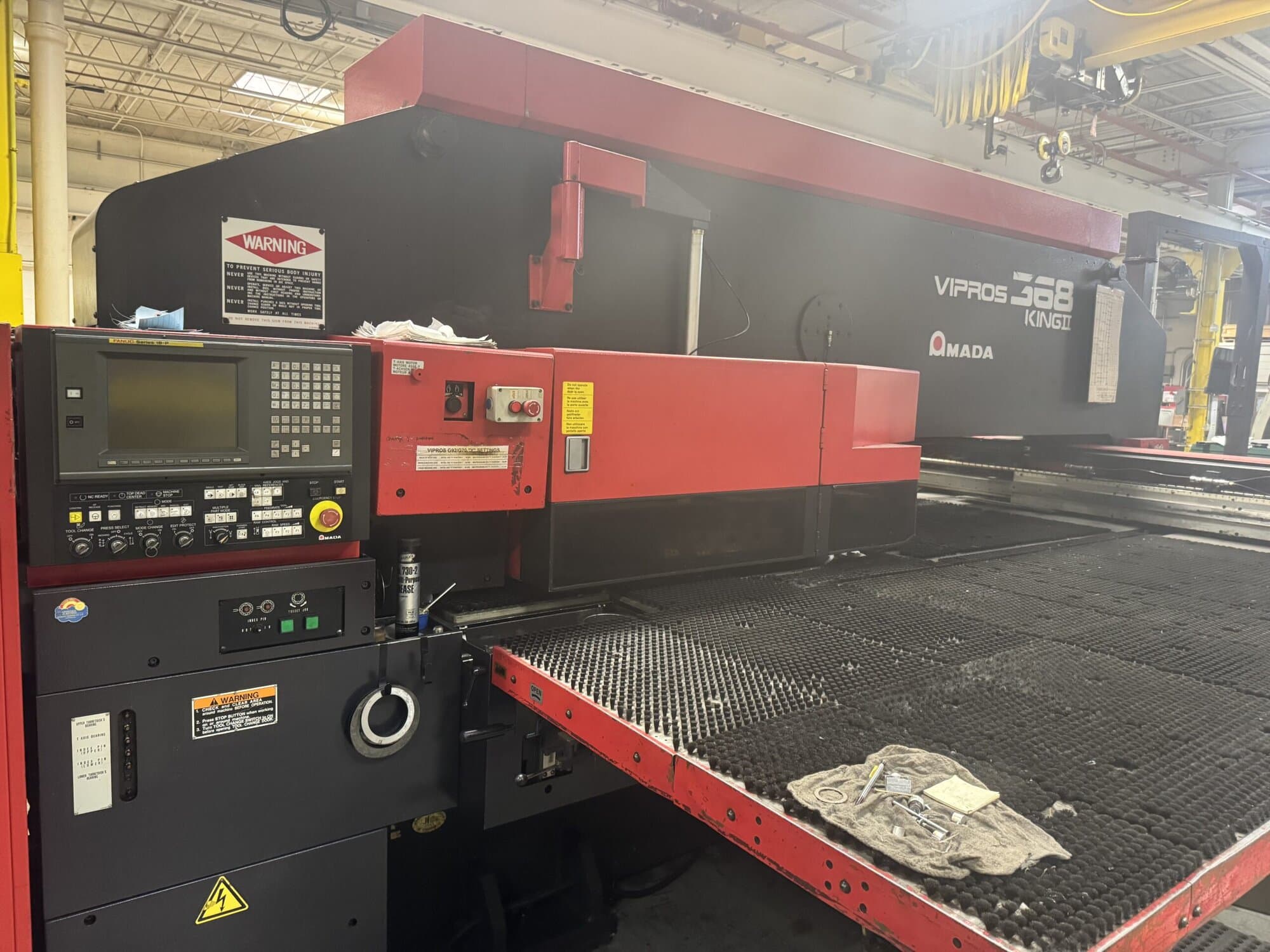

Fanuc Series 18-P Control
