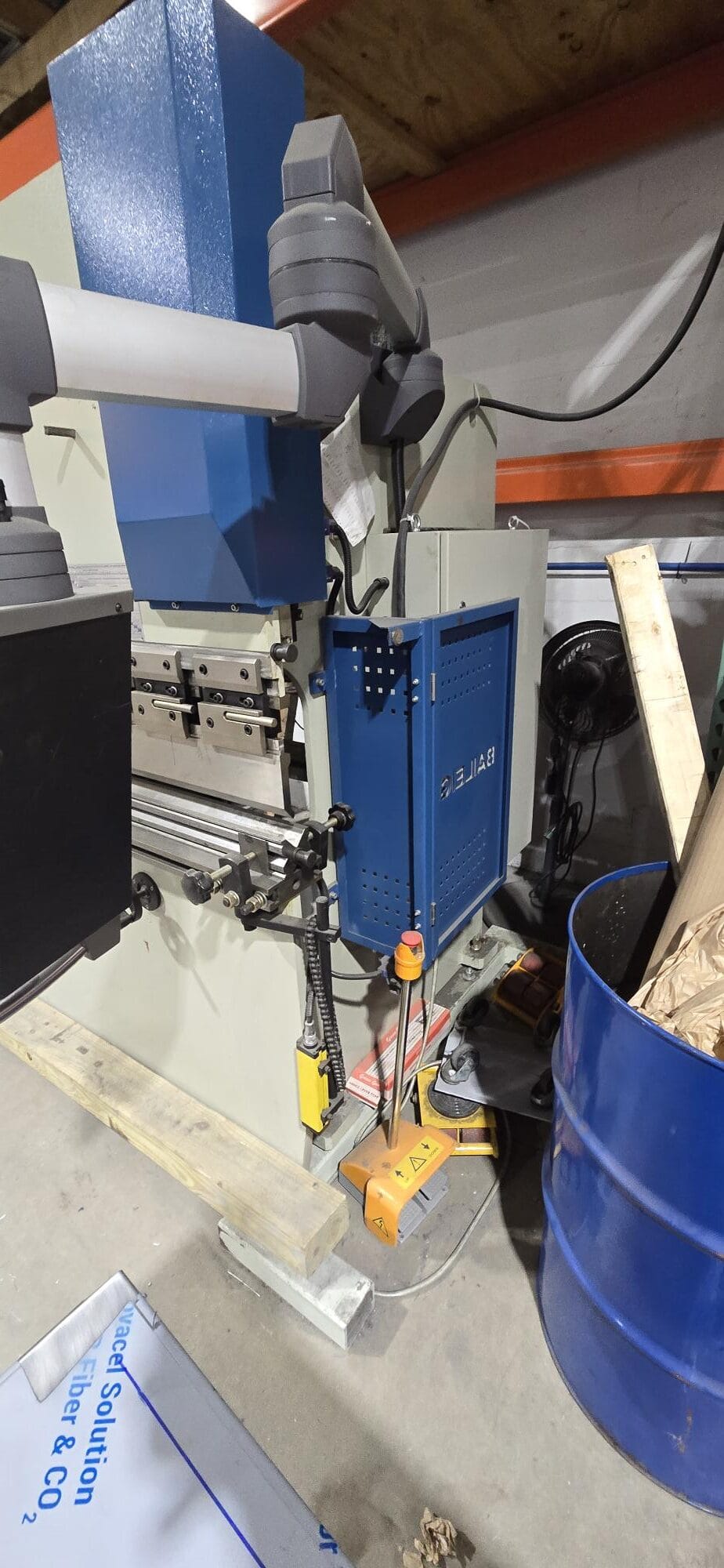

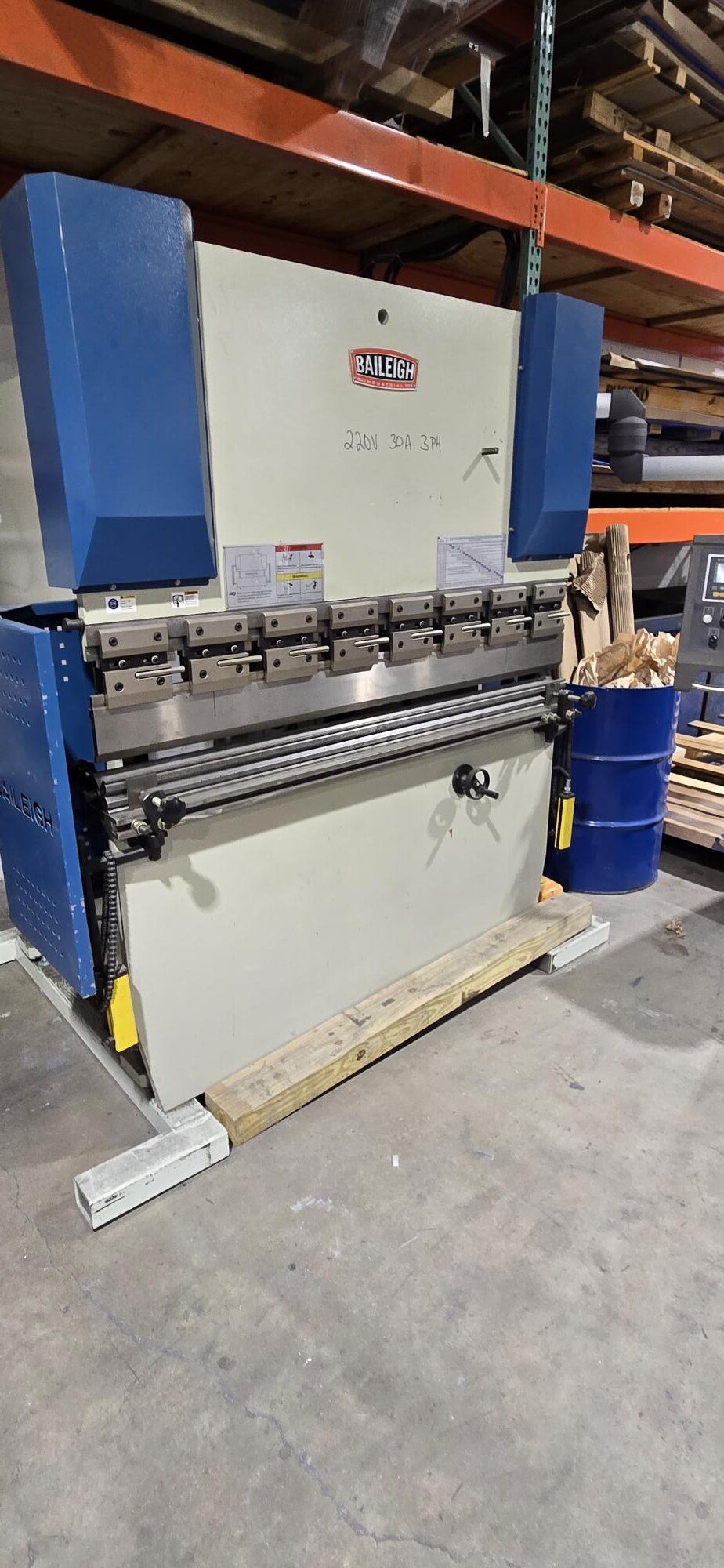

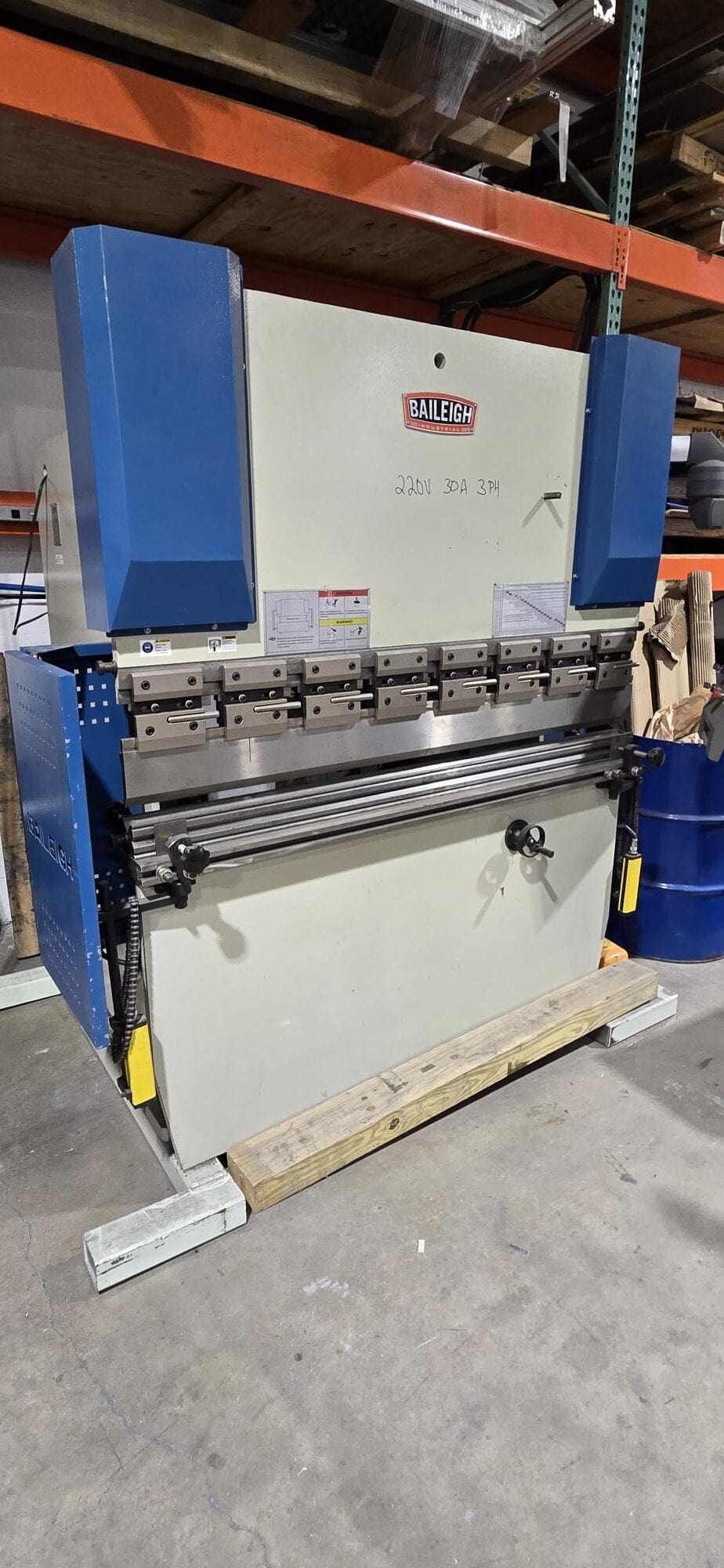

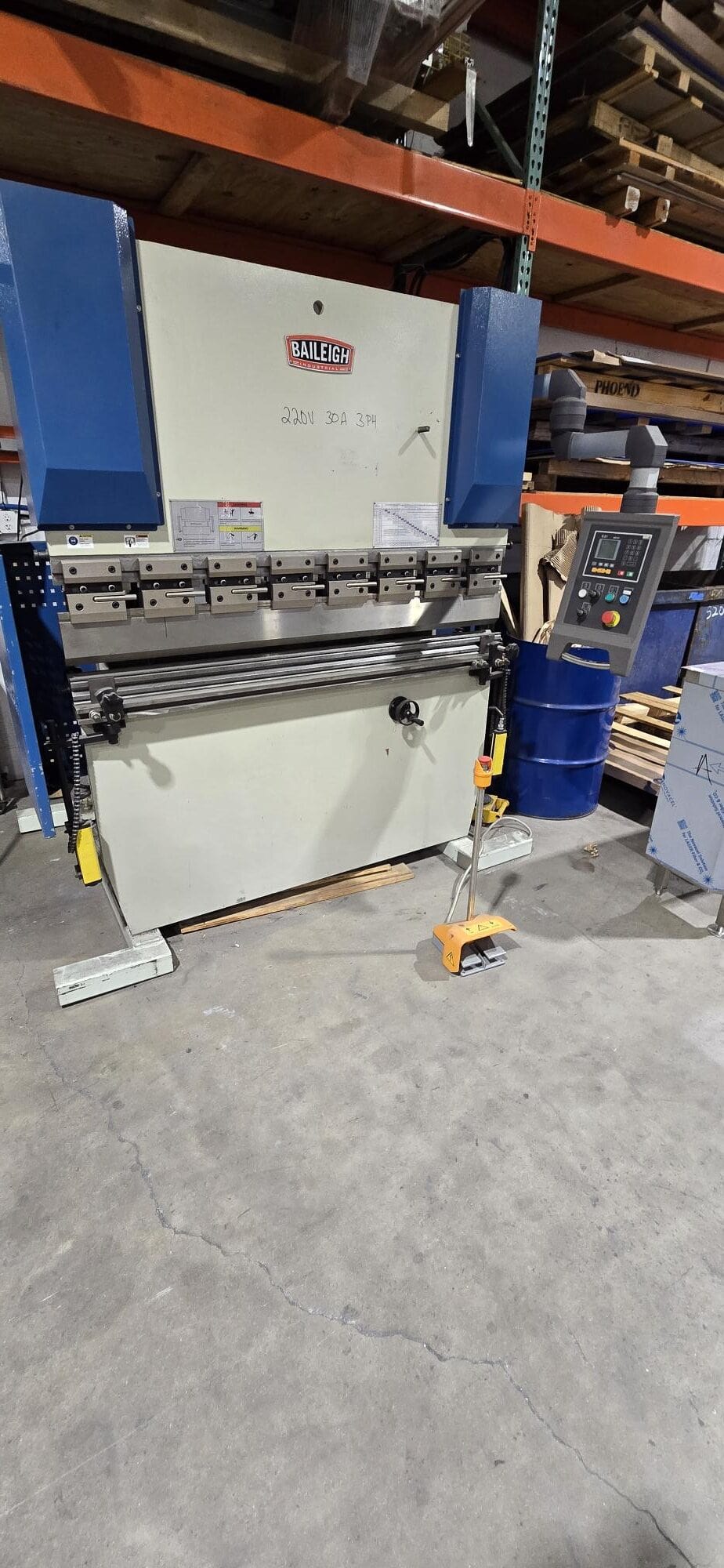

33 Ton x 5′ Baileigh 3305CNC Hydraulic Press Brake, 2021
$18,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size 63″ x 7″

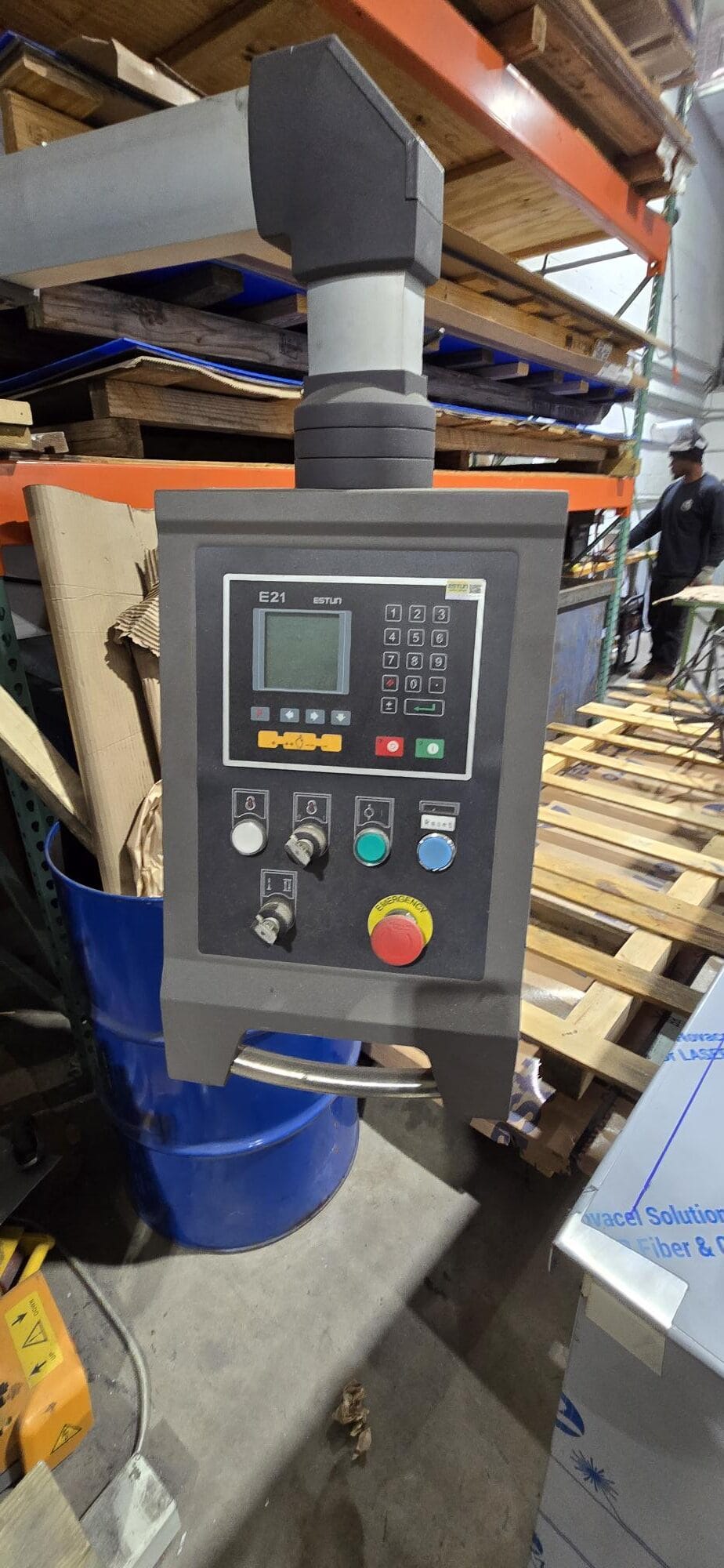

Programming 40 Programs/ 25 Steps per Program

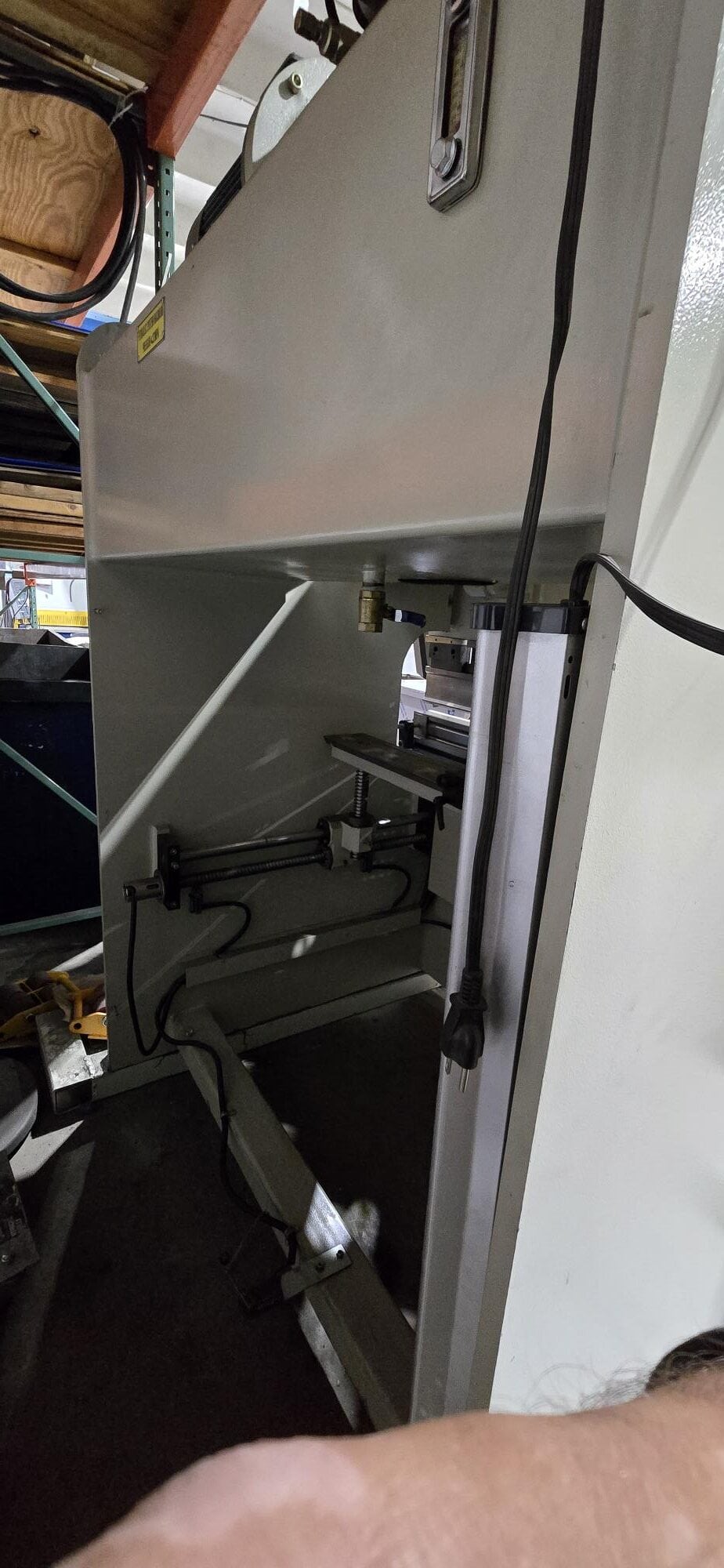

Back Gauge Length 21.5″
Return Speed 3.3″ / sec.
Pressure 33 Tons
Included Tooling 78ยฐ Gooseneck & Multi-Vee Die (5/16″, .39″, .47″, 5/8″, .94″, 1-1/4″, 2″)
Throat Depth 8″
Stroke Distance 3.15″
Approach Speed 3.5″ / sec
Back Gauge Motor 1/2 hp
Bending Speed .394″ / sec.
Main Motor 4 hp
Distance Between Housings 51.25″
Distance From Table To Ram 13.325″
Power 220V / 3-phase
Shipping Weight 5050 LBS
Shipping Dimensions 79โ x 44โ x 79
