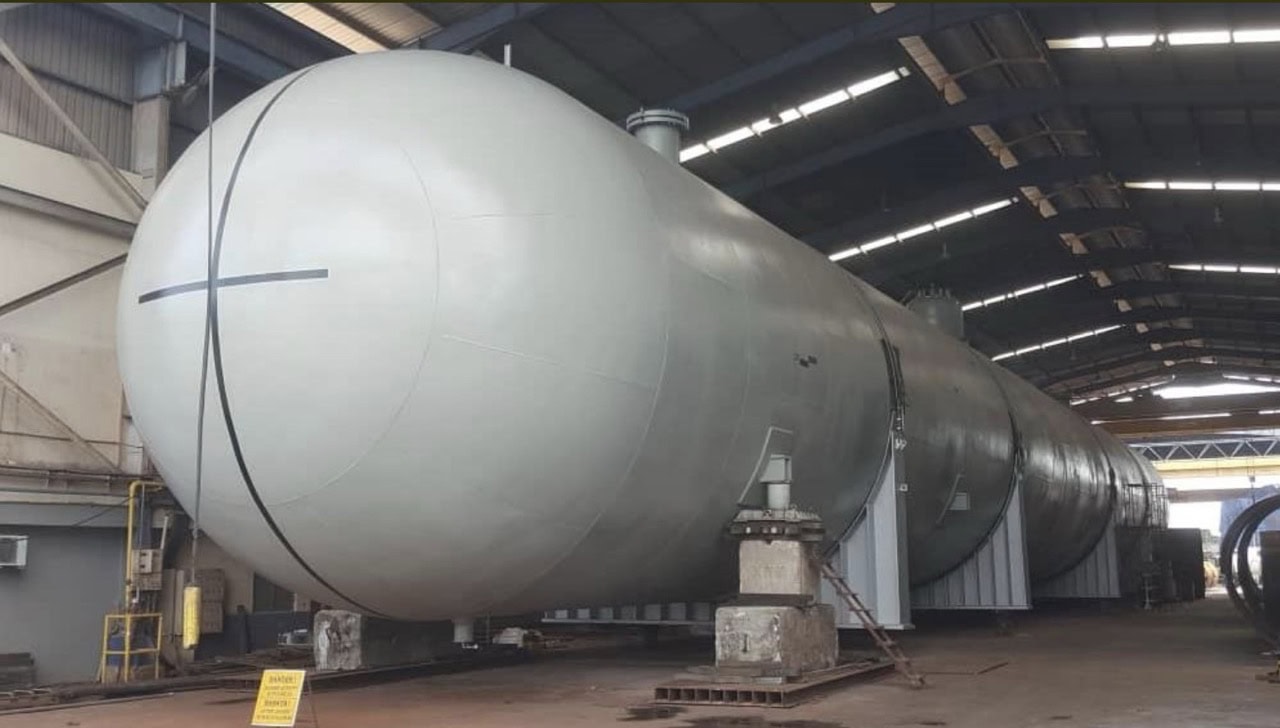

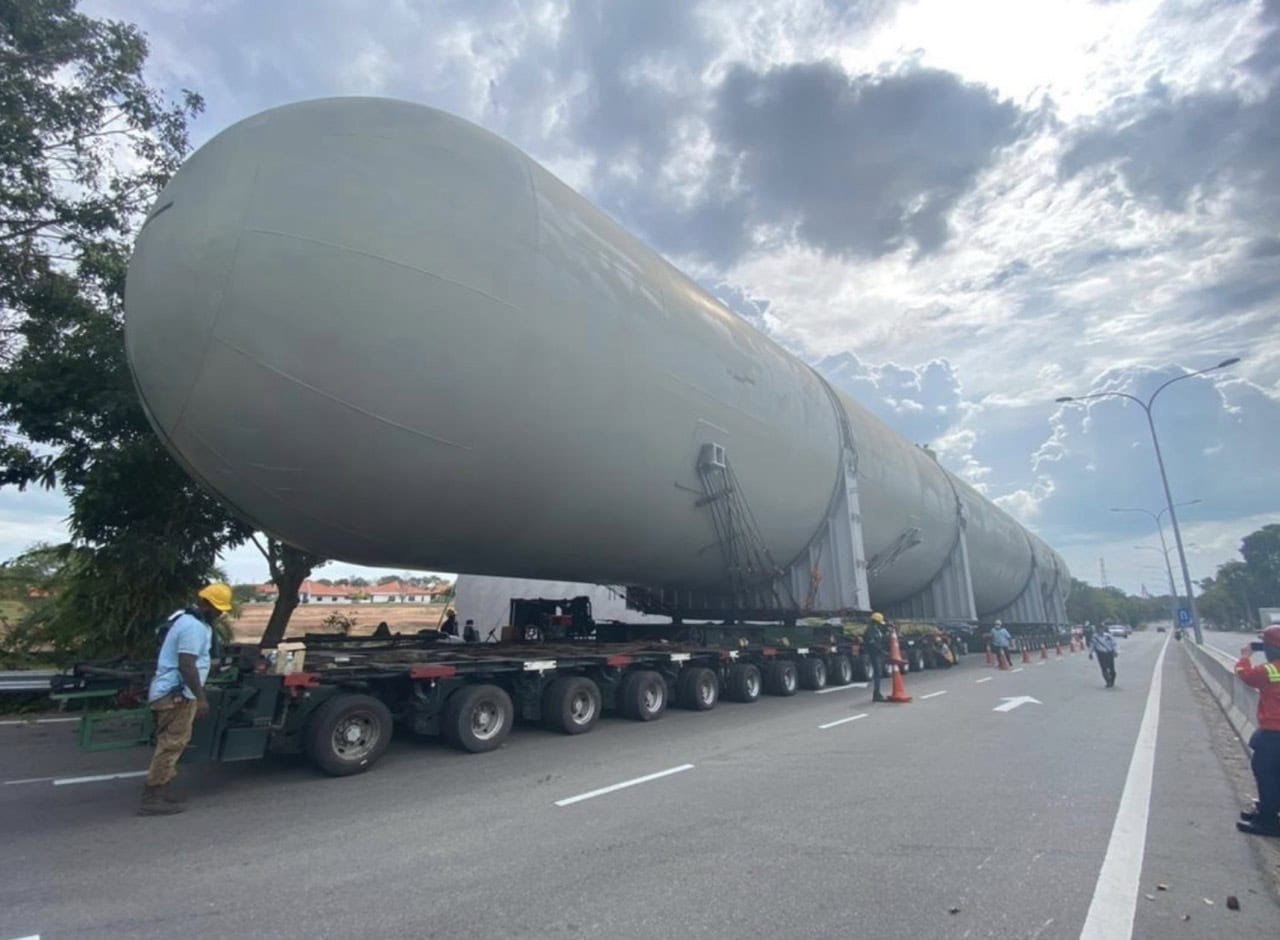

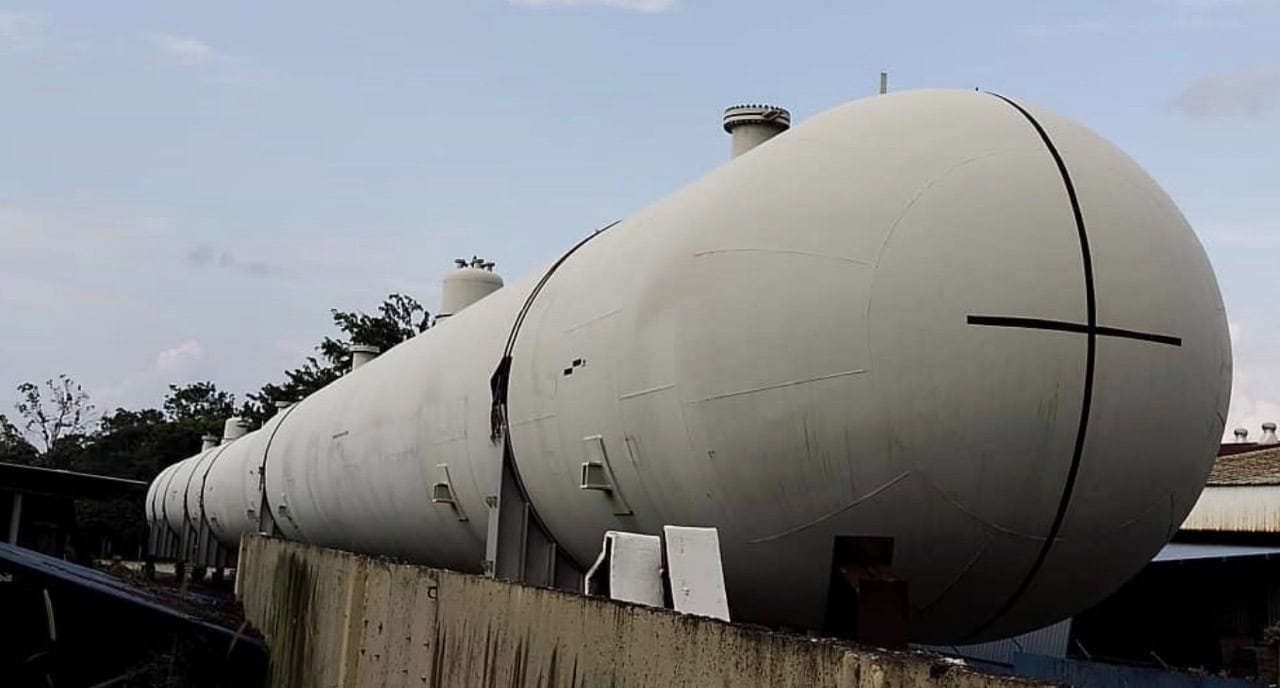

3,300 Cubic Meter KNM LPG Bullet Storage Tank, 2017 (4)

Design Code : ASME Section VIII Div.2, Class 2 2017 Edition & EEMUA 190-Edition (2017)

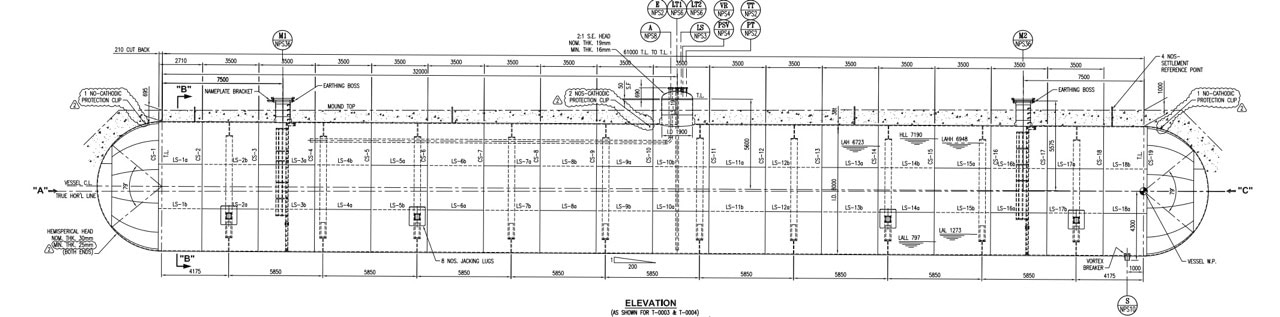

Size : ID 8m x 61m (TLTL)

Thickness : 38mm (Shell) 25mm (Head)

Material : SA 537 cl 2

Capacity 3,300 m3 per bullet

Empty Weight : 612 MT per bullet

Operating Weight : 2,308 MT per bullet

Full of Water Weight : 3,950 MT per bullet

Design Pressure (Internal External) : 19 FV barg

Design Temperature (Max Min) : 50 -40 deg C

Post Weld Heat Treatment : Yes

**4 Available**
