3’x3′ IWM1010H CNC Waterjet, 2015 – Demo Unit only 1613 Hours

Effective Cutting Area: 3’ X 3’
Largest Workpiece: 36” X 36”
Maximum Z-Axis Travel: 6″
X-Y Axis Motion System: Ball Screw, Linear Motion Guide.
X-Y Axis Motion Drive: AC Servo Motor.
Z Axis Motion: AC Motor with Speed Reducer.
X-Y Axis Linear Position Accuracy: +/- 0.0016″
X-Y Axis Repeatability: +/- 0.0004″
Maximum Cutting Tolerance: +/- 0.004″
Maximum X-Y Axis Travel Speed: 32 FT/Min
Voltage: 3 Phase, 220/380/415/480VAC,
Equipped with:

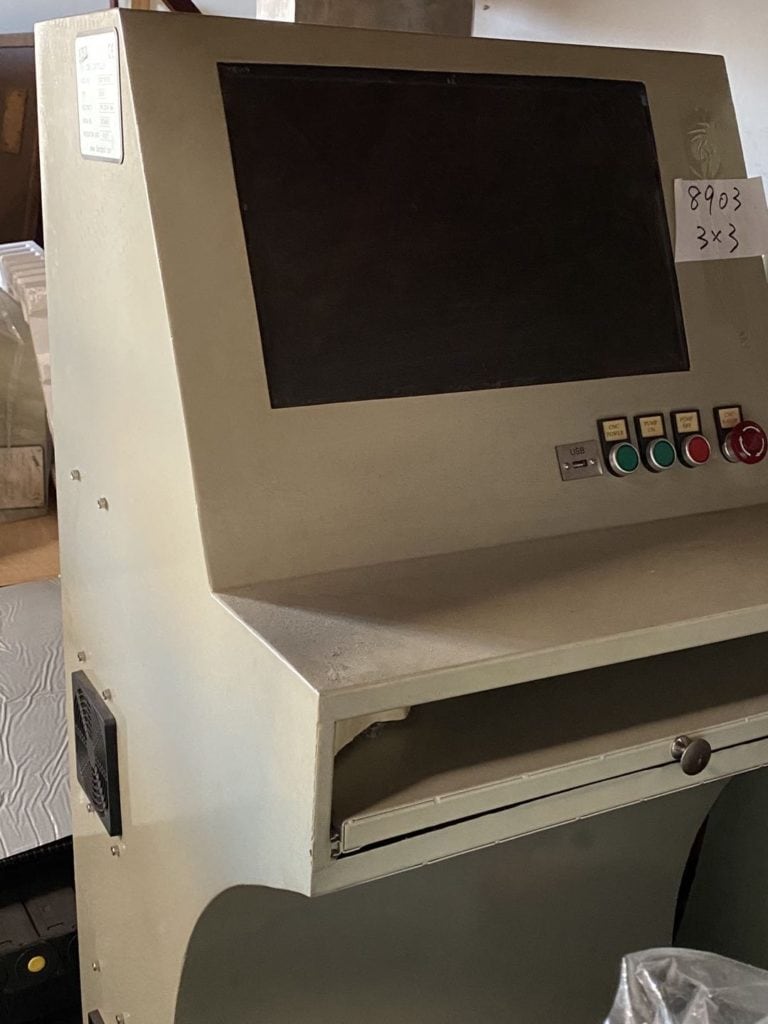

P.C. Controller
Abrasive Hopper
