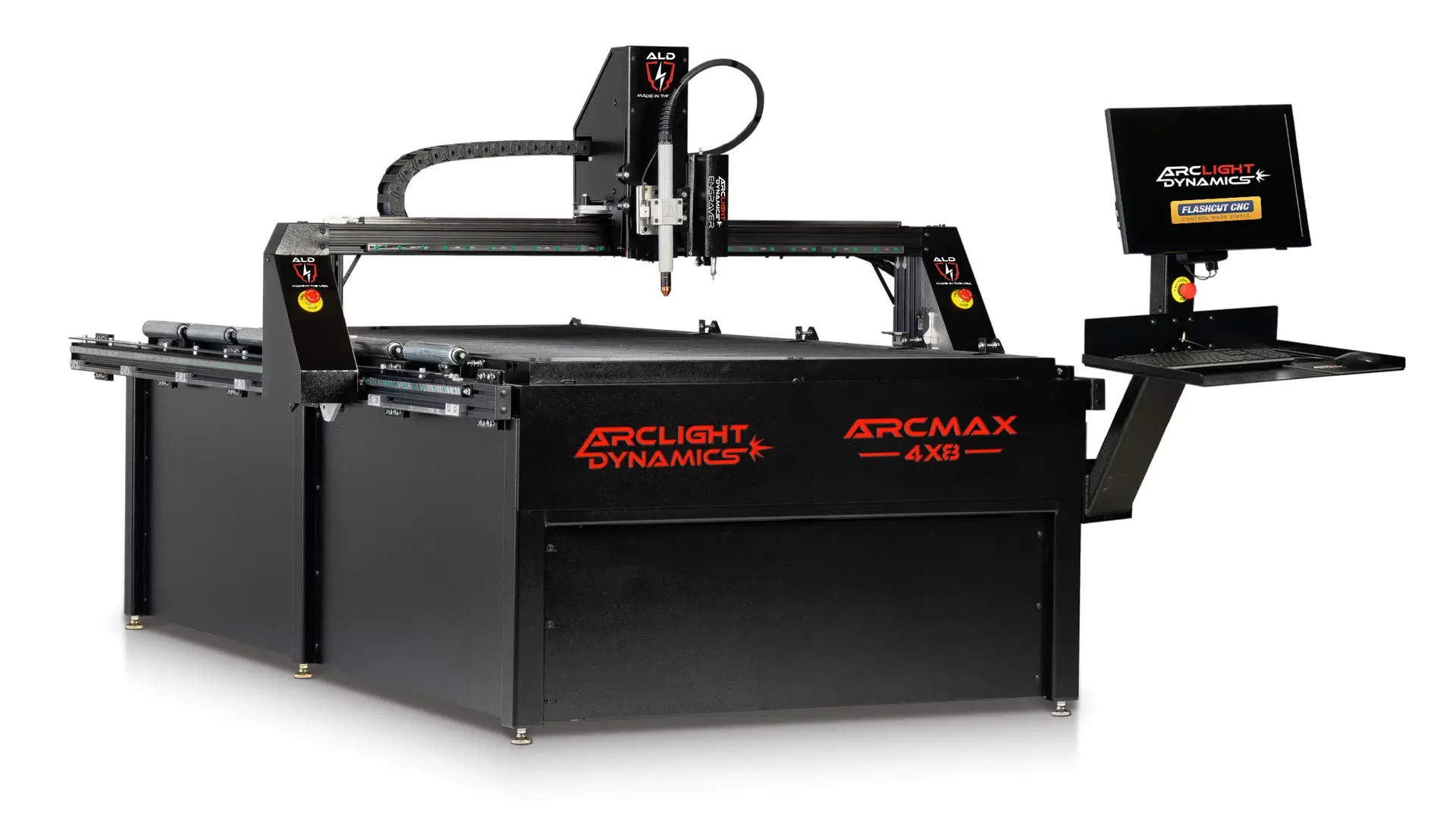

4′ x 8′ Arclight ArcMax Elite, 2025

Refurbished by OEM
Cutting envelope: 50″ x 97″ x 6.5″
Overall dimensions: 120″L x 76″W x 60″H
Weight capacity: 2″ thick mild steel
Frame: Fully welded steel
Positioning accuracy: .001″
Table base dimensions: 58″ x 109″

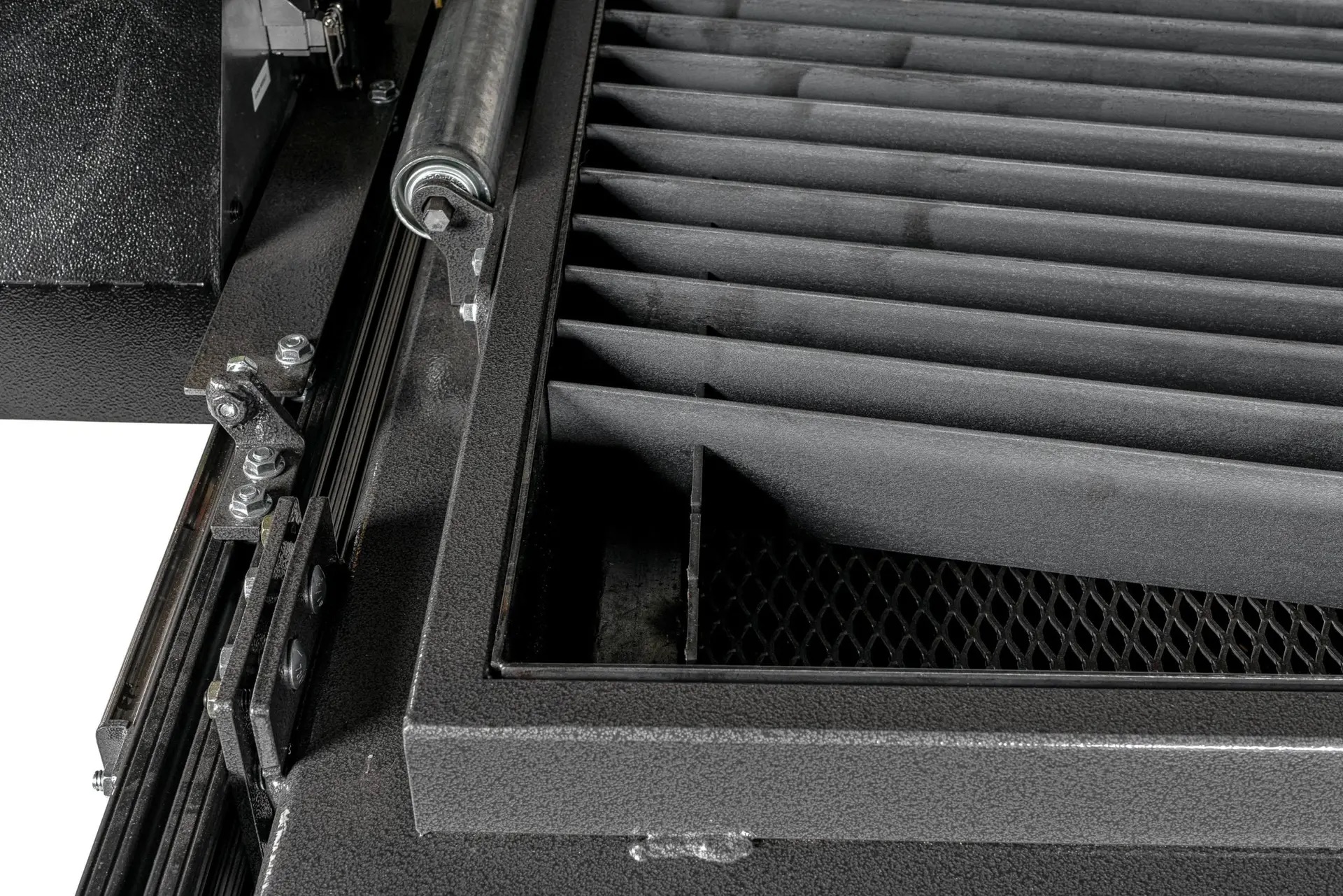

Water pan capacity: 250 gallons
Table power: 110V / 15-20A
Overall weight: 2,500 lbs
Controller: Flashcut CNC

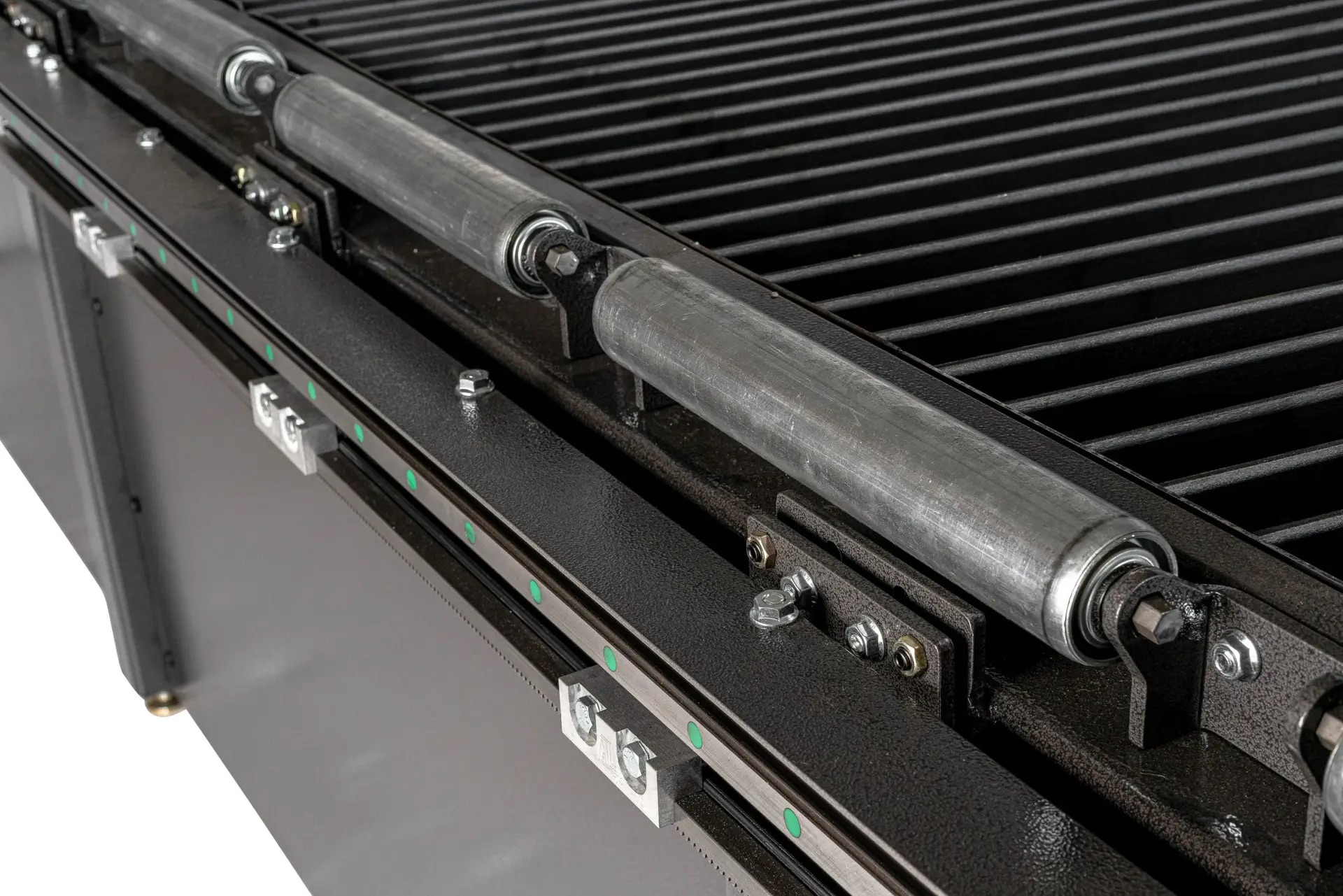

Drive system: HIWIN precision linear rails, low-mass aircraft-grade aluminum gantry
Motors: NEMA 34, 940 oz stepper
Rapids: 800 IPM
Plasma source not included — available to add Hypertherm Plasmasource for additional cost, buyer’s choice of amperage

Equipped With:

Collision Detection System
Laser Torch Alignment System
Mobile Cabinet
